Page 1425 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Install the special tool. 10. Remove the bolts and the alternator support bracket. 11. Remove the nut and position the wiring harness aside. 12. Remove the stud and position the coolant hose ass

Page 1426 of 4378

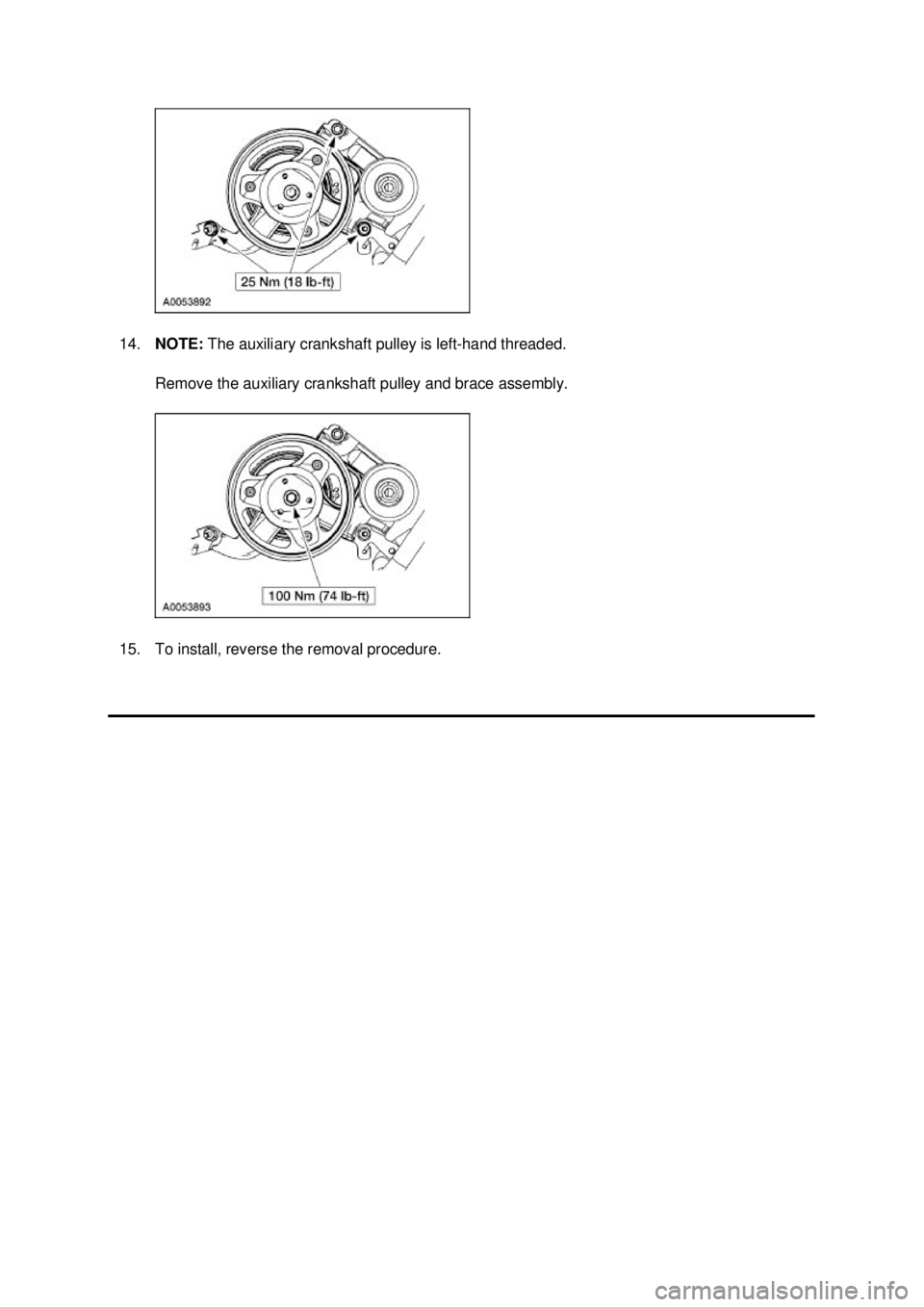

FORD MUSTANG 2003 Workshop Manual 14. NOTE: The auxiliary crankshaft pulley is left- hand threaded. Remove the auxiliary crankshaft pulley and brace assembly. 15. To install, reverse the removal procedure. Klj . 4 ba 42003

Page 1427 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Crankshaft Front Seal Removal 1. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section. 2. Using the special tool, remove the c

Page 1428 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil. 2. Using the special tool, install the crankshaft front seal. 3. Install the cranksha

Page 1429 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1430 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Engine Front Cover Removal 1. Remove the crankshaft front seal. For additional information, refer to Crankshaft Front Seal in this section. 2. Remove the oil filter adapter.

Page 1431 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the crankshaft position sensor. 7. Remove the four front bolts. 8. Disconnect the generator electrical connector. 9. Remove the generator B+ terminal nut and detach the B+ cable. K

Page 1432 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the bolts and the generator. 11. Remove the generator support bracket. 12. Drain the engine coolant and the supercharger coolant. For additional information, refer to Section 303 - 03A
