FORD MUSTANG 2003 Workshop Manual test? This is an intermittent fault.
The fault condition is not
present at this time. GO to
B6
.

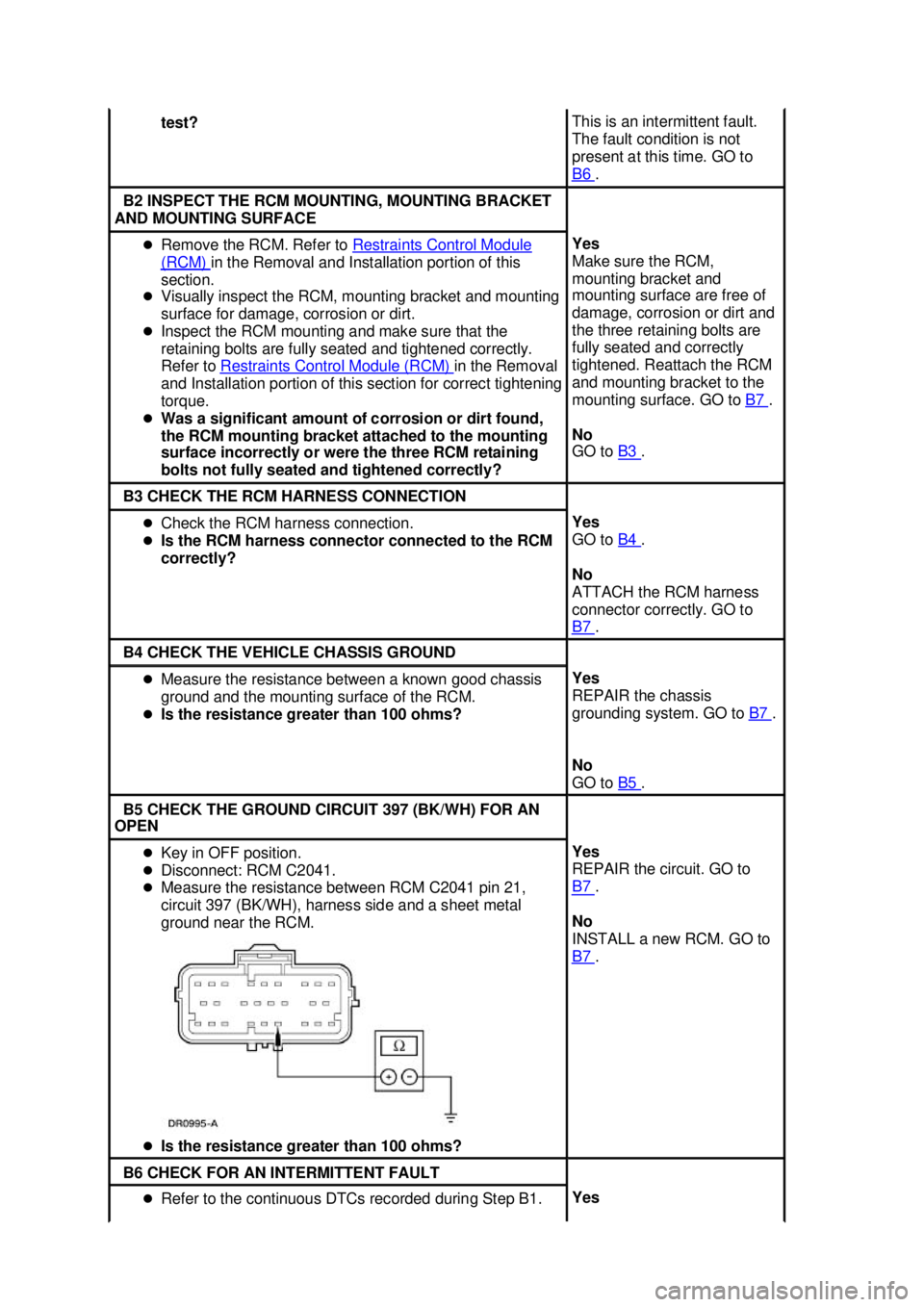

B2 INSPECT THE RCM MOUNTING, MOUNTING BRACKET
AND MOUNTING SURFACE �z
Remove the RCM. Refer to

test? This is an intermittent fault.
The fault condition is not
present at this time. GO to
B6
.
B2 INSPECT THE RCM MOUNTING, MOUNTING BRACKET
AND MOUNTING SURFACE z
Remove the RCM. Refer to Restraints Control Module (RCM) in the Removal and Installation portion of this
section.
z Visually inspect the RCM, mounting bracket and mounting
surface for damage, corrosion or dirt.
z Inspect the RCM mounting and make sure that the
retaining bolts are fully seated and tightened correctly.
Refer to Restraints Control Module (RCM) in the Removal
and Installation portion of this section for correct tightening
torque.
z Was a significant amount of corrosion or dirt found,
the RCM mounting bracket attached to the mounting
surface incorrectly or were the three RCM retaining
bolts not fully seated and tightened correctly? Yes
Make sure the RCM,
mounting bracket and
mounting surface are free of
damage, corrosion or dirt and
the three retaining bolts are
fully seated and correctly
tightened. Reattach the RCM
and mounting bracket to the
mounting surface. GO to
B7 .
No
GO to B3 .
B3 CHECK THE RCM HARNESS CONNECTION
z
Check the RCM harness connection.
z Is the RCM harness connector connected to the RCM
correctly? Yes
GO to
B4 .
No
ATTACH the RCM harness
connector correctly. GO to
B7 .
B4 CHECK THE VEHICLE CHASSIS GROUND
z
Measure the resistance between a known good chassis
ground and the mounting surface of the RCM.
z Is the resistance greater than 100 ohms? Yes
REPAIR the chassis
grounding system. GO to
B7 .
No
GO to B5 .
B5 CHECK THE GROUND CIRCUIT 397 (BK/WH) FOR AN
OPEN z
Key in OFF position.
z Disconnect: RCM C2041.
z Measure the resistance between RCM C2041 pin 21,
circuit 397 (BK/WH), harness side and a sheet metal
ground near the RCM.
z Is the resistance greater than 100 ohms? Yes
REPAIR the circuit. GO to
B7
.
No
INSTALL a new RCM. GO to
B7 .
B6 CHECK FOR AN INTERMITTENT FAULT
z
Refer to the continuous DTCs recorded during Step B1. Yes Klj . 6 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4034 of 4378

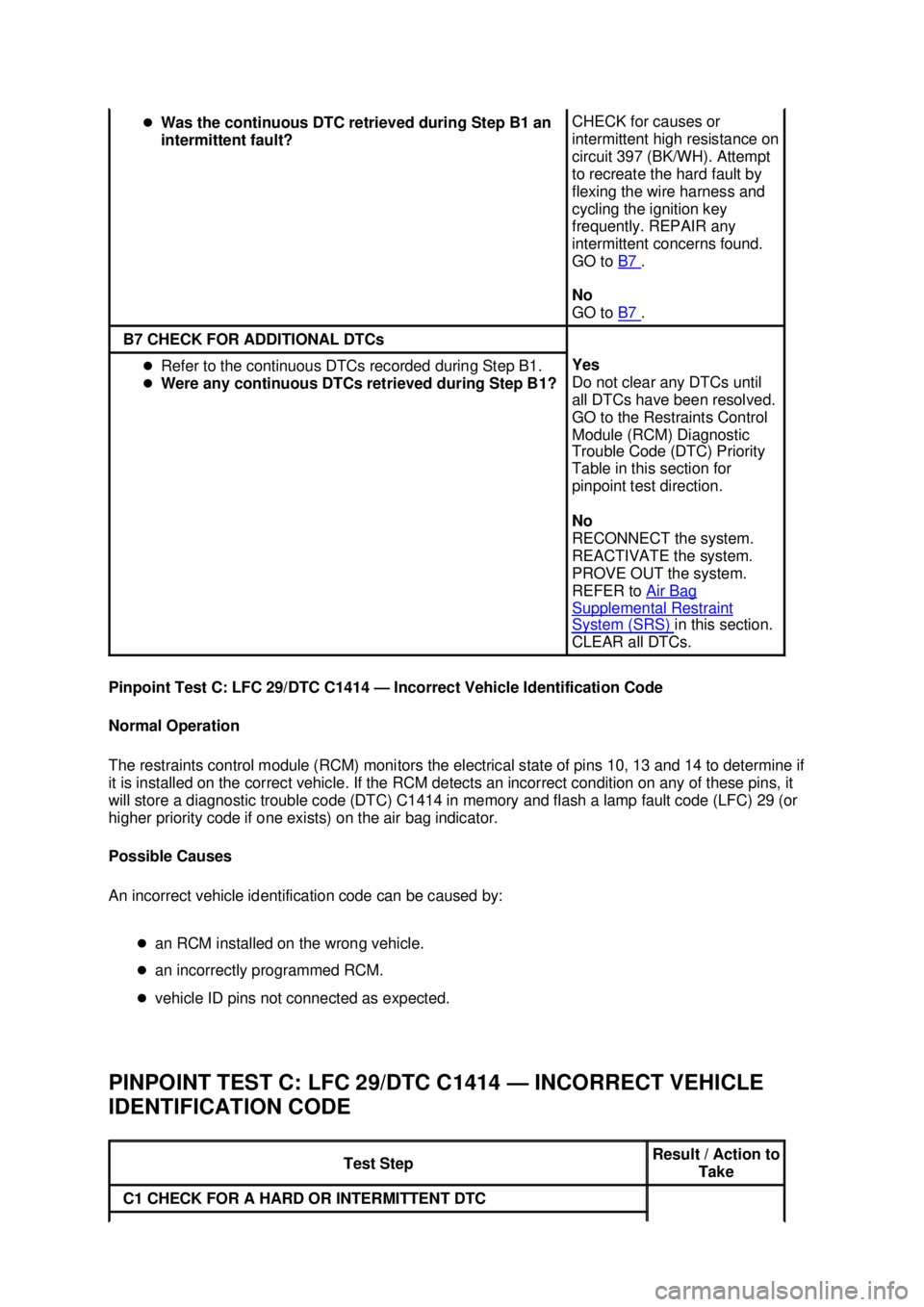

FORD MUSTANG 2003 Workshop Manual Pinpoint Test C: LFC 29/DTC C1414 —
Incorrect Vehicle Identification Code
Normal Operation
The restraints control module (RCM) monitors the electrical state of pins 10, 13 and 14 to determine if

Page 4035 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Key in OFF position.
�z Connect the diagnostic tool. Scan Tool
�z Key in ON position.
�z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
�z Retrieve

z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this pinpoint
test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC C1414 retrieved during the on- demand self test? Yes
This is a hard
fault. The fault
condition is still
present. This fault
cannot be cleared
until it is corrected
and the DTC is no
longer retrieved
during the on-
demand self test.
GO to
C2 .
No
This is an
intermittent fault.
The fault condition
is not present at
this time. GO to
C5 .
C2 CHECK THE VEHICLE IDENTIFICATION PINS NO. 1 AND NO. 2
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to be
performed on a seat equipped with a seat side air bag with the seat in
the vehicle. Prior to attempting to diagnose or repair a seat concern
when equipped with a seat side air bag, the seat must be removed
from the vehicle and the restraint system diagnostic tools must be
installed in the seat side air bag electrical connectors. The restraint
system diagnostic tools must be removed prior to operating the
vehicle over the road. NOTE: After diagnosing or repairing an SRS,
the restraint system diagnostic tools must be removed before
operating the vehicle over the road. NOTE: After diagnosing or
repairing a seat system, the restraint system diagnostic tools must
be removed before operating the vehicle over the road. NOTE:
The SRS must be fully operational and free of faults before releasing
the vehicle to the customer. NOTE: For this vehicle application, RCM
C2041 pins 10 and 13 should be open circuited.
z Key in OFF position.
z Deactivate the system. Refer to Air Bag Supplemental Restraint System (SRS) in the Diagnosis and Testing portion of this section.
z Key in OFF position.
z Disconnect: RCM C2041.
z Make sure the RCM C2041 pin 10 and pin 13 connector slots are
empty and no connection is made when connected to the RCM.
z Are the RCM C2041 pin 10 and pin 13 connector slots empty? Yes
GO to
C3 .
No
REPAIR any
concern found at
the RCM C2041
pin 10 and pin 13
connector slots.
GO to C6 .
C3 CHECK THE VEHICLE IDENTIFICATION PIN NO. 3
NOTE:
For this vehicle application, RCM C2041 pin 14, circuit 611
(WH/OG) should be connected to ignition voltage.
z Measure the voltage at RCM C2041 pin 14, circuit 611 (WH/OG),
harness side and ground. Yes
GO to
C4 .
No
REPAIR the
circuit. GO to C6 . Klj . 8 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4036 of 4378

FORD MUSTANG 2003 Workshop Manual �z
Is the voltage greater than 10 volts? C4 CHECK THE RCM PROGRAMMED VEHICLE ID
�z
Enter the following diagnostic mode on the diagnostic tool: PID/Data
Monitor and Record.
�z Select PID VID No. 1,

Page 4037 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Test D: LFC 15/DTC B 1887—
Driver Air Bag Circuit Shorted to Ground
Normal Operation
The restraints control module (RCM) checks for driver air bag circuit shorts to ground by monitoring t

Page 4038 of 4378

FORD MUSTANG 2003 Workshop Manual D2 CHECK THE DRIVER AIR BAG MODULE
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Re

D2 CHECK THE DRIVER AIR BAG MODULE
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or
repairing an SRS, the restraint system diagnostic tools must be
removed before operating the vehicle over the road. NOTE:
After diagnosing or repairing a seat system, the restraint system
diagnostic tools must be removed before operating the vehicle
over the road. NOTE: The SRS must be fully operational and free
of faults before releasing the vehicle to the customer.
z Key in OFF position.
z Deactivate the system. Refer to Air Bag Supplemental Restraint System (SRS) in the Diagnosis and Testing portion of this section.
z Key in OFF position.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1887 retrieved? Yes
GO to
D3 .
No
INSTALL a new
driver air bag
module. GO to D6 .
D3 CHECK THE DRIVER AIR BAG MODULE CIRCUIT
z
Key in OFF position.
z Disconnect: RCM C2041.
z NOTE: Do not separate or remove shorting bars from RCM C2041.
z Measure the resistance between RCM C2041 pin 3, circuit 614
(GY/OG), harness side and RCM C2041 pin 21, circuit 397
(BK/WH), harness side.
z Is the resistance less than 10,000 ohms? Yes
GO to
D4 .
No
INSTALL a new
RCM. GO to D6 .
D4 CHECK THE DRIVER AIR BAG MODULE WIRING AND THE
CLOCKSPRING z
Disconnect: Driver Air Bag Module C216.
z Disconnect: Clockspring C218b.
z Inspect all crimps, terminals, wires and connectors in circuit 614
(GY/OG) feeding the RCM pin 3, circuit 615 (GY/WH) feeding pin 4,
the clockspring C218b. Check for pinched wires and damaged
connector pin terminals.
z Was any damage found? Yes
REPAIR as
necessary. GO to
D6
.
No
GO to D6 . Klj . 11 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 4039 of 4378

FORD MUSTANG 2003 Workshop Manual Pinpoint Test E: LFC 15/DTC B1916 —
Driver Air Bag Circuit Shorted to Battery or Ignition
Normal Operation
The restraints control module (RCM) checks for driver air bag circuit shorts to battery o

Page 4040 of 4378

FORD MUSTANG 2003 Workshop Manual A driver air bag circuit short to battery or ignition can be caused by:
�za short to battery or ignition on circuit 614 (GY/OG).
�z a short to battery or ignition on circuit 615 (GY/WH).
�z a short

A driver air bag circuit short to battery or ignition can be caused by:
za short to battery or ignition on circuit 614 (GY/OG).
z a short to battery or ignition on circuit 615 (GY/WH).
z a short to battery or ignition on the clockspring.
z a short to battery or ignition on the driver air bag module.
z an RCM internal concern.
PINPOINT TEST E: LFC 15/DTC B1916 — DRIVER AIR BAG CIRCUIT
SHORTED TO BATTERY OR IGNITION Test Step Result / Action to
Take E1 CHECK FOR A HARD OR INTERMITTENT DTC
z
Key in OFF position.
z Connect the diagnostic tool. Scan Tool
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Retrieve/Clear Continuous DTCs.
z Retrieve and record any continuous DTCs for use later in this
pinpoint test.
z Enter the following diagnostic mode on the diagnostic tool: On-
Demand Self Test.
z Was DTC B1916 retrieved during the on- demand self test? Yes
This is a hard fault.
The fault condition
is still present. This
fault cannot be
cleared until it is
corrected and the
DTC is no longer
retrieved during the
on-
demand self
test. GO to E2 .
No
This in an
intermittent fault.
The fault condition
is not present at this
time. GO to E5 .
E2 CHECK THE DRIVER AIR BAG MODULE
WARNING: If the supplemental restraint system (SRS) is
being serviced, the system must be deactivated and restraint
system diagnostic tools must be installed. Refer to Air Bag Supplemental Restraint System (SRS) in this section.
The air bag restraint system diagnostic tools must be removed
and the air bag modules reconnected when the system is
reactivated to avoid non- deployment in a collision, resulting in
possible personal injury. NOTE: Diagnostics or repairs are not to
be performed on a seat equipped with a seat side air bag with the
seat in the vehicle. Prior to attempting to diagnose or repair a seat
concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools
must be installed in the seat side air bag electrical connectors. The
restraint system diagnostic tools must be removed prior to
operating the vehicle over the road. NOTE: After diagnosing or
repairing an SRS, the restraint system diagnostic tools must be
removed before operating the vehicle over the road. NOTE:
After diagnosing or repairing a seat system, the restraint system
diagnostic tools must be removed before operating the vehicle Yes
GO to
E3 .
No
INSTALL a new
driver air bag
module. GO to E6 . Klj . 13 ba
462003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Load next 8 pages

Page: < prev 1-10 ... 4001-4008 4009-4016 4017-4024 4025-4032 4033-4040 4041-4048 4049-4056 4057-4064 4065-4072 ... 4384 next >

wheelbase fuel type instrument panel coolant temperature navigation system steering
