DIAGNOSIS AND TESTING
Audio System
Refer to
Section 415 - 00 .
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3418 of 4378
REMOVAL AND INSTALLATION
Audio Unit
Removal and Installation
1. Remove the instrument panel center finish panel. For additional information, refer to Section 501 - 12 .
2. Remove the audio unit. 1. Remove the screws.
2. Disconnect electrical connectors.
3. Disconnect antenna cable.
3. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3419 of 4378
REMOVAL AND INSTALLATION
Subwoofer Amplifier —
Convertible
Removal and Installation 1. NOTE: The convertible top needs to be in the up position to remove the subwoofer amplifiers.
From inside the luggage compartment, remove the forward panel. 1. Remove the pin- type retainers.
2. Remove the forward panel.
2. NOTE: LH and RH subwoofer amplifiers are similar.
Remove the subwoofer amplifiers. 1. Disconnect the electrical connectors.
2. Remove the nuts.
3. Remove the subwoofer amplifiers.
3. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3420 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3421 of 4378
REMOVAL AND INSTALLATION
Subwoofer Amplifier —
Coupe
Removal and Installation 1. Remove the subwoofer amplifier. 1. Remove the screws.
2. Remove the subwoofer amplifier.
2. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3422 of 4378
REMOVAL AND INSTALLATION
Subwoofer Amplifier —
Mach 1000
Removal and Installation 1. Remove the subwoofer assembly. 1. Remove the two attaching nuts.
2. Remove the screw.
3. Disconnect the electrical connectors.
2. Remove the subwoofer amplifiers. zRemove the bracket- to-body attaching nuts.
z Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3423 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3424 of 4378

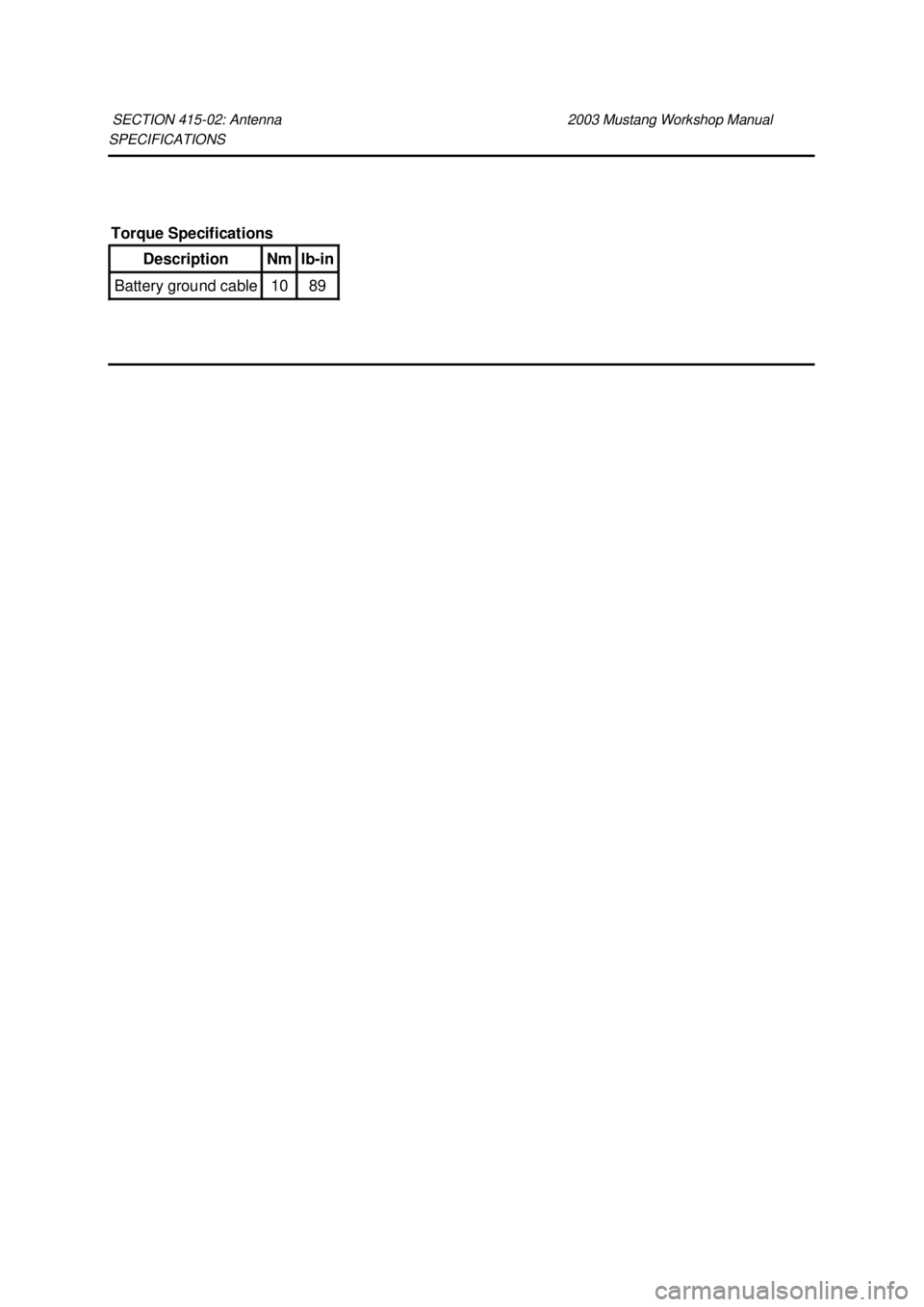

SPECIFICATIONS
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable 10 89 Klj . 1 ba
12003 Mustang Workshop Manual
