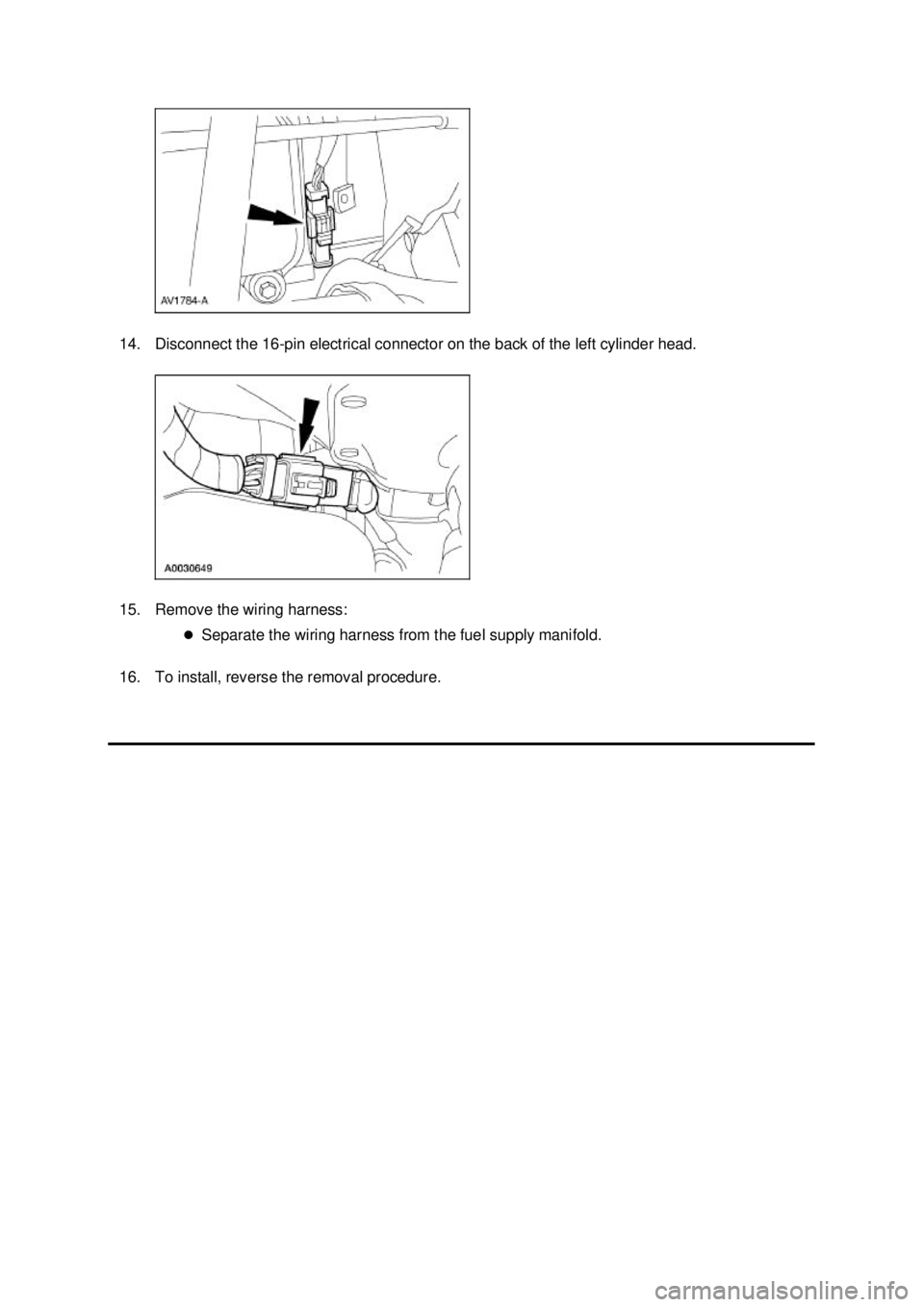

FORD MUSTANG 2003 Workshop Manual 14. Disconnect the 16- pin electrical connector on the back of the left cylinder head. 15. Remove the wiring harness: �zSeparate the wiring harness from the fuel supply manifold. 16. To install, re

Page 1930 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Supply Manifold Removal and Installation WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Hig

Page 1931 of 4378

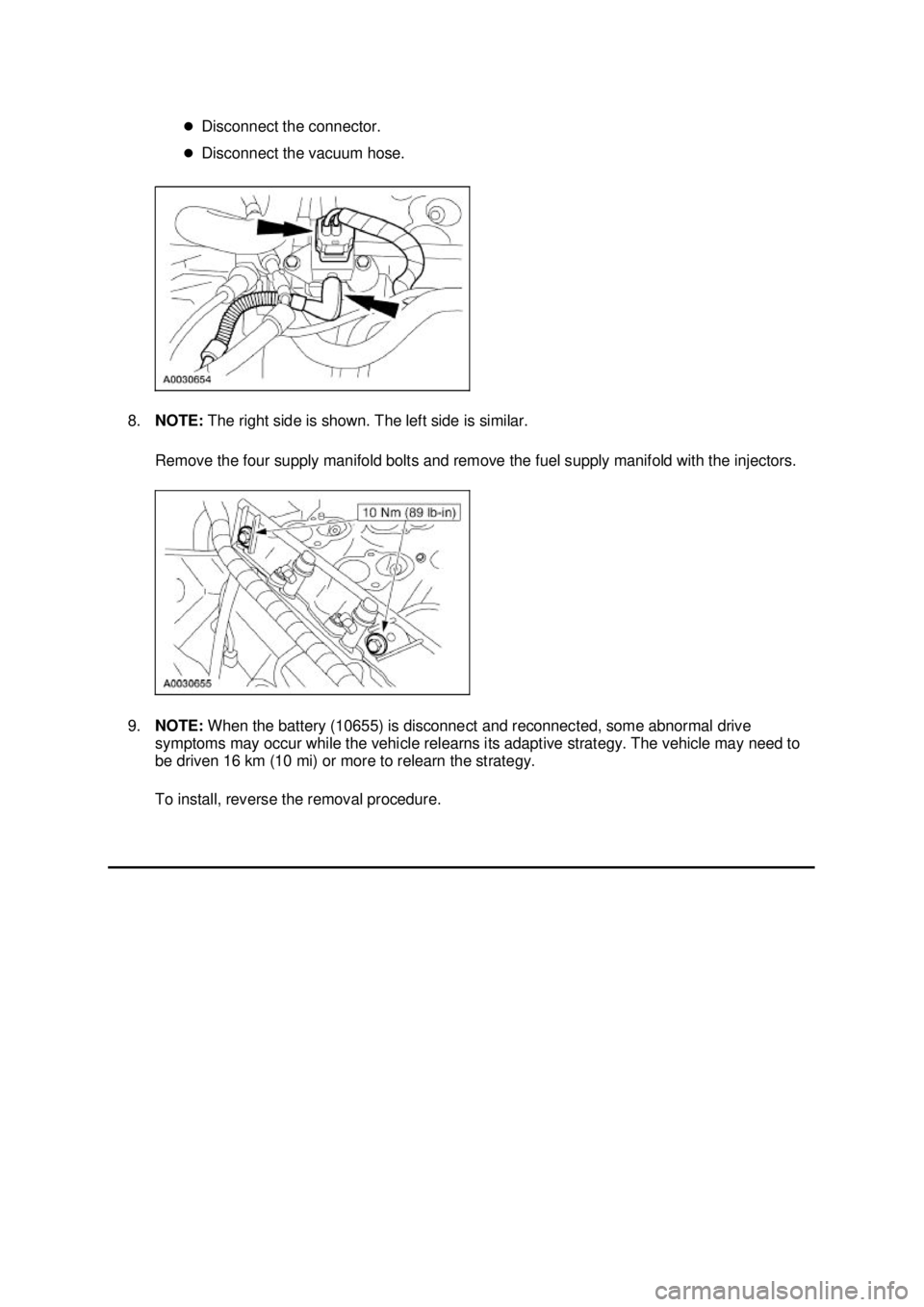

FORD MUSTANG 2003 Workshop Manual �z Disconnect the connector. �z Disconnect the vacuum hose. 8. NOTE: The right side is shown. The left side is similar. Remove the four supply manifold bolts and remove the fuel supply manifold wi

Page 1932 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1933 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 04B: Fuel Charging and Controls — 4.6L (2V) 2003 Mustang Workshop Manual General Specifications Item Specification Lubricants and Chemicals Super Premium SAE 10W-30,

Page 1934 of 4378

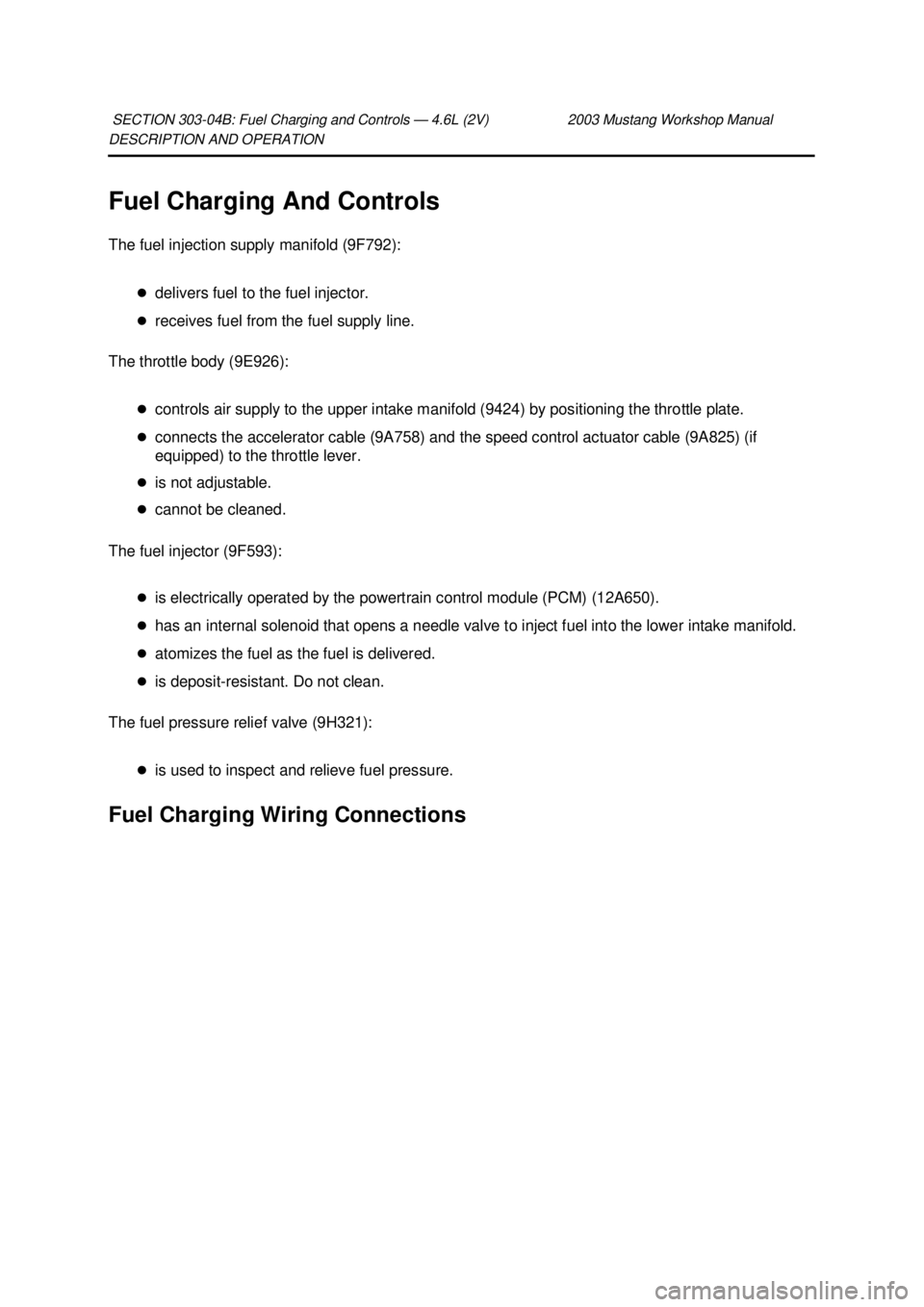

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Fuel Charging And Controls The fuel injection supply manifold (9F792): �zdelivers fuel to the fuel injector. �z receives fuel from the fuel supply line. The throttle bod

Page 1935 of 4378

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 — Engine control sensor wiring — 42 pin electrical connector 2 — RH heated oxygen sensor (HO2S) electrical connector 3 — LH heated oxygen sensor (HO2S

Page 1936 of 4378

FORD MUSTANG 2003 Workshop Manual 12 — Coolant reservoir bottle electrical connector 13 — Radio ignition interference capacitor electrical connector 14 — Fuel injector electrical connectors 15 — Exhaust vacuum regulato
