Page 2449 of 4378

FORD MUSTANG 2003 Workshop Manual 4. With the manual lever in overdrive connect the shift lever control cable. 5. Install the digital TR sensor electrical connector. 6. Lower the vehicle. 7. NOTE: When the battery is disconnected

Page 2450 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2451 of 4378

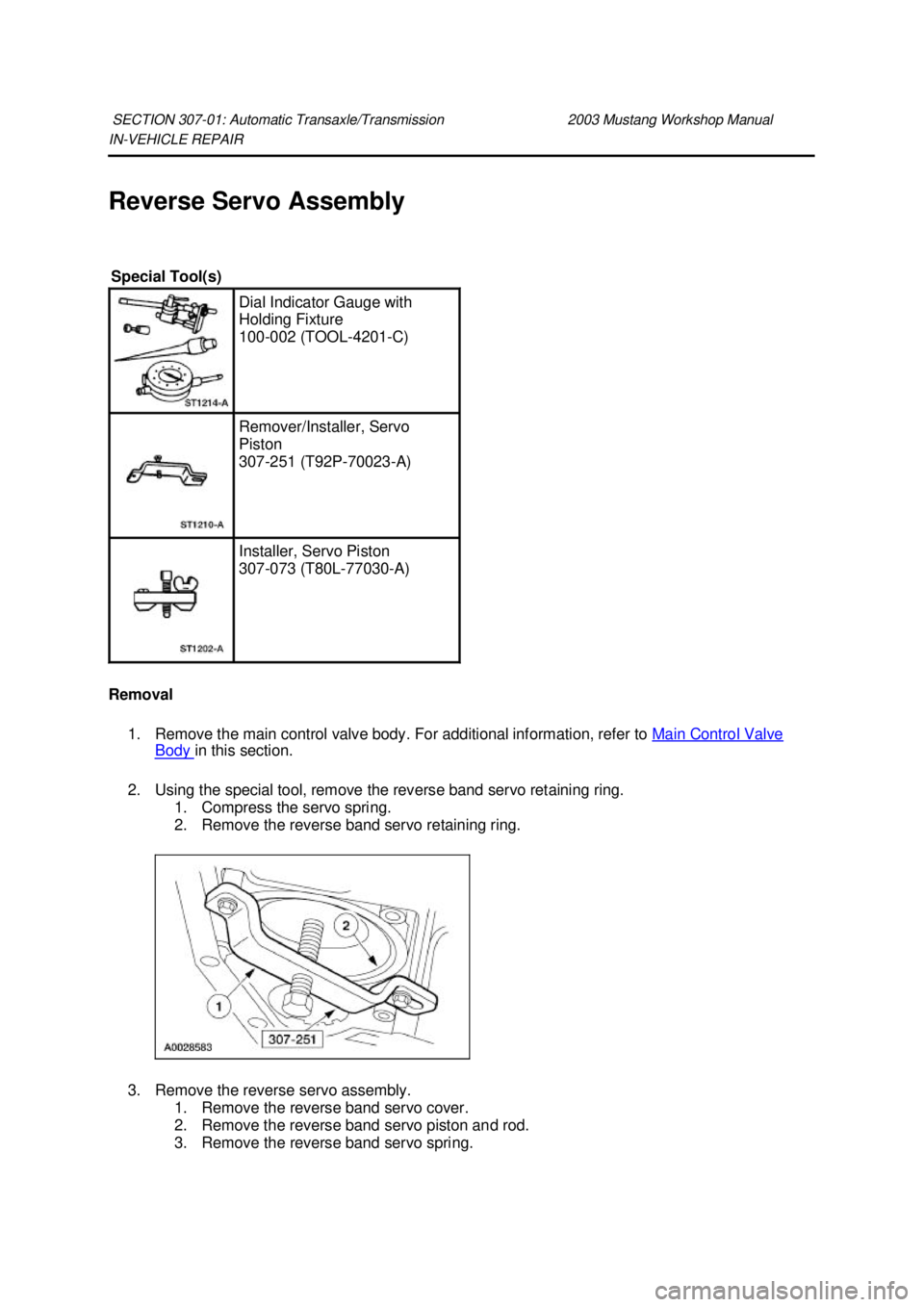

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Reverse Servo Assembly Removal 1. Remove the main control valve body. For additional information, refer to Main Control Valve Body in this section. 2. Using the special tool,

Page 2452 of 4378

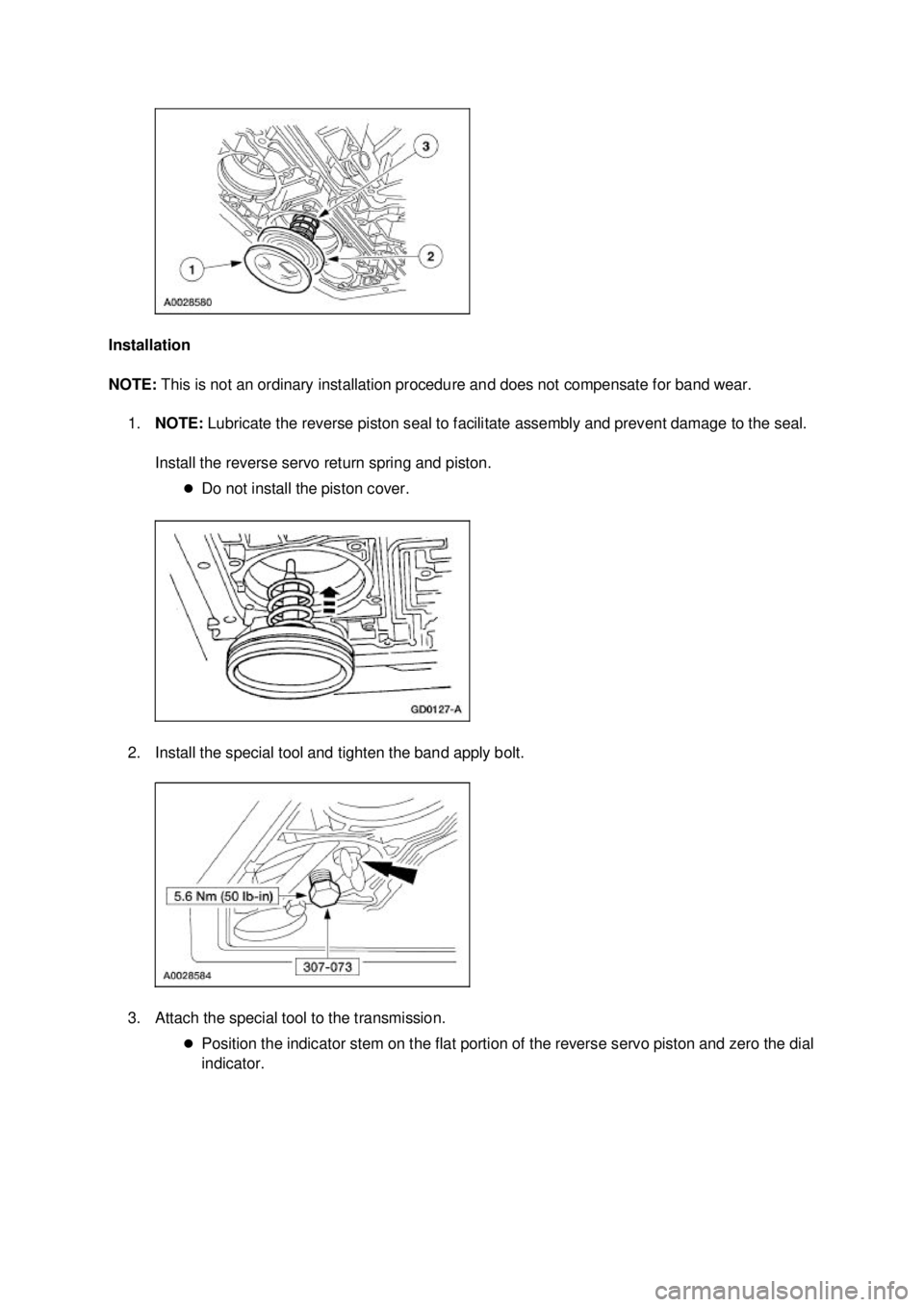

FORD MUSTANG 2003 Workshop Manual Installation NOTE: This is not an ordinary installation procedure and does not compensate for band wear. 1. NOTE: Lubricate the reverse piston seal to facilitate assembly and prevent damage to the

Page 2453 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Loosen the bolt until the piston stops against the tool. 5. Verify that the amount of piston travel on the dial indicator is within specification. 6. If piston travel is not within specification,

Page 2454 of 4378

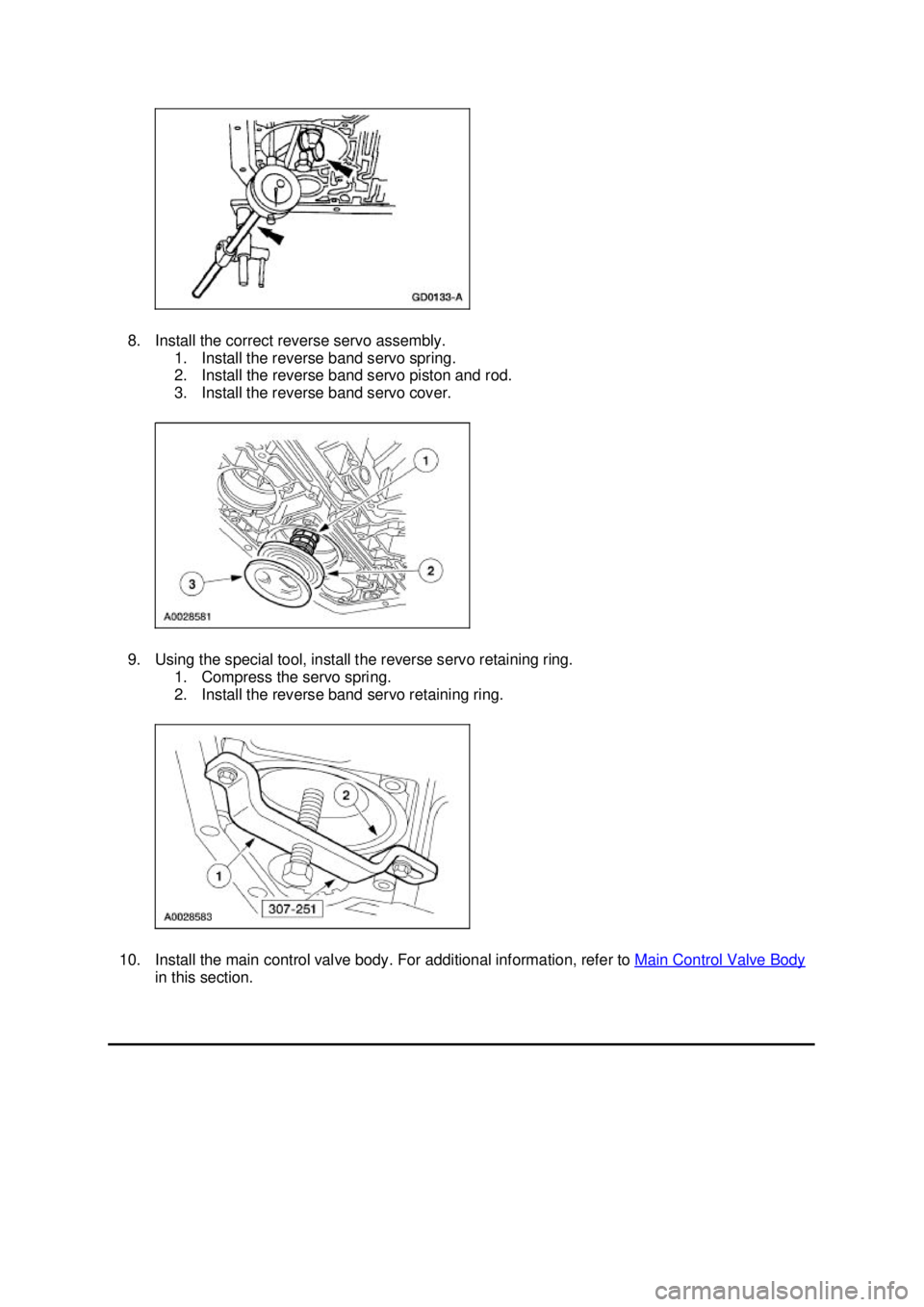

FORD MUSTANG 2003 Workshop Manual 8. Install the correct reverse servo assembly. 1. Install the reverse band servo spring. 2. Install the reverse band servo piston and rod. 3. Install the reverse band servo cover. 9. Using the spe

Page 2455 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2456 of 4378

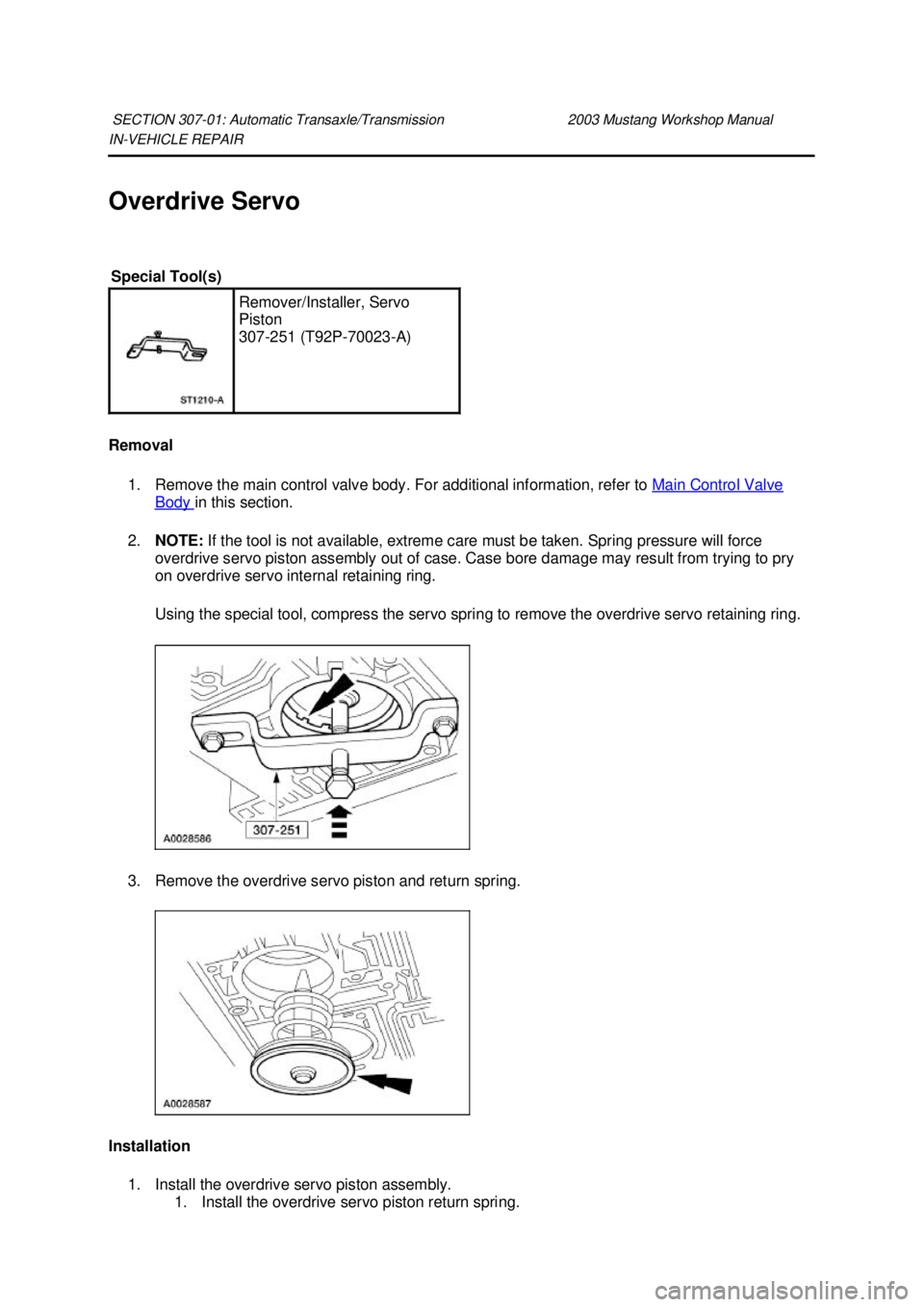

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Overdrive Servo Removal 1. Remove the main control valve body. For additional information, refer to Main Control Valve Body in this section. 2. NOTE: If the tool is not avail
