Page 3801 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Install the LH instrument panel support bolt and nut. 6. Install the four center instrument panel support bolts. 7. NOTE: This step is being carried out through the audio unit opening. Install

Page 3802 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Install the audio unit. For additional information, refer to Section 415 - 01 . 10. If equipped, connect the shift interlock assembly to the selector lever. 1. Position the shift interlock asse

Page 3803 of 4378

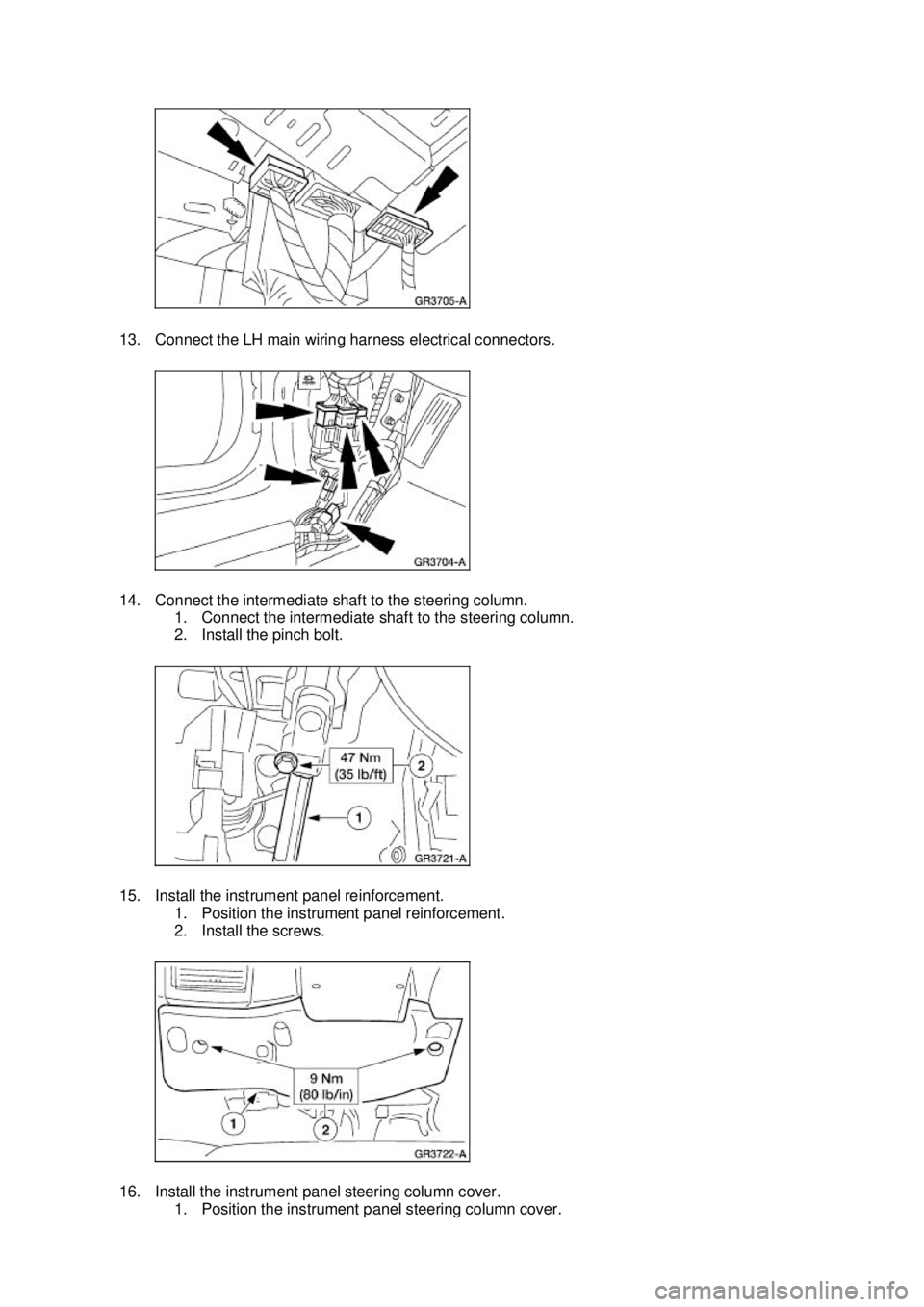

FORD MUSTANG 2003 Workshop Manual 13. Connect the LH main wiring harness electrical connectors. 14. Connect the intermediate shaft to the steering column. 1. Connect the intermediate shaft to the steering column. 2. Install the pin

Page 3804 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Install the screws. 17. Connect climate control wiring harness connector. 18. Connect the RH main harness electrical connectors. 19. Install the LH and RH door weatherstrips. 20. Install the LH

Page 3805 of 4378

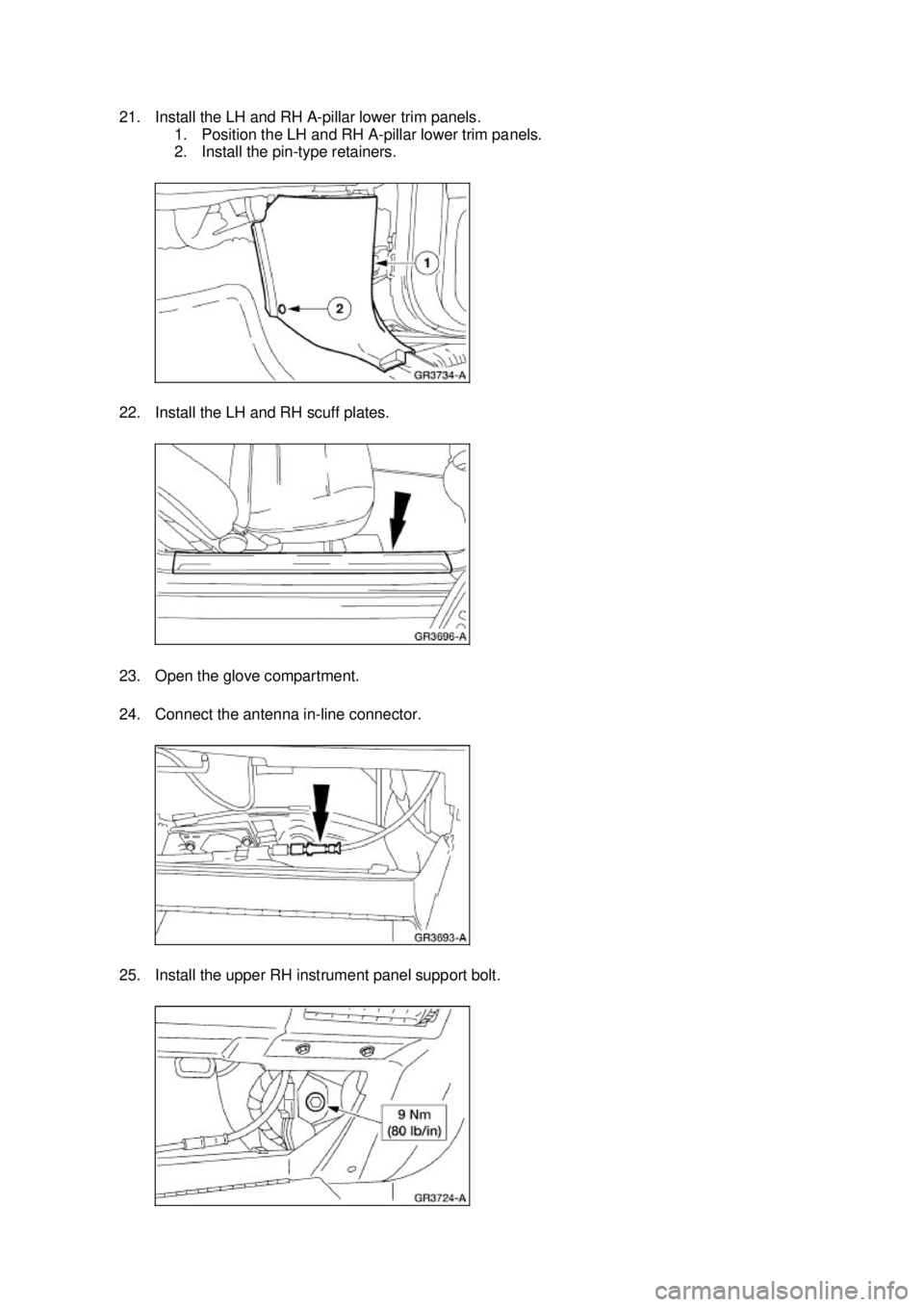

FORD MUSTANG 2003 Workshop Manual 21. Install the LH and RH A- pillar lower trim panels. 1. Position the LH and RH A- pillar lower trim panels. 2. Install the pin- type retainers. 22. Install the LH and RH scuff plates. 23. Open t

Page 3806 of 4378

FORD MUSTANG 2003 Workshop Manual 26. Connect the climate control vacuum harness connector. 27. Install the floor console. For additional information, refer to Floor Console in this section. 28. Remove the LH front wheel and tire

Page 3807 of 4378

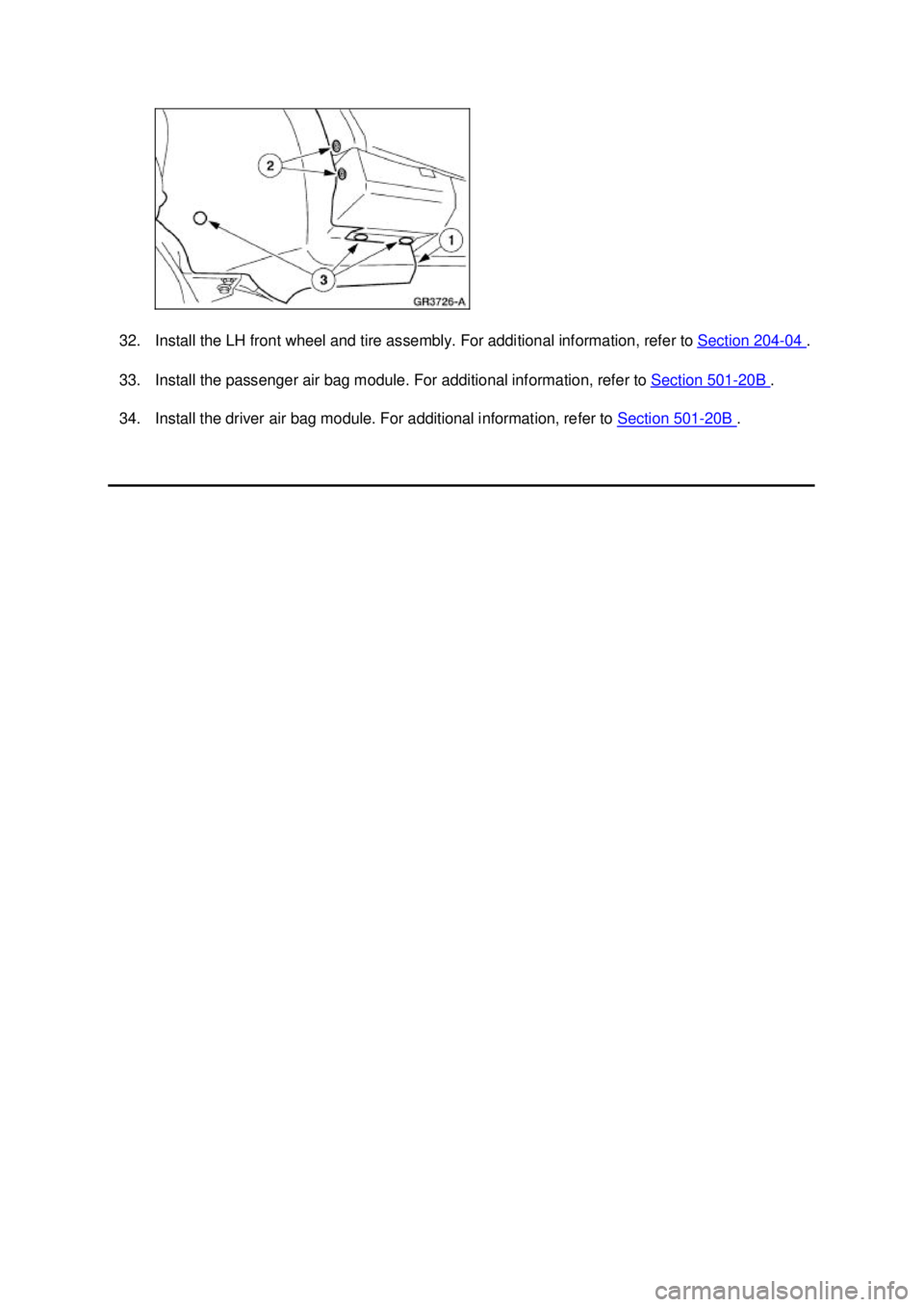

FORD MUSTANG 2003 Workshop Manual 32. Install the LH front wheel and tire assembly. For additional information, refer to Section 204 - 04 . 33. Install the passenger air bag module. For additional information, refer to Section 501

Page 3808 of 4378

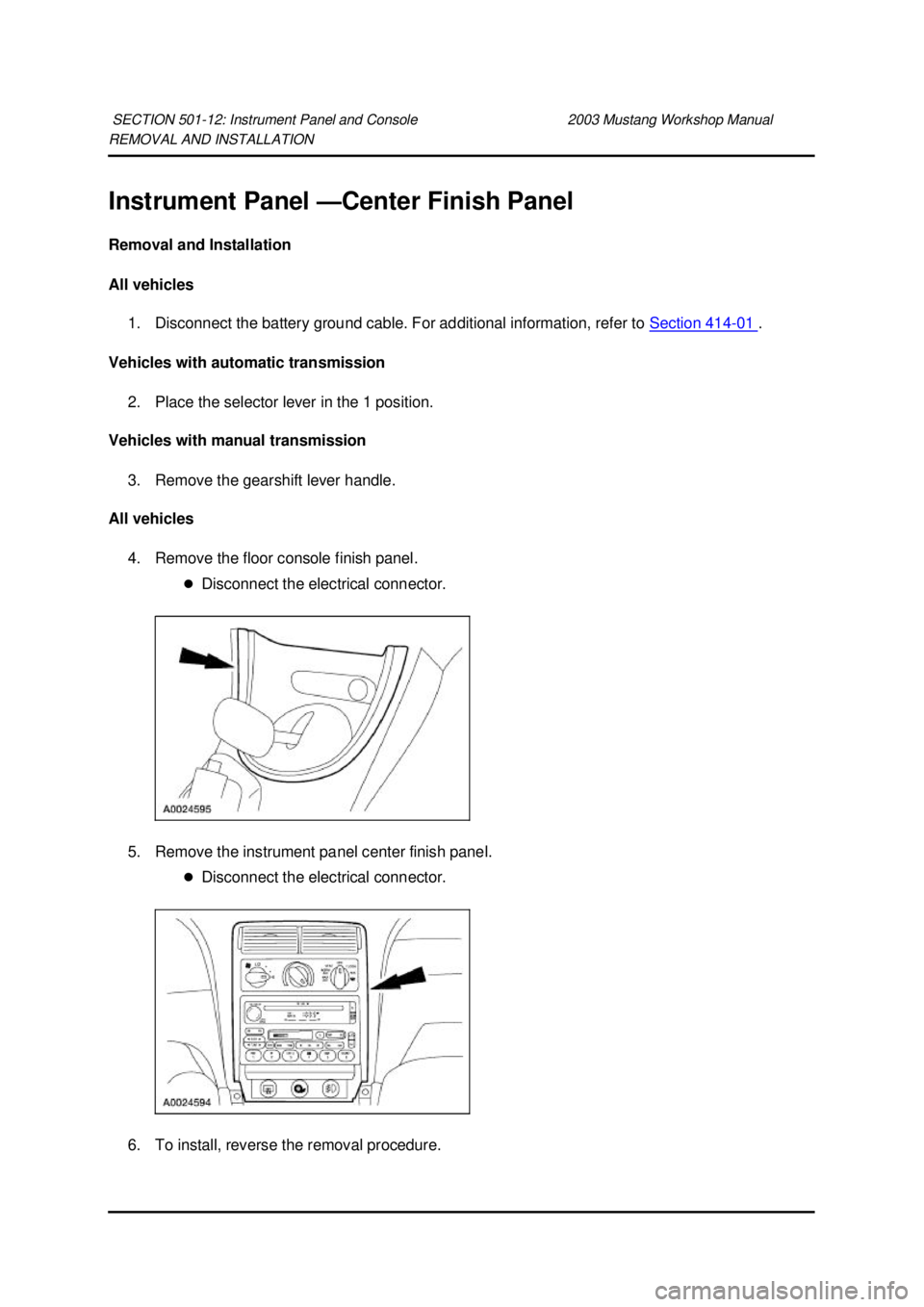

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Instrument Panel — Center Finish Panel Removal and Installation All vehicles 1. Disconnect the battery ground cable. For additional information, refer to Section 414 -
