Page 3993 of 4378

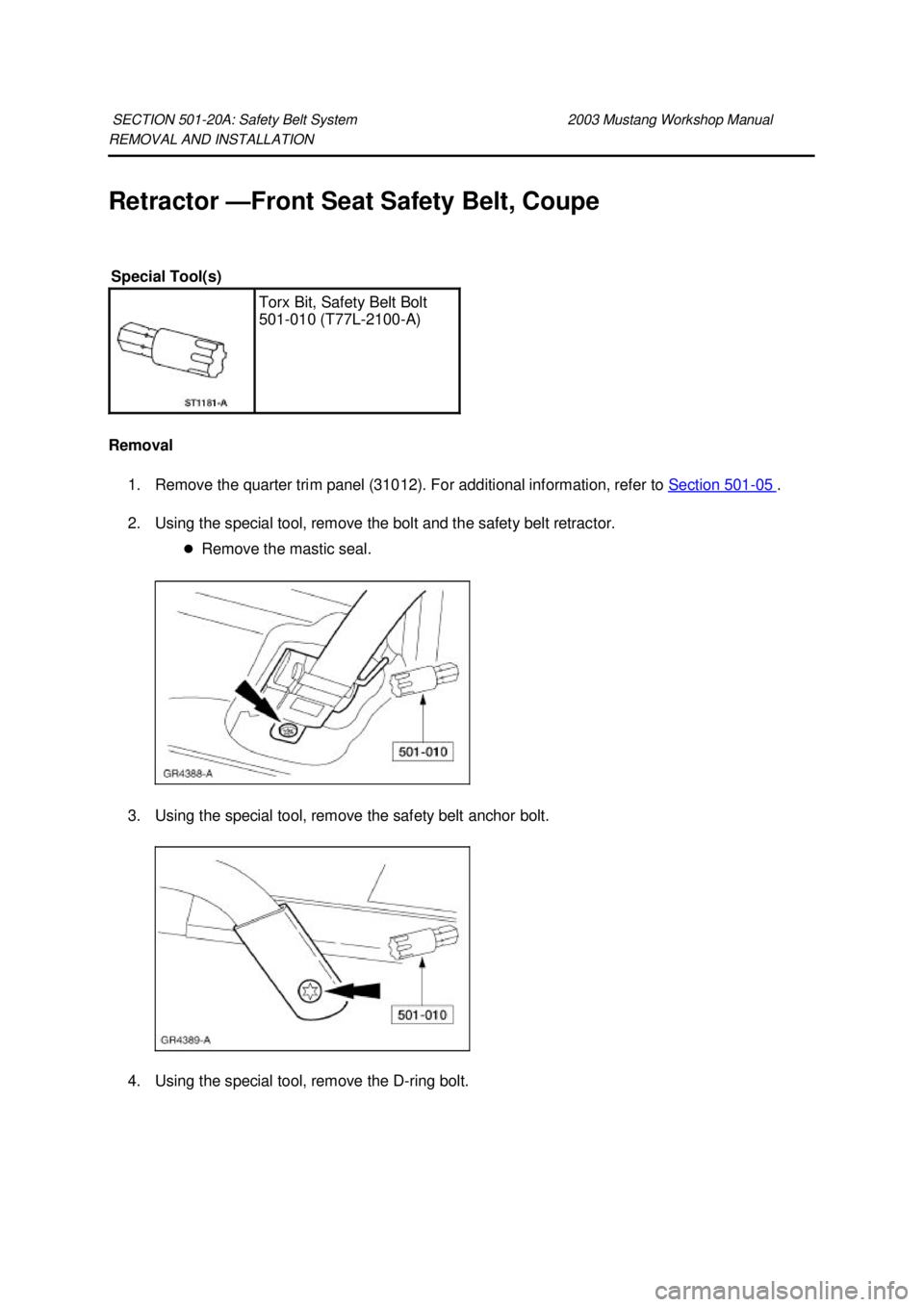

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Retractor — Front Seat Safety Belt, Coupe Removal 1. Remove the quarter trim panel (31012). For additional information, refer to Section 501 - 05 . 2. Using the specia

Page 3994 of 4378

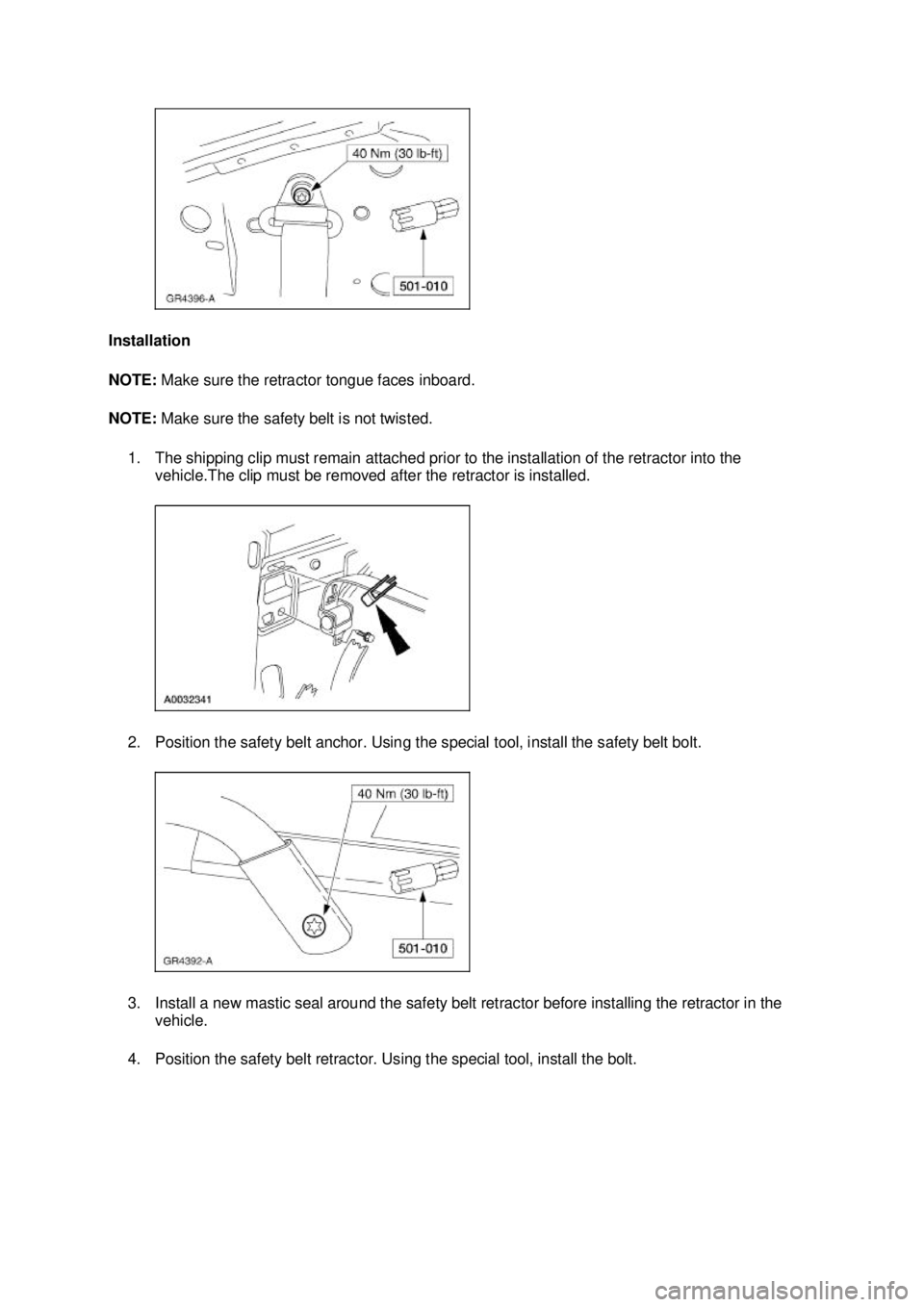

FORD MUSTANG 2003 Workshop Manual Installation NOTE: Make sure the retractor tongue faces inboard. NOTE: Make sure the safety belt is not twisted. 1. The shipping clip must remain attached prior to the installation of the retract

Page 3995 of 4378

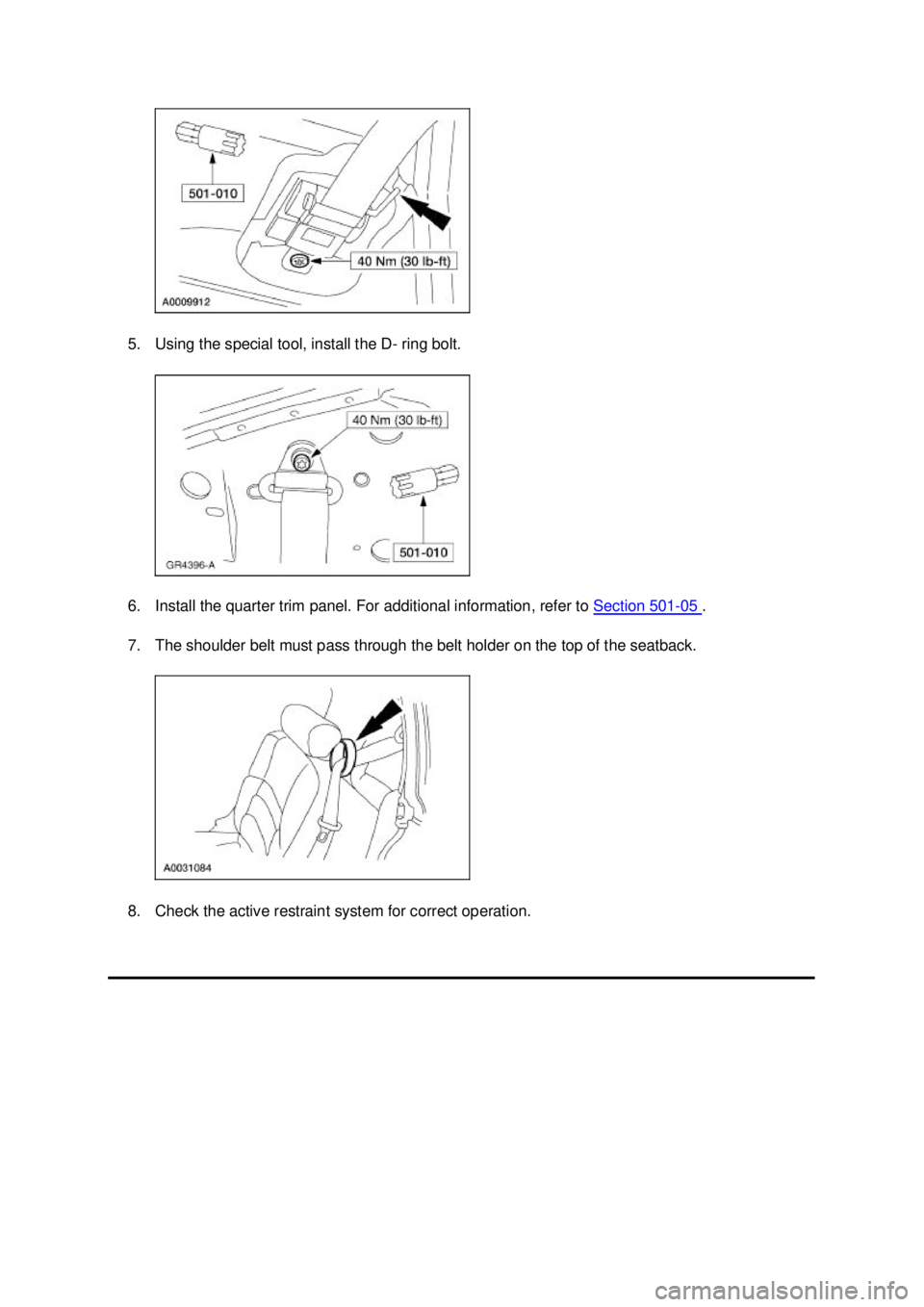

FORD MUSTANG 2003 Workshop Manual 5. Using the special tool, install the D- ring bolt. 6. Install the quarter trim panel. For additional information, refer to Section 501 - 05 . 7. The shoulder belt must pass through the belt hold

Page 3996 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3997 of 4378

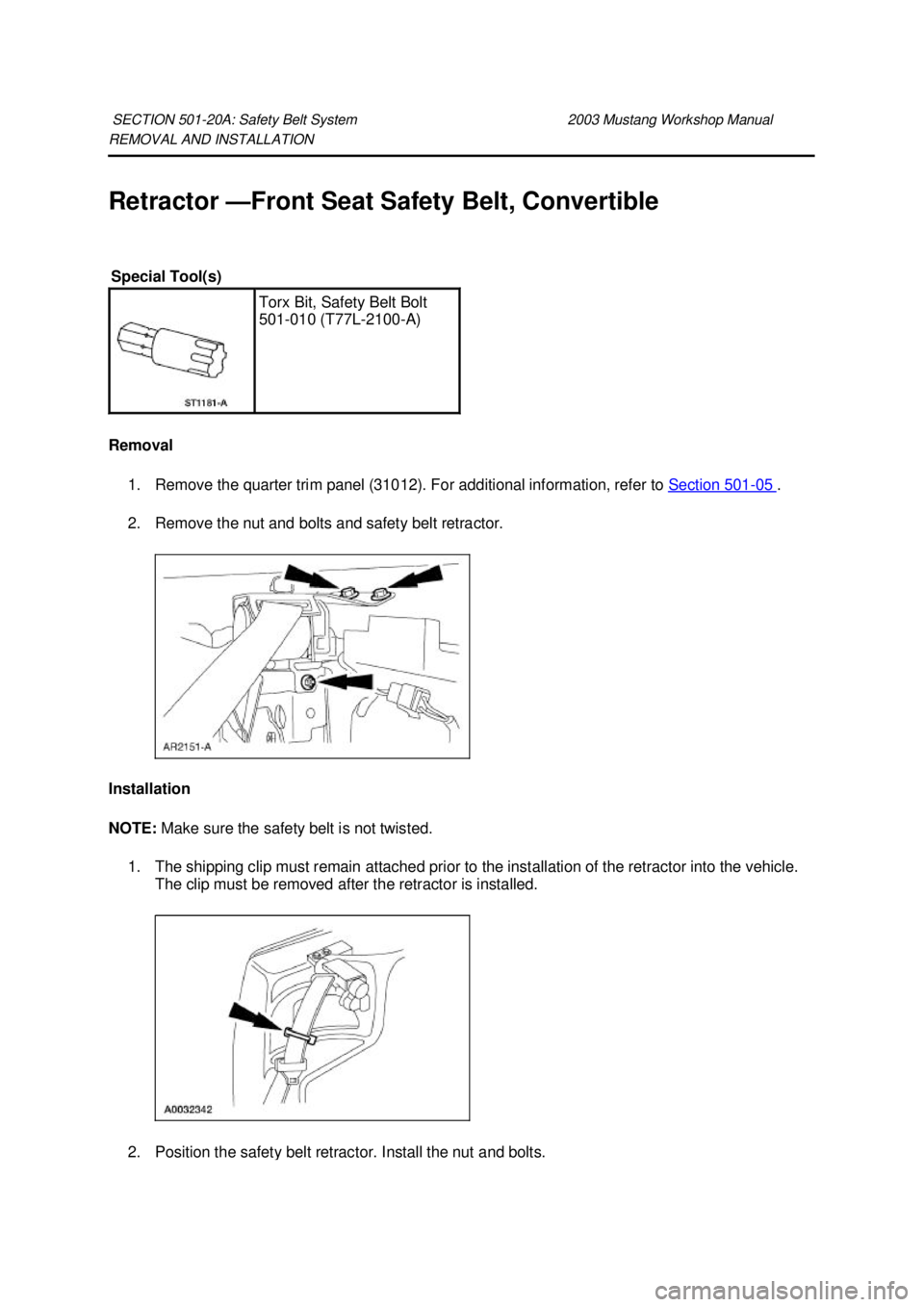

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Retractor — Front Seat Safety Belt, Convertible Removal 1. Remove the quarter trim panel (31012). For additional information, refer to Section 501 - 05 . 2. Remove the

Page 3998 of 4378

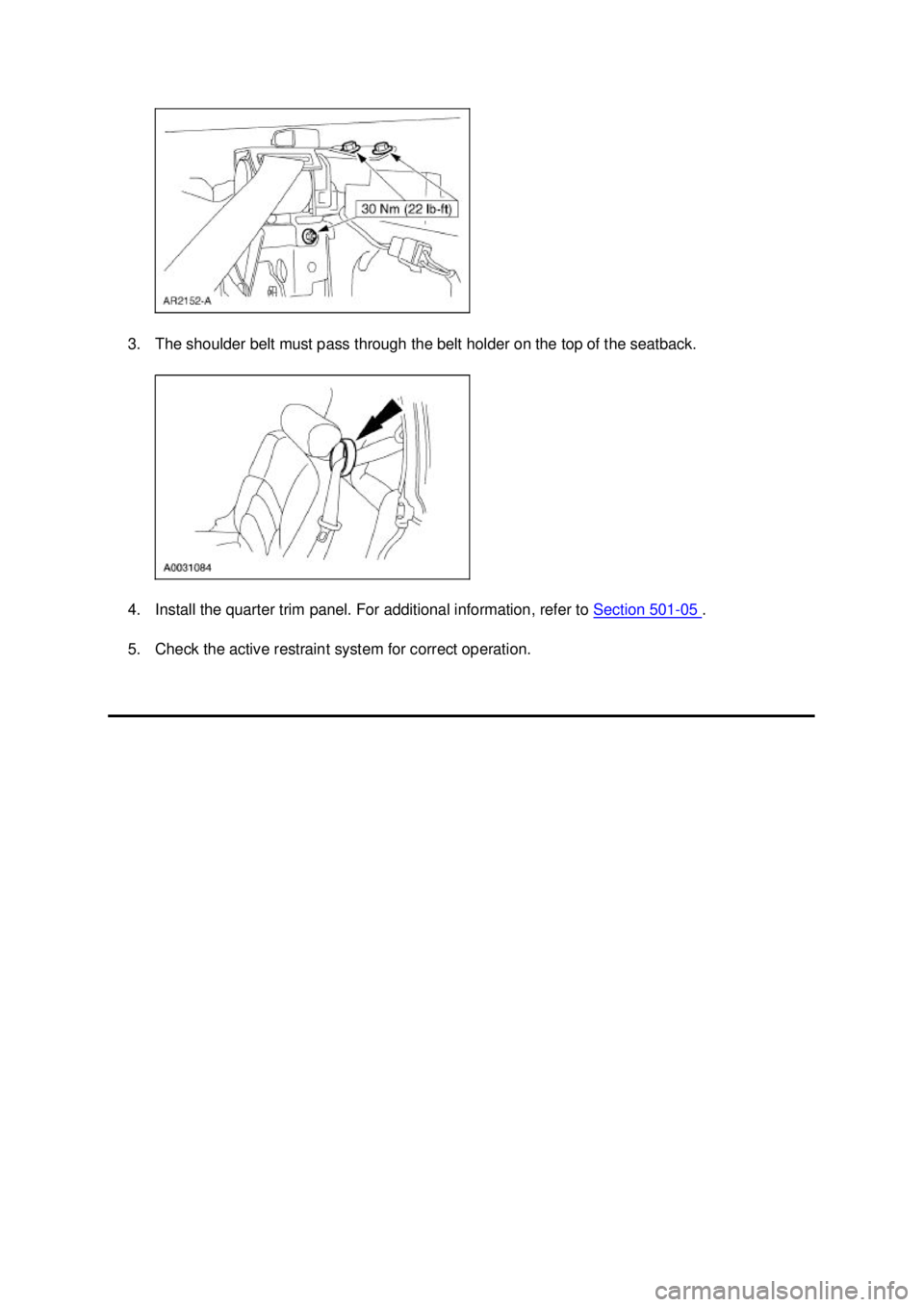

FORD MUSTANG 2003 Workshop Manual 3. The shoulder belt must pass through the belt holder on the top of the seatback. 4. Install the quarter trim panel. For additional information, refer to Section 501 - 05 . 5. Check the active re

Page 3999 of 4378

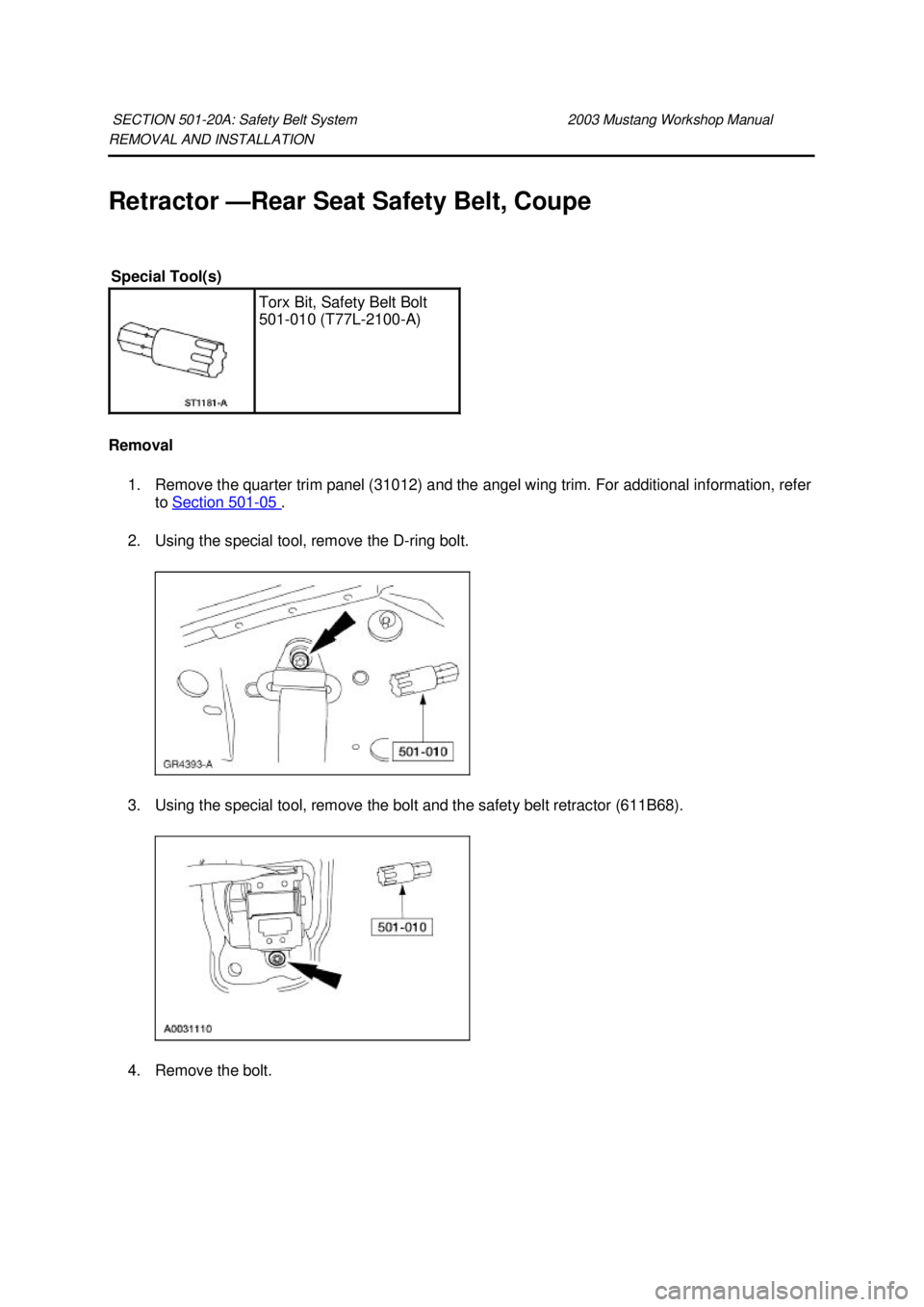

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Retractor — Rear Seat Safety Belt, Coupe Removal 1. Remove the quarter trim panel (31012) and the angel wing trim. For additional information, refer to Section 501 - 05

Page 4000 of 4378

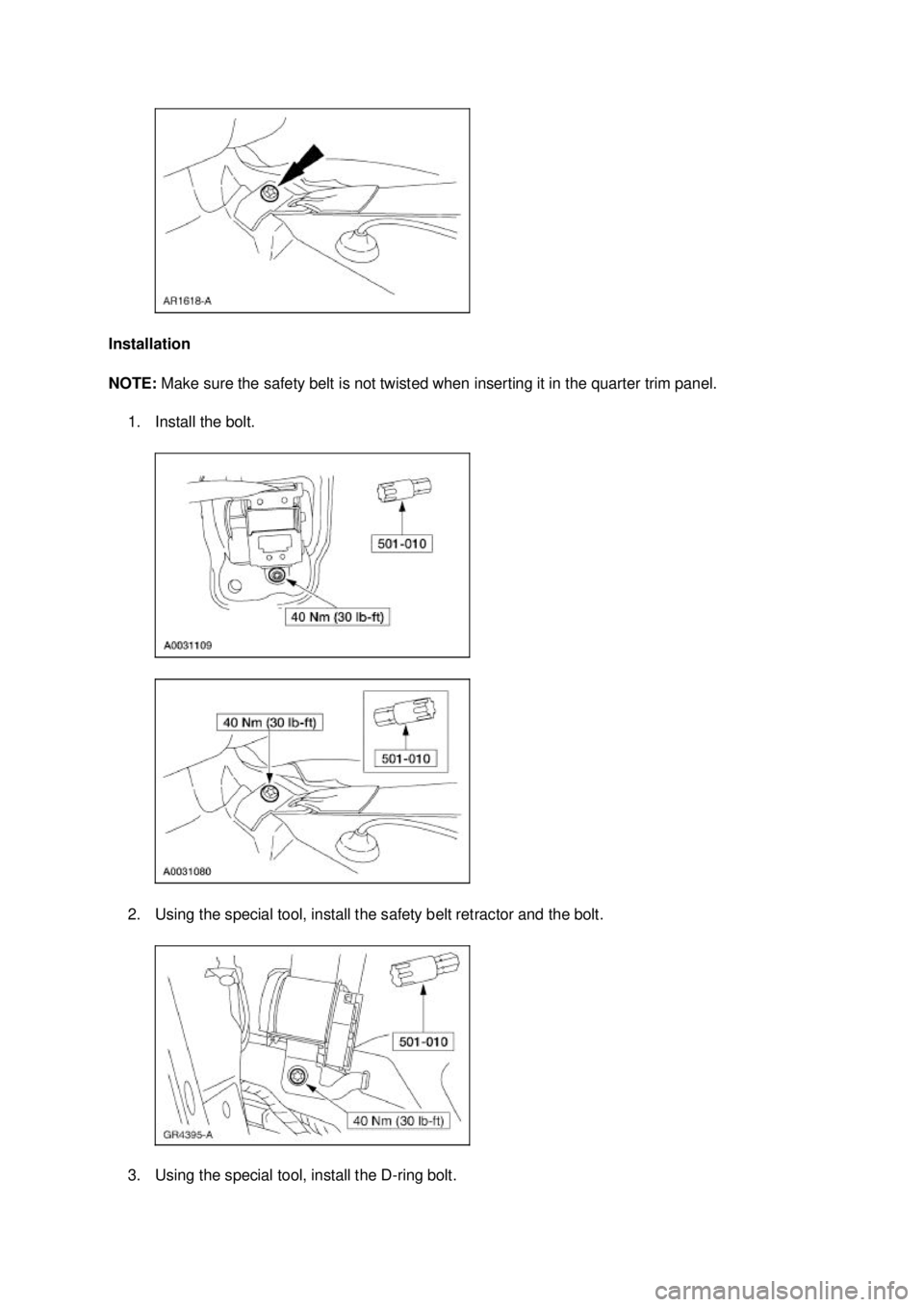

FORD MUSTANG 2003 Workshop Manual Installation NOTE: Make sure the safety belt is not twisted when inserting it in the quarter trim panel. 1. Install the bolt. 2. Using the special tool, install the safety belt retractor and the b
