Page 3665 of 4378

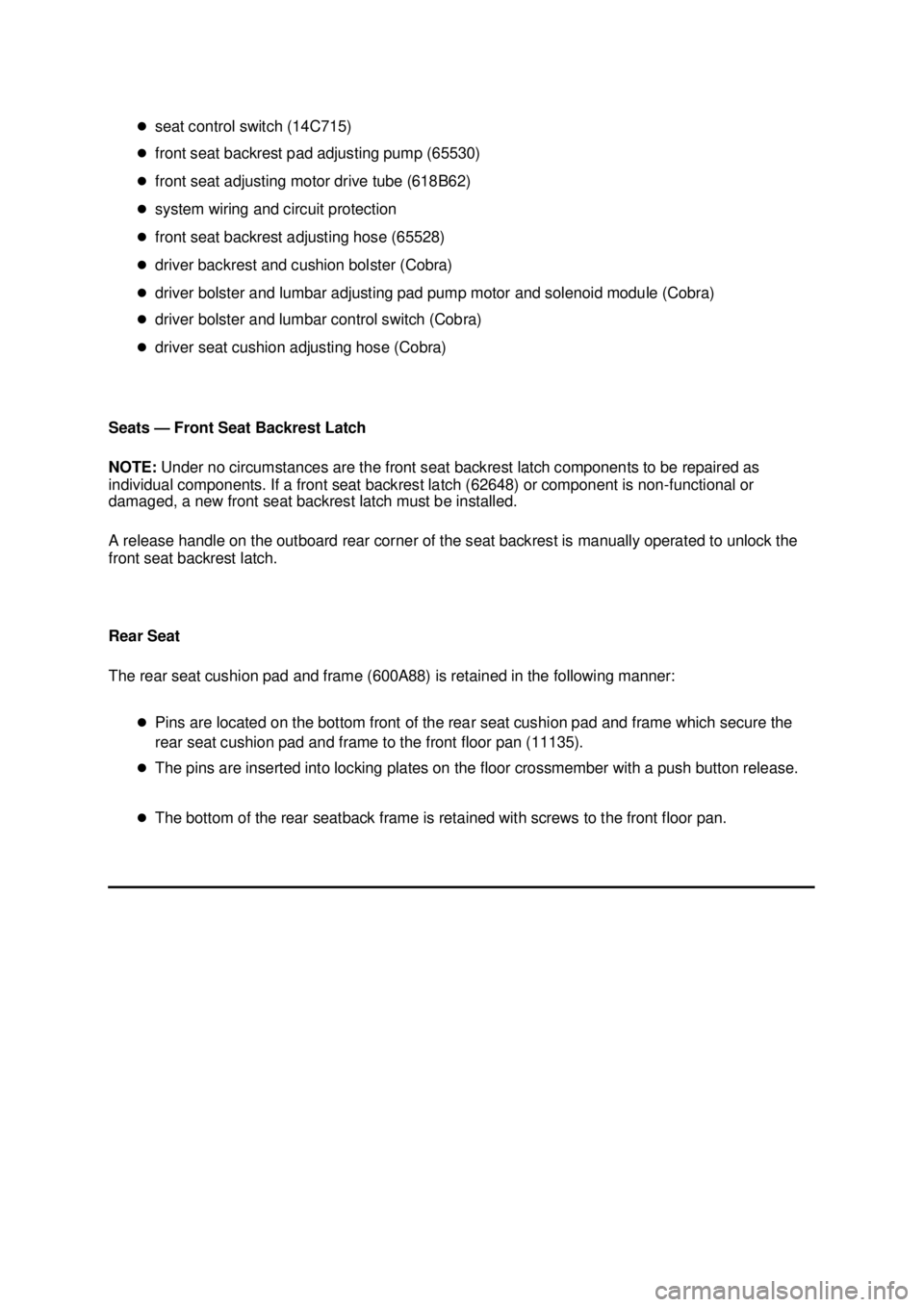

FORD MUSTANG 2003 Workshop Manual �z seat control switch (14C715) �z front seat backrest pad adjusting pump (65530) �z front seat adjusting motor drive tube (618B62) �z system wiring and circuit protection �z front seat backrest a

Page 3666 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3667 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Seats Refer to Wiring Diagrams Cell 120 , Power Seats for schematic and connector information. Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and con

Page 3668 of 4378

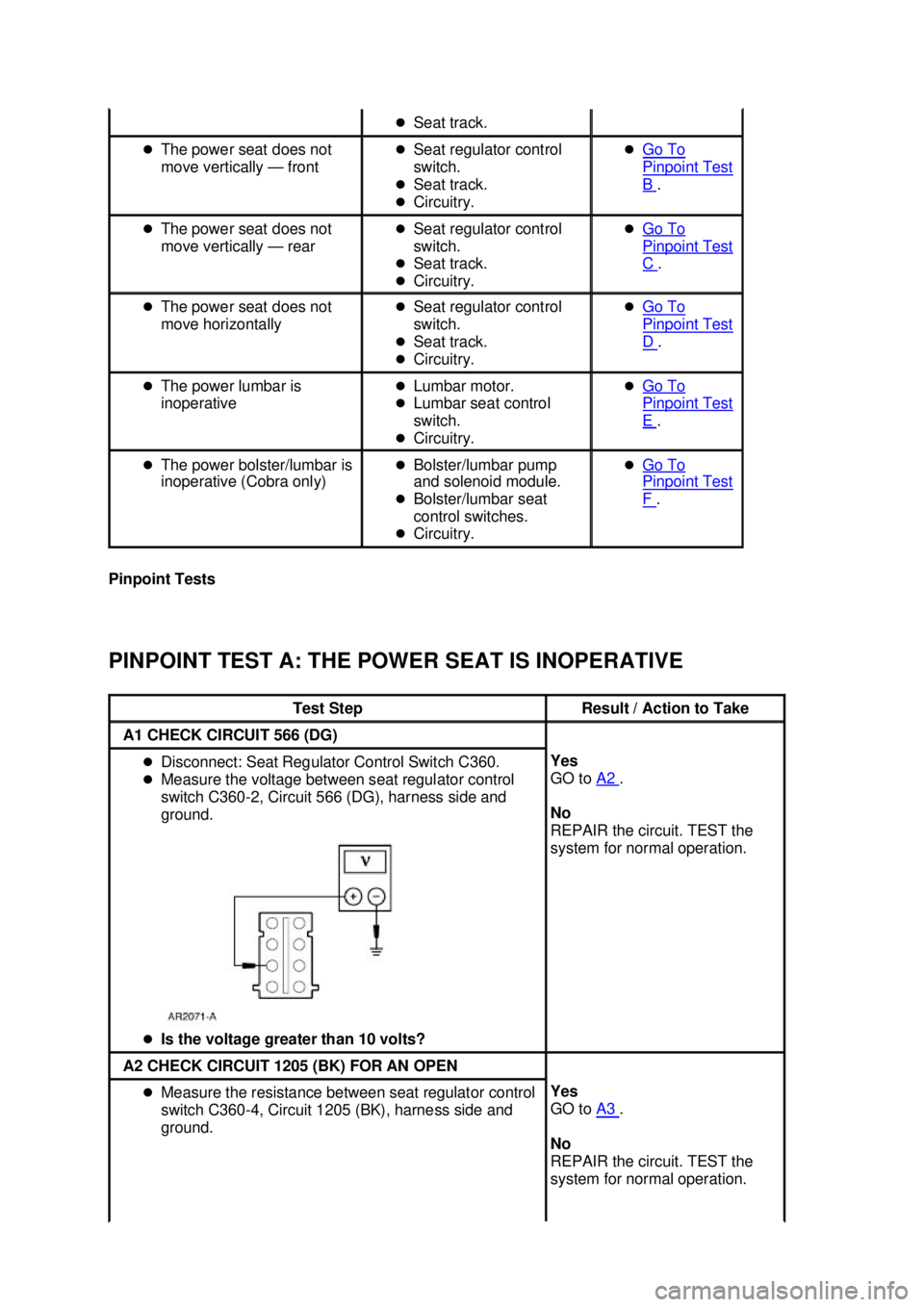

FORD MUSTANG 2003 Workshop Manual Pinpoint Tests PINPOINT TEST A: THE POWER SEAT IS INOPERATIVE �z Seat track. �z The power seat does not move vertically — front �z Seat regulator control switch. �z Seat track. �z Circuitry.

Page 3669 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST B: THE POWER SEAT DOES NOT MOVE VERTICALLY — FRONT �z Is the resistance less than 5 ohms? A3 CHECK THE SEAT REGULATOR CONTROL SWITCH �z Carry out the seat regulator control switch c

Page 3670 of 4378

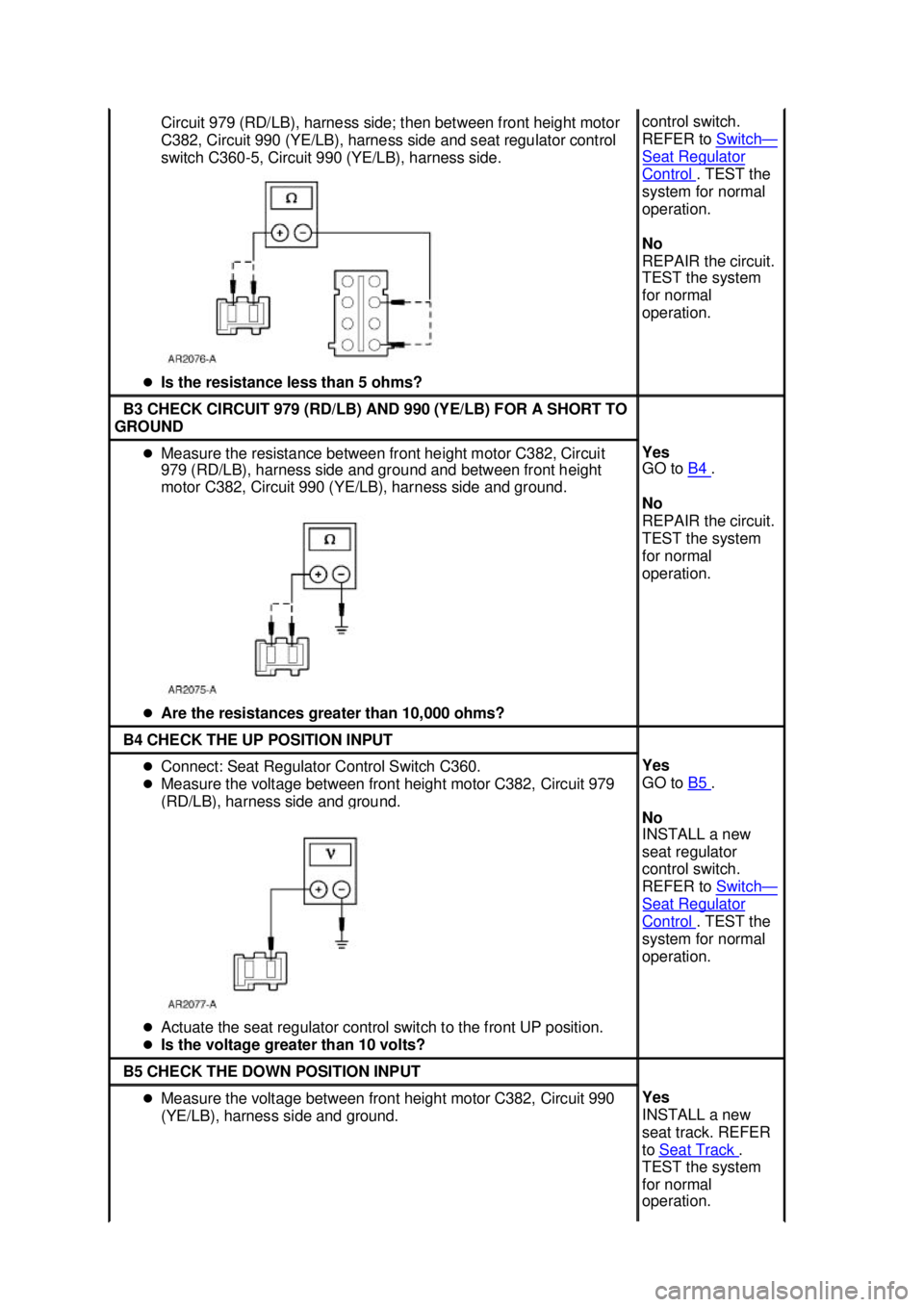

FORD MUSTANG 2003 Workshop Manual Circuit 979 (RD/LB), harness side; then between front height motor C382, Circuit 990 (YE/LB), harness side and seat regulator control switch C360- 5, Circuit 990 (YE/LB), harness side. �z Is the re

Page 3671 of 4378

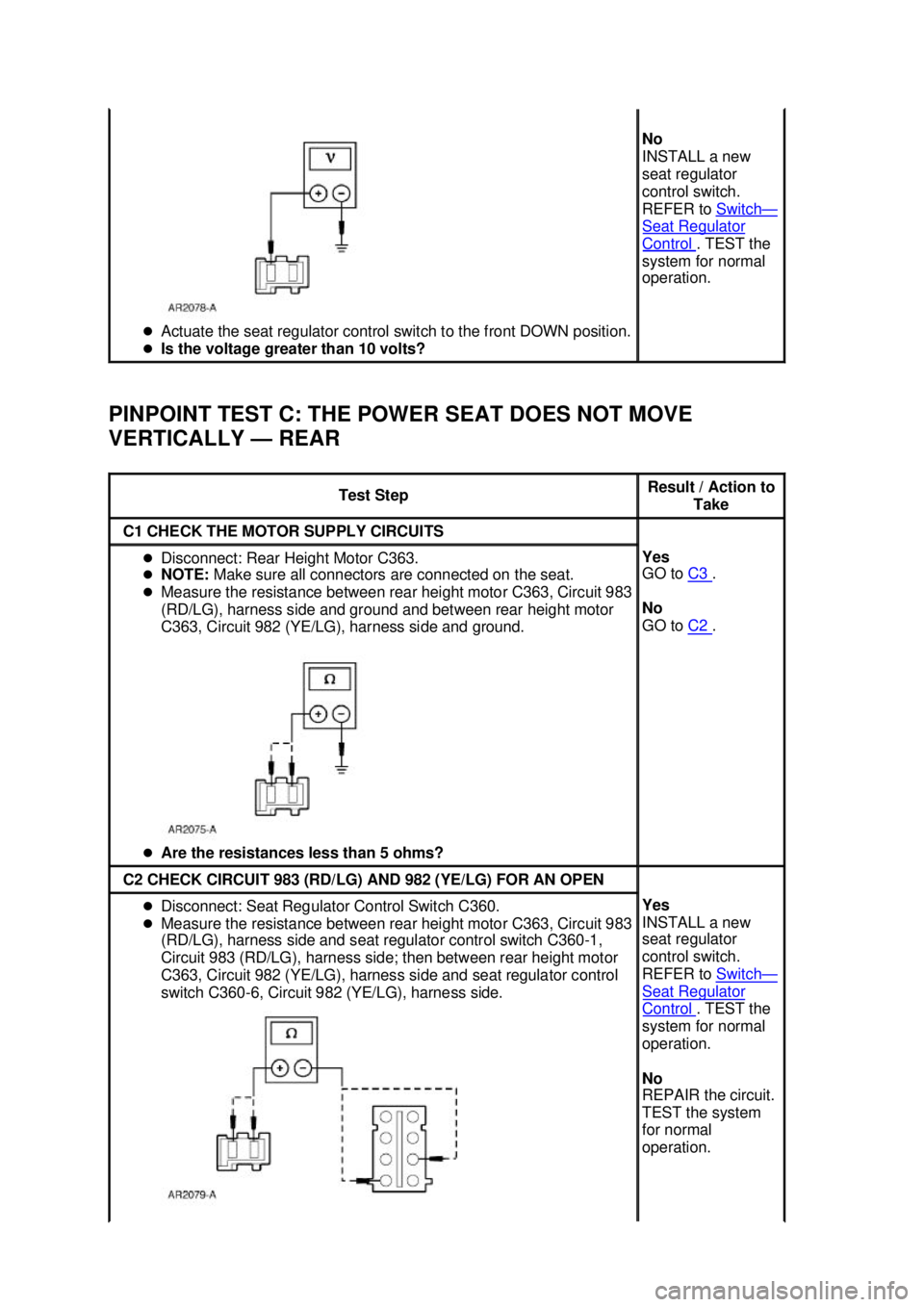

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST C: THE POWER SEAT DOES NOT MOVE VERTICALLY — REAR �z Actuate the seat regulator control switch to the front DOWN position. �z Is the voltage greater than 10 volts? No INSTALL a new

Page 3672 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST D: THE POWER SEAT DOES NOT MOVE HORIZONTALLY �z Is the resistance less than 5 ohms? C3 CHECK CIRCUIT 983 (RD/LG) AND 982 (YE/LG) FOR A SHORT TO GROUND �z Measure the resistance betw
