Page 1065 of 4378

FORD MUSTANG 2003 Workshop Manual 46. Mount the engine on a suitable engine stand. Klj . 11 ba 112003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1066 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Engine 1. Remove the bolts and the LH engine support insulator. SECTION 303- 01A: Engine — 3.8L 2003 Mustang Workshop Manual Special Tool(s) Service Set, Camshaft 303- 017 (T65L-62

Page 1067 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Remove the bolts and the RH engine support insulator. 3. Remove the special tool. 4. Remove the special tool. 5. Remove the bolt and the oil level indicator and tube. Discard the O- ring. Kl

Page 1068 of 4378

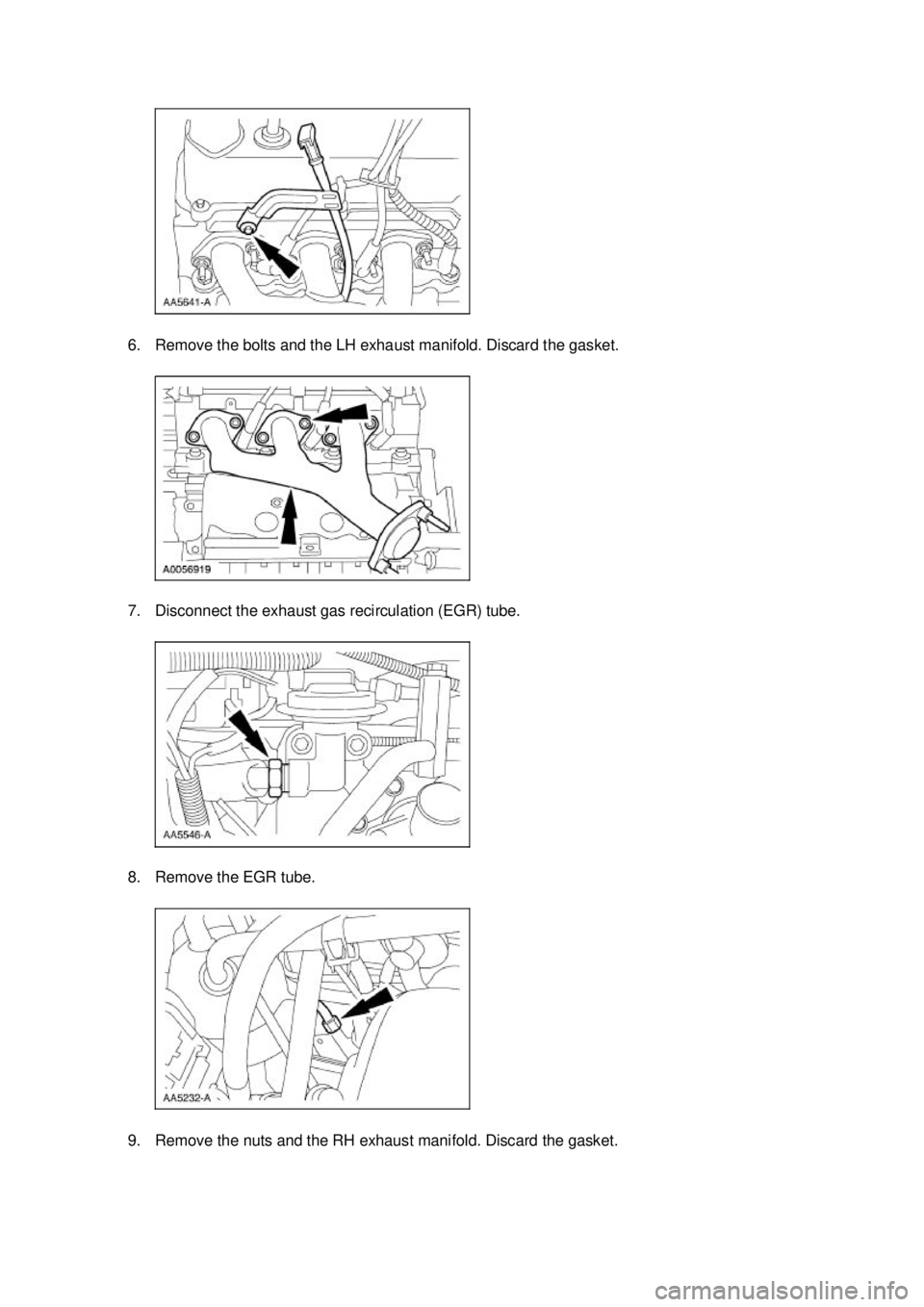

FORD MUSTANG 2003 Workshop Manual 6. Remove the bolts and the LH exhaust manifold. Discard the gasket. 7. Disconnect the exhaust gas recirculation (EGR) tube. 8. Remove the EGR tube. 9. Remove the nuts and the RH exhaust manifold.

Page 1069 of 4378

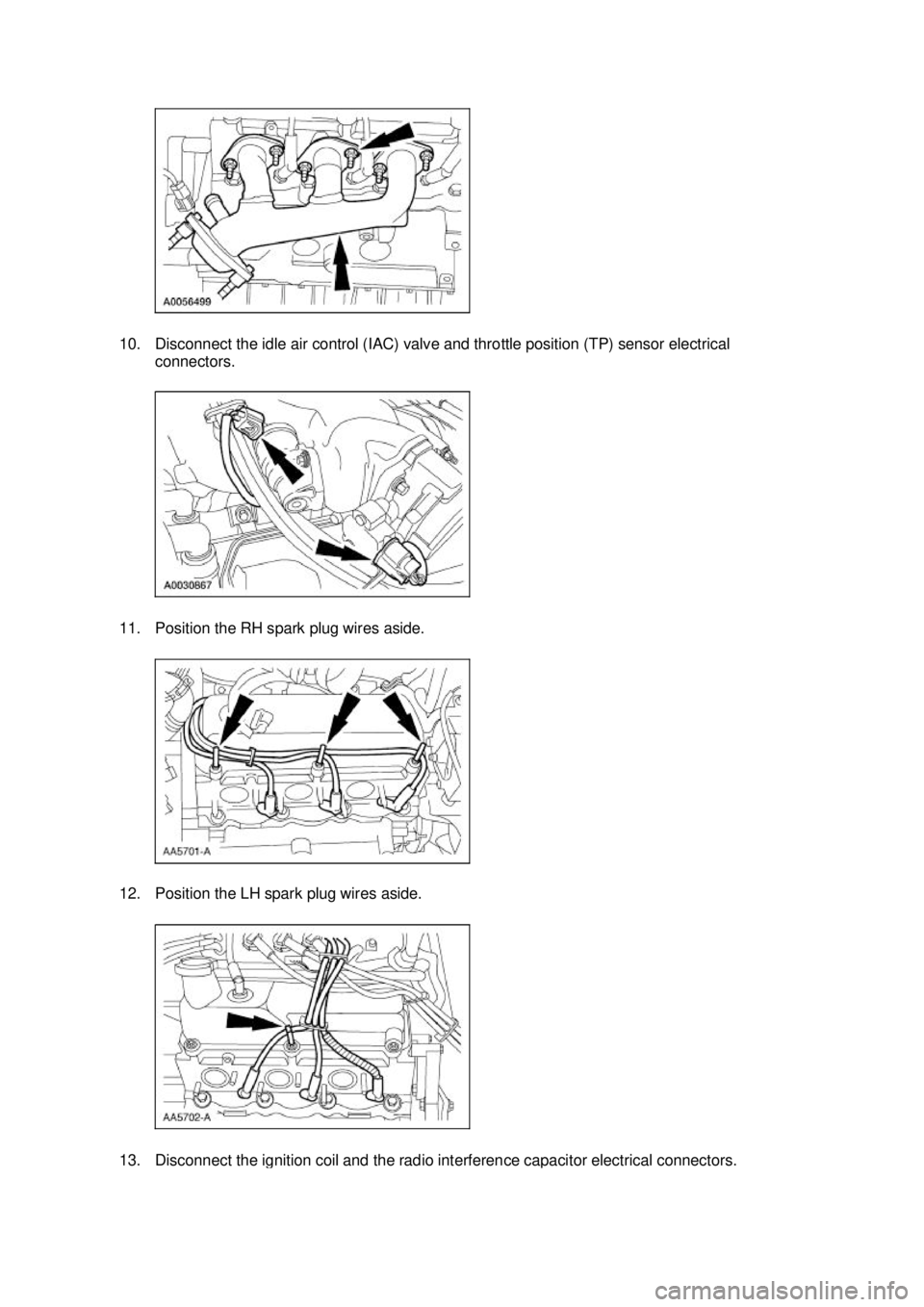

FORD MUSTANG 2003 Workshop Manual 10. Disconnect the idle air control (IAC) valve and throttle position (TP) sensor electrical connectors. 11. Position the RH spark plug wires aside. 12. Position the LH spark plug wires aside. 13.

Page 1070 of 4378

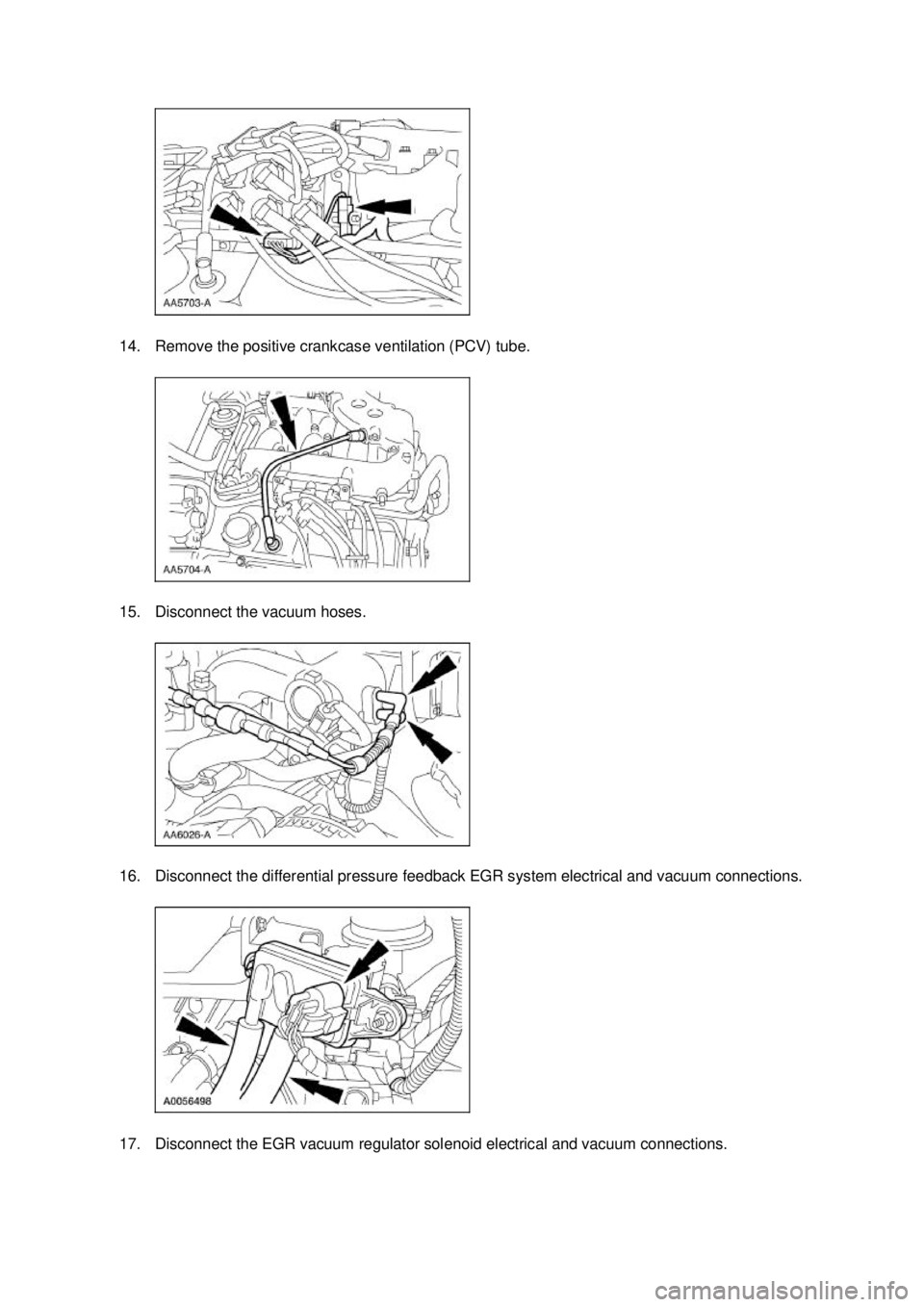

FORD MUSTANG 2003 Workshop Manual 14. Remove the positive crankcase ventilation (PCV) tube. 15. Disconnect the vacuum hoses. 16. Disconnect the differential pressure feedback EGR system electrical and vacuum connections. 17. Discon

Page 1071 of 4378

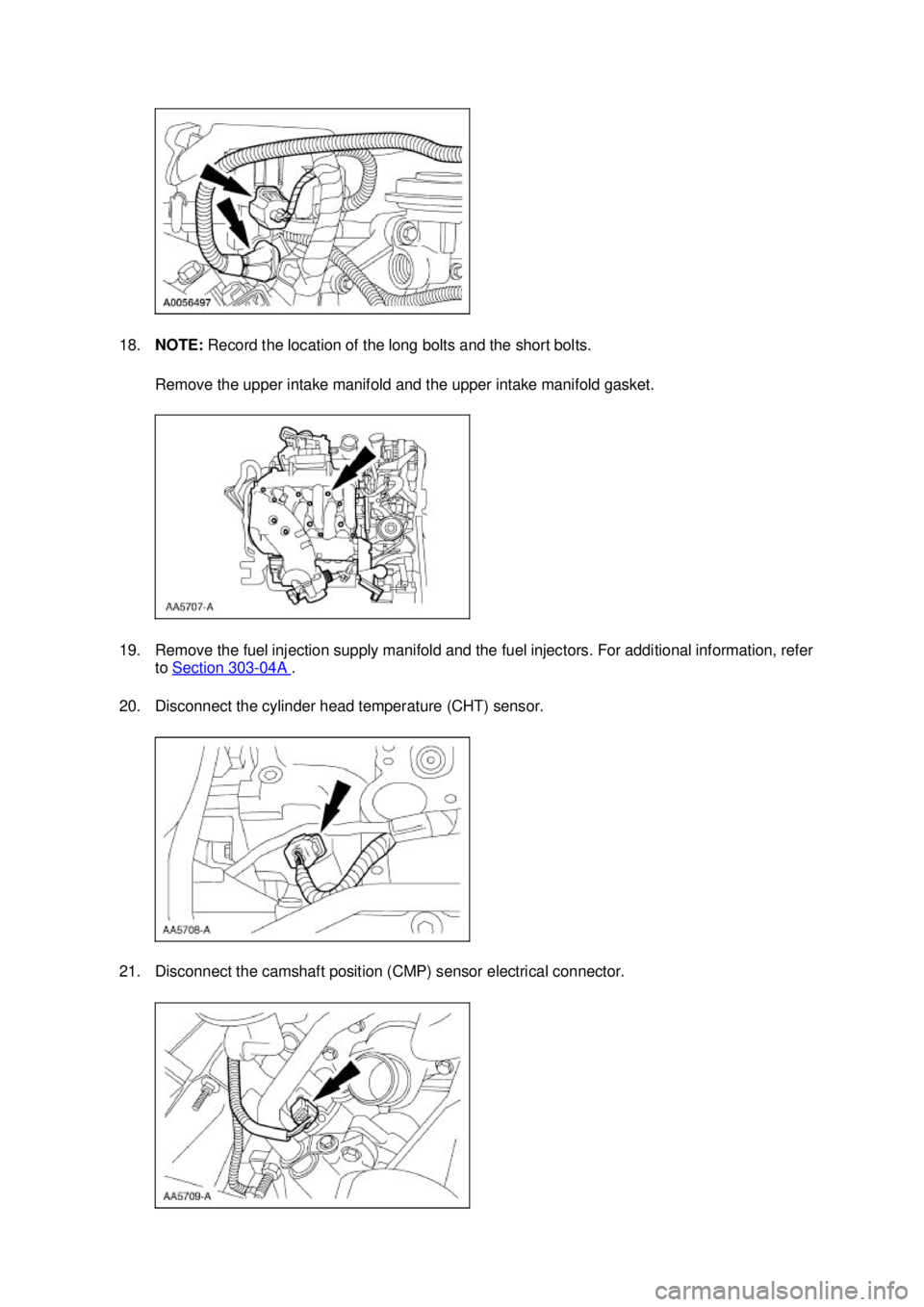

FORD MUSTANG 2003 Workshop Manual 18. NOTE: Record the location of the long bolts and the short bolts. Remove the upper intake manifold and the upper intake manifold gasket. 19. Remove the fuel injection supply manifold and the fue

Page 1072 of 4378

FORD MUSTANG 2003 Workshop Manual 22. Disconnect the engine oil pressure sender electrical connector. 23. Remove the pin- type retainer. 24. Disconnect the crankshaft position (CKP) sensor electrical connector. 25. Remove the engin
