Page 2249 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Pressure Sensor Removal WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammabl

Page 2250 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Inspect the O- rings, and install new O- rings if necessary. 2. NOTE: Lubricate the new O- rings with clean engine oil to aid installation. To install, reverse the removal procedur

Page 2251 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Supercharger Bypass Vacuum Solenoid Removal and Installation 1. Remove the supercharger bypass vacuum solenoid. 1. Disconnect the vacuum hoses. 2. Disconnect the electric

Page 2252 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Supercharger Bypass Vacuum Solenoid — Actuator Removal 1. Disconnect the electrical connectors from the EGR vacuum regulator solenoid, the supercharger bypass vacuum sol

Page 2253 of 4378

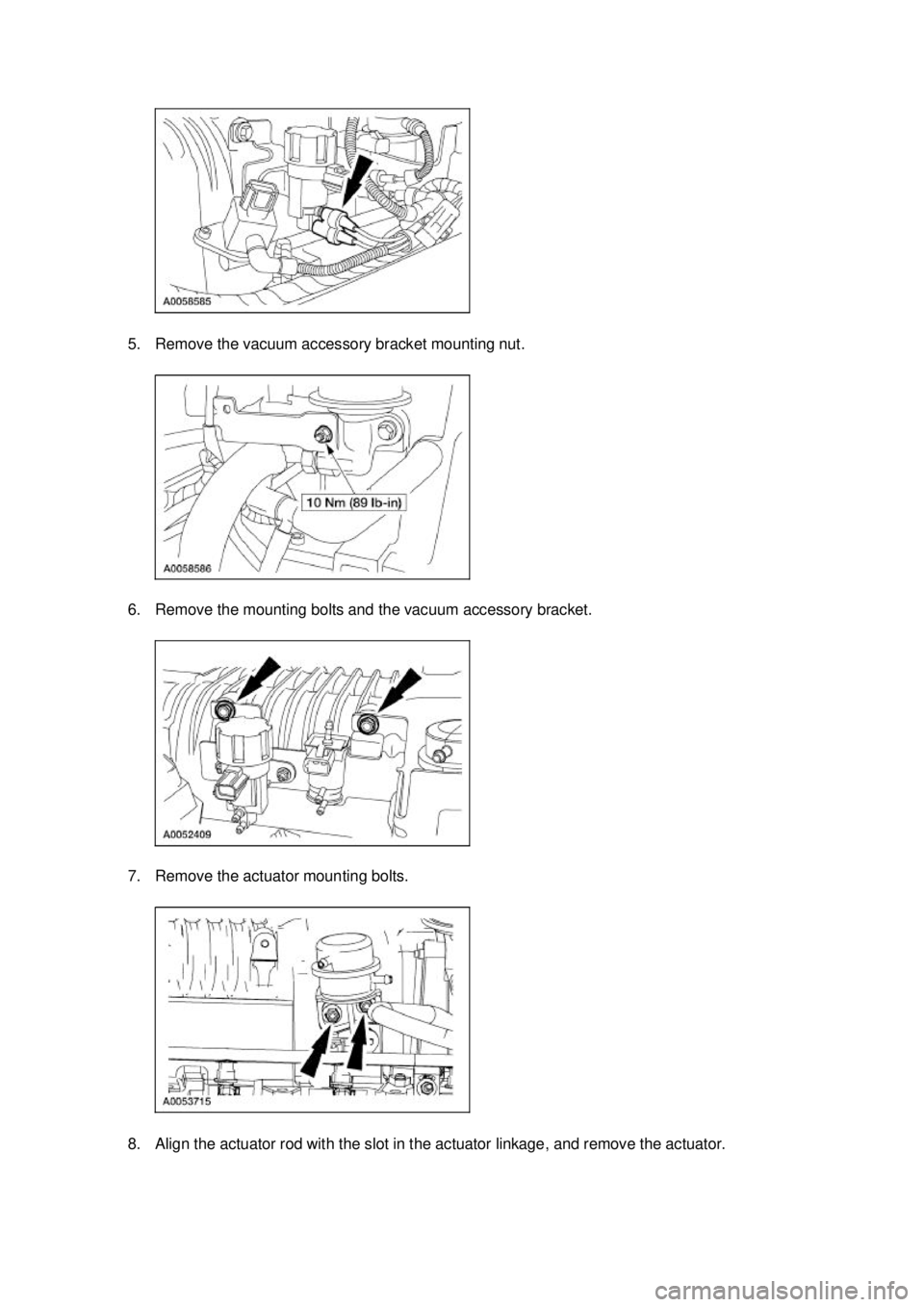

FORD MUSTANG 2003 Workshop Manual 5. Remove the vacuum accessory bracket mounting nut. 6. Remove the mounting bolts and the vacuum accessory bracket. 7. Remove the actuator mounting bolts. 8. Align the actuator rod with the slot in

Page 2254 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. CAUTION: The actuator adjustment tool included with the replacement actuator kit must be used when installing the supercharger bypass vacuum actuator. Failure to correctly adjust t

Page 2255 of 4378

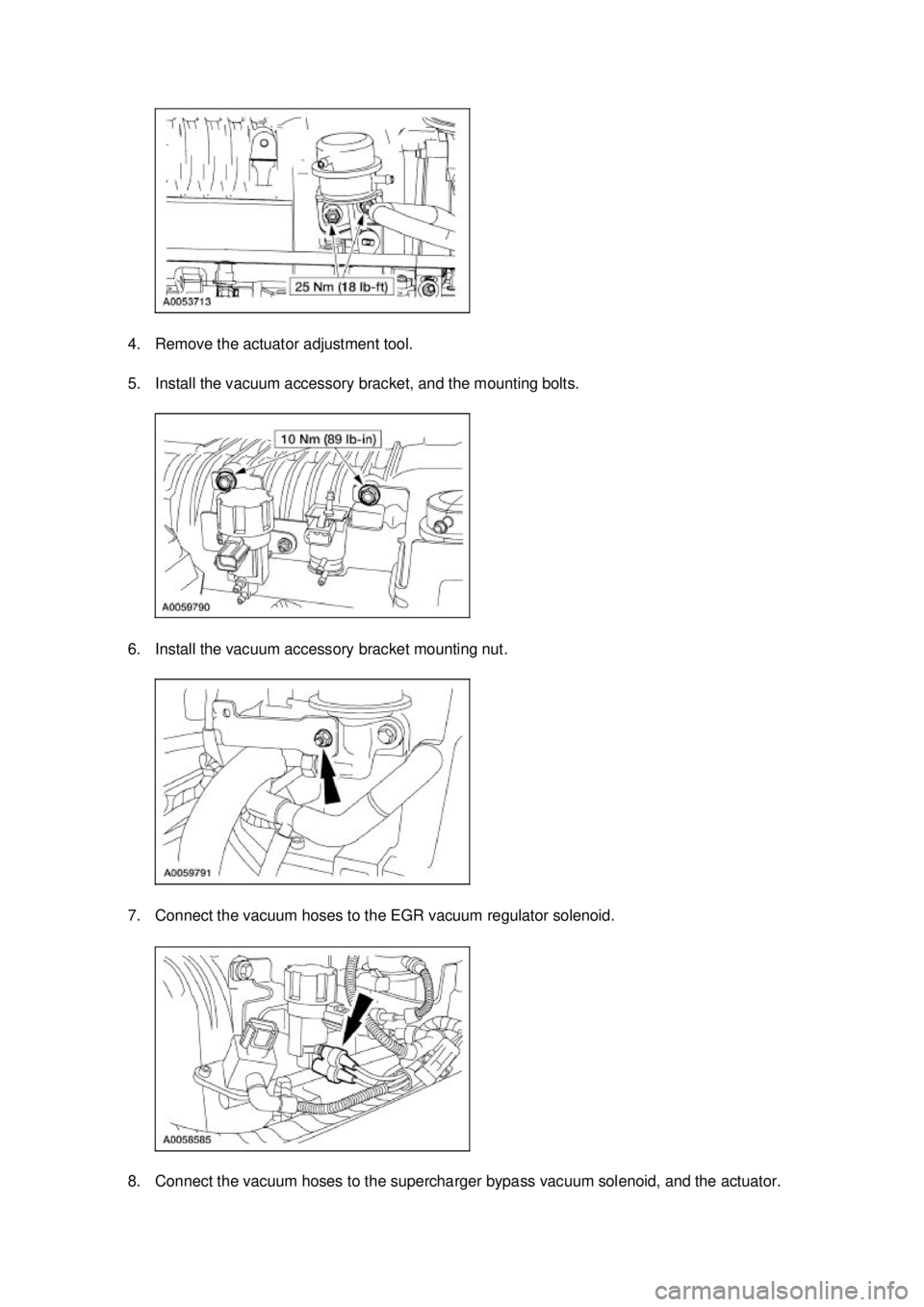

FORD MUSTANG 2003 Workshop Manual 4. Remove the actuator adjustment tool. 5. Install the vacuum accessory bracket, and the mounting bolts. 6. Install the vacuum accessory bracket mounting nut. 7. Connect the vacuum hoses to the EGR

Page 2256 of 4378

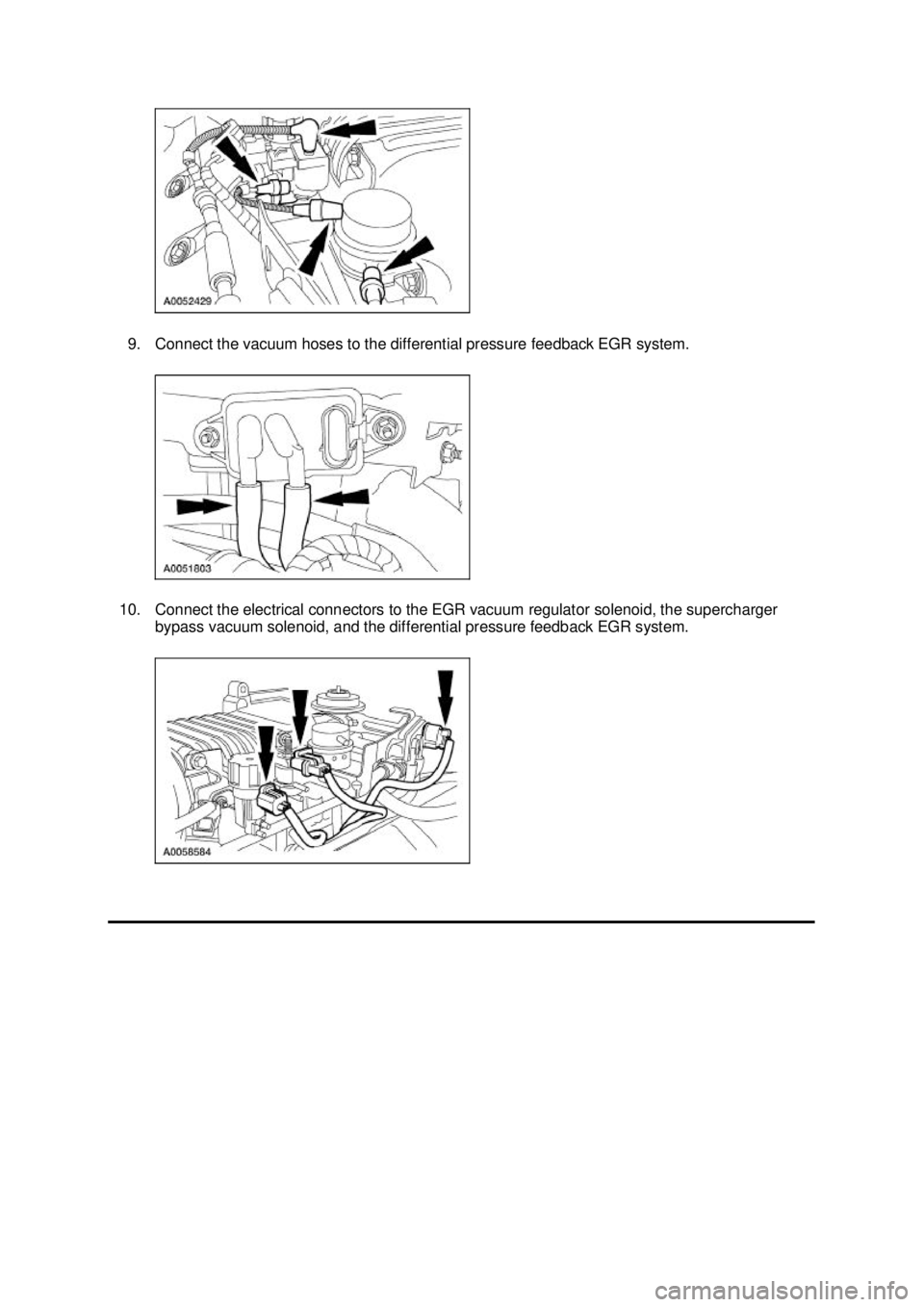

FORD MUSTANG 2003 Workshop Manual 9. Connect the vacuum hoses to the differential pressure feedback EGR system. 10. Connect the electrical connectors to the EGR vacuum regulator solenoid, the supercharger bypass vacuum solenoid, and
