40. Connect the battery negative cable. For additional information, refer to
Section 414 - 01 .
41. Fill the engine with clean engine oil.
42. Fill the engine cooling system. For additional information, refer to Section 303 - 03A .
43. Recharge the A/C refrigerant system. For additional information, refer to Section 412 - 00 .
44. Fill and bleed the power steering system. For additional information, refer to Section 211 - 00 . Klj . 10 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1130 of 4378

SPECIFICATIONS
SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants and Sealants
Silicone Gasket and Sealant F7AZ-19554-
EA WSE-
M4G323- A4 Premium Engine Coolant VC-
4A,
VC- 5 in Oregon, CXC- 10 in Canada ESE-
M97B44- A Super Premium 5W-
20 Motor Oil XO-5W20-QSP WSS-
M2C153- H Threadlock 262 E2FZ-19554-
B WSK-
M2G351- A6 Metal Surface Cleaner F4AZ-19A536-
RA or
equivalent WSE-
M5B392- A Engine
Displacement 4.6L (2V) (281 CID)
Number of cylinders 8
Bore 90.2 mm (3.55 in)
Stroke 90.0 mm (3.54 in)
Firing order 1-3-7-2-6-5-4-
8 Oil pressure (hot 1,500 rpm) 138-
310 kPa (20- 45 psi) Oil capacity
6.25 ±
0.25 quarts a Compression ratio 9.37:1 (+0.61/-
0.46) Cylinder Head and Valve Train
Combustion chamber volume
43.9 ±
1.5 cm 3 Valve arrangement (front to rear) —
LH b E-I-E-I-E-I-E-I
Valve arrangement (front to rear) —
RH b I-E-I-E-I-E-I-E
Valve guide bore diameter 7.015-
7.044 mm (0.2762- 0.2773 in) Valve stem diameter 6.975-
6.995 mm (0.2754- 0.2746 in) Valve stem-
to-guide clearance — intake 0.020-
0.069 mm (0.00078- 0.00272 in) Valve stem-
to-guide clearance — exhaust 0.046-
0.095 mm (0.0018- 0.0037 in) Valve head diameter —
intake 44.37-
44.63 mm (1.75- 1.76 in) Valve head diameter —
exhaust 35.88-
36.14 mm (1.41- 1.43 in) Valve face runout 0.05 mm (0.002 in)
Valve face angle 45.5 degrees
Valve seat width 1.3-
1.5 mm (0.051- 0.060 in) Valve seat runout (T.I.R.) Recommended 0.025 mm (0.001 in) max. 0.050
mm (0.002 in) Valve seat angle 45 degrees
Valve spring free length (approx.) 51.77-
54.97 mm (2.04- 2.16 in) Valve spring squareness 2 degrees
Valve spring compression pressure 720.0-
800.0 N @ 28.80 mm (161.9 lb @ 1.13 in) Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

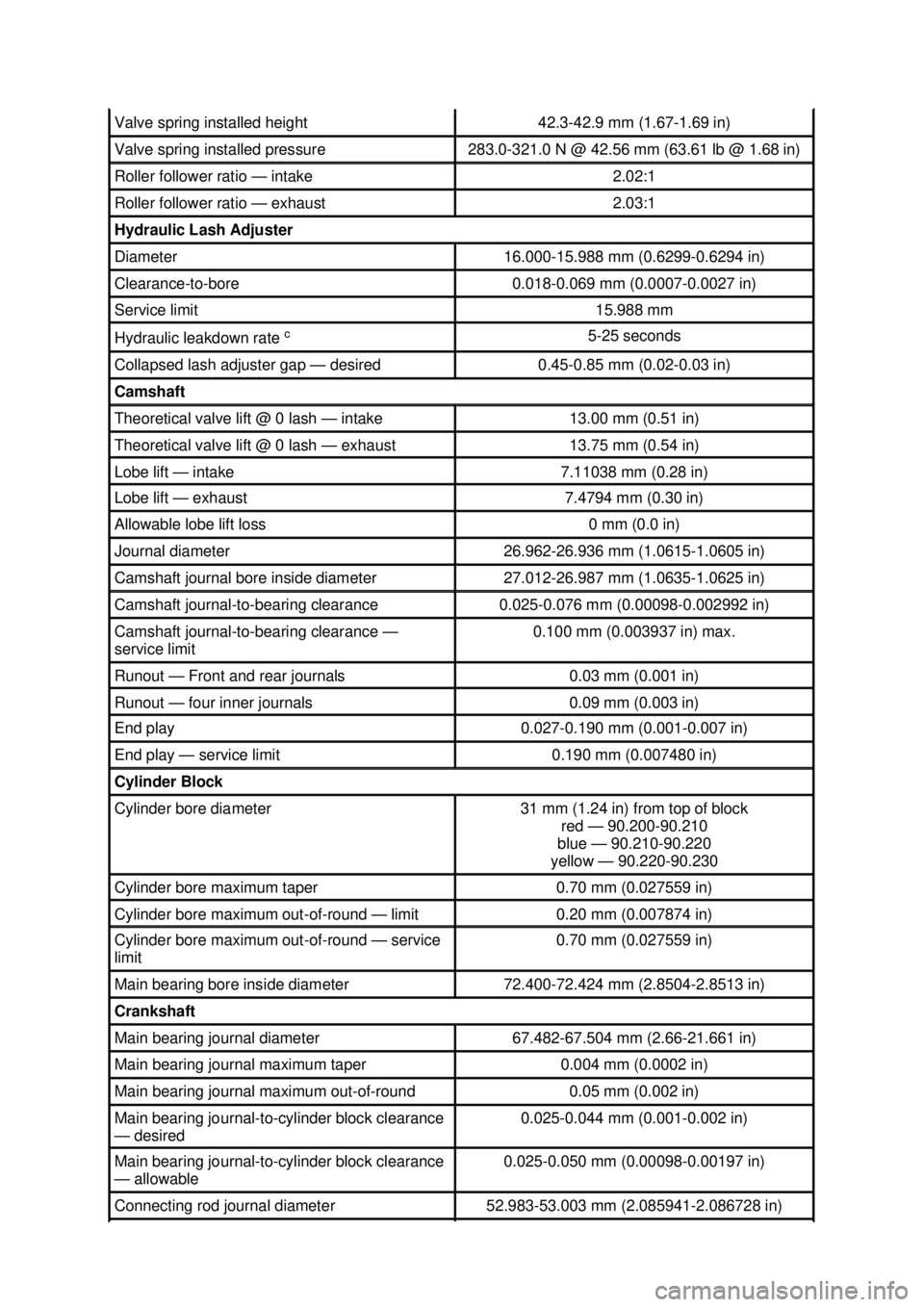

Page 1131 of 4378

Valve spring installed height 42.3-
42.9 mm (1.67- 1.69 in) Valve spring installed pressure 283.0-
321.0 N @ 42.56 mm (63.61 lb @ 1.68 in) Roller follower ratio —
intake 2.02:1
Roller follower ratio —
exhaust 2.03:1
Hydraulic Lash Adjuster
Diameter 16.000-
15.988 mm (0.6299- 0.6294 in) Clearance-
to-bore 0.018-
0.069 mm (0.0007- 0.0027 in) Service limit 15.988 mm
Hydraulic leakdown rate
c 5-
25 seconds Collapsed lash adjuster gap —
desired 0.45-
0.85 mm (0.02- 0.03 in) Camshaft
Theoretical valve lift @ 0 lash —
intake 13.00 mm (0.51 in)
Theoretical valve lift @ 0 lash —
exhaust 13.75 mm (0.54 in)
Lobe lift —
intake 7.11038 mm (0.28 in)
Lobe lift —
exhaust 7.4794 mm (0.30 in)
Allowable lobe lift loss 0 mm (0.0 in)
Journal diameter 26.962-
26.936 mm (1.0615- 1.0605 in) Camshaft journal bore inside diameter 27.012-
26.987 mm (1.0635- 1.0625 in) Camshaft journal-
to-bearing clearance 0.025-
0.076 mm (0.00098- 0.002992 in) Camshaft journal-
to-bearing clearance —
service limit 0.100 mm (0.003937 in) max.
Runout —
Front and rear journals 0.03 mm (0.001 in)
Runout —
four inner journals 0.09 mm (0.003 in)
End play 0.027-
0.190 mm (0.001- 0.007 in) End play —
service limit 0.190 mm (0.007480 in)
Cylinder Block
Cylinder bore diameter 31 mm (1.24 in) from top of block
red — 90.200-90.210
blue — 90.210-90.220
yellow — 90.220-90.230 Cylinder bore maximum taper 0.70 mm (0.027559 in)
Cylinder bore maximum out-of-
round —limit 0.20 mm (0.007874 in)
Cylinder bore maximum out-of-
round —service
limit 0.70 mm (0.027559 in)
Main bearing bore inside diameter 72.400-
72.424 mm (2.8504- 2.8513 in) Crankshaft
Main bearing journal diameter 67.482-
67.504 mm (2.66- 21.661 in) Main bearing journal maximum taper 0.004 mm (0.0002 in)
Main bearing journal maximum out-of-
round 0.05 mm (0.002 in)
Main bearing journal-
to-cylinder block clearance
— desired 0.025-
0.044 mm (0.001- 0.002 in) Main bearing journal-
to-cylinder block clearance
— allowable 0.025-
0.050 mm (0.00098- 0.00197 in) Connecting rod journal diameter 52.983-
53.003 mm (2.085941- 2.086728 in) Klj . 2 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1132 of 4378

a
With installation of a new filter.
b Distance front edge of bearing is installed below front face of cylinder block.
c Time necessary for plunger to leak down 1.6 mm of travel with 222 N force and leak down fluid in
tappet.
d Measured at 31.5 mm from top of block. Measured at 43 mm from top of piston, at 90 degrees to the
piston pin. Connecting rod journal maximum taper 0.004 mm (0.0002 in)
Connecting rod journal maximum out-of-
round 0.05 mm (0.002 in)
Crankshaft maximum end play 0.075-
0.377 mm (0.003- 0.015 in) Piston and Connecting Rod
Piston diameter —
code red 1 d 90.185-
90.205 mm (3.55- 3.551 in) Piston diameter —
code blue 2 d 90.195-
90.215 mm (3.55- 3.551 in) Piston diameter —
code yellow 3 d 90.205-
90.225 mm (3.551- 3.552 in) Piston-
to-cylinder bore clearance -0.005-
0.025 mm (- 0.002/+0.001 in) Piston ring end gap —
compression (top) e 0.130-
0.280 mm (0.005- 0.011 in) Piston ring end gap —
compression (bottom) e 0.300-
0.550 mm (0.0018- 0.0022 in) Piston ring end gap —
oil ring (steel rail) e 0.150-
0.650 mm (0.006- 0.0256 in) Piston ring groove width —
compression (top) 1.530-
1.550 mm (0.06- 0.061 in) Piston ring groove width —
compression
(bottom) 1.520-
1.540 mm (0.06- 0.061 in) Piston ring groove width —
oil ring 3.030-
3.050 mm (0.12- 0.12 in) Piston ring width —
compression (top) 1.480-
1.500 mm (0.058- 0.059 in) Piston ring width —
compression (bottom) 1.470-
1.490 mm (0.0587- 0.0586 in) Piston ring-
to-groove clearance — compression
(top) 0.050-
0.090 mm (0.002- 0.004 in) Piston ring-
to-groove clearance — compression
(bottom) 0.030-
0.080 mm (0.00118- 0.00315 in) Piston ring-
to-groove clearance — oil ring Snug fit
Piston pin bore diameter
f 21.008-
22.014 mm (0.866- 0.867 in) Piston pin diameter 22.0010-
22.0030 mm (0.87- 0.871 in) Piston pin length 61.601-
62.030 mm (2.42523- 2.44212 in) Piston pin-
to-piston fit -
0.005/+0.0135 mm (- 0.0002/+0.0005 in) Piston-
to-connecting rod clearance — standard 0.009-
0.0235 mm (0.0004- 0.00092 in) Piston-
to-connecting rod clearance — service
limit 0.035 mm (0.001378 in)
Connecting rod-
to-pin clearance 0.009-
0.023 mm (0.0004- 0.0009 in) Connecting rod pin bore diameter 22.012-
22.024 mm (0.86661- 0.86708 in) Connecting rod length (center-
to-center) 150.7 mm (5.933 in)
Connecting rod maximum allowed bend
g 0.038 per 25 mm (0.00150 per 0.9843 in)
Connecting rod maximum allowed twist
c 0.050 per 25 mm (0.00197 per 0.9843 in)
Connecting rod bearing bore diameter 56.866-
56.886 mm (2.23881- 2.23960 in) Connecting rod bearing-
to-crankshaft clearance 0.027-
0.069 mm (0.0010629- 0.0027165 in) Connecting rod side clearance —
standard 0.125-
0.475 mm (0.005- 0.019 in) Connecting rod side clearance —
service limit 0.50 mm (0.01969 in) max. Klj . 3 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1133 of 4378

e
Specification in 90.200 mm diameter gauge.
f If applicable, measured vertically, +0.030- 0.050 mm (0.001-0.002 inch) measured horizontally (oval
pin bore).
g Pin bore and crank bearing bore must be parallel and in same vertical plane within the specified total
difference when measured at the ends of a 203 mm bar, 101.5 mm on each side of rod centerline.
Torque Specifications Description Nm lb-
ft lb-
in Main bearing cap adjusting bolts
a — — —
EGR sensor bracket 10 — 89
Belt idler pulley 25 18 —
Oil filter 15 11 —
Oil filter adapter insert 58 43 —
Camshaft sprocket bolt
a — — —
Connecting rod bolt
a — — —
Engine mount nuts 150 111 —
Engine mount-
to-cylinder block bolts 70 52 —
Exhaust manifolds
a — — —
Engine front cover bolts
a — — —
Drive belt tensioner bolts 25 18 —
A/C muffler 20 15 —
Battery cable support brackets 20 15 —
Cylinder head bolt
a — — —
Pulley-
to-crankshaft bolt a — — —
EGR valve to intake manifold 25 18 —
EGR valve tube to exhaust manifold fittings 40 30 —
Intake manifold-
to-cylinder head bolt 25 18 —
Main bearing cap bolt
a — — —
Oil filter adapter bolts 25 18 —
Oil level indicator tube bolt 10 — 89
Oil pump screen cover and tube-
to-oil pump bolt 10 — 89
Oil pan-to-
cylinder block bolt a — — —
Flywheel 80 59
Oil pan-to-
engine front cover bolts a — — —
Oil pump-
to-cylinder block bolt 10 — 89
Oil pump screen cover and tube-
to-main bearing cap stud spacer bolt 25 18 —
Water pump pulley bolts 25 18 —
Cam cover bolt
a — — —
Water pump-
to-cylinder block bolt 25 18 —
Water bypass tube 25 18 —
EGR tube nuts (2 req'd) 40 30 —
Power steering pump to engine 25 18 — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1134 of 4378

a
Refer to the procedure in this section. Power steering reservoir bolts 10 — 89
Water outlet connector bolts 25 18 —
Camshaft cap cluster to cylinder head bolts 10 — 89
Torque converter nuts 25 18 —
Timing chain tensioner bolts 25 18 —
Transmission filler tube bolt 47 35 —
A/C compressor bolts 25 18 —
Ignition coil bolts 6 — 53
Generator brace bolts 10 — 89
Primary timing chain guide-
to-engine bolts 10 — 89
Accelerator cable bracket bolts 10 — 89
Rear seal retainer bolts 10 — 89
Pressure plate bolts 2 — 47
Spark plugs 18 13 —
Crankshaft timing bolt sensor assembly 10 — 89
Camshaft timing bolt sensor assembly 10 — 89
Fuel rail studs 10 — 89
Engine coolant sensor 15 11 —
Exhaust manifold—
stud to cylinder head 10-
13 7-10 —
Throttle body adaptor bolts
a — — —
Throttle body bolts 10 — 89
Idle air control valve 10 — 89
RFI capacitor nut 10 — 89
Generator bolts 25 18 —
Oil pan drain plug 14 10 —
Water bypass tube bracket bolt 25 18 —
Subframe bolts 115 85 —
Battery lead to generator 10 — 89
EGR vacuum regulator solenoid bracket 10 — 89
Pipe plug—
water drain 20 15 —
Screen and cover assembly to main bearing cap stud spacer 25 18 —
Wiring harness retainer nut 10 — 89
Oil pressure switch
a — — —
A/C muffler stud to cylinder head 10 — 89
EGR tube to exhaust manifold connector 50 37 — Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1135 of 4378
Klj . 6 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1136 of 4378
