Page 2001 of 4378

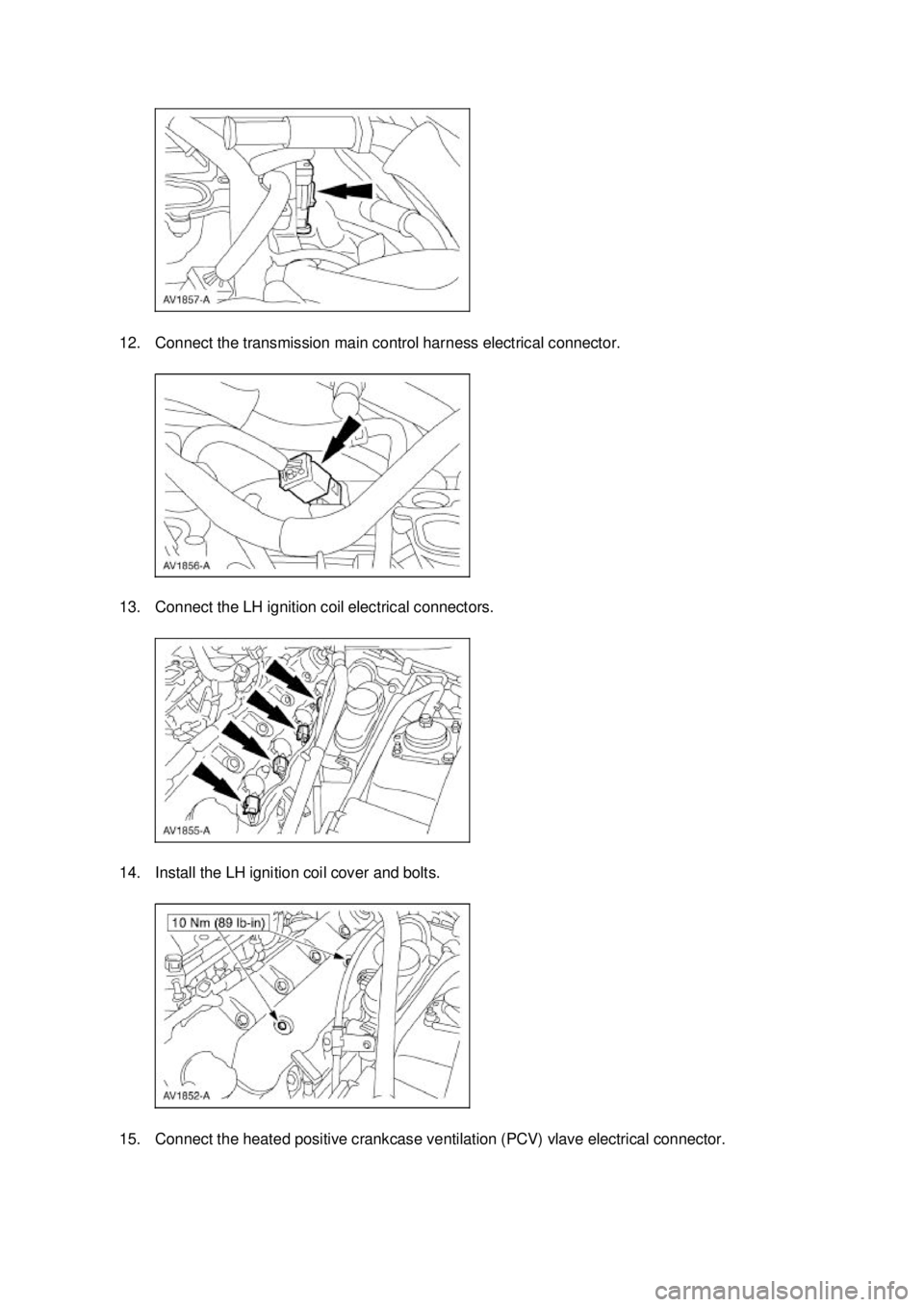

FORD MUSTANG 2003 Workshop Manual 12. Connect the transmission main control harness electrical connector. 13. Connect the LH ignition coil electrical connectors. 14. Install the LH ignition coil cover and bolts. 15. Connect the hea

Page 2002 of 4378

FORD MUSTANG 2003 Workshop Manual 16. Connect the RH ignition coil electrical connectors. 17. Install the RH ignition coil cover and bolts. 18. Install the wiring harness retainers into the dash panel. 19. Connect the following con

Page 2003 of 4378

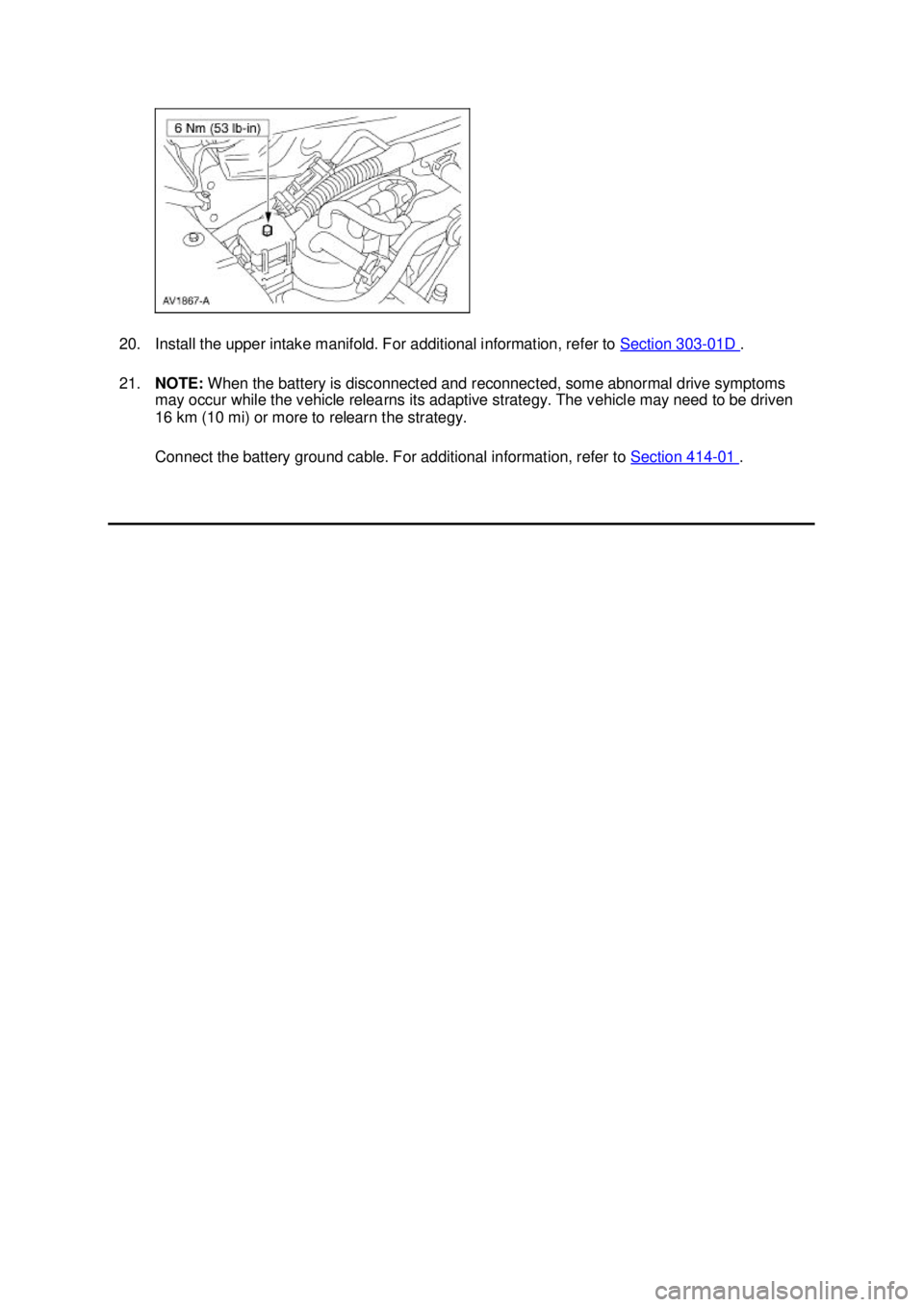

FORD MUSTANG 2003 Workshop Manual 20. Install the upper intake manifold. For additional information, refer to Section 303 - 01D . 21. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur

Page 2004 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Supply Manifold Removal WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mix

Page 2005 of 4378

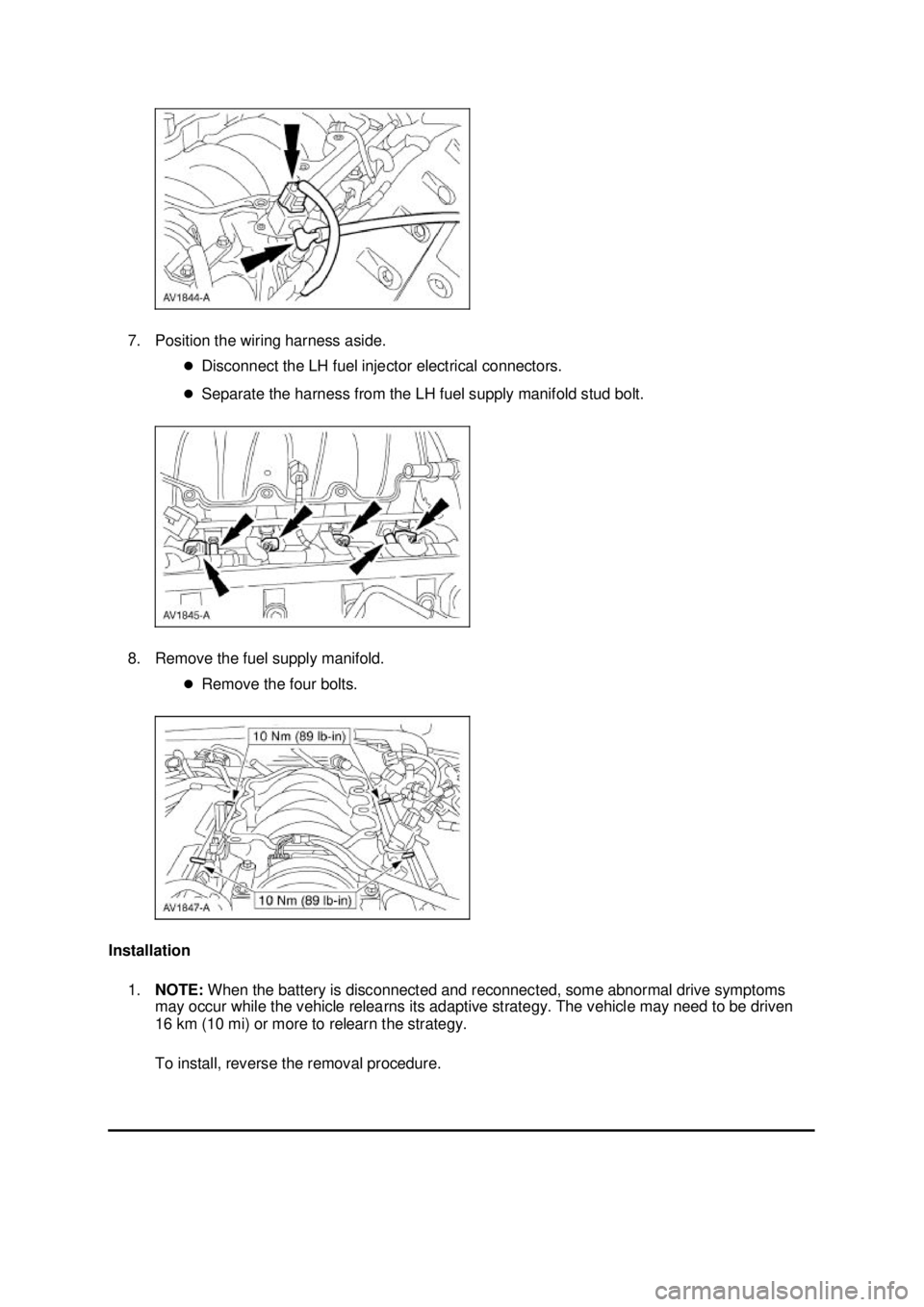

FORD MUSTANG 2003 Workshop Manual 7. Position the wiring harness aside. �zDisconnect the LH fuel injector electrical connectors. �z Separate the harness from the LH fuel supply manifold stud bolt. 8. Remove the fuel supply manifold

Page 2006 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2007 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 05: Accessory Drive 2003 Mustang Workshop Manual General Specifications Item Specification Accessory drive belt 6 ribs Supercharger drive belt 8 ribs Torque Specif

Page 2008 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Accessory Drive Component Locations— 3.8L Component Locations— 4.6L SECTION 303- 05: Accessory Drive 2003 Mustang Workshop Manual Item Part Number Description 1
