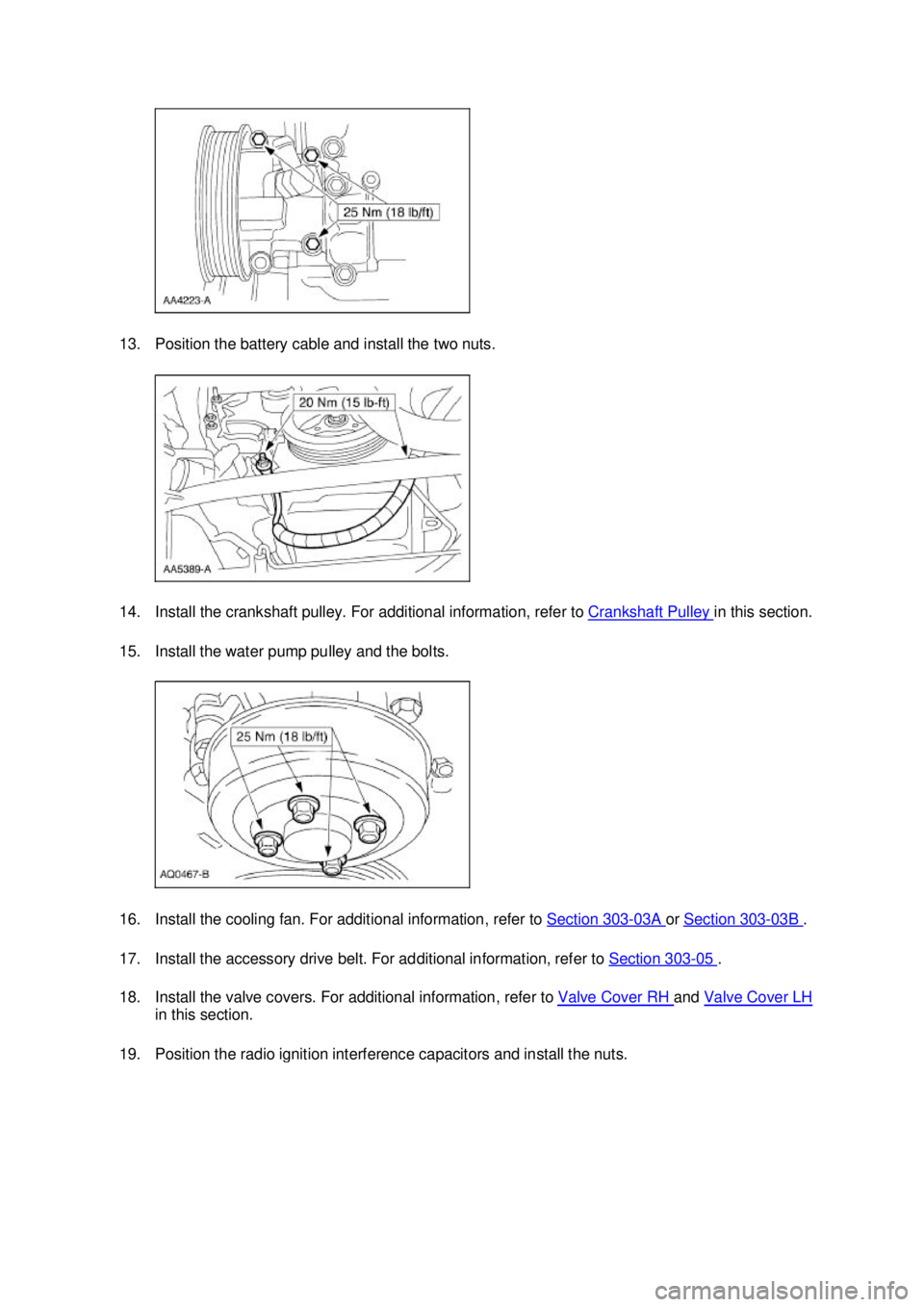

FORD MUSTANG 2003 Workshop Manual 13. Position the battery cable and install the two nuts. 14. Install the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section. 15. Install the water pump pulle

Page 1186 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Fill the crankcase with clean engine oil. Klj . 9 ba 92003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1187 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Timing Drive Components Removal CAUTION: Since the engine is not free- wheeling, timing procedures must be followed exactly or piston and valve damage can occur. 1. Remove the

Page 1188 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Remove the bolts and the eight ignition coils. 5. NOTE: Use compressed air to remove any foreign material from the spark plug wells before removing the spark plugs. Remove the spark plugs. 6.

Page 1189 of 4378

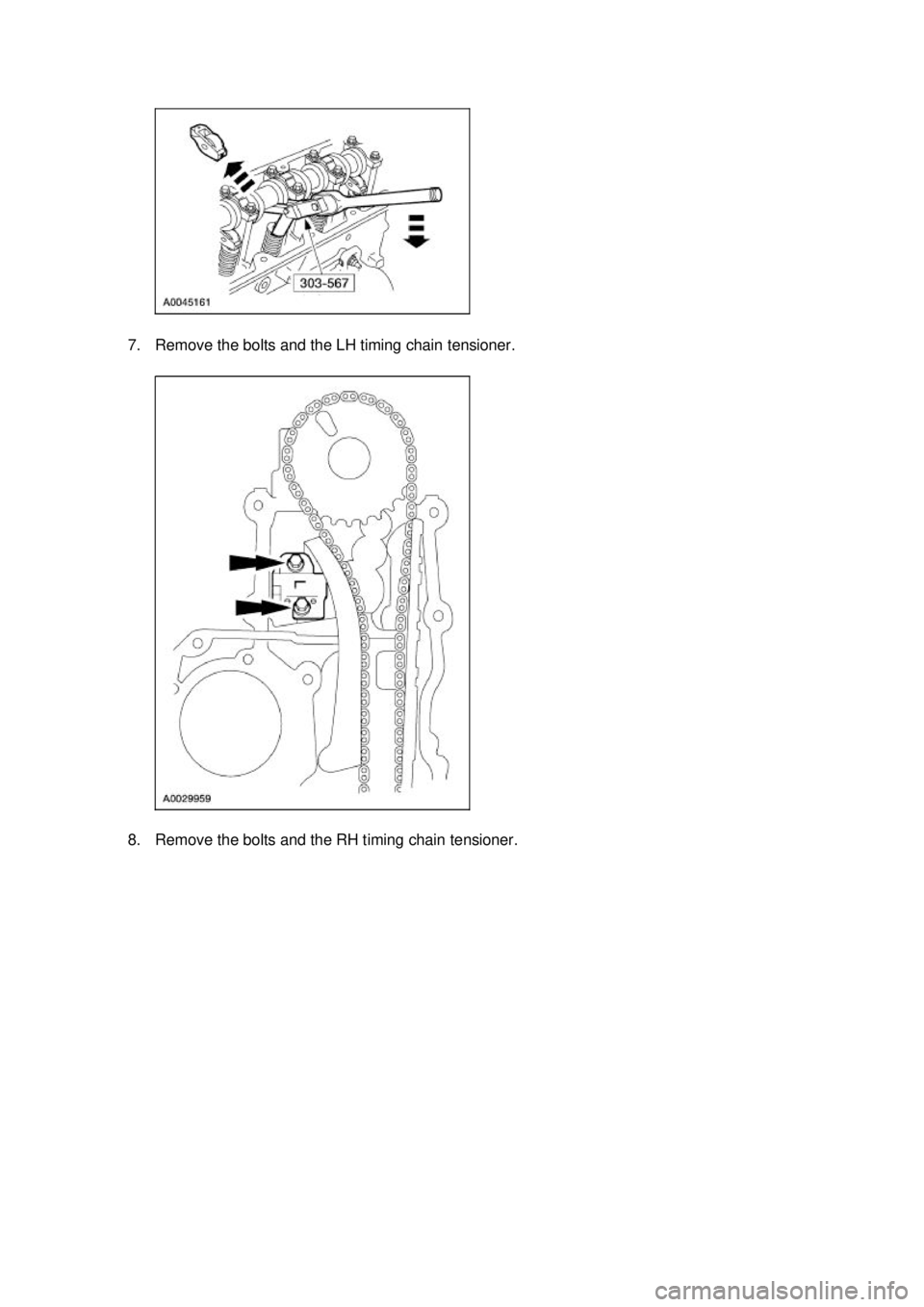

FORD MUSTANG 2003 Workshop Manual 7. Remove the bolts and the LH timing chain tensioner. 8. Remove the bolts and the RH timing chain tensioner. Klj . 3 ba 132003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 200

Page 1190 of 4378

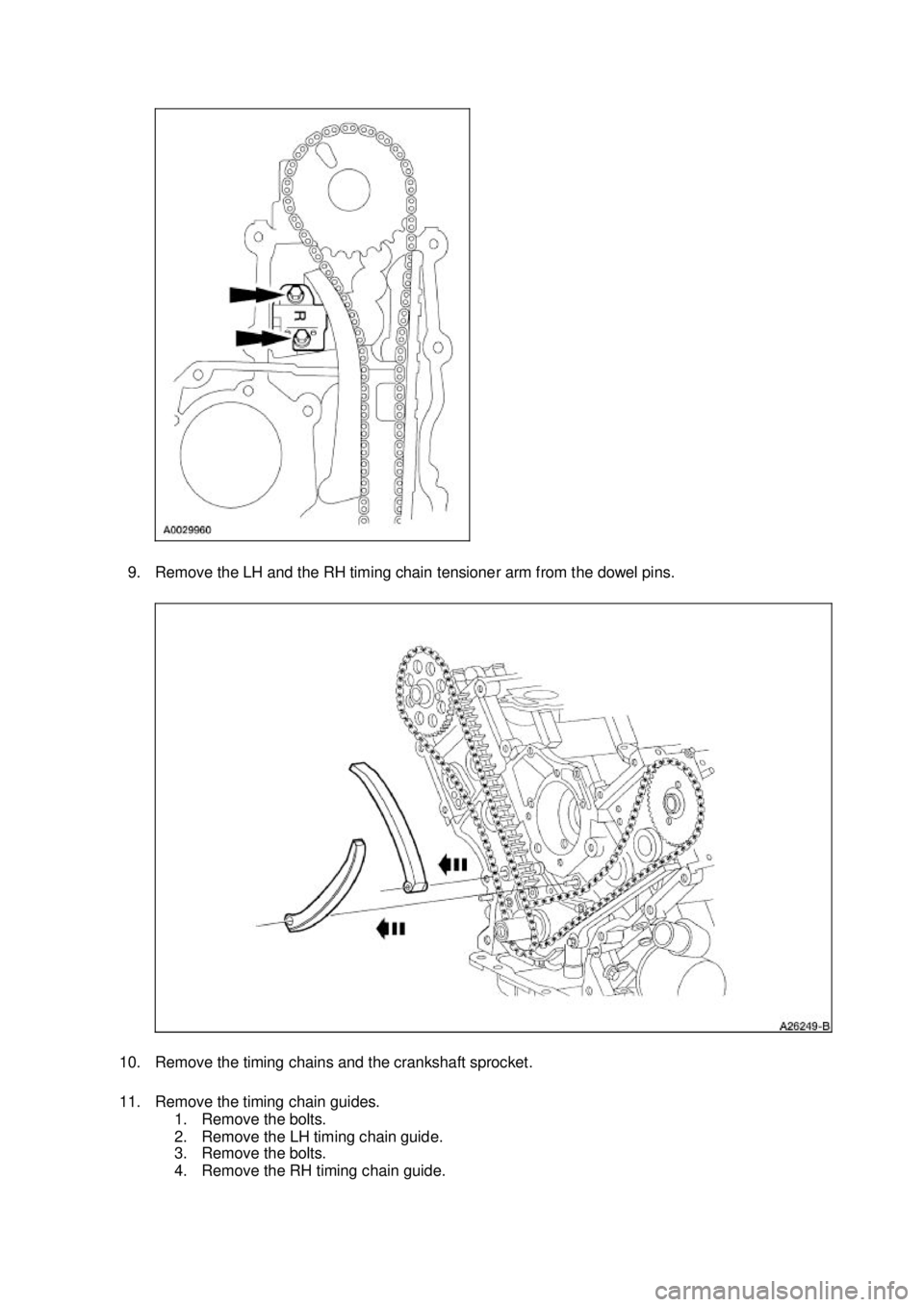

FORD MUSTANG 2003 Workshop Manual 9. Remove the LH and the RH timing chain tensioner arm from the dowel pins. 10. Remove the timing chains and the crankshaft sprocket. 11. Remove the timing chain guides. 1. Remove the bolts. 2. Re

Page 1191 of 4378

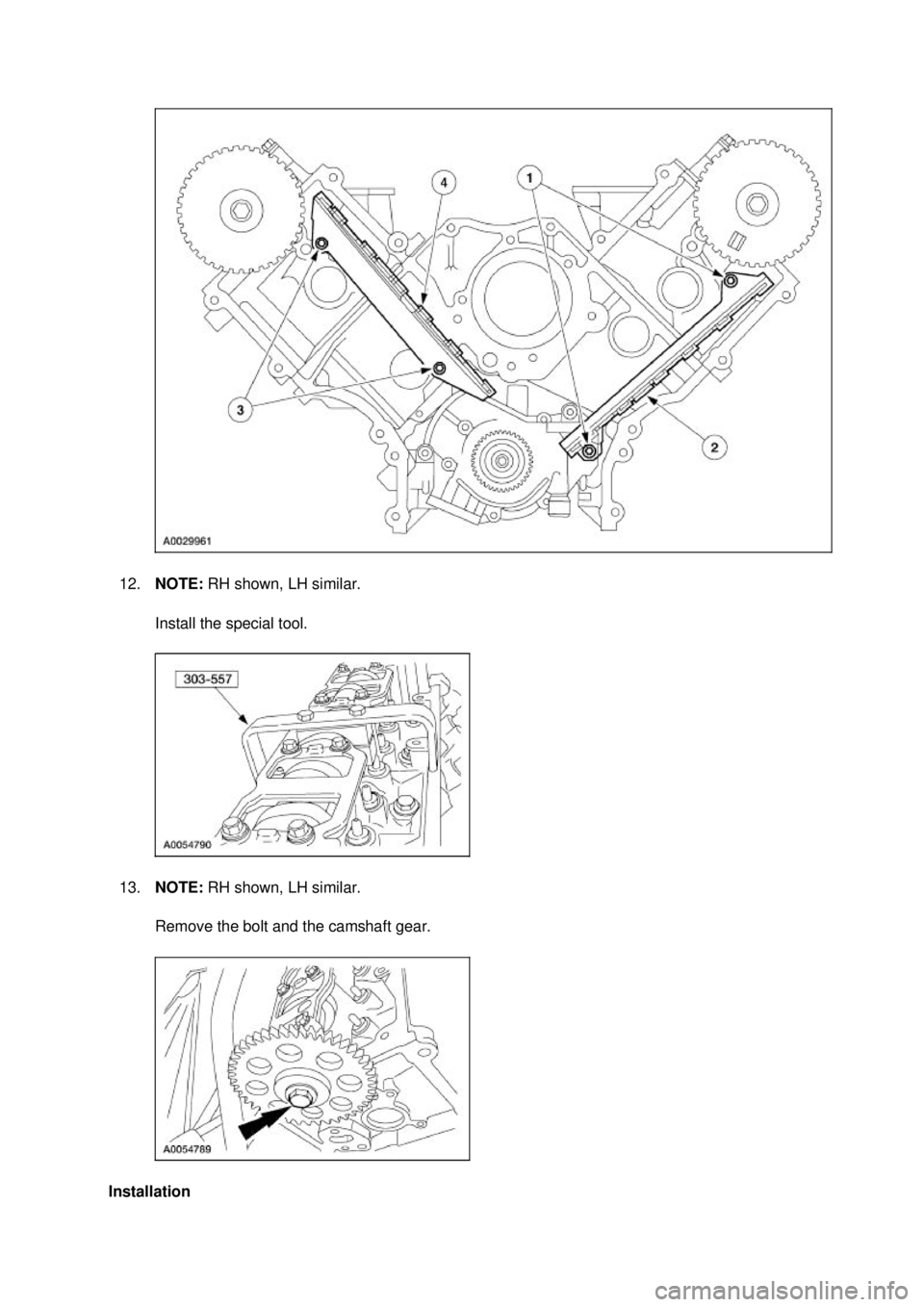

FORD MUSTANG 2003 Workshop Manual 12. NOTE: RH shown, LH similar. Install the special tool. 13. NOTE: RH shown, LH similar. Remove the bolt and the camshaft gear. Installation Klj . 5 ba 132003 Mustang Workshop Manual 1

Page 1192 of 4378

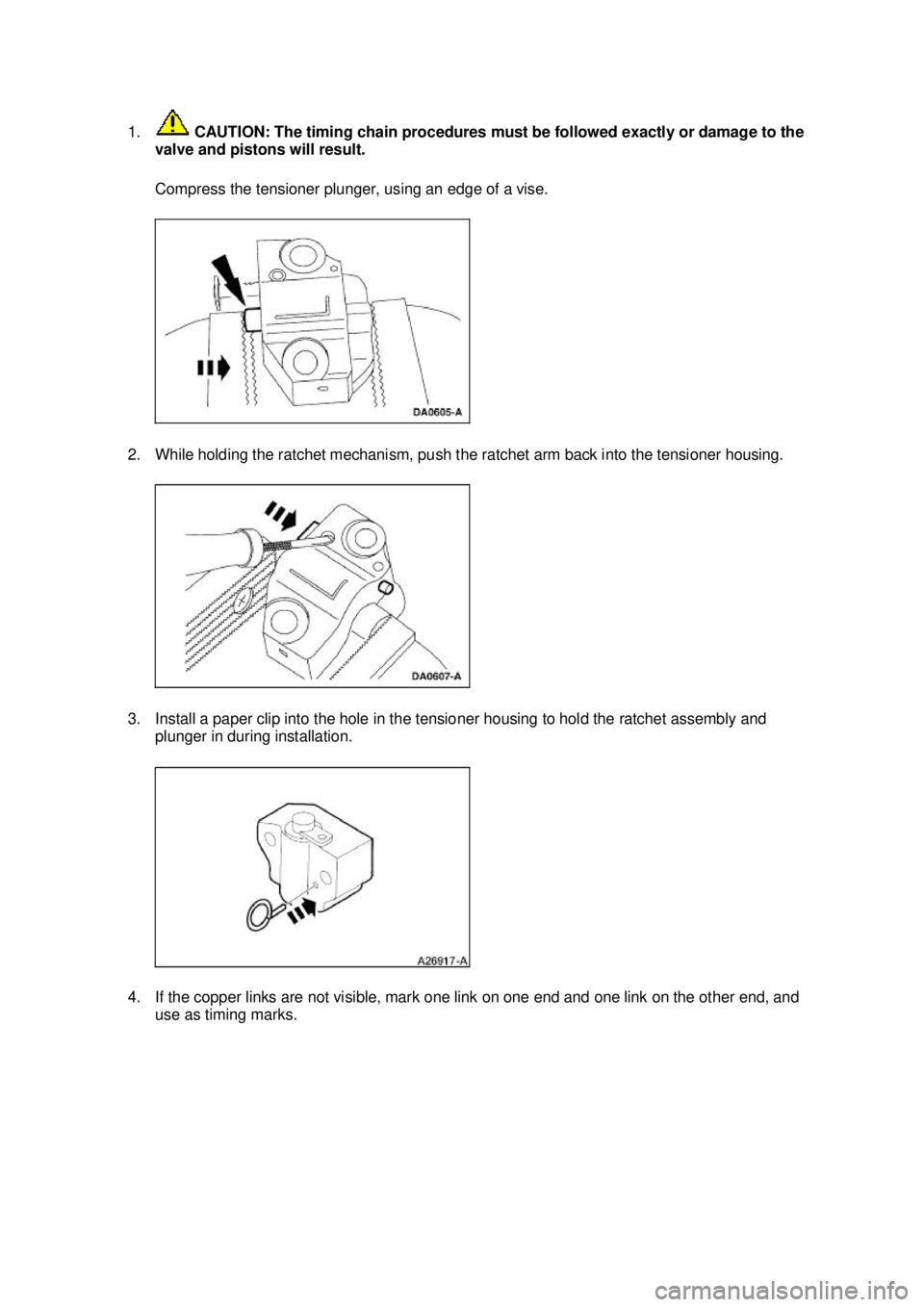

FORD MUSTANG 2003 Workshop Manual 1. CAUTION: The timing chain procedures must be followed exactly or damage to the valve and pistons will result. Compress the tensioner plunger, using an edge of a vise. 2. While holding the ratch
