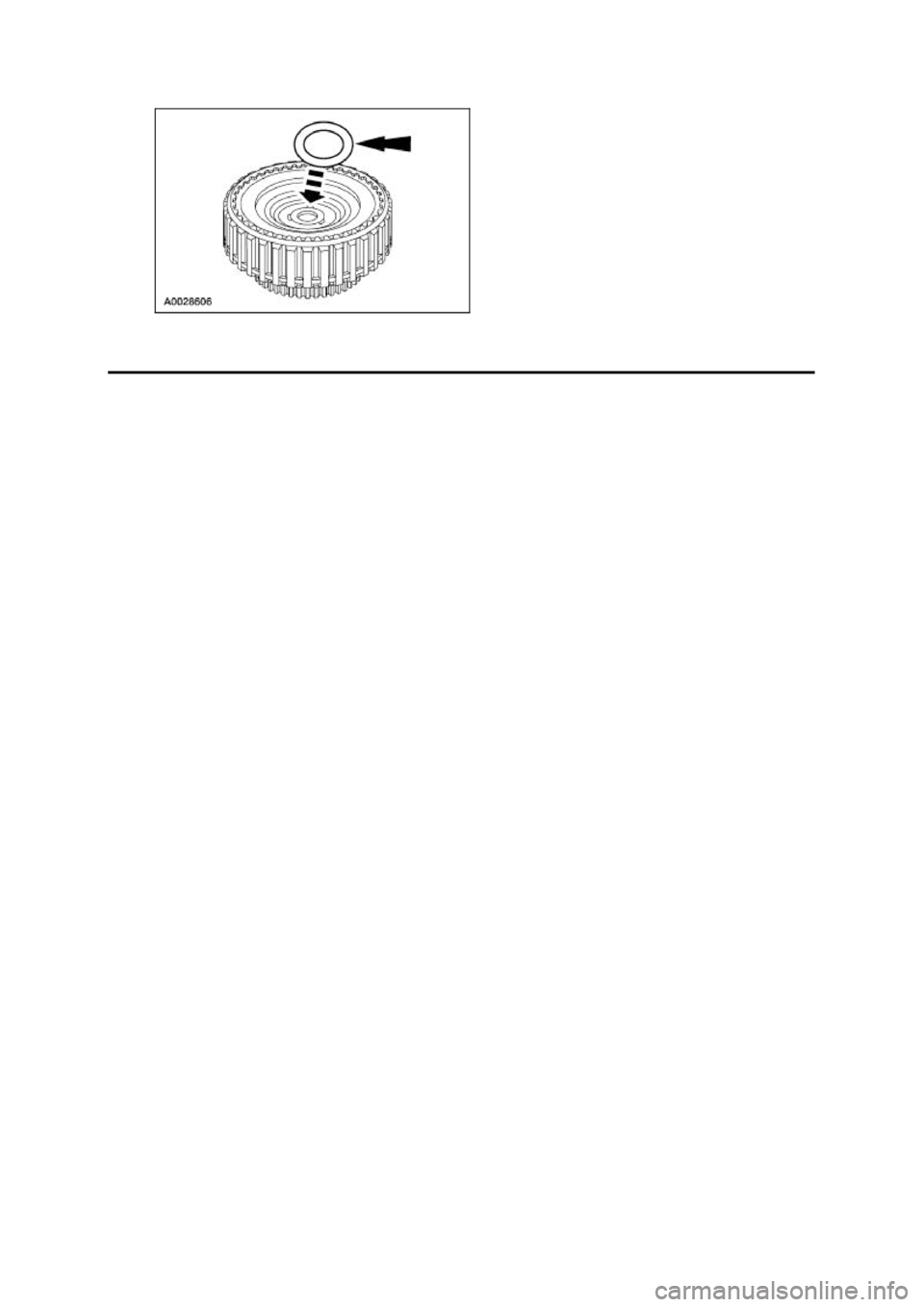

Page 2521 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 9 ba 92003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2522 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Planetary Gear Support Assembly and Planetary One- Way Clutch Disassembly and Assembly 1. NOTE: Inspect the outer and inner races for scores or damaged s

Page 2523 of 4378

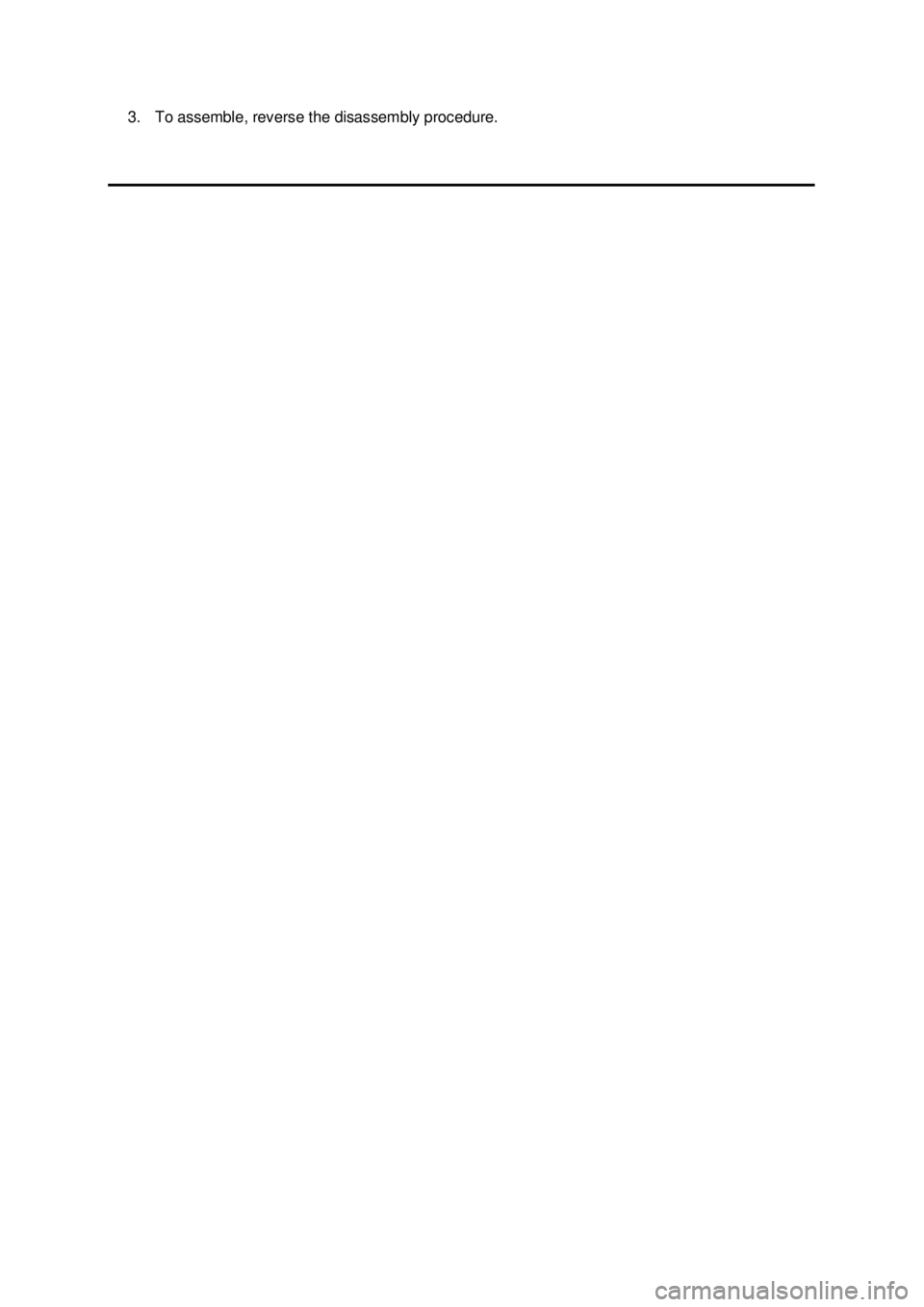

FORD MUSTANG 2003 Workshop Manual 3. To assemble, reverse the disassembly procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2524 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Reverse Sun Gear Disassembly 1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race. 2. Remove the forward clut

Page 2525 of 4378

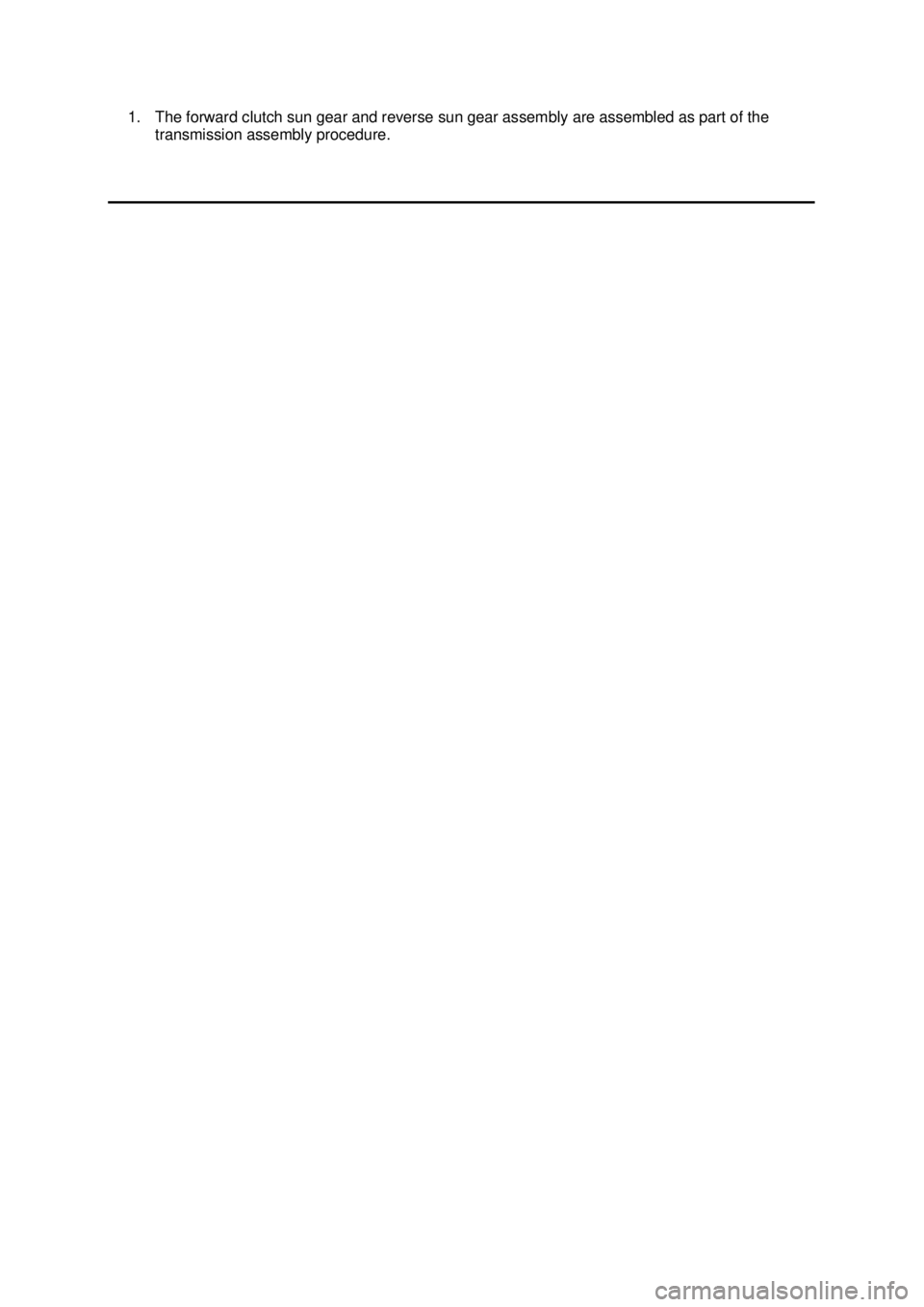

FORD MUSTANG 2003 Workshop Manual 1. The forward clutch sun gear and reverse sun gear assembly are assembled as part of the transmission assembly procedure. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/For

Page 2526 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Output Shaft and Direct Clutch Cylinder Output Shaft, Direct Clutch Cylinder and Ring Gear Disassembled View SECTION 307- 01: Automatic Transaxle/Transmis

Page 2527 of 4378

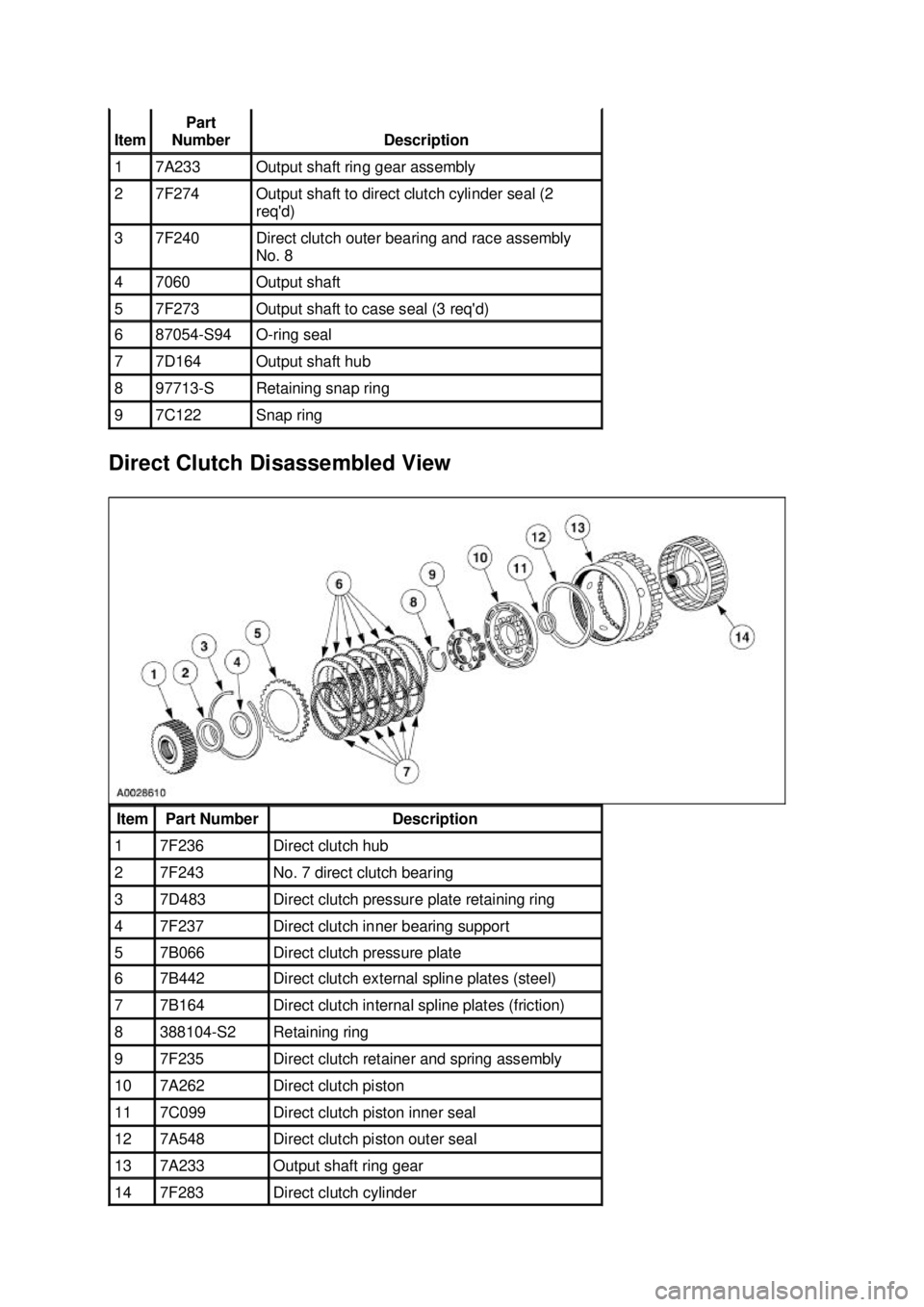

FORD MUSTANG 2003 Workshop Manual Direct Clutch Disassembled View Item Part Number Description 1 7A233 Output shaft ring gear assembly 2 7F274 Output shaft to direct clutch cylinder seal (2 reqd) 3 7F240 Direct clutch o

Page 2528 of 4378

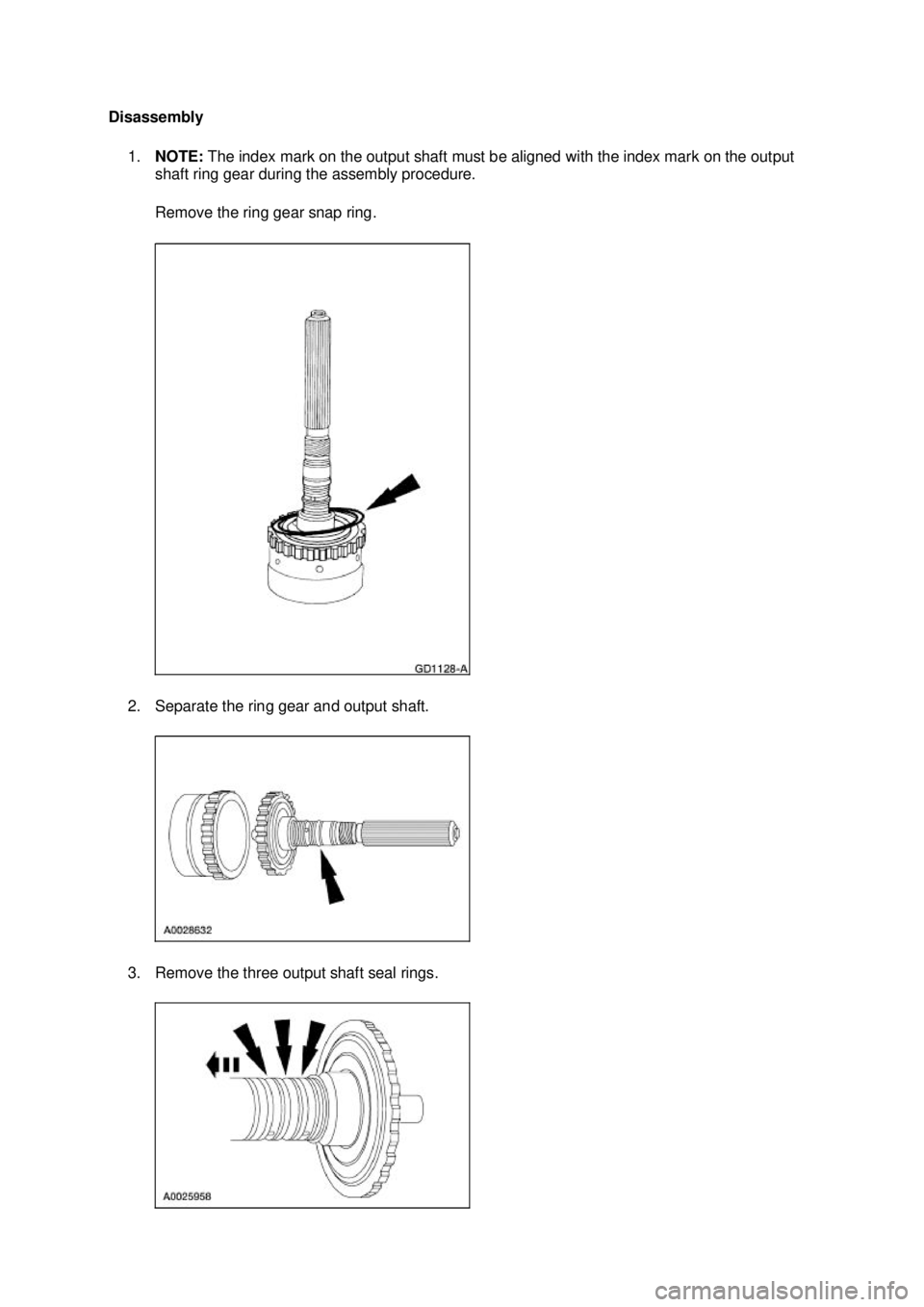

FORD MUSTANG 2003 Workshop Manual Disassembly 1. NOTE: The index mark on the output shaft must be aligned with the index mark on the output shaft ring gear during the assembly procedure. Remove the ring gear snap ring. 2. Separat
