Page 2065 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Spark Plugs Removal and Installation CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire. C

Page 2066 of 4378

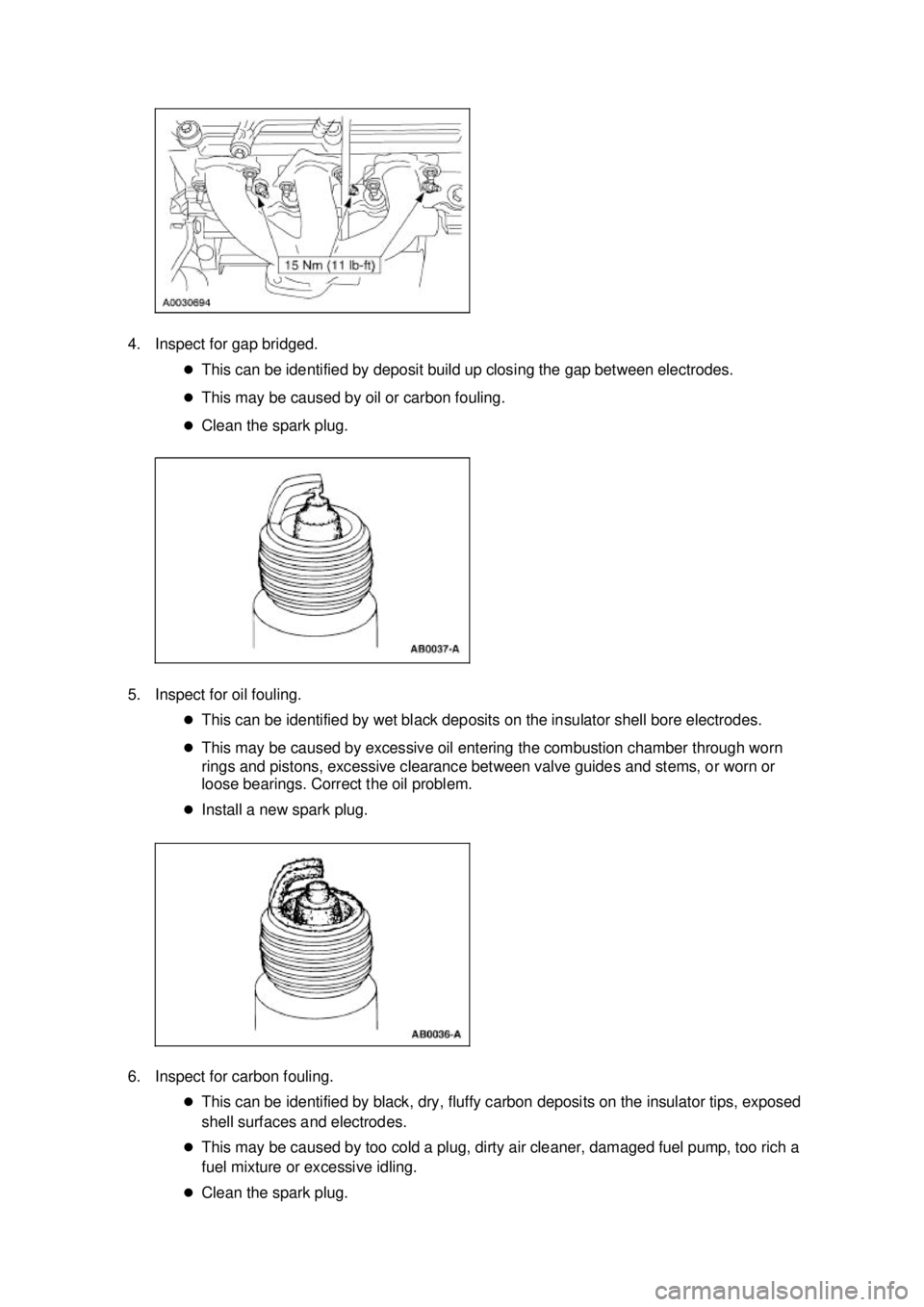

FORD MUSTANG 2003 Workshop Manual 4. Inspect for gap bridged. �zThis can be identified by deposit build up closing the gap between electrodes. �z This may be caused by oil or carbon fouling. �z Clean the spark plug. 5. Inspect for

Page 2067 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Inspect for normal burning. �zThis can be identified by light tan or gray deposits on the firing tip. 8. Inspect for pre- ignition. �z This can be identified by melted electrodes and possibly a

Page 2068 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Inspect for fused spot deposits. �zThis can be identified by melted or spotty deposits resembling bubbles or blisters. �z This can be caused by sudden acceleration. �z Clean the spark plug. 11

Page 2069 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2070 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 07B: Engine Ignition — 4.6L (2V) 2003 Mustang Workshop Manual General Specifications Item Specification Base ignition timing 10 degrees ± 2 degrees non- adjustable

Page 2071 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Engine Ignition Eight separate ignition coils (12029): �zare mounted directly above each spark plug (12405). �z are controlled by the powertrain control module (PCM) for

Page 2072 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
