Page 2705 of 4378

FORD MUSTANG 2003 Workshop Manual 17. CAUTION: To prevent damage, do not depress the clutch pedal with the transmission removed. Disengage the clutch release cable from the clutch release fork. 18. Remove the clutch cable retainer

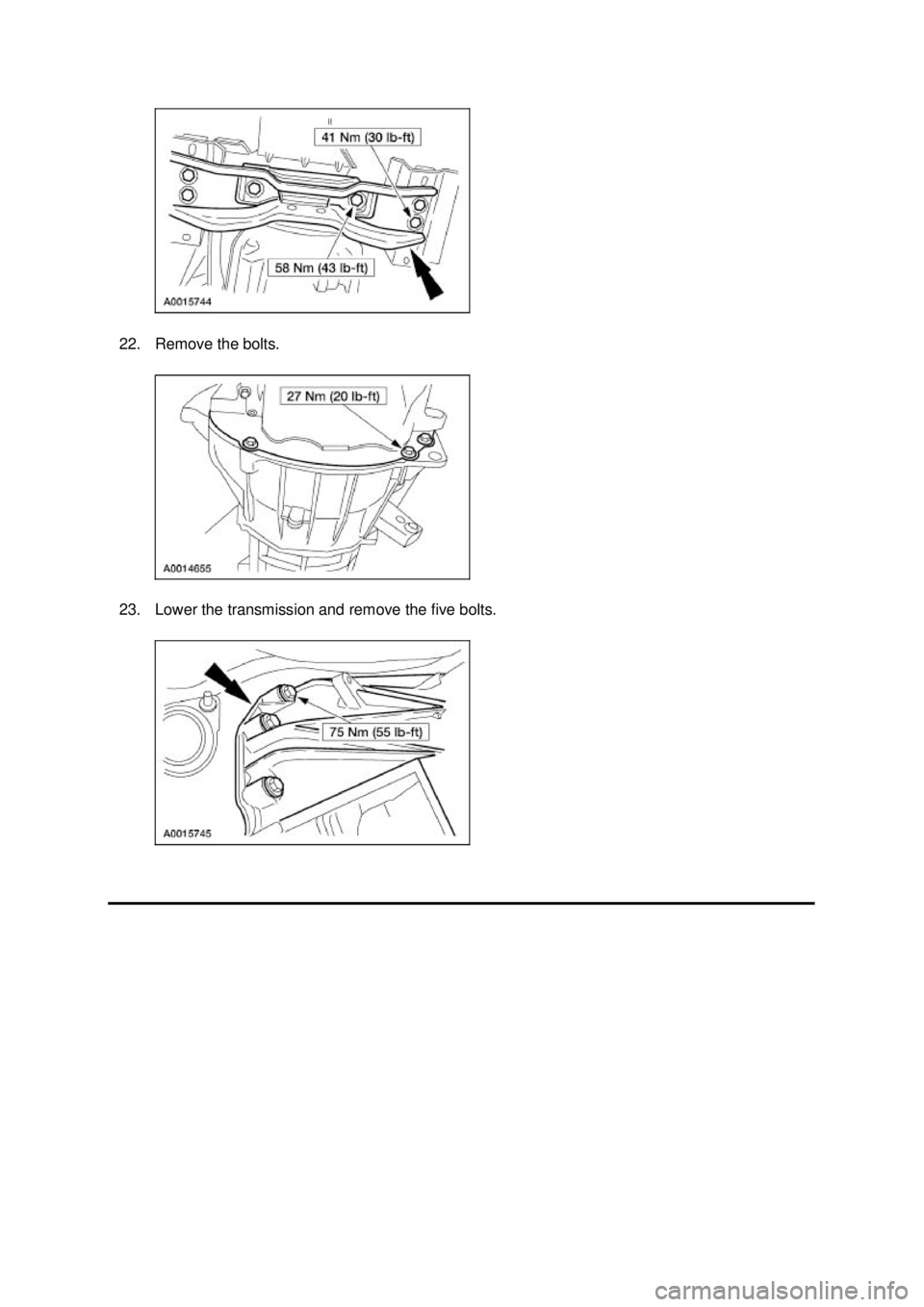

Page 2706 of 4378

FORD MUSTANG 2003 Workshop Manual 22. Remove the bolts. 23. Lower the transmission and remove the five bolts. Klj . 5 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2707 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2708 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Transmission 1. Remove the clutch release hub and bearing and the clutch release lever. For additional information, refer to Section 308 - 01 . 2. WARNING: Make sure protective eyew

Page 2709 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Attach the transmission to the special tool. 4. NOTE: Position a drain pan under the transmission. Remove the case plug. 5. NOTE: Position the gearshift lever in NEUTRAL. Remove the bolts and

Page 2710 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Using the special tools, remove the extension housing fluid seal. 8. Remove the seven bolts and the identification tag. 9. CAUTION: The gearshift offset lever is under spring pressure. While ap

Page 2711 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Remove the bolts. 12. Remove the case cover. �zLift the case cover and slide it toward the filler plug side of the case to clear the reverse gearshift lever. 13. CAUTION: Support the reverse

Page 2712 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Remove the fifth speed synchronizer retaining snap ring, the thrust washer (7G042), the reverse brake ring (7M000), and the synchronizer blocking ring (7107). 15. Remove the fifth speed cluster
