Page 2745 of 4378

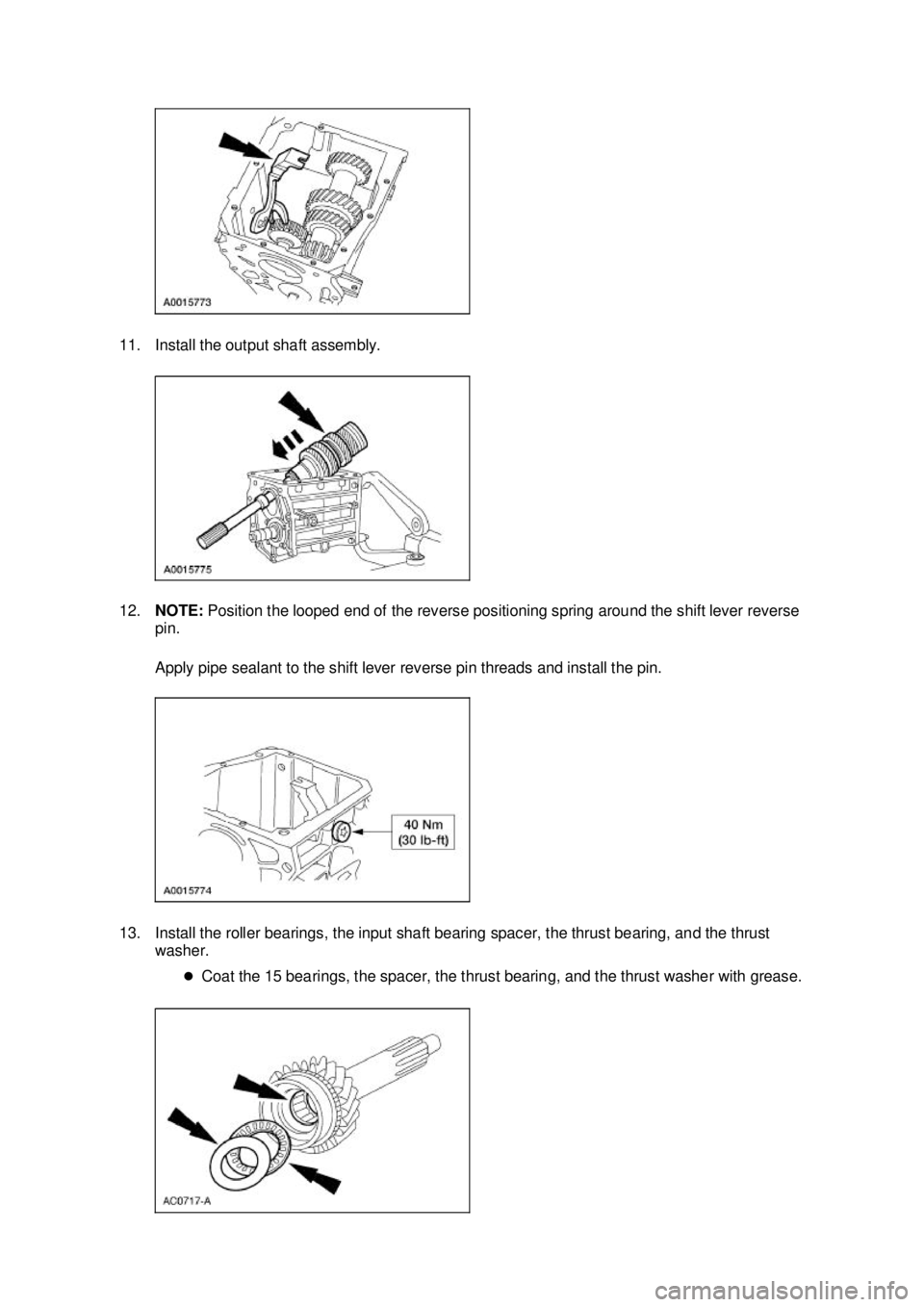

FORD MUSTANG 2003 Workshop Manual 11. Install the output shaft assembly. 12. NOTE: Position the looped end of the reverse positioning spring around the shift lever reverse pin. Apply pipe sealant to the shift lever reverse pin thr

Page 2746 of 4378

FORD MUSTANG 2003 Workshop Manual 14. NOTE: If not done so previously, soak the blocking ring in MERCON® Multi- Purpose ATF Transmission Fluid XT -2-QDX or equivalent for ten minutes. Install the fourth speed synchronizer blocking

Page 2747 of 4378

FORD MUSTANG 2003 Workshop Manual 18. Install the bolts. 19. Install the output shaft rear bearing cup. 20. Install the reverse gear shift rail. �zAlign the ball stud with the slot in the case and align the reverse gear shift rail

Page 2748 of 4378

FORD MUSTANG 2003 Workshop Manual 21. NOTE: If not done so previously, soak the blocking ring in transmission fluid for ten minutes. Install the fifth speed cluster gear, the synchronizer blocking ring, the synchronizer assembly, a

Page 2749 of 4378

FORD MUSTANG 2003 Workshop Manual 25. Install the output shaft speed wheel and the snap ring. 26. CAUTION: Do not under any circumstance apply silicone sealant to the top of the transmission case. The sealant could fall into the tr

Page 2750 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Apply a 3.2- mm (1/8-in) bead of silicone rubber to the sealing surface on the extension housing. 30. Install the detent ball, the shifter detent spring, and the gearshift offset lever. 1. Coat

Page 2751 of 4378

FORD MUSTANG 2003 Workshop Manual 32. Install the identification tag and the bolts. 33. Install the split pin and the gearshift shaft bushing. 34. Using the special tools, measure the output shaft end play. 1. Place the transmissio

Page 2752 of 4378

FORD MUSTANG 2003 Workshop Manual 35. CAUTION: Install the thickest shim closest to the front bearing cup to provide support for the cup. CAUTION: Although zero end play is the ideal, end play up to mm (0.002 in) is an acceptable
