Page 3137 of 4378

FORD MUSTANG 2003 Workshop Manual Item Part Number Description 1 19E630 LH demister nozzle duct 2 18490 Defroster duct 3 19B680 A/C evaporator register duct —(RH) 4 19E630 RH demister nozzle duct 5 19893 A/C evaporat

Page 3138 of 4378

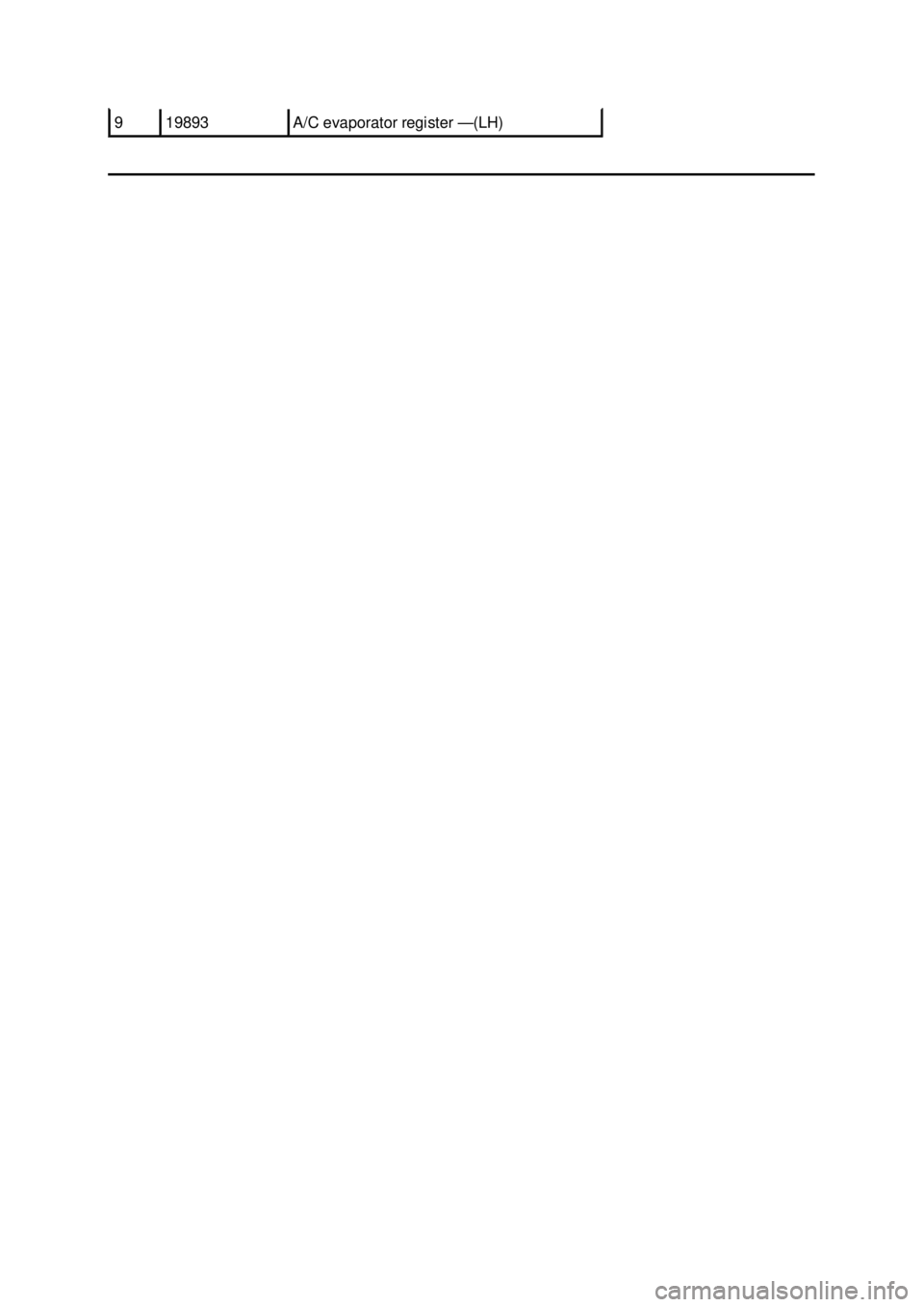

FORD MUSTANG 2003 Workshop Manual 9 19893 A/C evaporator register —(LH) Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 3139 of 4378

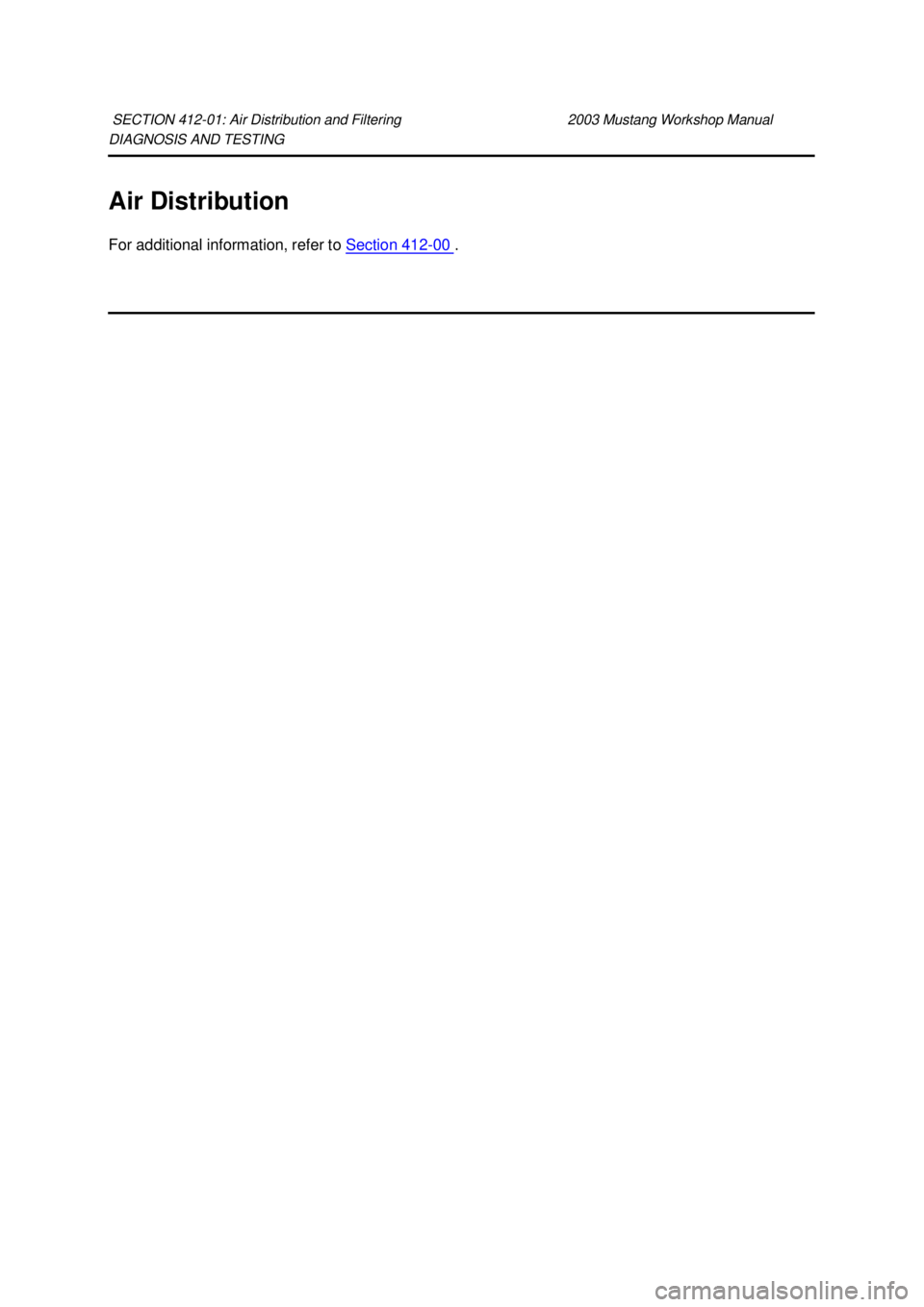

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Air Distribution For additional information, refer to Section 412 - 00 . SECTION 412- 01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba 12

Page 3140 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Register — LH Removal 1. Remove the instrument panel steering column cover bolts. 2. Unsnap and remove the instrument panel steering column cover. 3. Remove the bolts a

Page 3141 of 4378

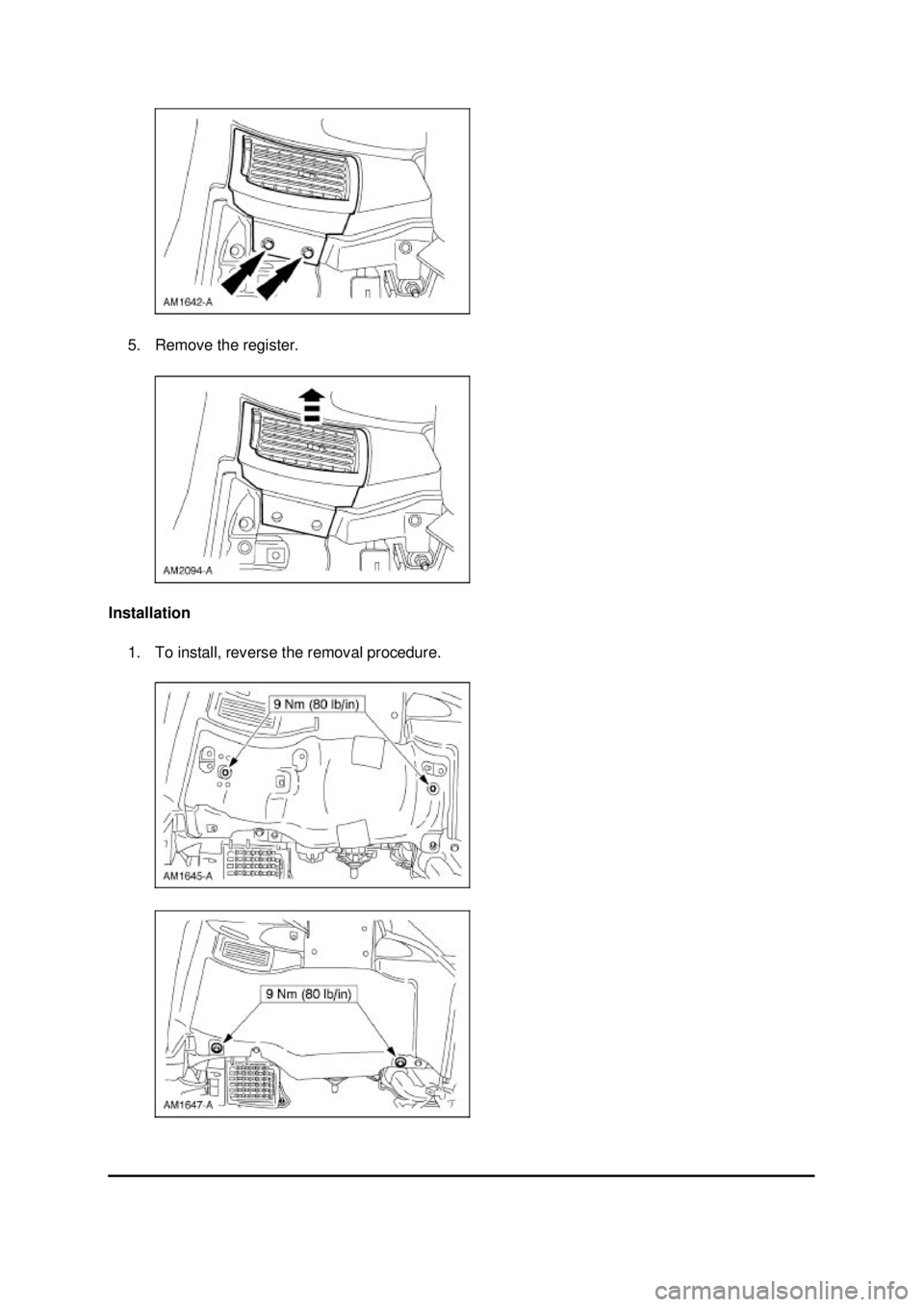

FORD MUSTANG 2003 Workshop Manual 5. Remove the register. Installation 1. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us

Page 3142 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 3143 of 4378

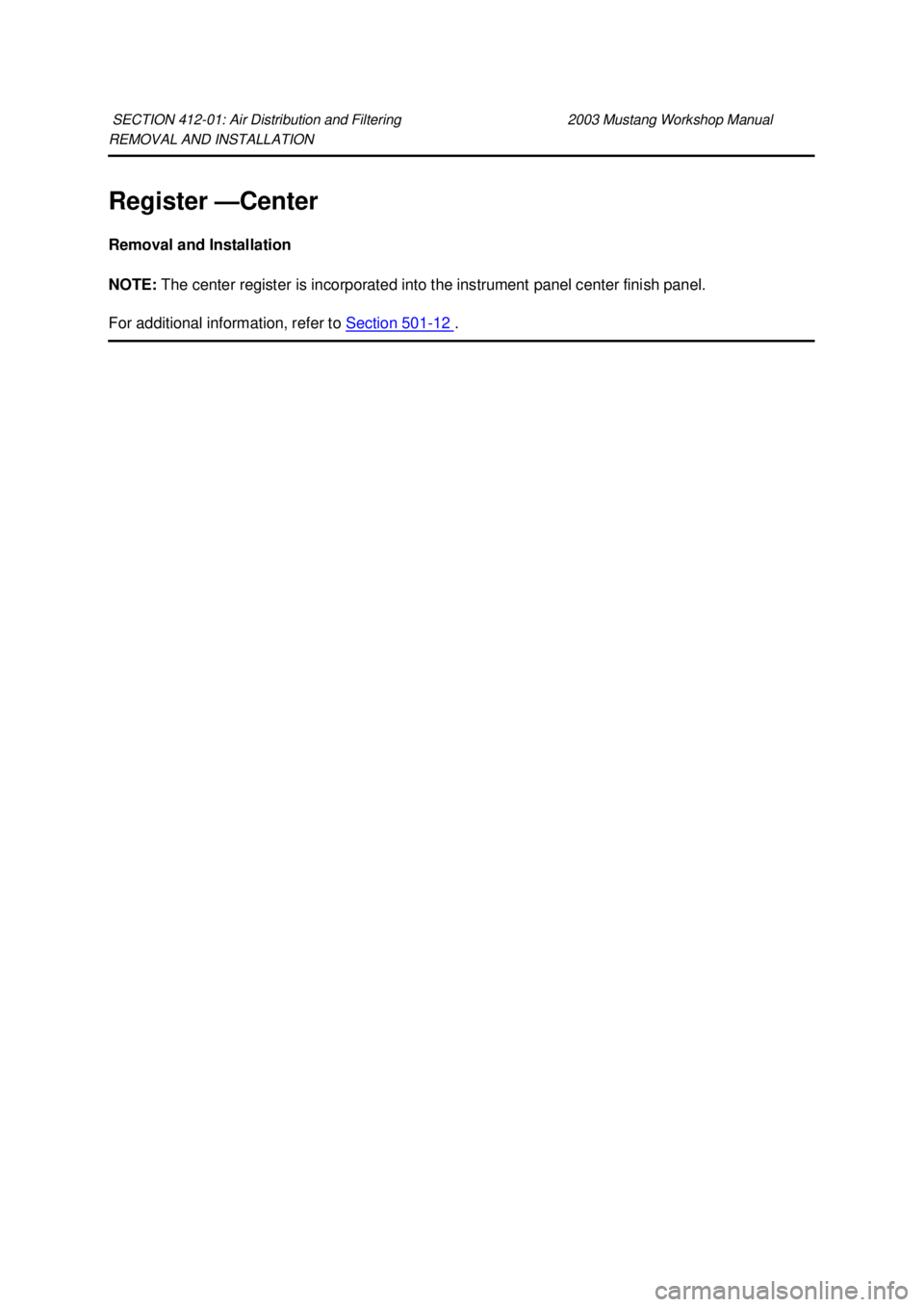

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Register — Center Removal and Installation NOTE: The center register is incorporated into the instrument panel center finish panel. For additional information, refer to

Page 3144 of 4378

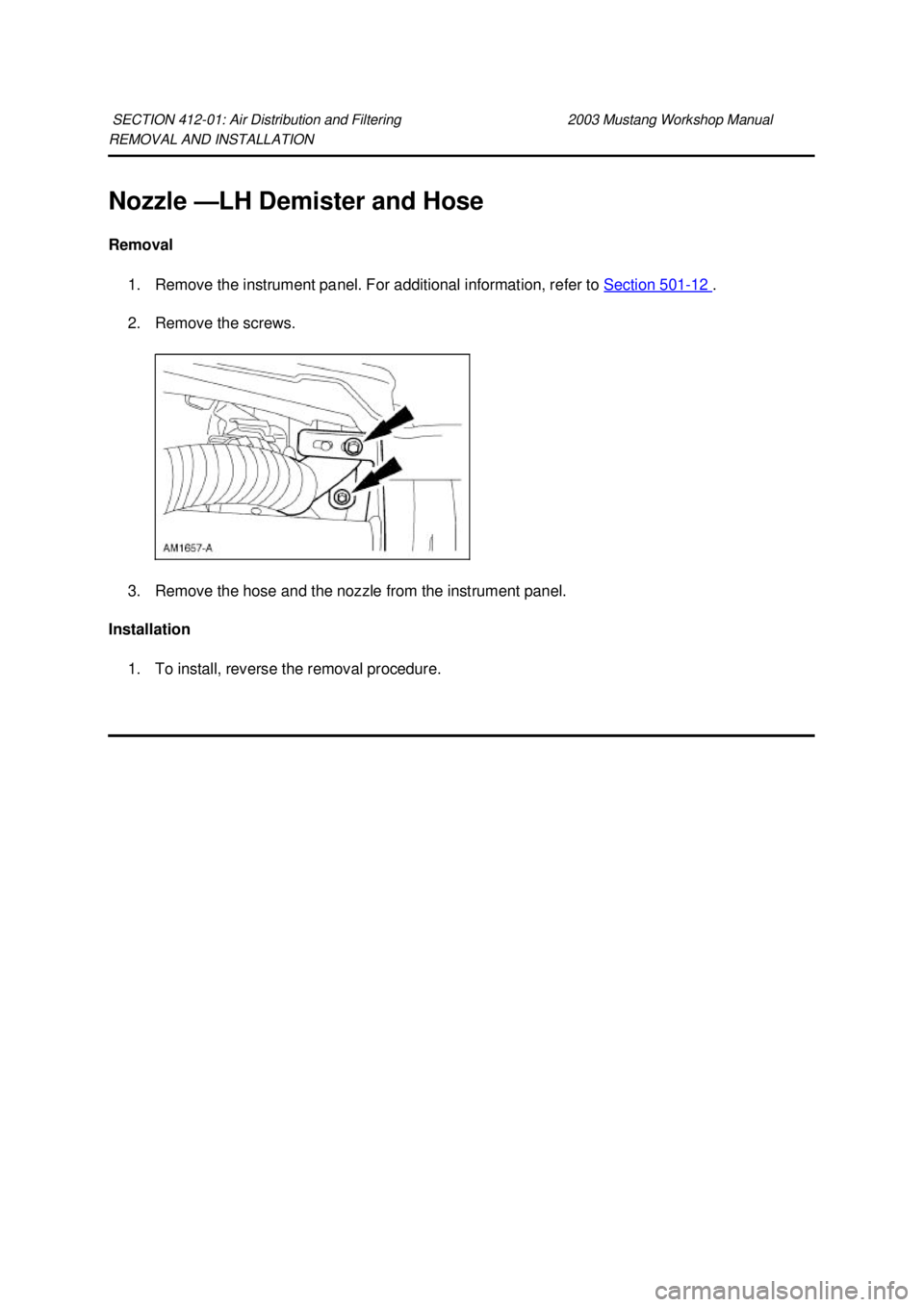

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Nozzle — LH Demister and Hose Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 . 2. Remove the screws. 3. Remove the hose
