Page 1409 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Cover RH Removal and Installation 1. Remove the RH ignition coils. For additional information, refer to Section 303 - 07C . 2. Remove the A/C condenser to evaporator tub

Page 1410 of 4378

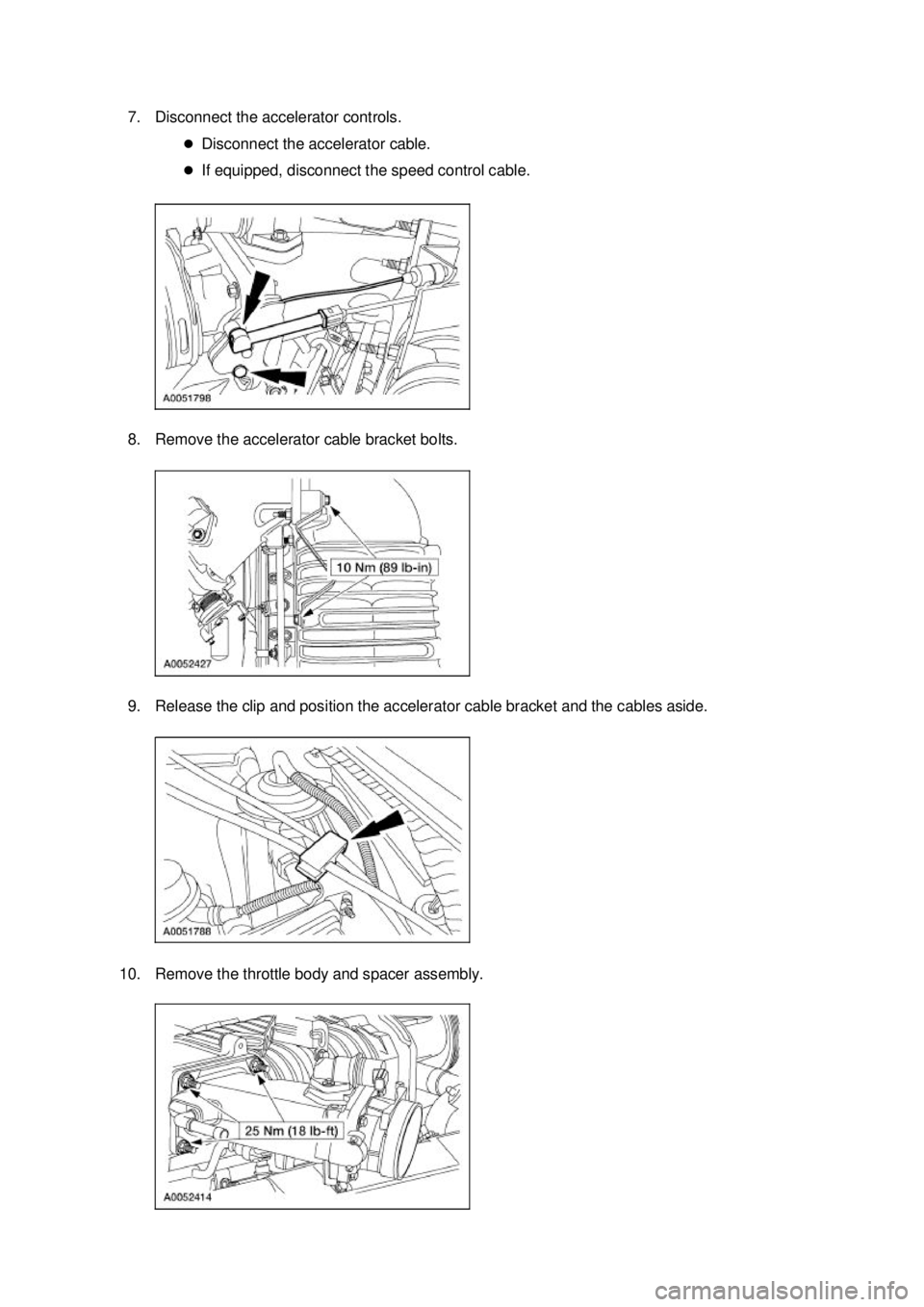

FORD MUSTANG 2003 Workshop Manual 7. Disconnect the accelerator controls. �zDisconnect the accelerator cable. �z If equipped, disconnect the speed control cable. 8. Remove the accelerator cable bracket bolts. 9. Release the clip a

Page 1411 of 4378

FORD MUSTANG 2003 Workshop Manual 11. Remove the RH valve cover. �z CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouge

Page 1412 of 4378

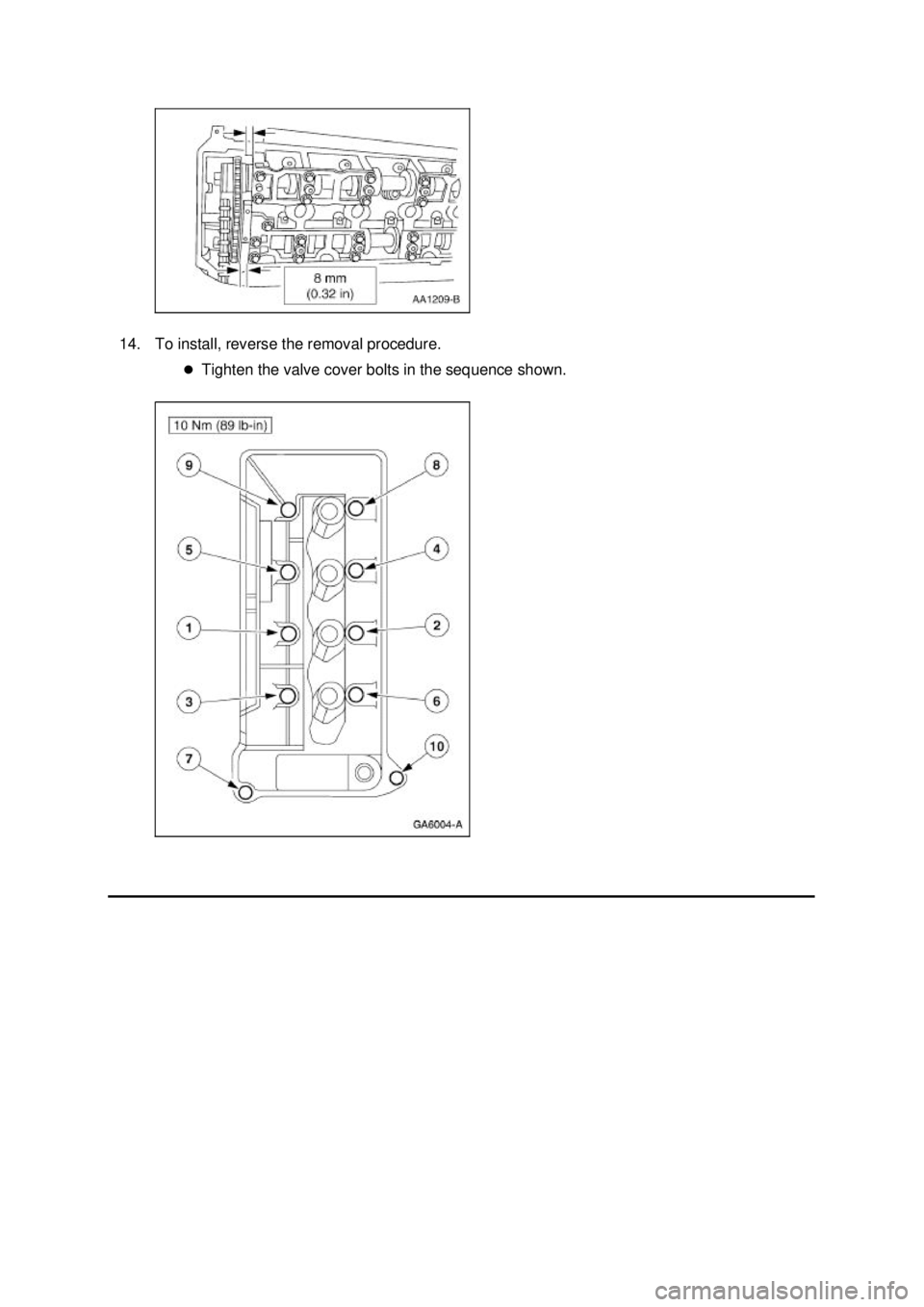

FORD MUSTANG 2003 Workshop Manual 14. To install, reverse the removal procedure. �zTighten the valve cover bolts in the sequence shown. Klj . 4 ba 52003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocach

Page 1413 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 5 ba 52003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1414 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Valve Cover LH Removal and Installation 1. Remove the Hydro Boost brake booster. For additional information, refer to Section 206 - 07 . 2. Remove the LH ignition coils. For a

Page 1415 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Disconnect the vacuum hoses from the differential pressure feedback EGR system. 7. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid and the actuator. 8. Disconnect the vac

Page 1416 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the mounting bolts and the vacuum accessory bracket. 11. Disconnect the camshaft position (CMP) sensor electrical connector. 12. Remove the fasteners and position the power steering reser
