Page 553 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Brake Pads — Cobra Removal 1. Remove brake fluid in the master cylinder reservoir until the reservoir is half full. 2. Raise and support the vehicle. For additional info

Page 554 of 4378

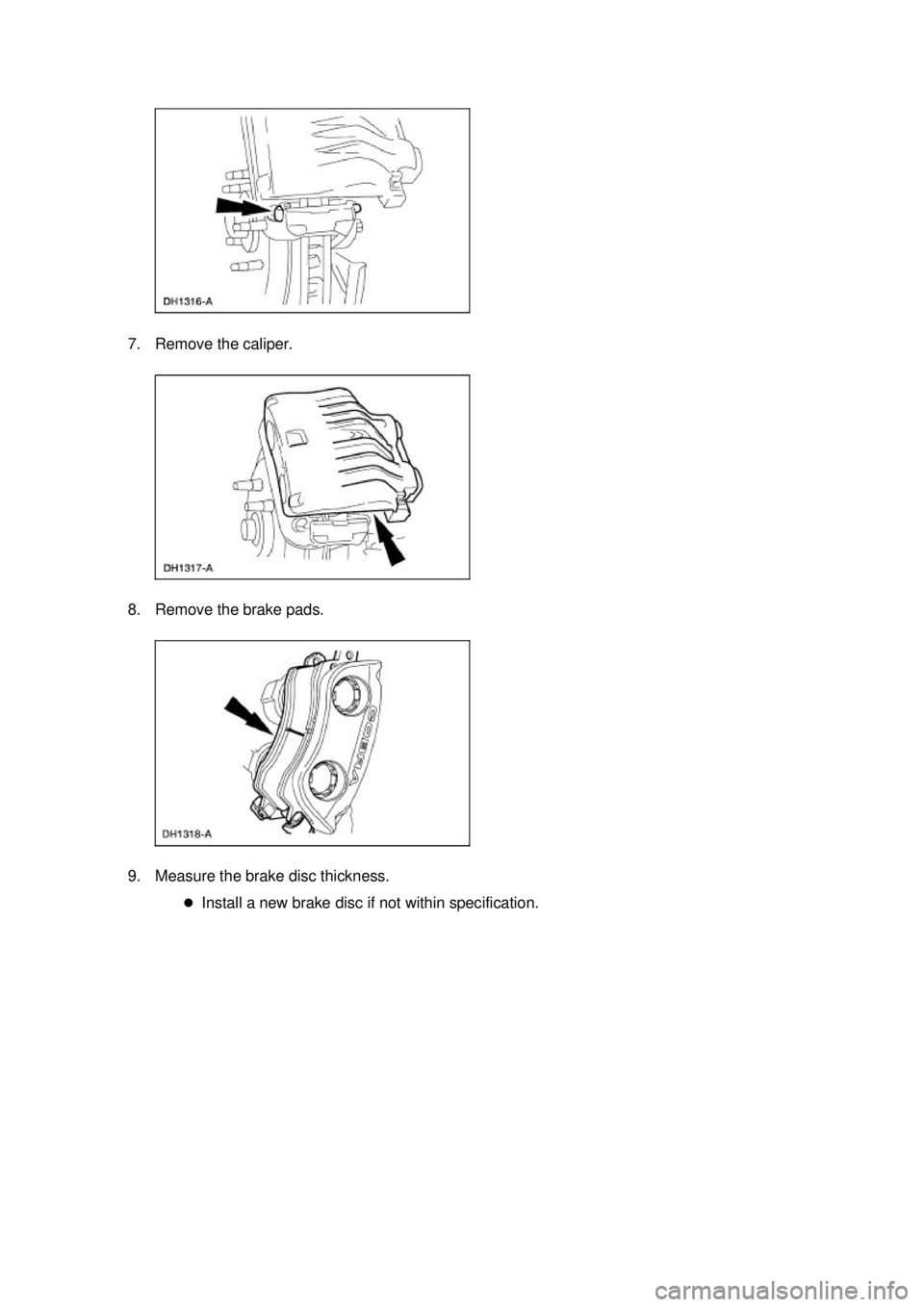

FORD MUSTANG 2003 Workshop Manual 7. Remove the caliper. 8. Remove the brake pads. 9. Measure the brake disc thickness. �zInstall a new brake disc if not within specification. Klj . 2 ba 42003 Mustang Workshop Manual 17. 1

Page 555 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Inspect the disc brake caliper. �zIf leaks or damaged boots are found, disassembly is required. For additional information, refer to Caliper in this section. 11. NOTE: Use a wood block or us

Page 556 of 4378

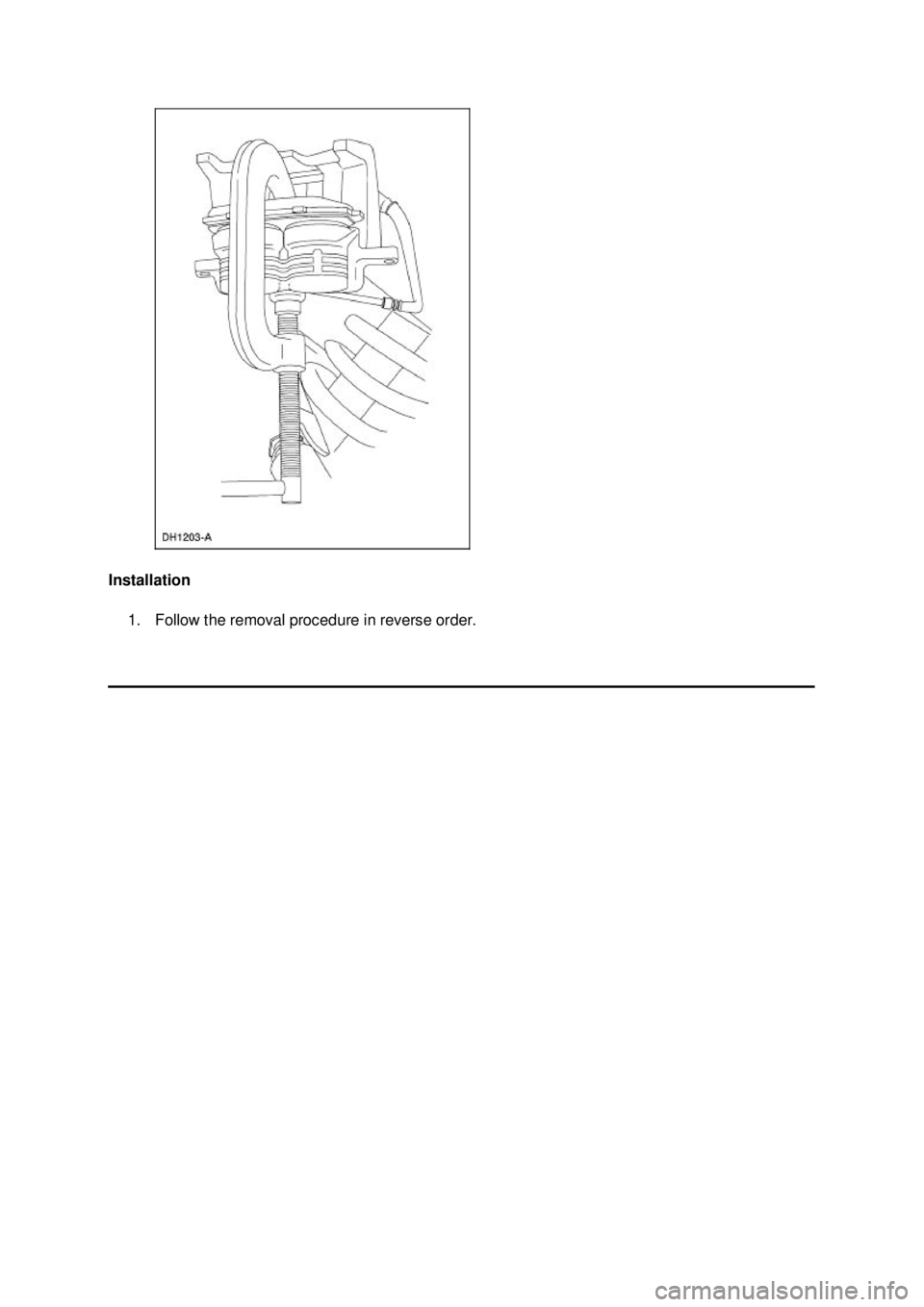

FORD MUSTANG 2003 Workshop Manual Installation 1. Follow the removal procedure in reverse order. Klj . 4 ba 42003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 557 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Caliper Removal 1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 . 2. Remove the wheel and tire assembly. For additional informati

Page 558 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Lift the caliper off the anchor plate (2B292). 6. Inspect the disc brake caliper. �zIf leaks or damaged boots are found, disassembly is required. For additional information, refer to Caliper i

Page 559 of 4378

FORD MUSTANG 2003 Workshop Manual 2. CAUTION: Make sure guide pin boots are correctly seated or damage to guide pins can occur. Install the disc brake caliper. 1. Hold the guide pins stationary. 2. Install the caliper bolts. 3.

Page 560 of 4378

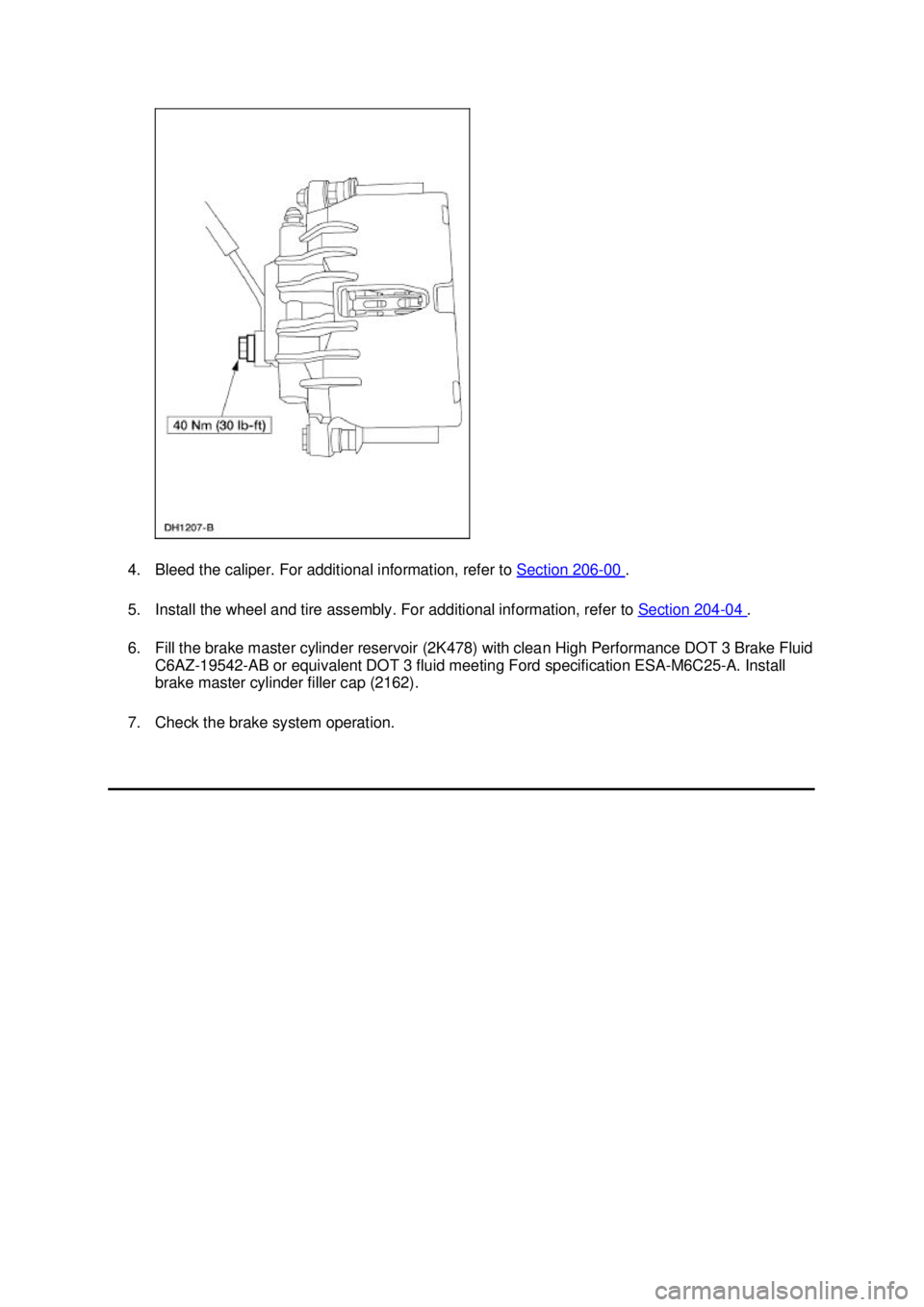

FORD MUSTANG 2003 Workshop Manual 4. Bleed the caliper. For additional information, refer to Section 206 - 00 . 5. Install the wheel and tire assembly. For additional information, refer to Section 204 - 04 . 6. Fill the brake ma
