Page 217 of 4378

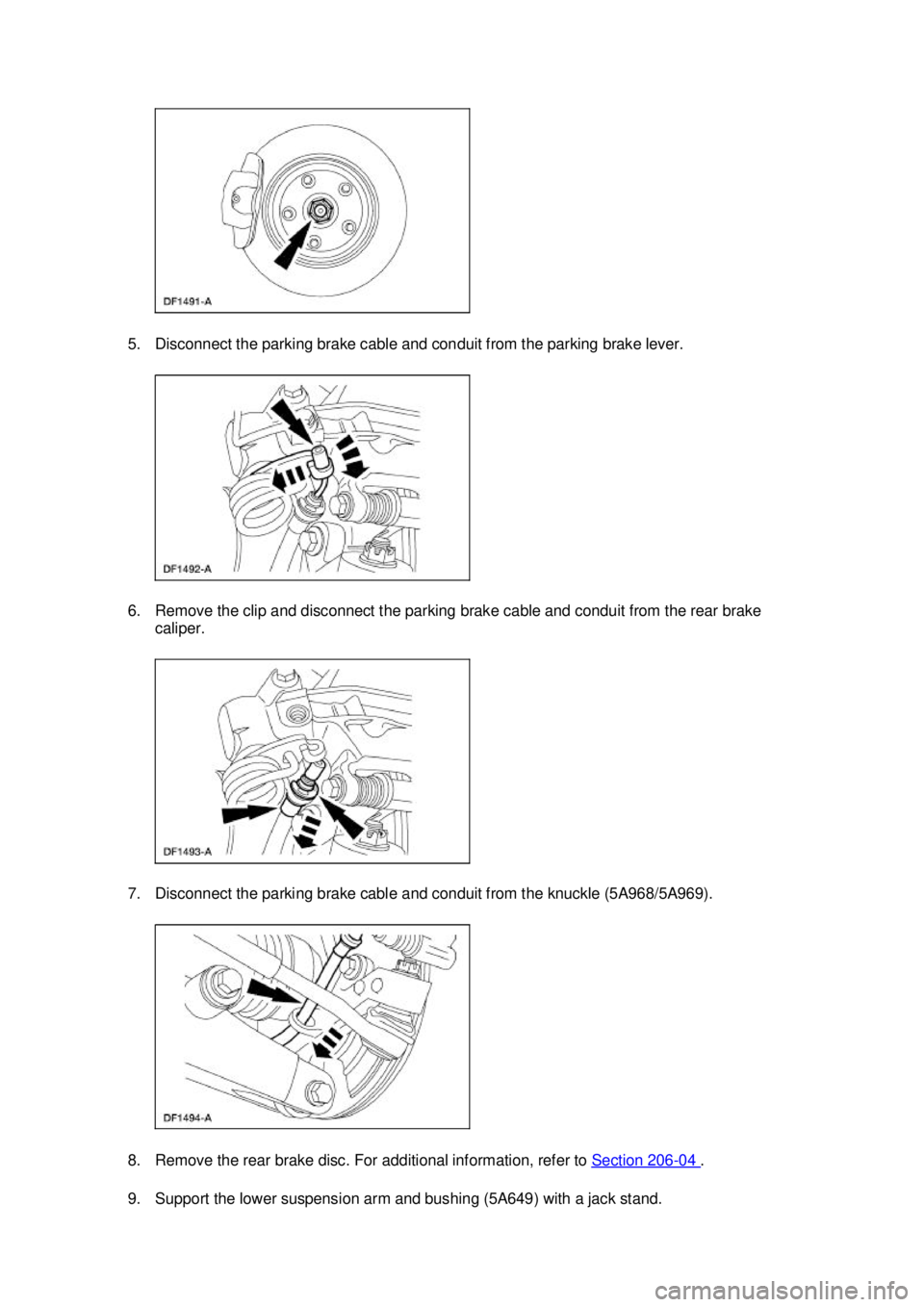

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the parking brake cable and conduit from the parking brake lever. 6. Remove the clip and disconnect the parking brake cable and conduit from the rear brake caliper. 7. Disconnect the

Page 218 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the nut and bolt and disconnect the shock absorber (18125) from the lower suspension arm and bushing. Discard the nut and bolt. 11. Remove and discard the cotter pin and nut. 12. CAUTIO

Page 219 of 4378

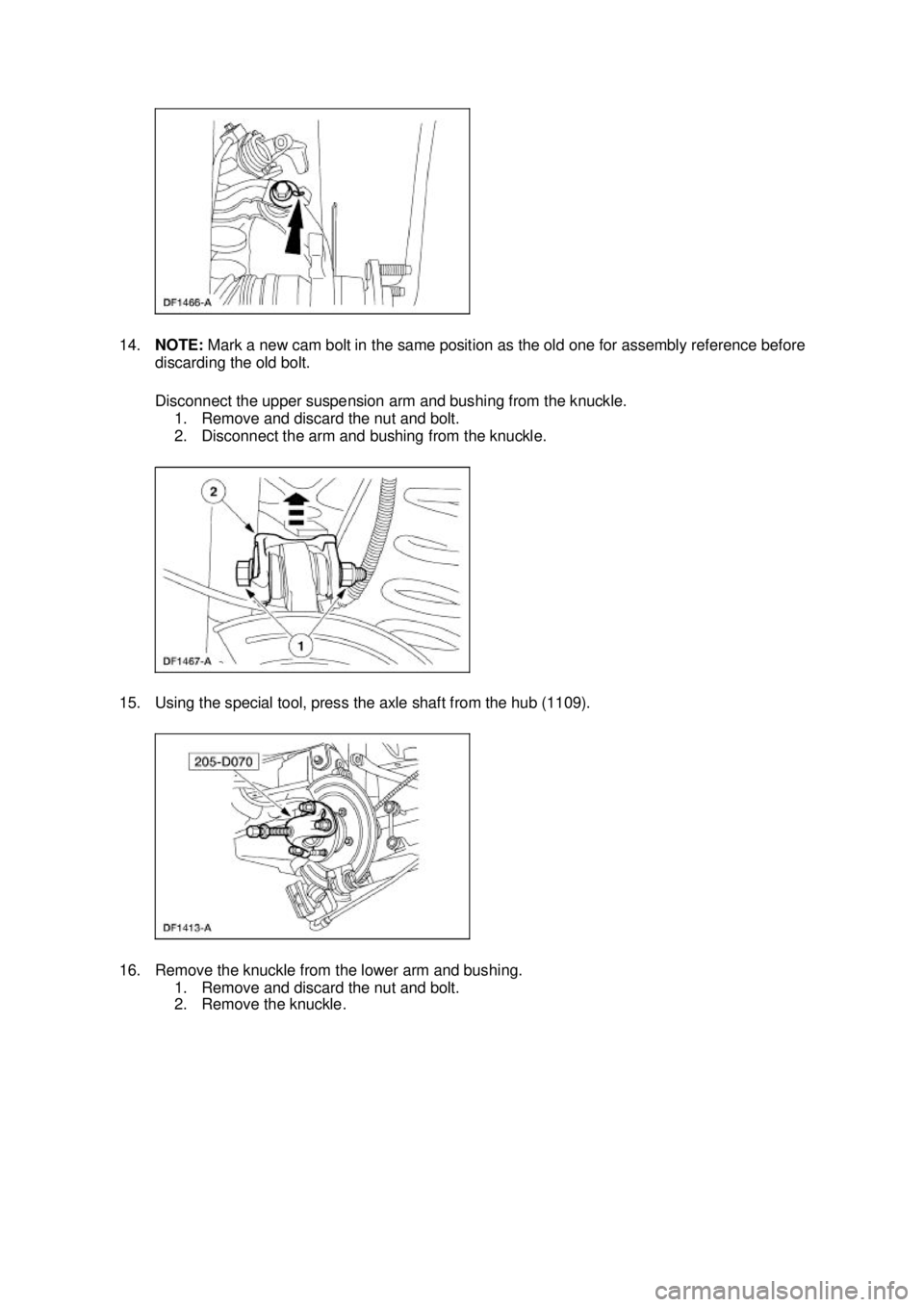

FORD MUSTANG 2003 Workshop Manual 14. NOTE: Mark a new cam bolt in the same position as the old one for assembly reference before discarding the old bolt. Disconnect the upper suspension arm and bushing from the knuckle. 1. Remove

Page 220 of 4378

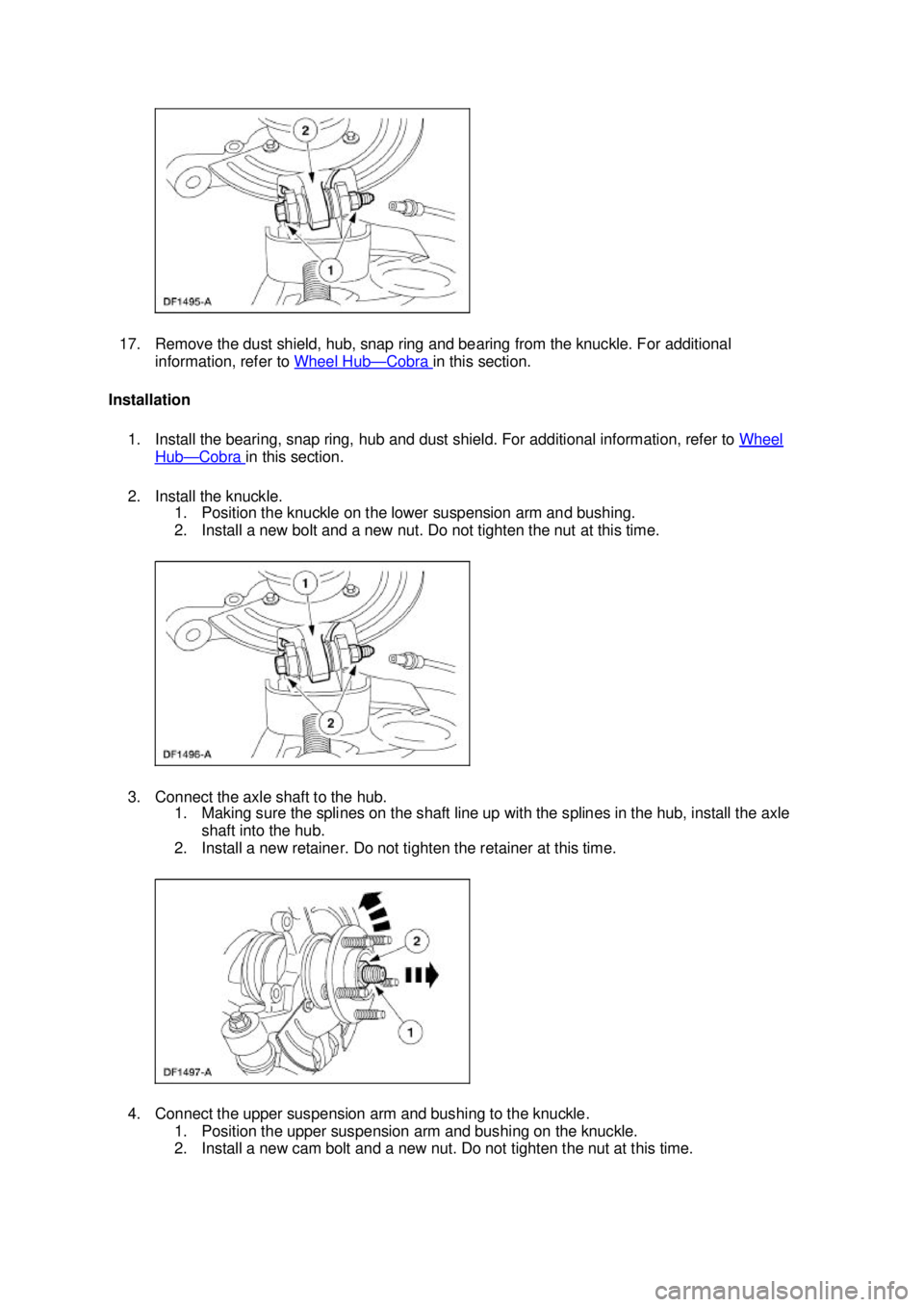

FORD MUSTANG 2003 Workshop Manual 17. Remove the dust shield, hub, snap ring and bearing from the knuckle. For additional information, refer to Wheel Hub — Cobra in this section. Installation 1. Install the bearing, snap ring,

Page 221 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Connect the toe link to the knuckle. 1. Position the toe link in the knuckle. 2. Install a new nut. 3. Install a new cotter pin. 6. CAUTION: Make sure the hardened washer is installed between

Page 222 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Tighten the nut. 9. Make sure the marks on the cam bolt and the upper suspension arm and bushing made during removal are aligned, and tighten the nut. 10. Lower the suspension and remove the jac

Page 223 of 4378

FORD MUSTANG 2003 Workshop Manual 13. Connect the parking brake cable and conduit to the rear brake caliper and install the clip. 14. Connect the parking brake cable and conduit to the parking brake lever. 15. CAUTION: The axle ret

Page 224 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 9 ba 92003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
