Page 2849 of 4378

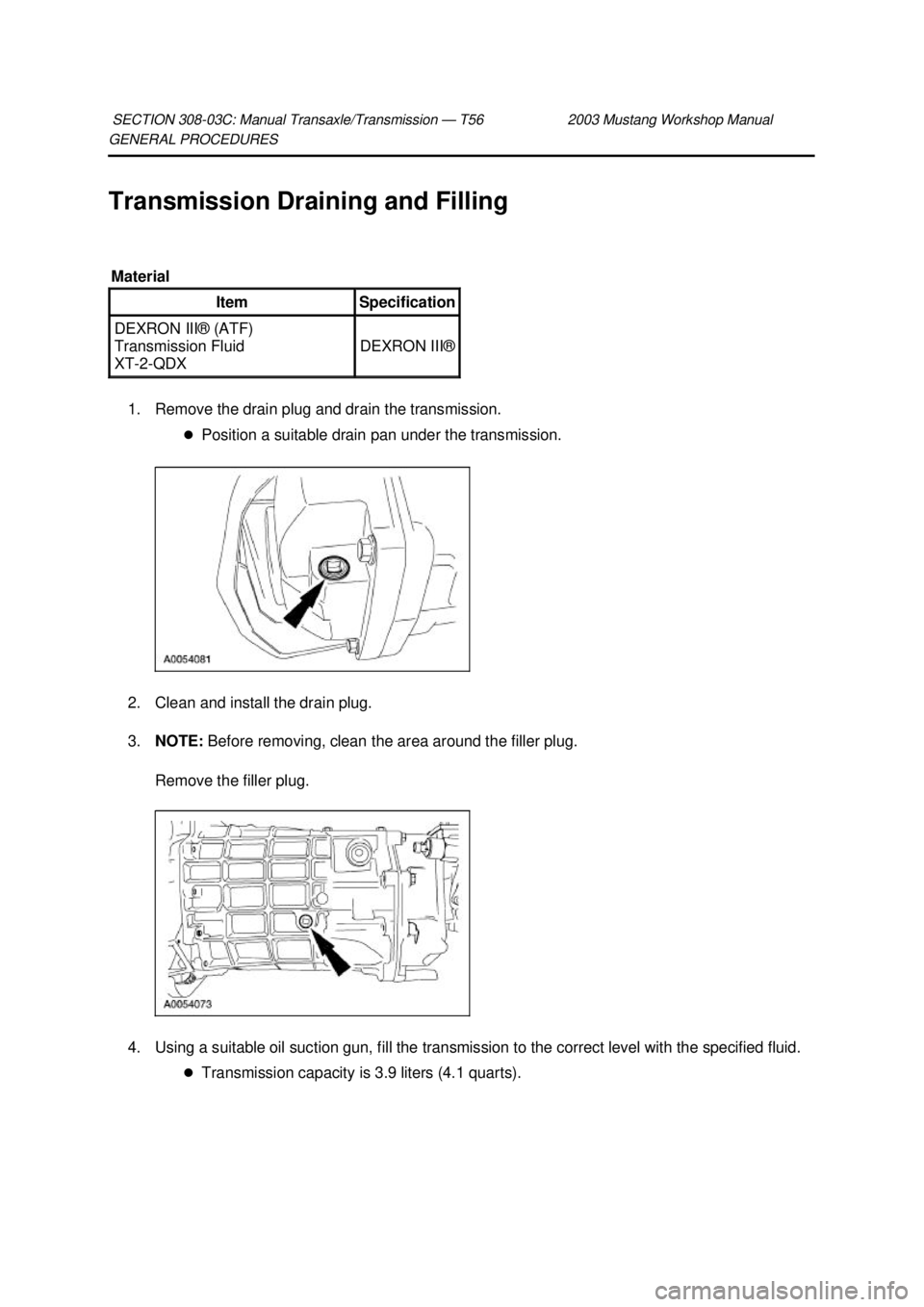

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Transmission Draining and Filling 1. Remove the drain plug and drain the transmission. �zPosition a suitable drain pan under the transmission. 2. Clean and install the drain plu

Page 2850 of 4378

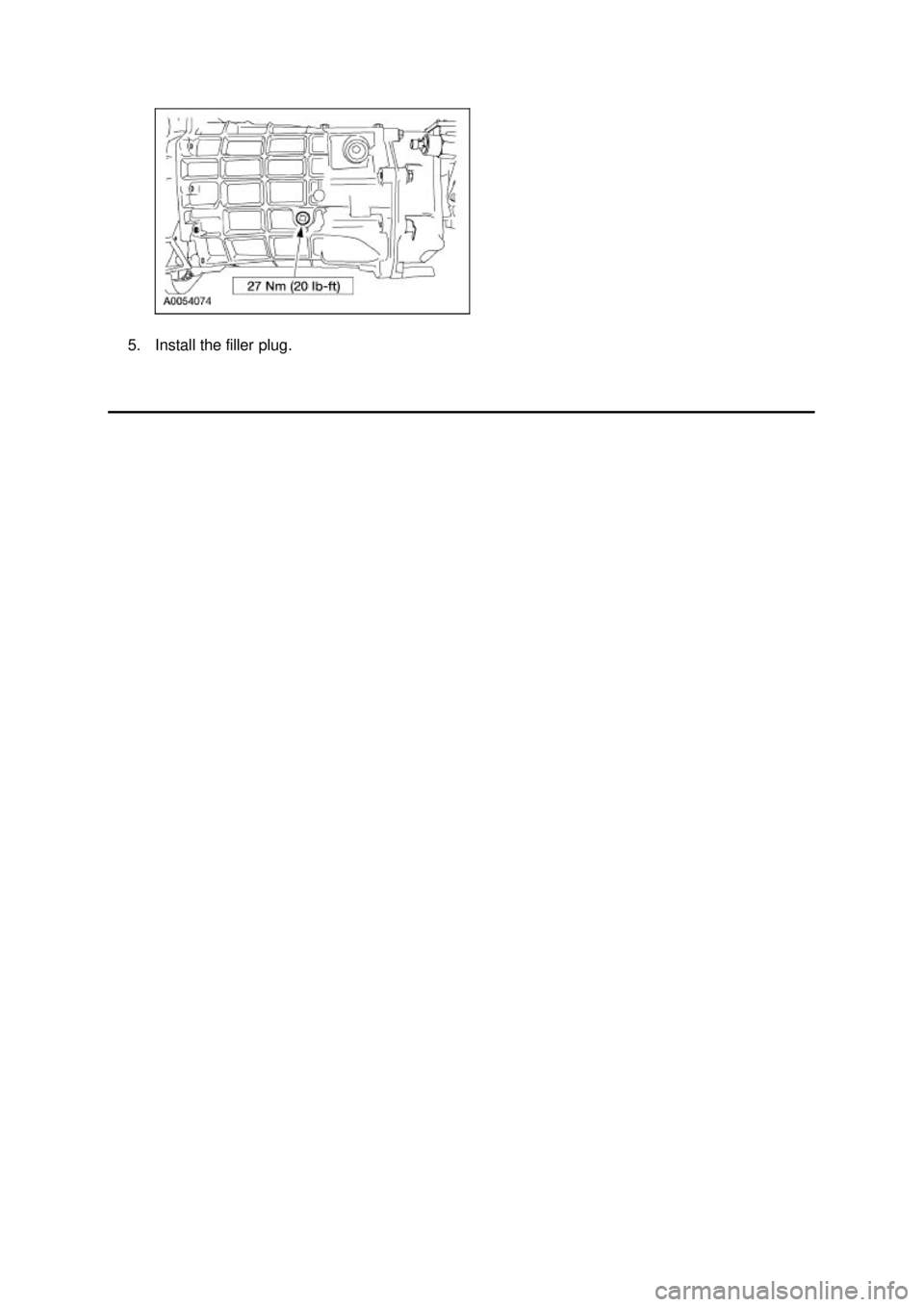

FORD MUSTANG 2003 Workshop Manual 5. Install the filler plug. Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2851 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL Transmission 1. Remove the gearshift lever knob. 2. Remove the console panel gearshift plate. Disconnect the cigar lighter electrical connector, then lift the gearshift lever boot over the

Page 2852 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the bolts and the lower gearshift lever. 6. Disconnect the reverse lockout solenoid electrical connector. 7. With the vehicle in NEUTRAL, raise and support the vehicle. For additional info

Page 2853 of 4378

FORD MUSTANG 2003 Workshop Manual slip yoke and transmission output shaft. Remove the driveshaft. For additional information, refer to Section 205 - 01 . 10. Disconnect the heated oxygen sensor (HO2S) electrical connectors from th

Page 2854 of 4378

FORD MUSTANG 2003 Workshop Manual 14. Disengage the clutch release cable from the clutch release fork. 15. Disconnect the wiring harness from the transmission. 16. Disconnect the output shaft speed (OSS) sensor electrical connector.

Page 2855 of 4378

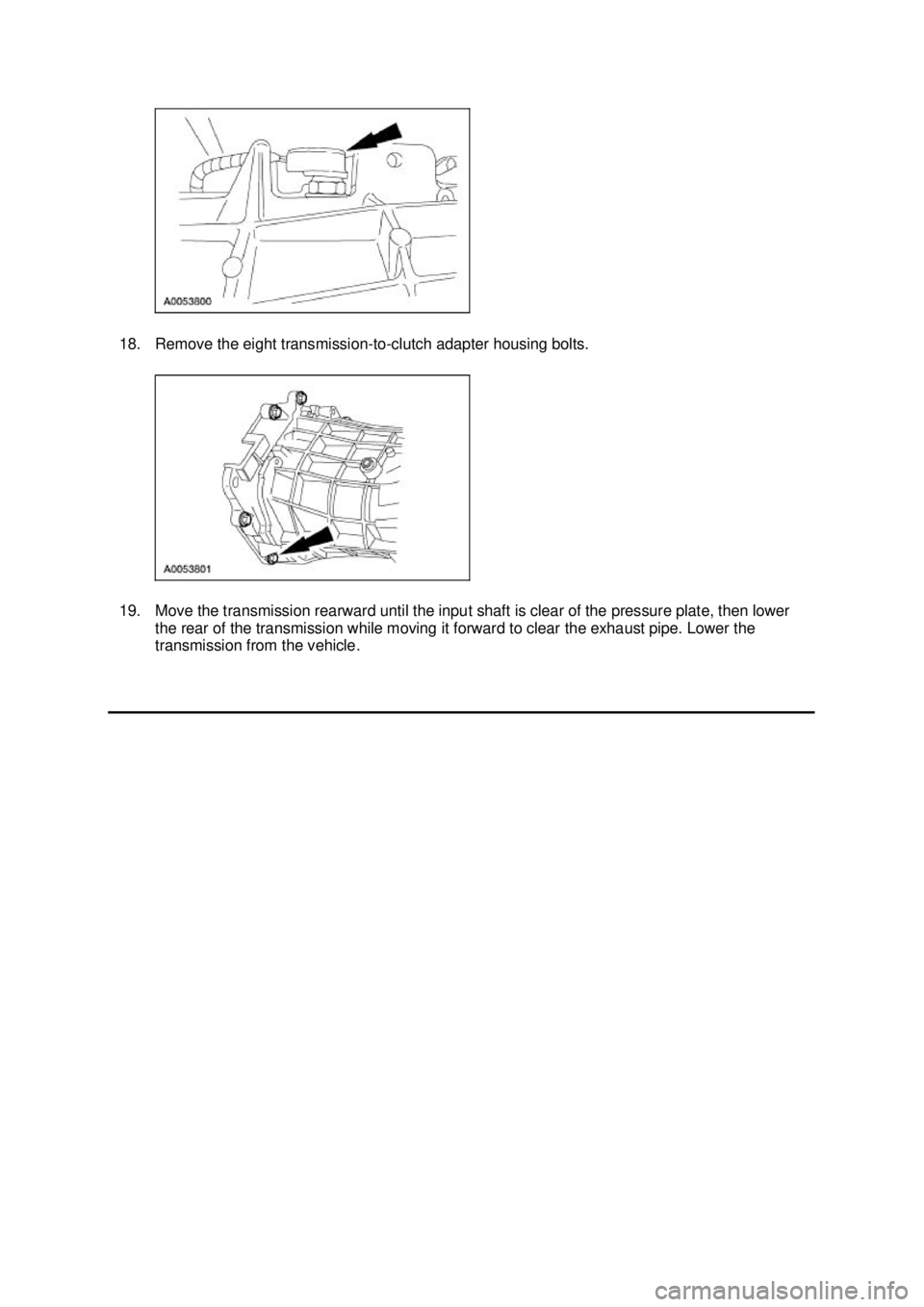

FORD MUSTANG 2003 Workshop Manual 18. Remove the eight transmission- to-clutch adapter housing bolts. 19. Move the transmission rearward until the input shaft is clear of the pressure plate, then lower the rear of the transmission w

Page 2856 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY Transmission Disassembly NOTE: During disassembly, if any roll pins, retaining rings or bearings are removed, install new components. Install bearings and bearing cups as a set only.
