Page 2817 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2818 of 4378
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Synchronizers
Disassembly and Assembly
NOTE:
This procedure applies to all synchronizer assemblies.
1. Scribe an alignment mark on the sliding sleeve and the hub for assembly reference.
2. Remove the sliding sleeve, then remove the synchronizer struts and the springs.
3. Install the synchronizer struts and the springs.
4. CAUTION: Match the alignment marks made during disassembly. The sleeve and
the hub have an extremely close fit. Hold the sleeve and hub square to prevent jamming.
Do not force the sleeve onto the hub.
Install the sliding sleeve.
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2819 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2820 of 4378

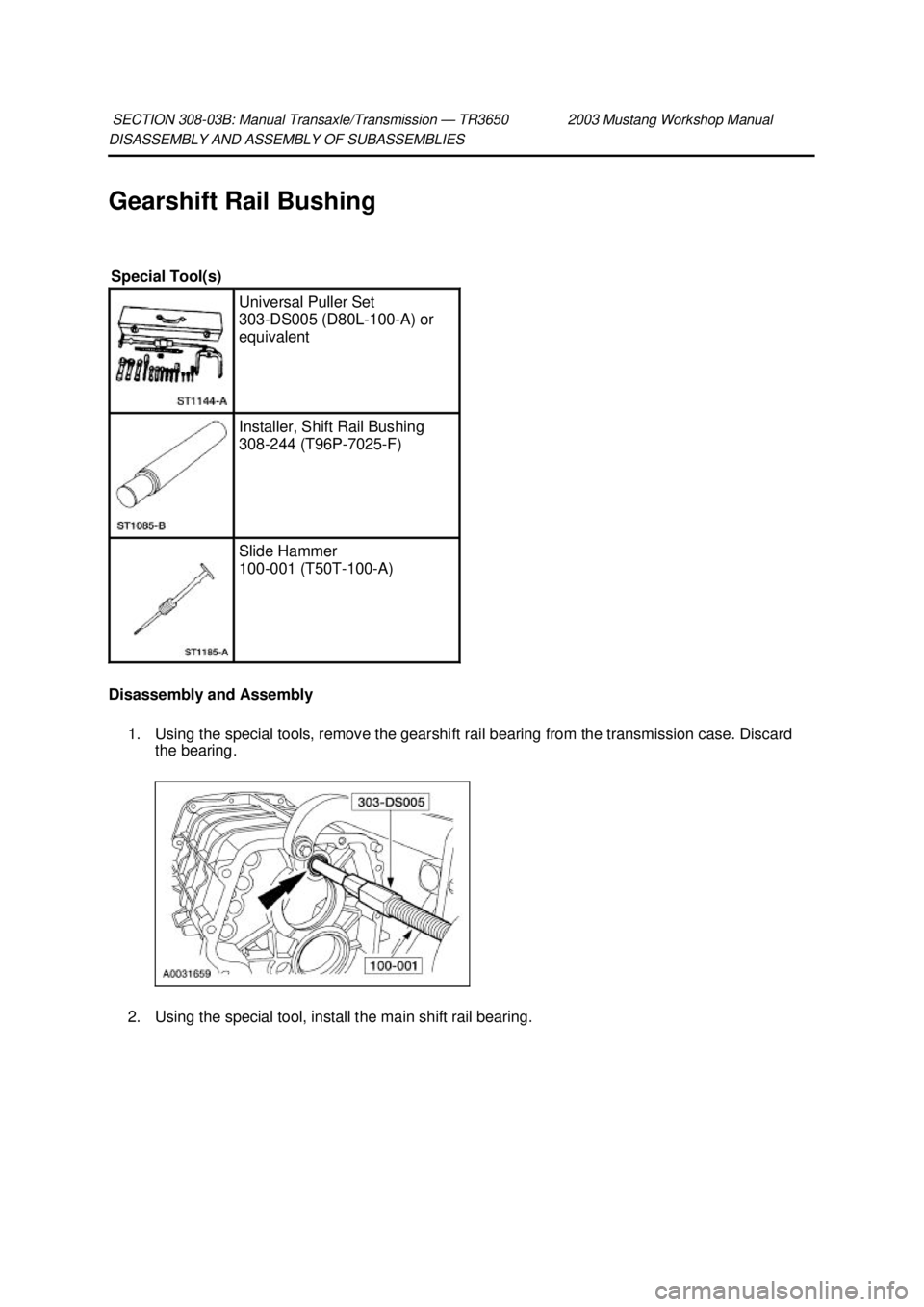

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Gearshift Rail Bushing
Disassembly and Assembly
1. Using the special tools, remove the gearshift rail bearing from the transmission case. Discard the bearing.

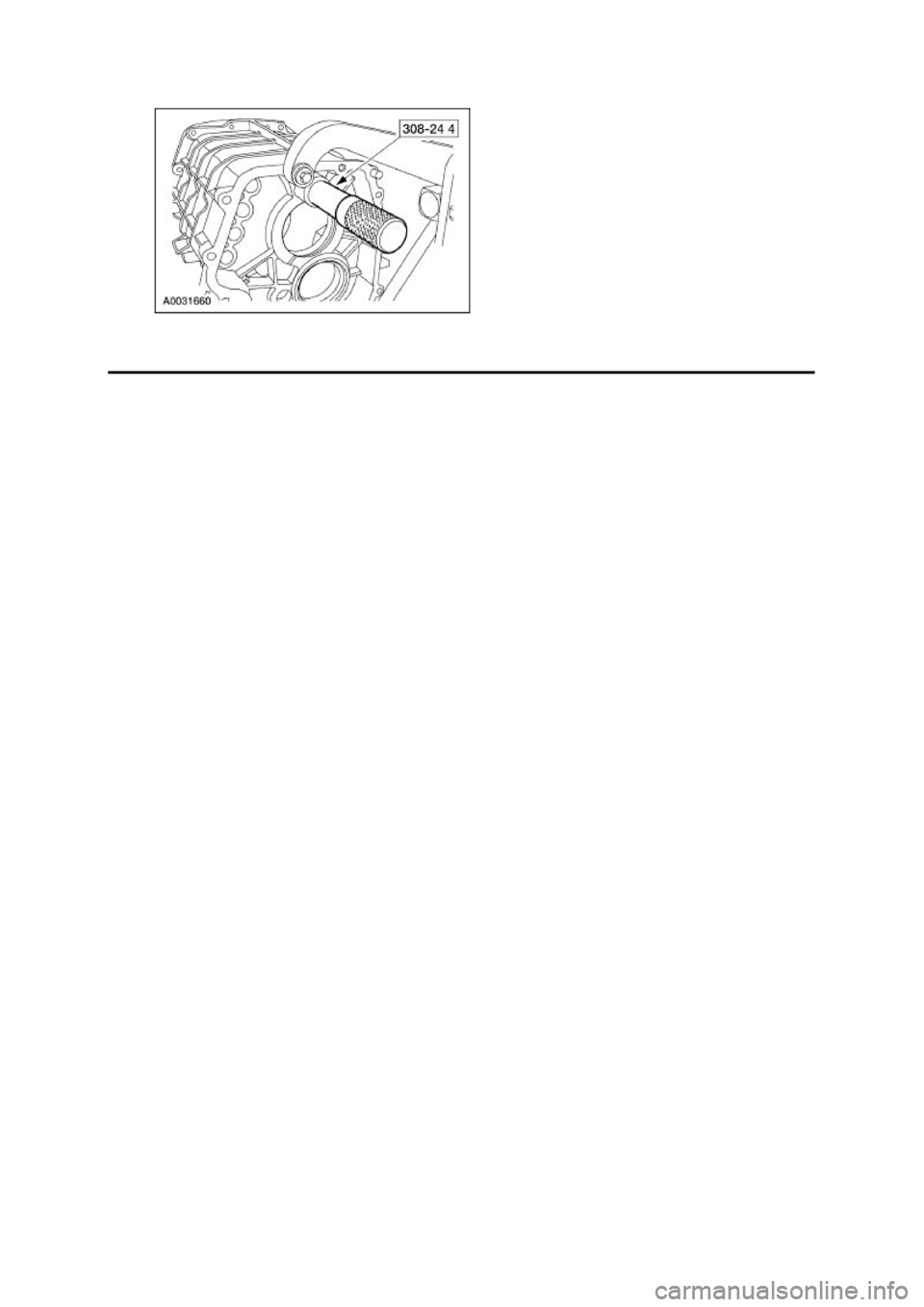

2. Using the special tool, install the main shift rail bearing.
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Special Tool(s)
Universal Puller Set
303-
DS005 (D80L-100- A) or
equivalent Installer, Shift Rail Bushing
308-
244 (T96P-7025- F) Slide Hammer
100-
001 (T50T-100- A) Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2821 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2822 of 4378
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Gearshift Rail and Fork
Disassembly and Assembly
1. Using a 5/32- inch drift and a hammer, remove and discard the split pin. Slide the shift fork from
the shift rail.
2. Remove the gearshift fork inserts.
3. CAUTION: Support the shift rail to prevent damage to the parts.
Position the gearshift fork on the shift rail. Align the split pin hole and install a new split pin.

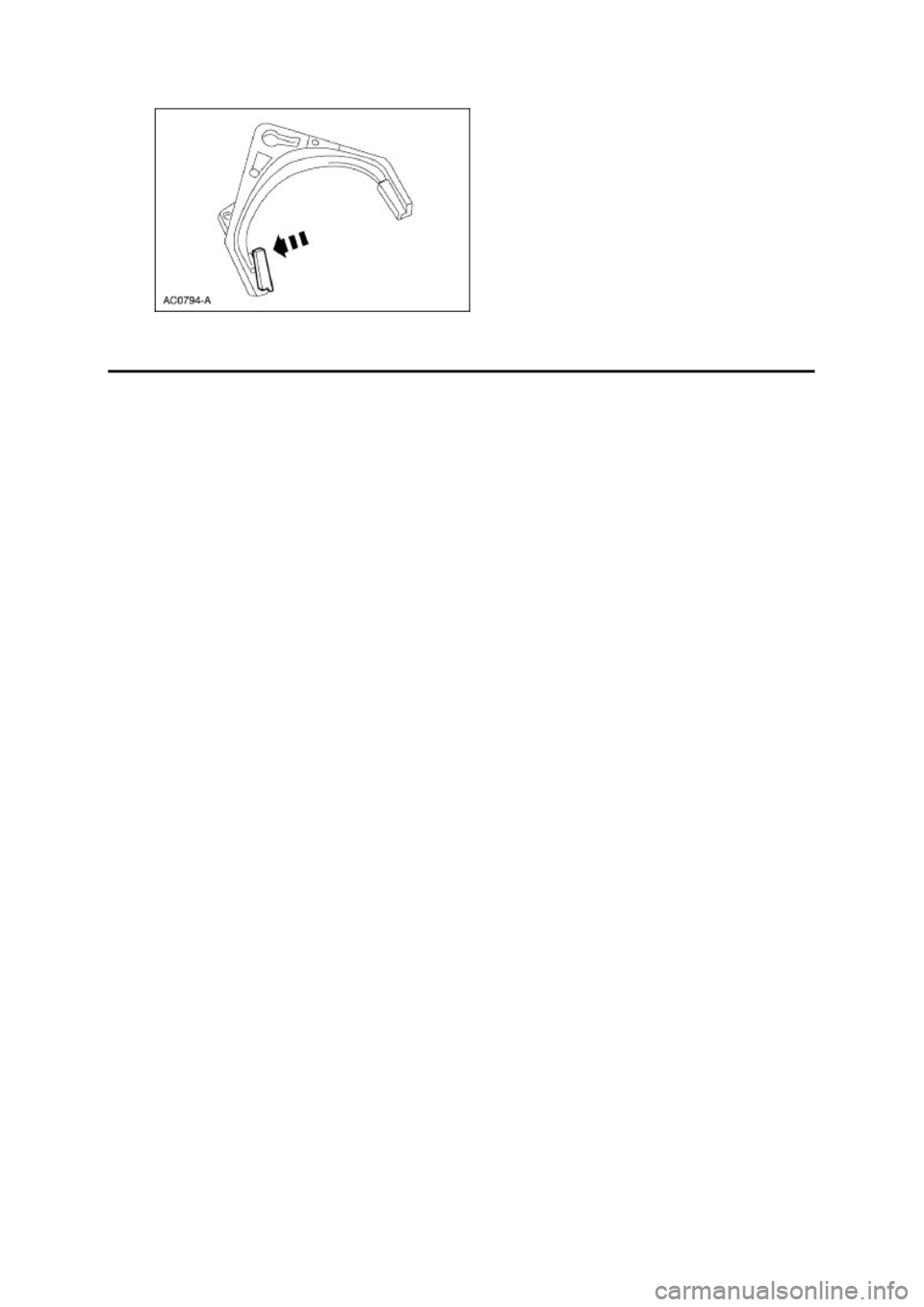

4. Install the gear shift fork inserts.
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2823 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2824 of 4378

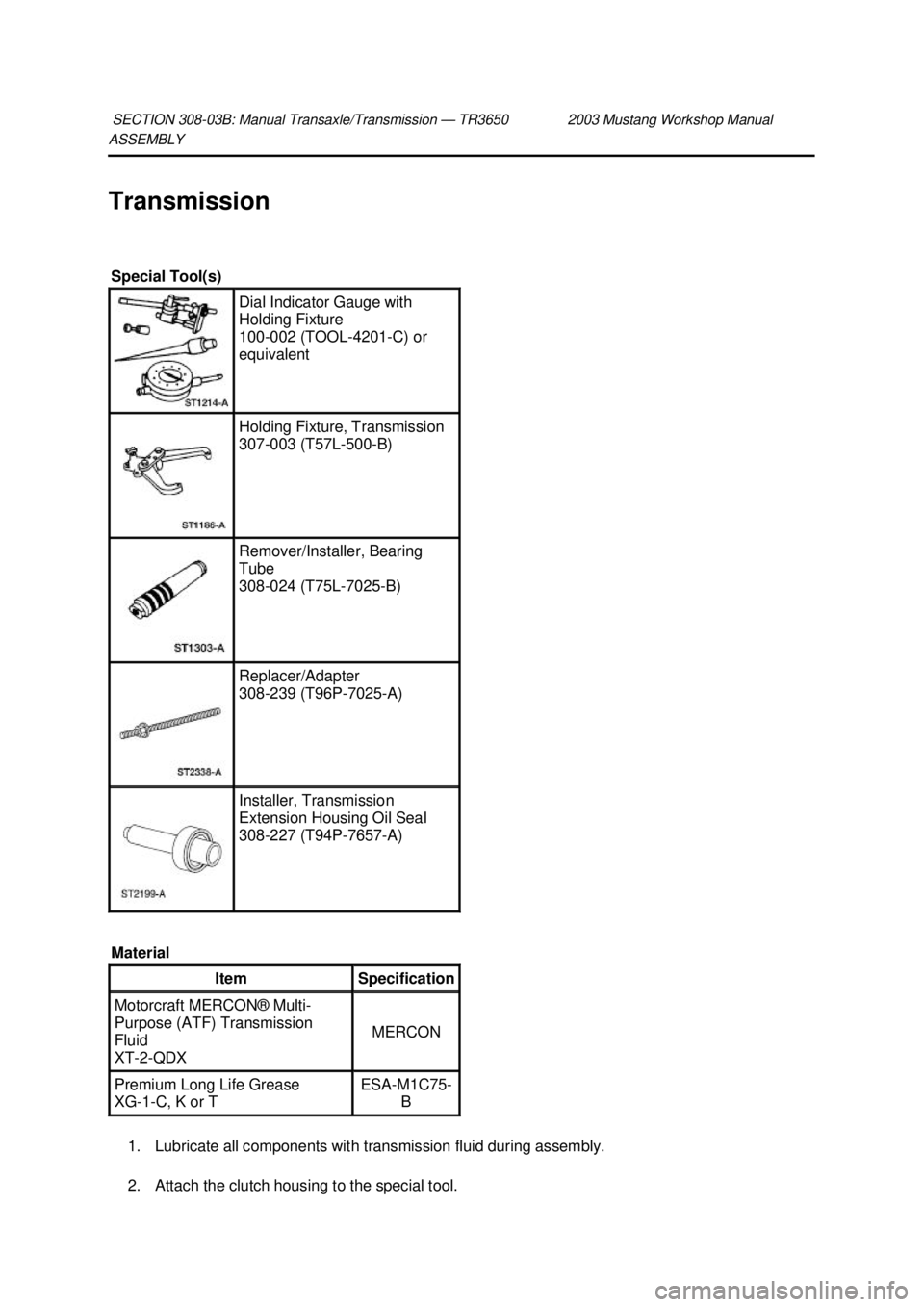

ASSEMBLY
Transmission
1. Lubricate all components with transmission fluid during assembly.
2. Attach the clutch housing to the special tool.
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Special Tool(s)
Dial Indicator Gauge with
Holding Fixture
100-
002 (TOOL- 4201-C) or
equivalent Holding Fixture, Transmission
307-
003 (T57L- 500-B) Remover/Installer, Bearing
Tube
308-
024 (T75L-7025- B) Replacer/Adapter
308-
239 (T96P-7025- A) Installer, Transmission
Extension Housing Oil Seal
308-
227 (T94P-7657- A)
Material Item Specification
Motorcraft MERCON® Multi-
Purpose (ATF) Transmission
Fluid
XT
-2-QDX MERCON
Premium Long Life Grease
XG
-1-C, K or T ESA-
M1C75-
B Klj . 1 ba
