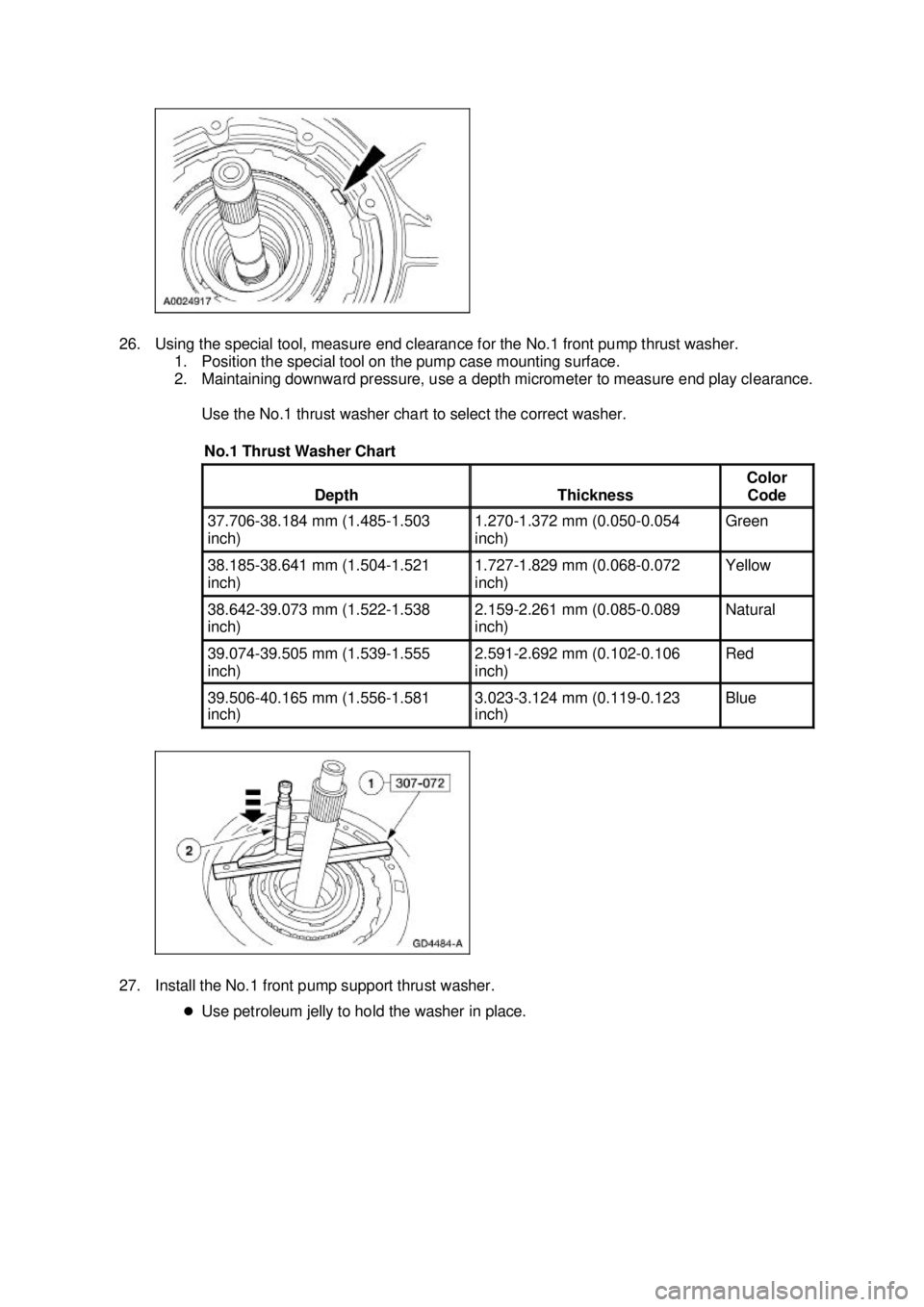

FORD MUSTANG 2003 Workshop Manual 26. Using the special tool, measure end clearance for the No.1 front pump thrust washer. 1. Position the special tool on the pump case mounting surface. 2. Maintaining downward pressure, use a depth

Page 2562 of 4378

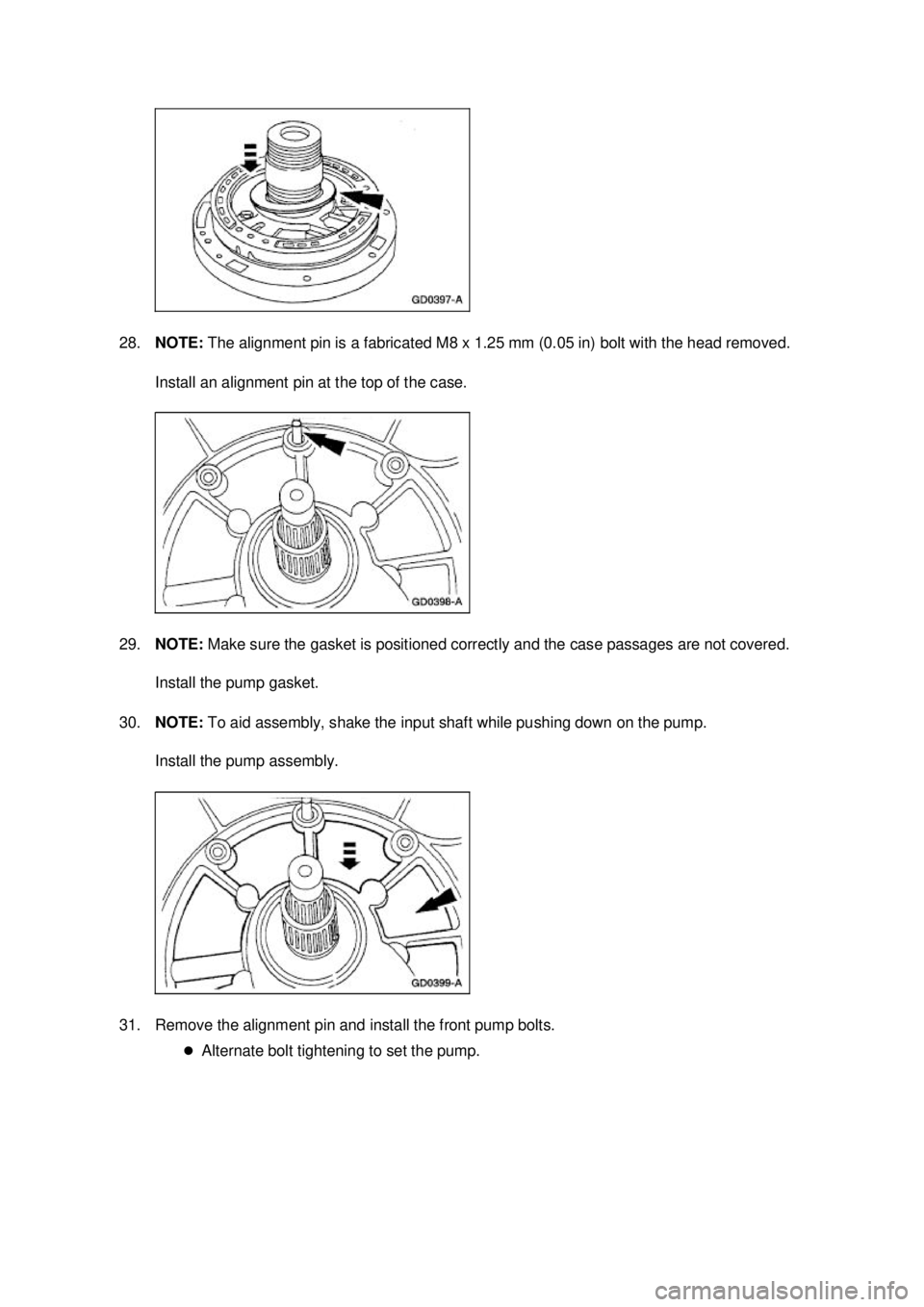

FORD MUSTANG 2003 Workshop Manual 28. NOTE: The alignment pin is a fabricated M8 x 1.25 mm (0.05 in) bolt with the head removed. Install an alignment pin at the top of the case. 29. NOTE: Make sure the gasket is positioned correct

Page 2563 of 4378

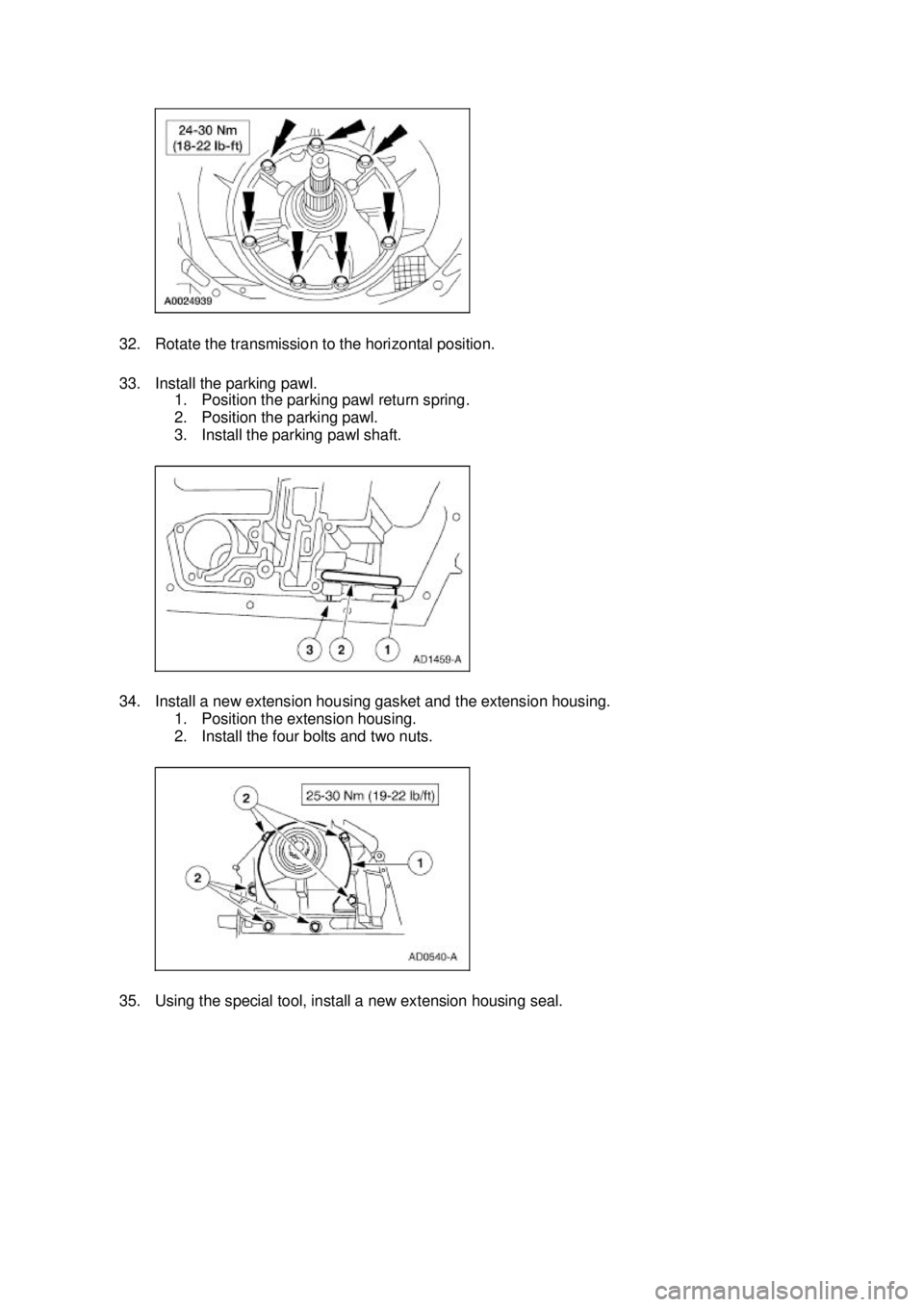

FORD MUSTANG 2003 Workshop Manual 32. Rotate the transmission to the horizontal position. 33. Install the parking pawl. 1. Position the parking pawl return spring. 2. Position the parking pawl. 3. Install the parking pawl shaft.

Page 2564 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Install the output shaft speed (OSS) sensor. 1. Position the OSS sensor. 2. Install the bolt. 37. Using the special tool, install the manual control lever seal. 38. NOTE: Lubricate the electr

Page 2565 of 4378

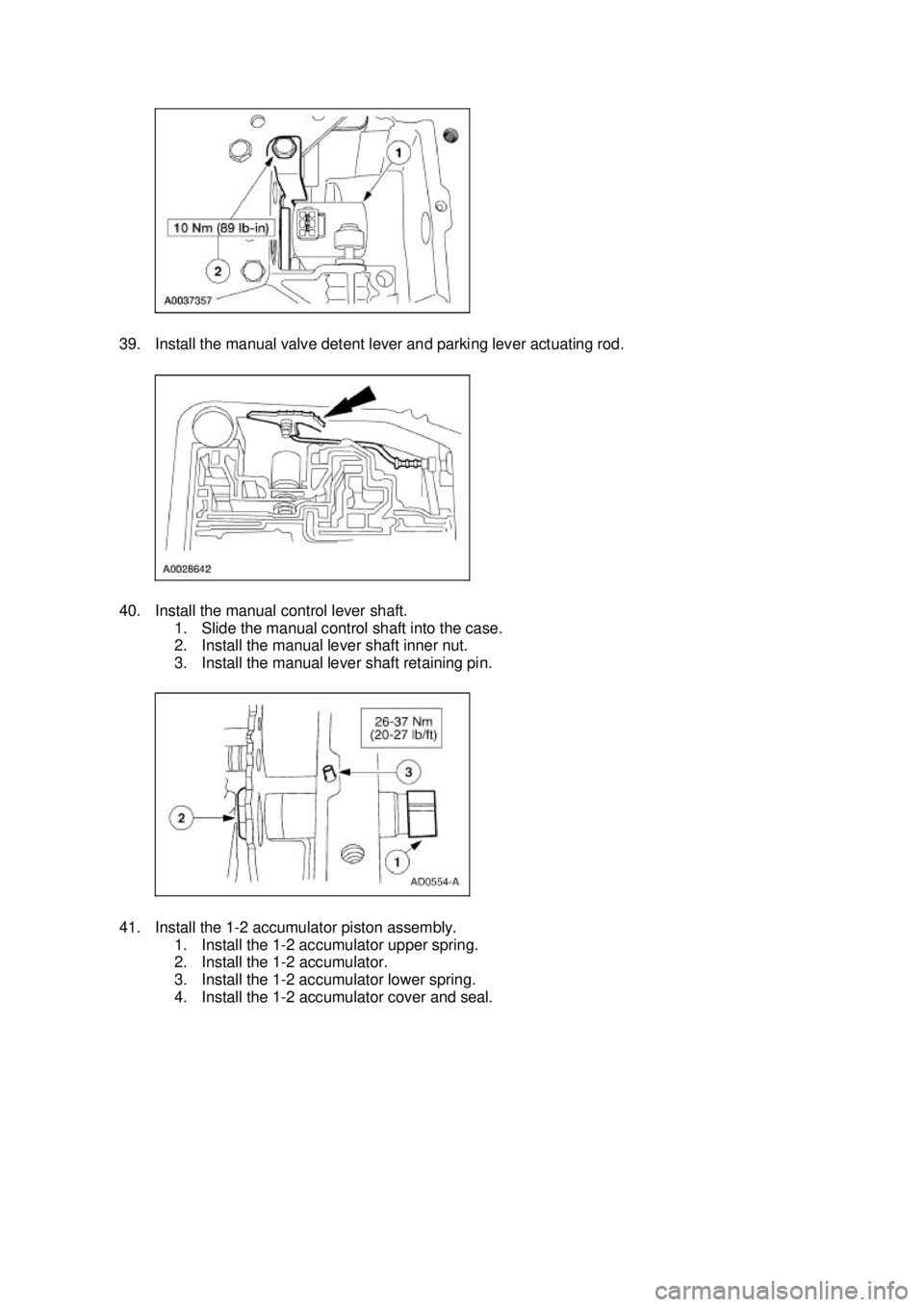

FORD MUSTANG 2003 Workshop Manual 39. Install the manual valve detent lever and parking lever actuating rod. 40. Install the manual control lever shaft. 1. Slide the manual control shaft into the case. 2. Install the manual lever s

Page 2566 of 4378

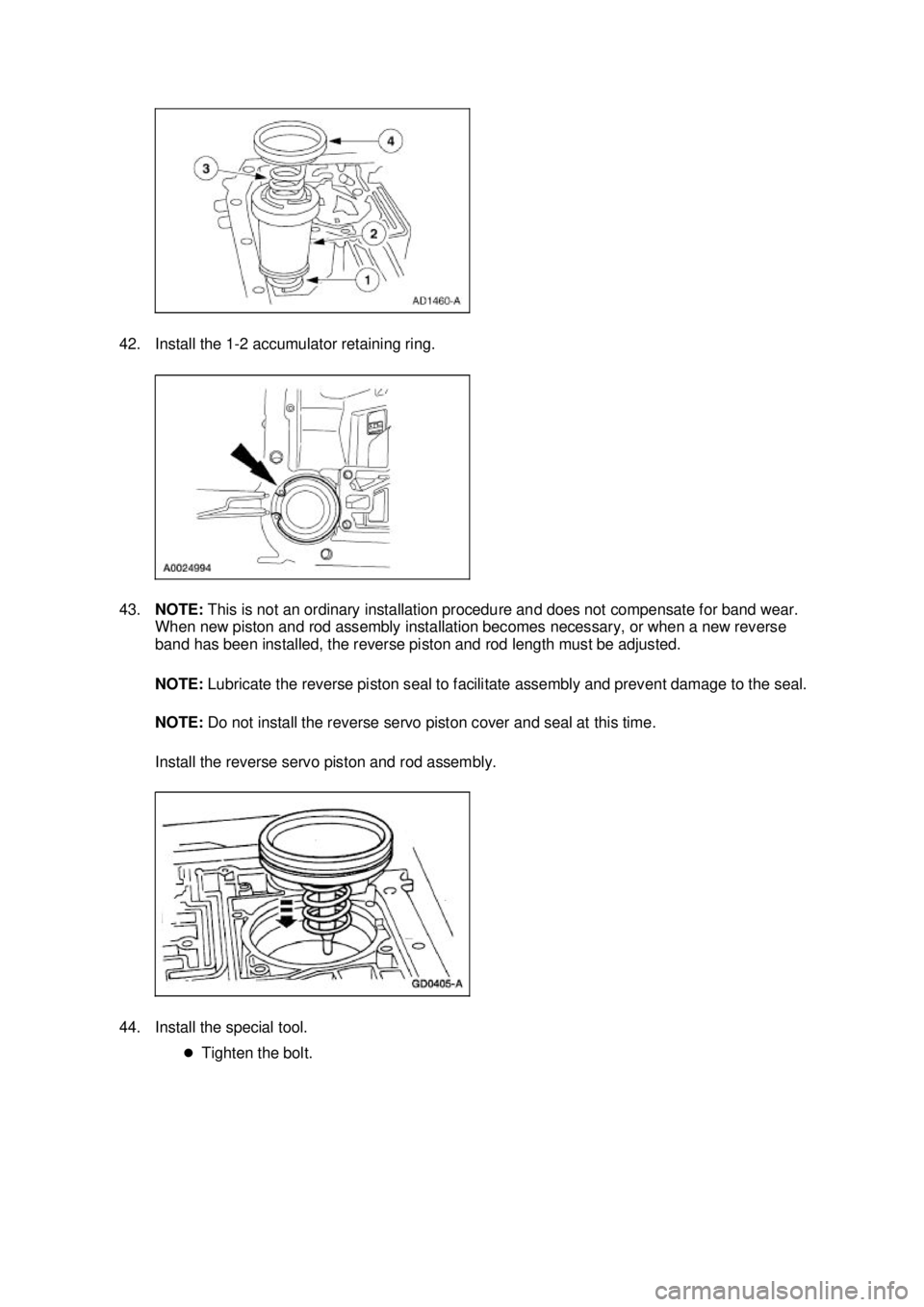

FORD MUSTANG 2003 Workshop Manual 42. Install the 1- 2 accumulator retaining ring. 43. NOTE: This is not an ordinary installation procedure and does not compensate for band wear. When new piston and rod assembly installation become

Page 2567 of 4378

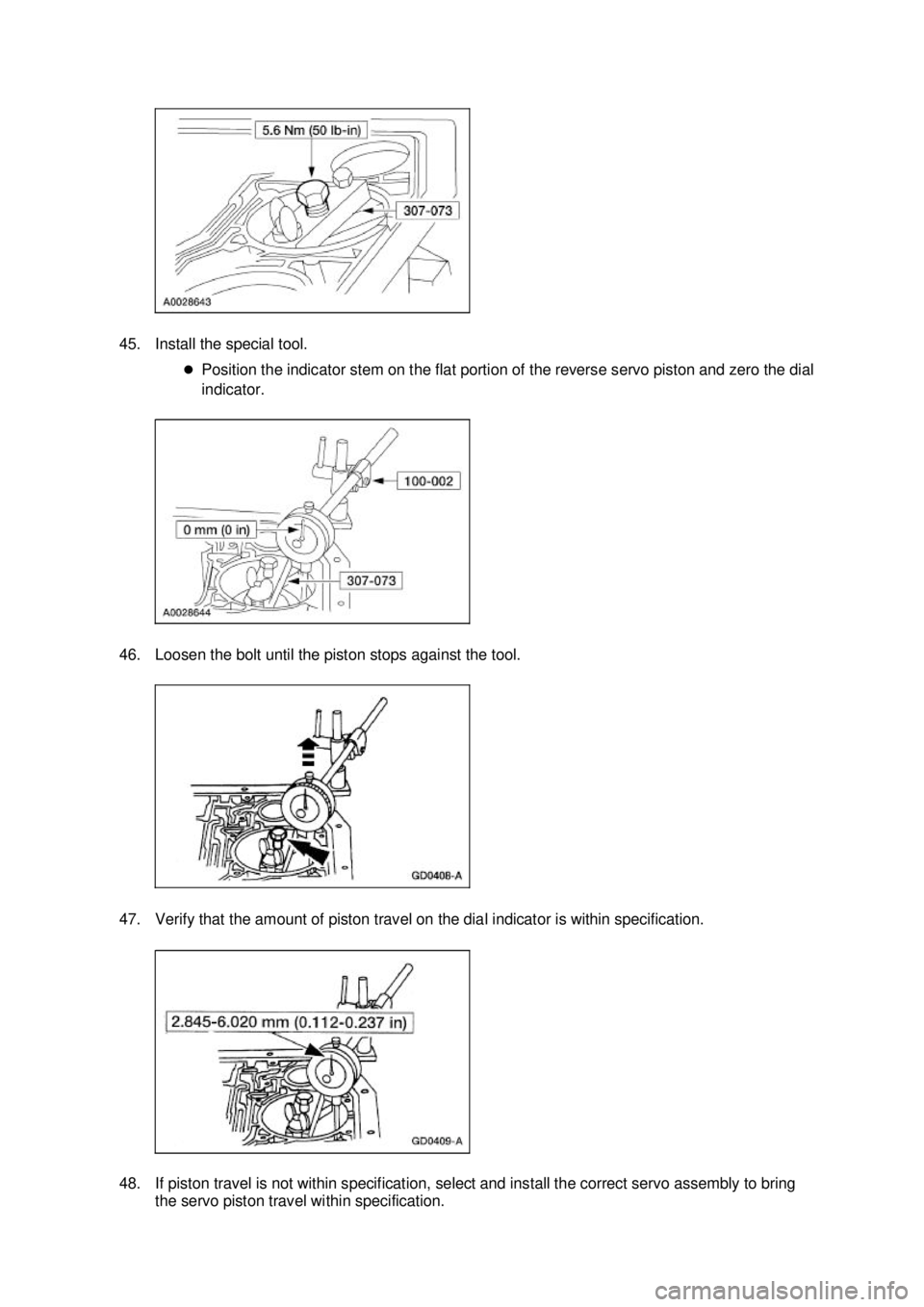

FORD MUSTANG 2003 Workshop Manual 45. Install the special tool. �zPosition the indicator stem on the flat portion of the reverse servo piston and zero the dial indicator. 46. Loosen the bolt until the piston stops against the tool.

Page 2568 of 4378

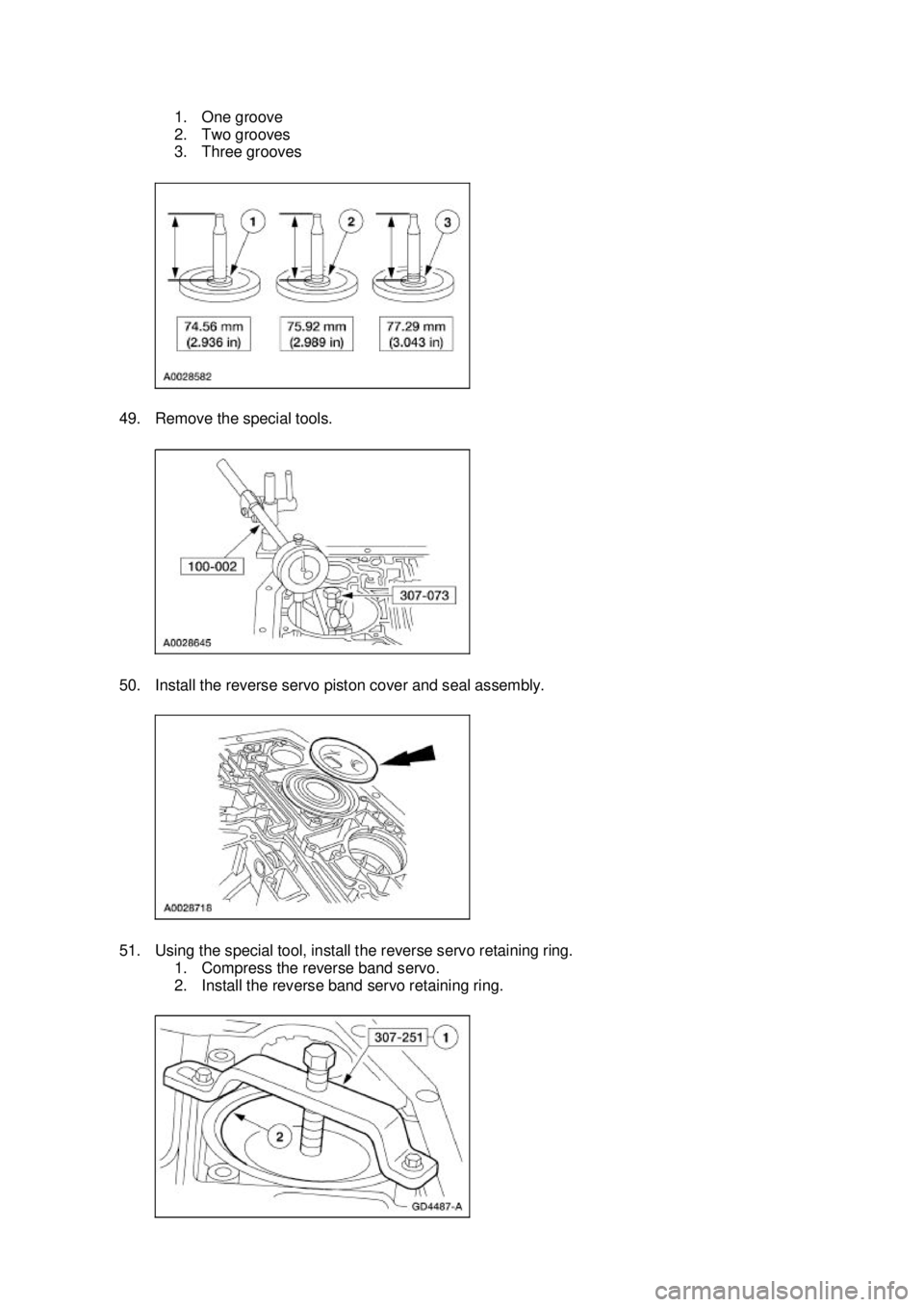

FORD MUSTANG 2003 Workshop Manual 1. One groove 2. Two grooves 3. Three grooves 49. Remove the special tools. 50. Install the reverse servo piston cover and seal assembly. 51. Using the special tool, install the reverse servo ret
