Page 3217 of 4378

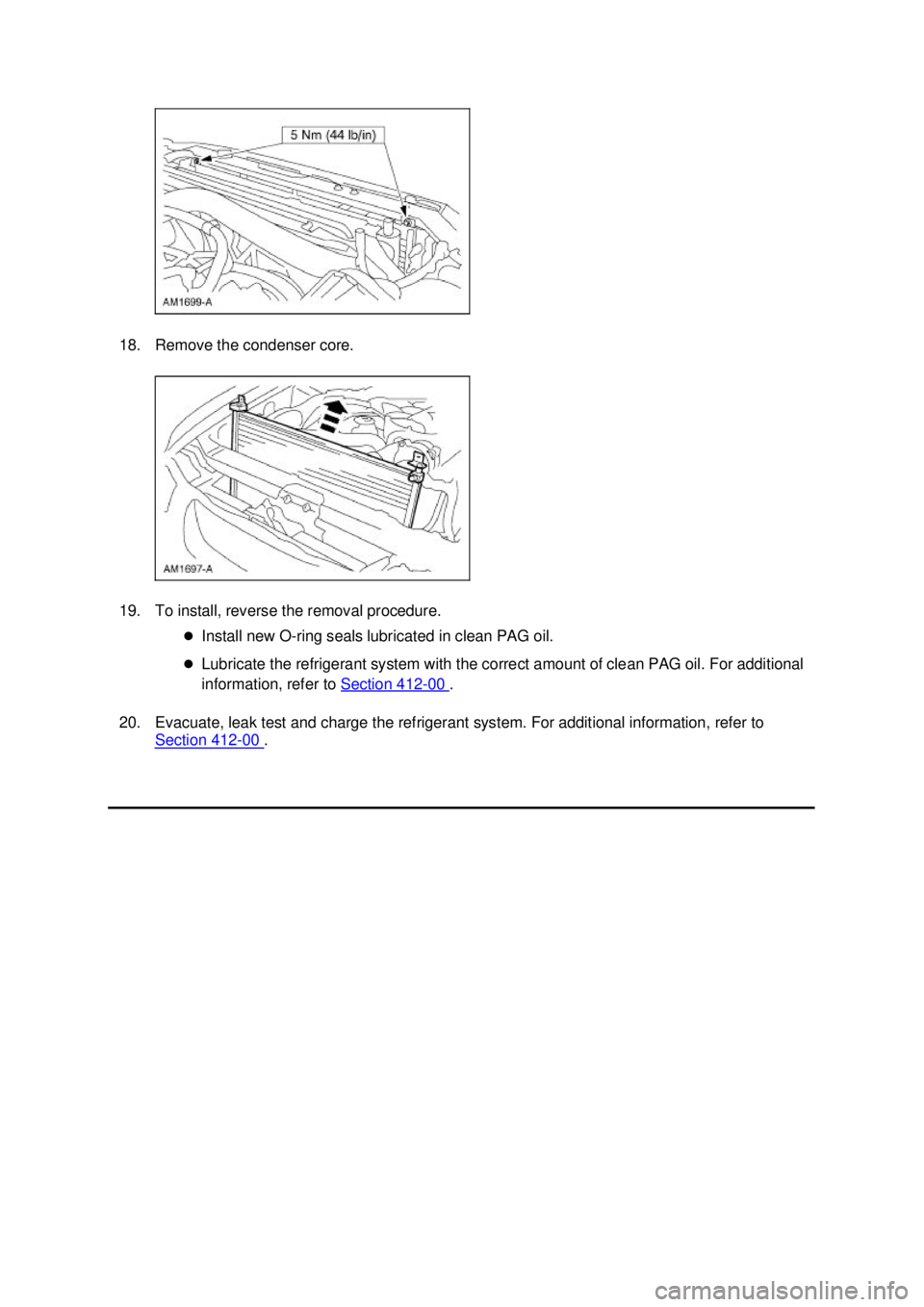

FORD MUSTANG 2003 Workshop Manual 18. Remove the condenser core. 19. To install, reverse the removal procedure. �zInstall new O- ring seals lubricated in clean PAG oil. �z Lubricate the refrigerant system with the correct amount of

Page 3218 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Compressor Manifold and Tube Assembly — 3.8L Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning

Page 3219 of 4378

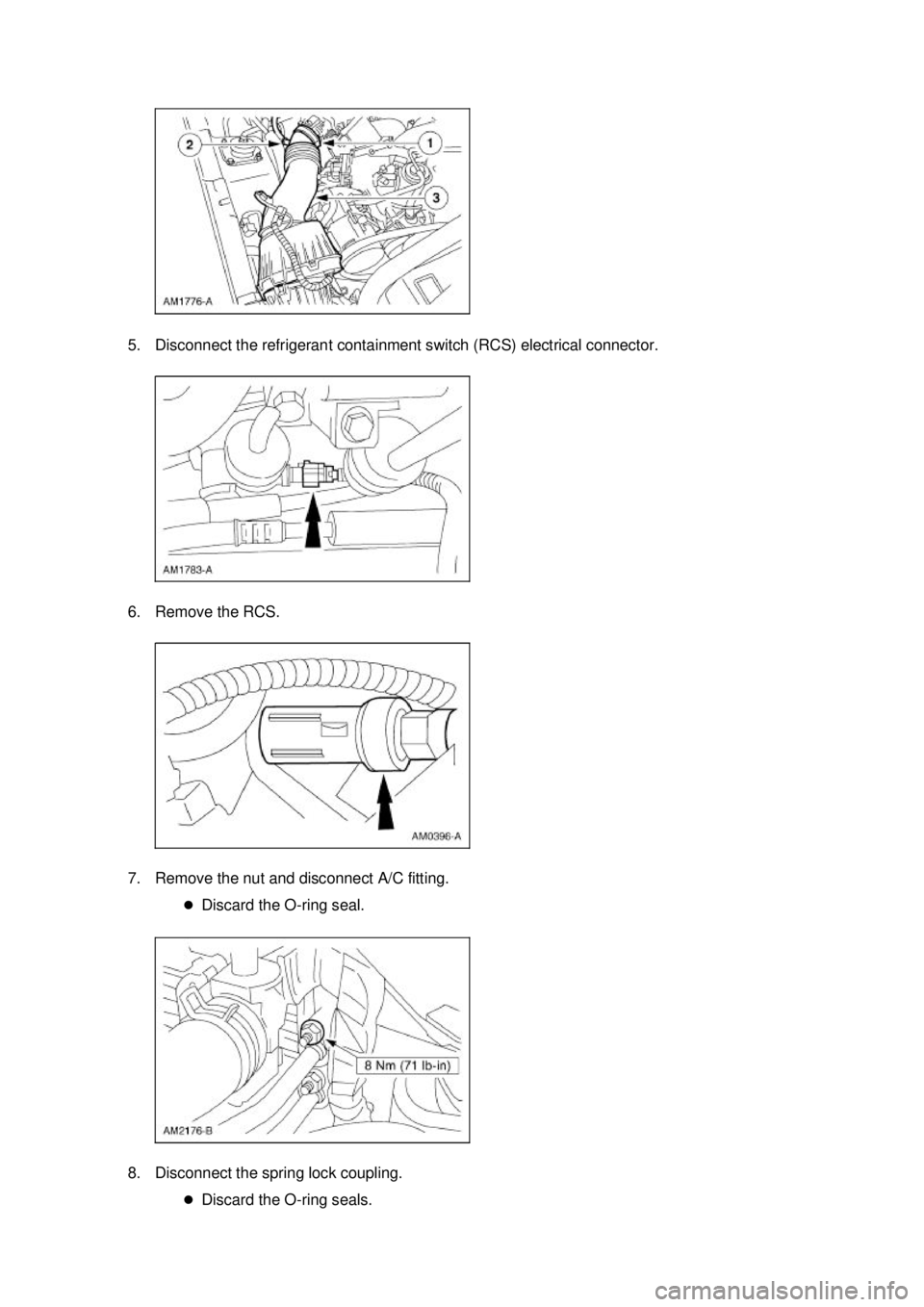

FORD MUSTANG 2003 Workshop Manual 5. Disconnect the refrigerant containment switch (RCS) electrical connector. 6. Remove the RCS. 7. Remove the nut and disconnect A/C fitting. �zDiscard the O- ring seal. 8. Disconnect the spring l

Page 3220 of 4378

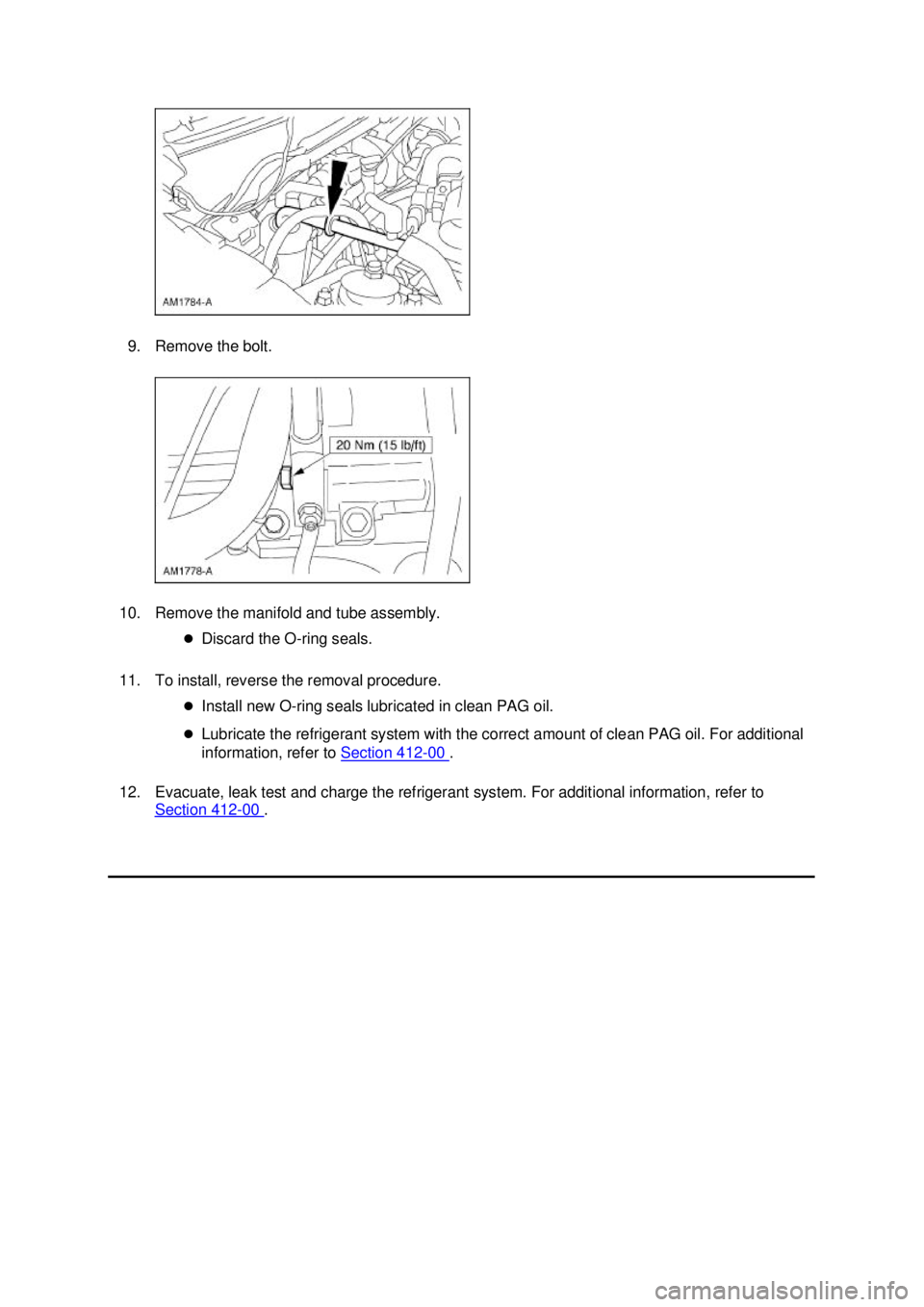

FORD MUSTANG 2003 Workshop Manual 9. Remove the bolt. 10. Remove the manifold and tube assembly. �zDiscard the O- ring seals. 11. To install, reverse the removal procedure. �zInstall new O- ring seals lubricated in clean PAG oil.

Page 3221 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3222 of 4378

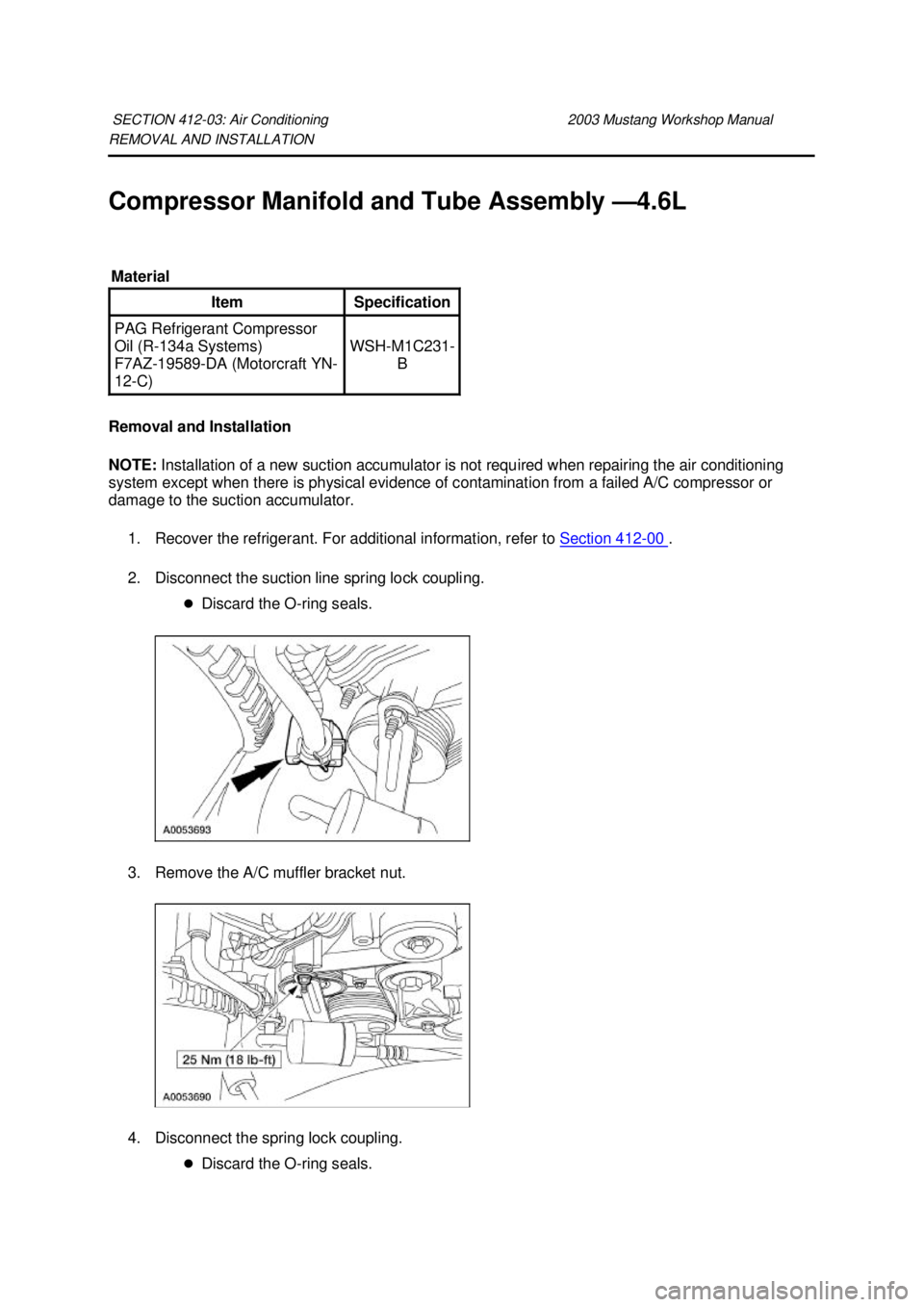

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Compressor Manifold and Tube Assembly — 4.6L Removal and Installation NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning

Page 3223 of 4378

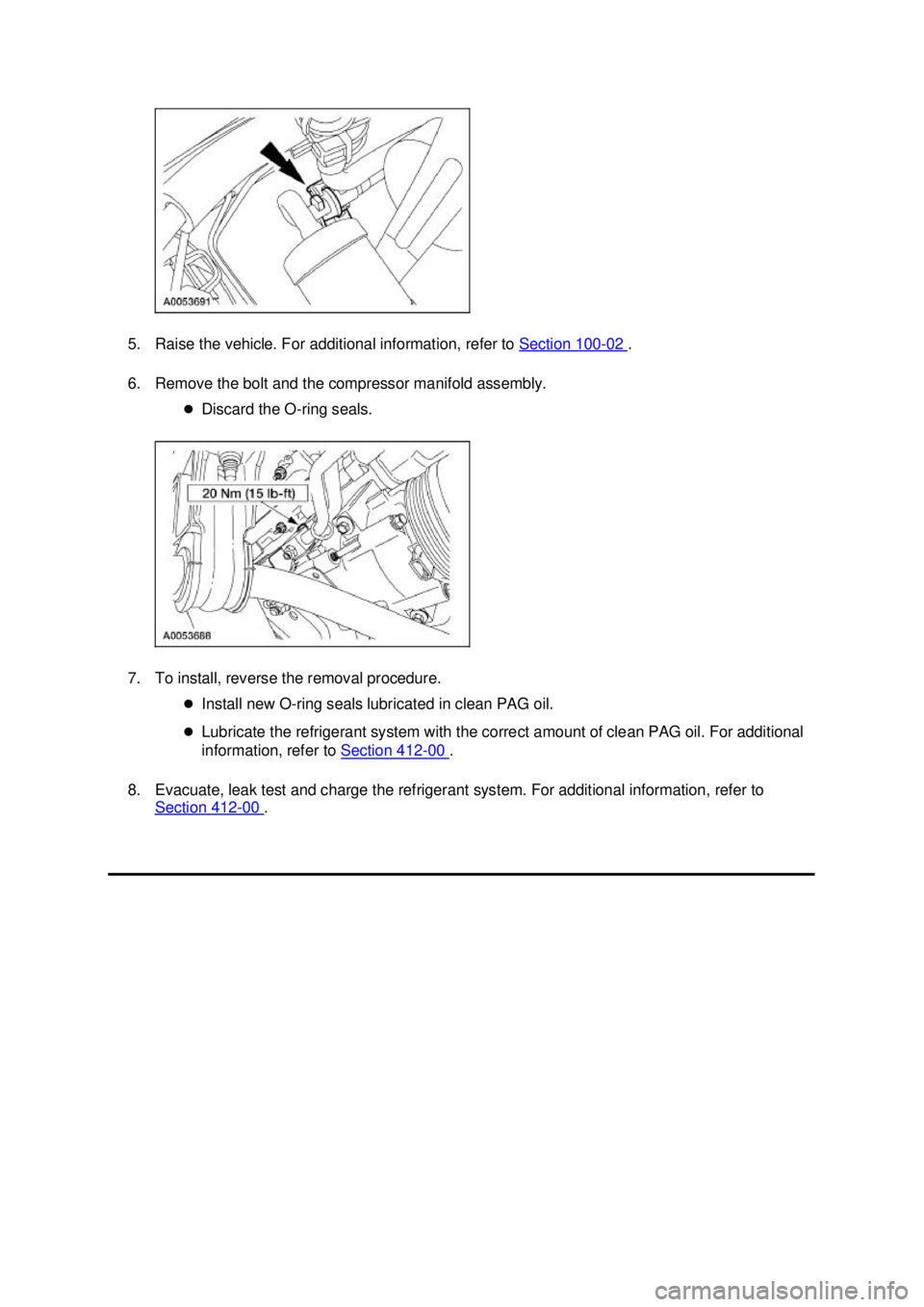

FORD MUSTANG 2003 Workshop Manual 5. Raise the vehicle. For additional information, refer to Section 100 - 02 . 6. Remove the bolt and the compressor manifold assembly. �zDiscard the O- ring seals. 7. To install, reverse the remo

Page 3224 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
