Page 1025 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1026 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Oil Pan Removal 1. Disconnect the battery ground cable. 2. Remove the air cleaner outlet pipe. For additional information, refer to Section 303 - 12 . 3. Remove the radiator

Page 1027 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Remove the bolts. 3. Remove the coolant recovery reservoir. 5. Install the special tool. 6. Install the special tool. 7. Install the special tool. 8. Raise and support the vehicle. For additio

Page 1028 of 4378

FORD MUSTANG 2003 Workshop Manual 9. Remove the LH engine mount nut. 10. Remove the RH engine mount nut. 11. Lower the vehicle. 12. Raise the engine. 13. Raise and support the vehicle. For additional information, refer to Section

Page 1029 of 4378

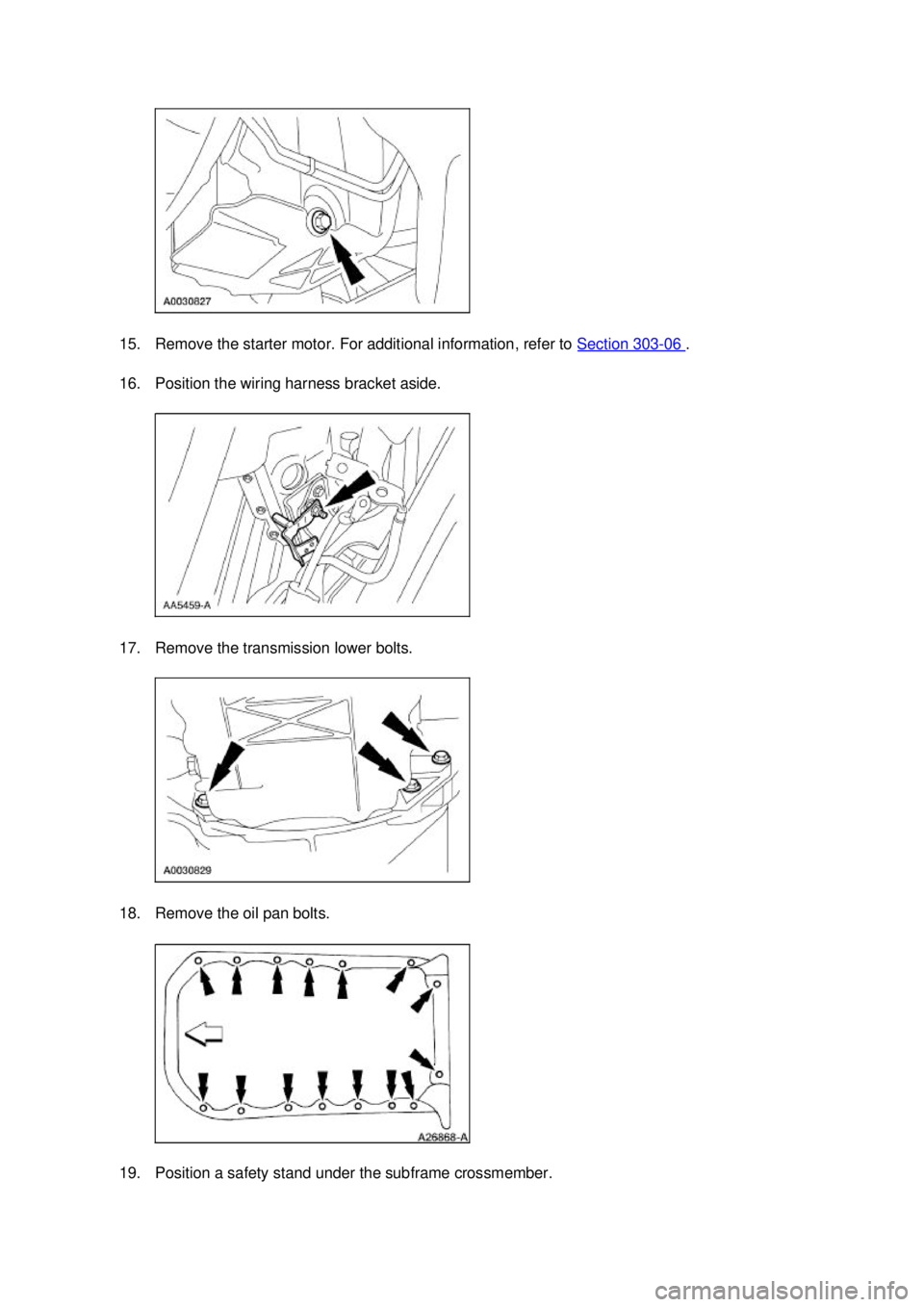

FORD MUSTANG 2003 Workshop Manual 15. Remove the starter motor. For additional information, refer to Section 303 - 06 . 16. Position the wiring harness bracket aside. 17. Remove the transmission lower bolts. 18. Remove the oil pa

Page 1030 of 4378

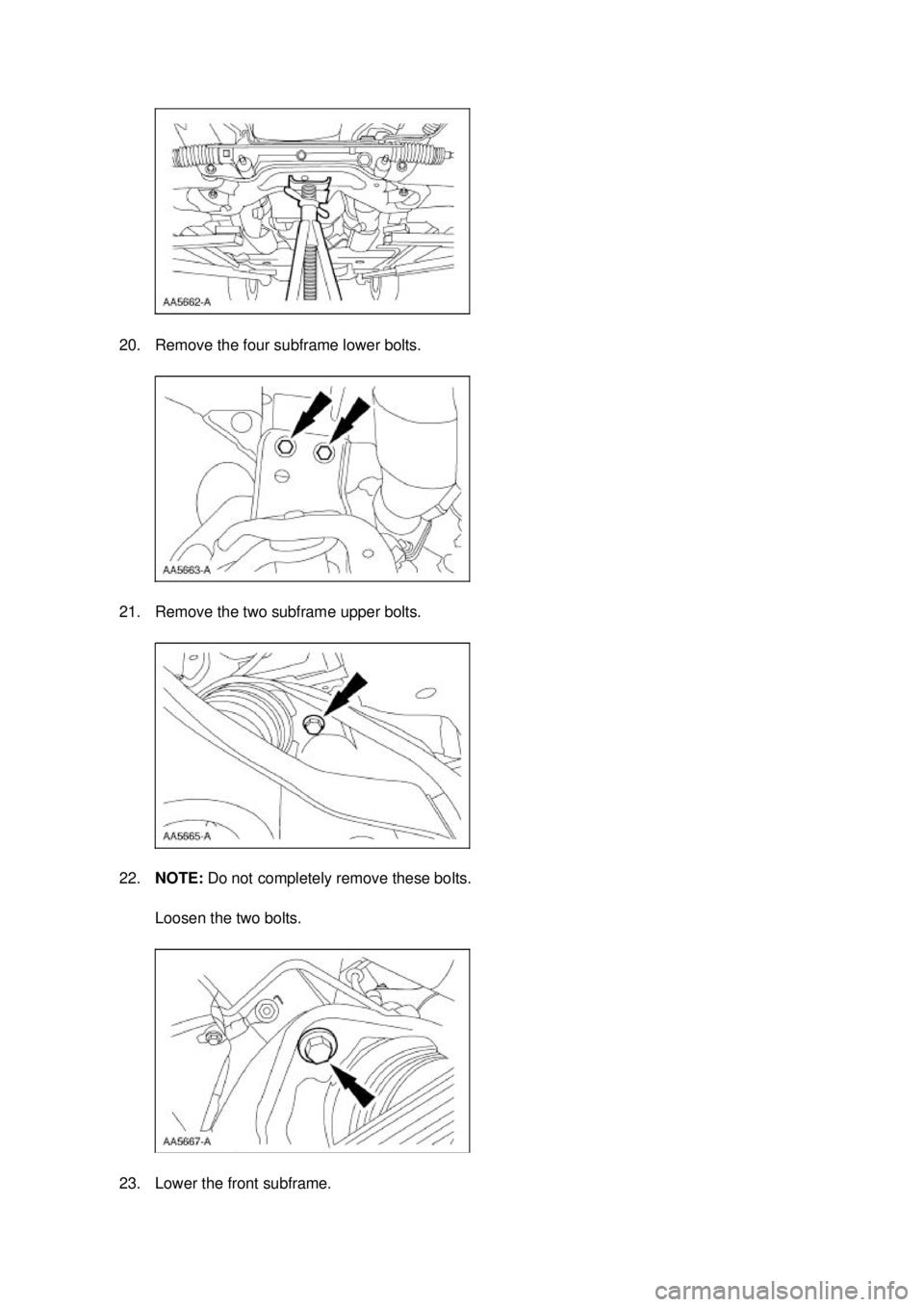

FORD MUSTANG 2003 Workshop Manual 20. Remove the four subframe lower bolts. 21. Remove the two subframe upper bolts. 22. NOTE: Do not completely remove these bolts. Loosen the two bolts. 23. Lower the front subframe. Klj . 5

Page 1031 of 4378

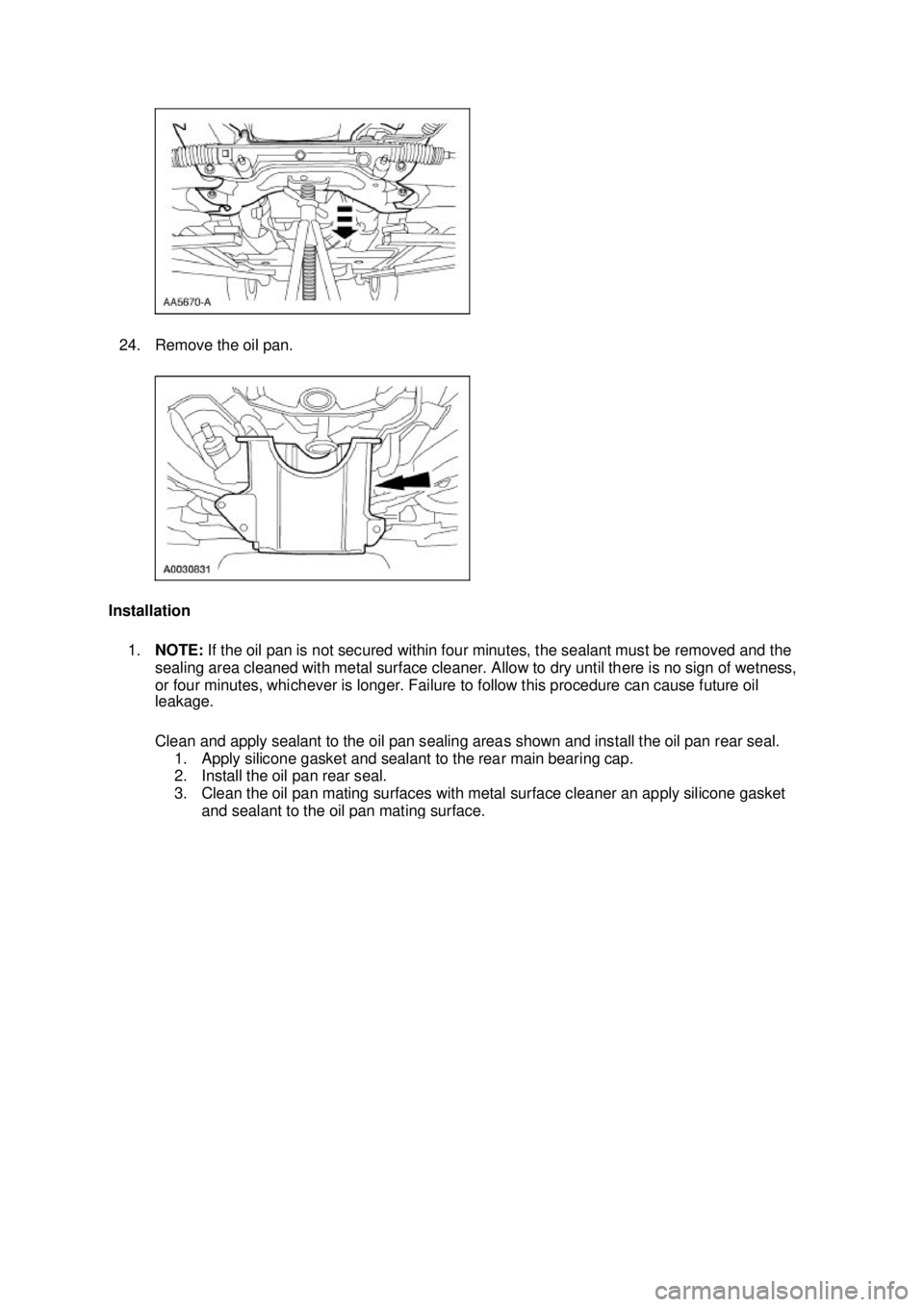

FORD MUSTANG 2003 Workshop Manual 24. Remove the oil pan. Installation 1. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry u

Page 1032 of 4378

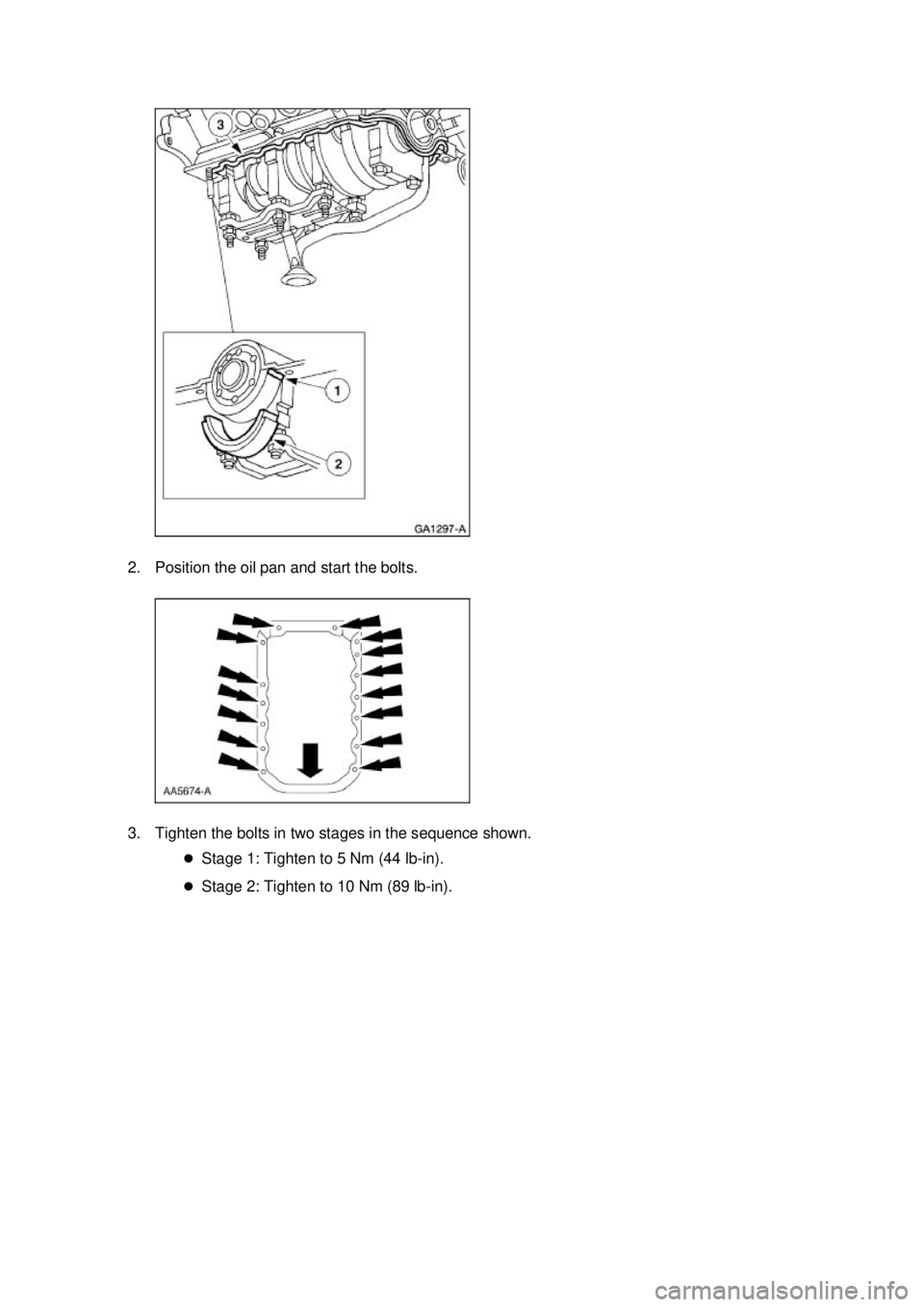

FORD MUSTANG 2003 Workshop Manual 2. Position the oil pan and start the bolts. 3. Tighten the bolts in two stages in the sequence shown. �zStage 1: Tighten to 5 Nm (44 lb- in). �z Stage 2: Tighten to 10 Nm (89 lb- in). Klj . 7
