Page 2497 of 4378

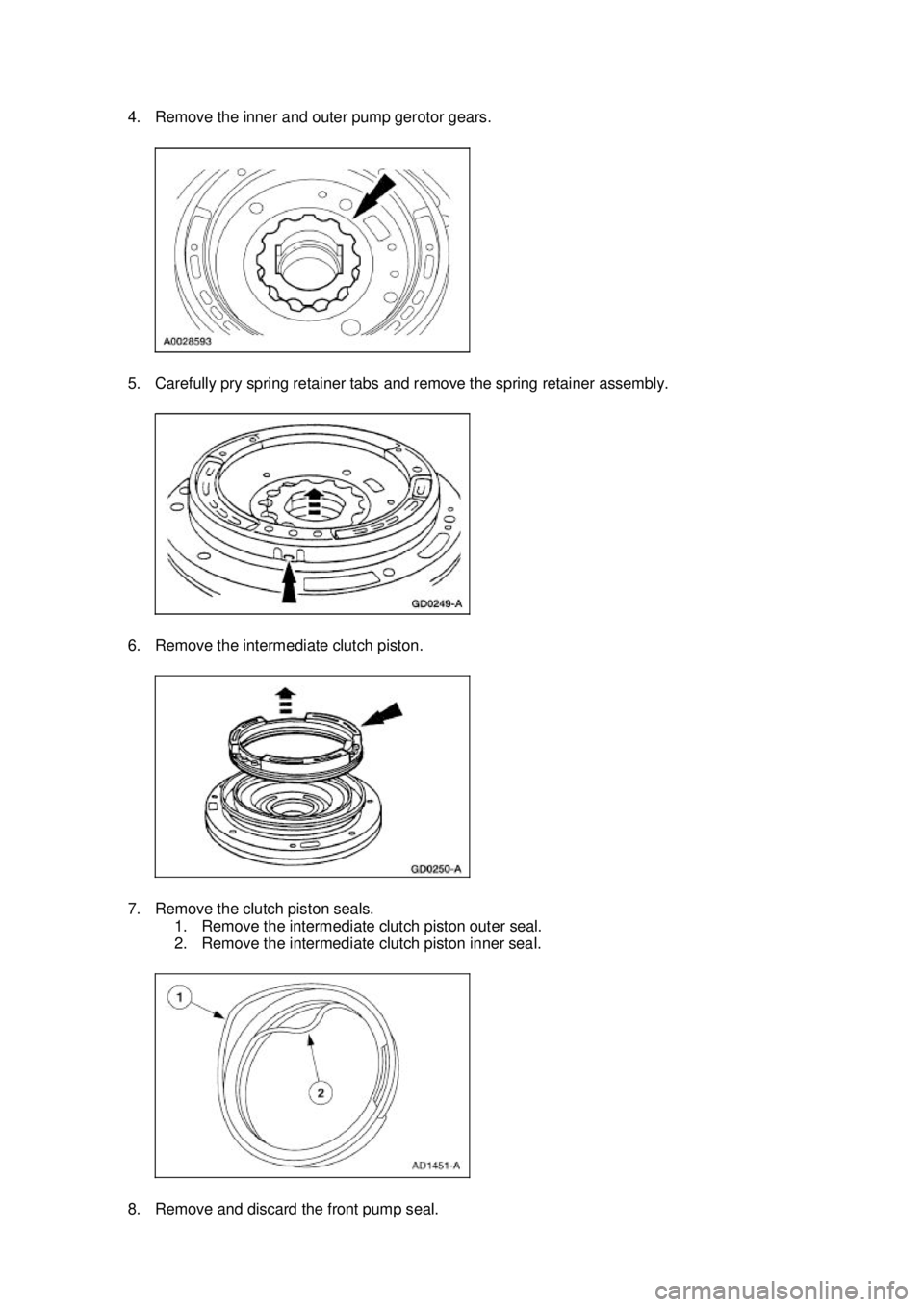

FORD MUSTANG 2003 Workshop Manual 4. Remove the inner and outer pump gerotor gears. 5. Carefully pry spring retainer tabs and remove the spring retainer assembly. 6. Remove the intermediate clutch piston. 7. Remove the clutch pisto

Page 2498 of 4378

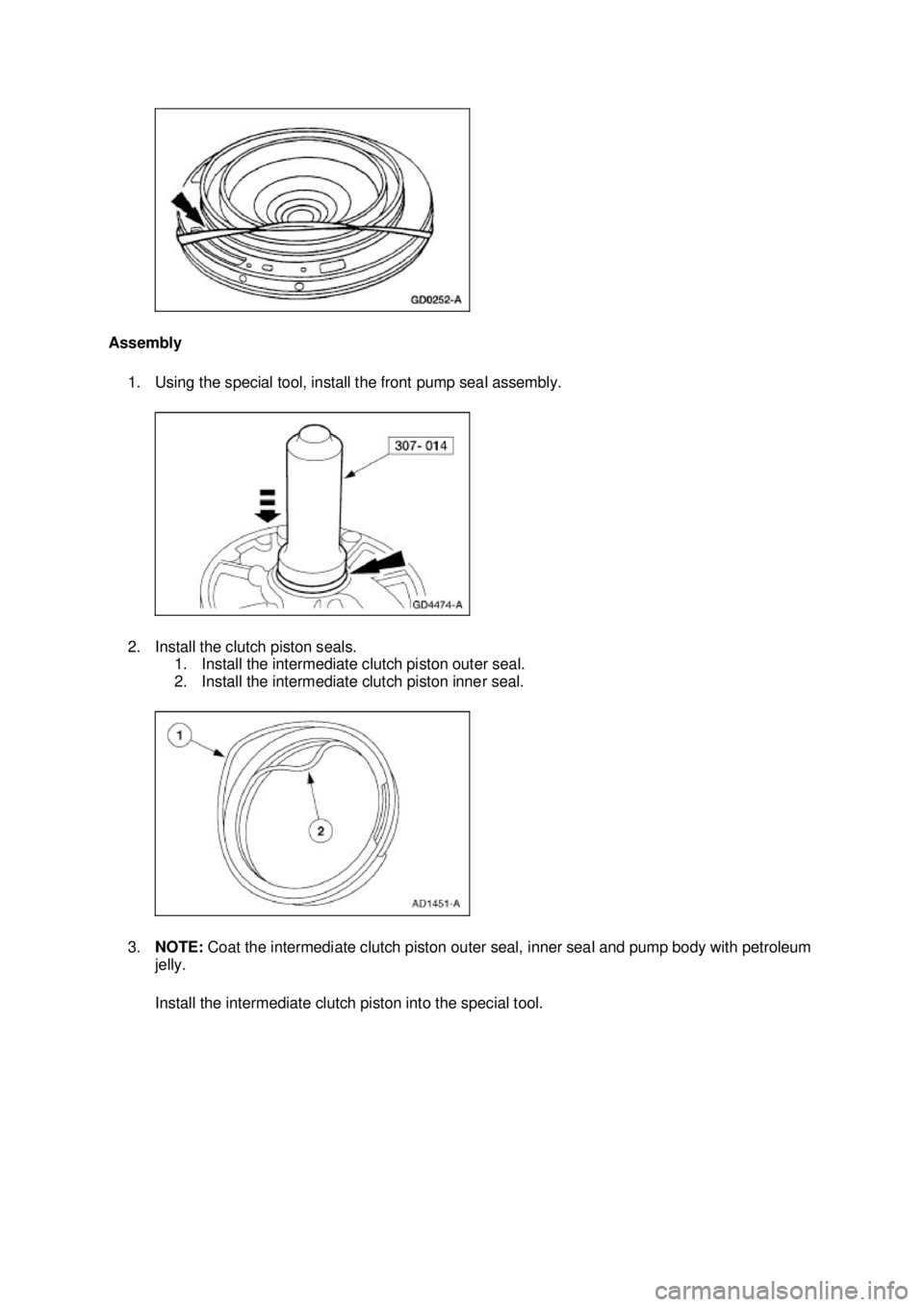

FORD MUSTANG 2003 Workshop Manual Assembly 1. Using the special tool, install the front pump seal assembly. 2. Install the clutch piston seals. 1. Install the intermediate clutch piston outer seal. 2. Install the intermediate clut

Page 2499 of 4378

FORD MUSTANG 2003 Workshop Manual 4. Using the special tool, install the intermediate clutch piston. 1. Position the intermediate clutch piston and the special tool onto the pump body. 2. Push the intermediate clutch piston to the b

Page 2500 of 4378

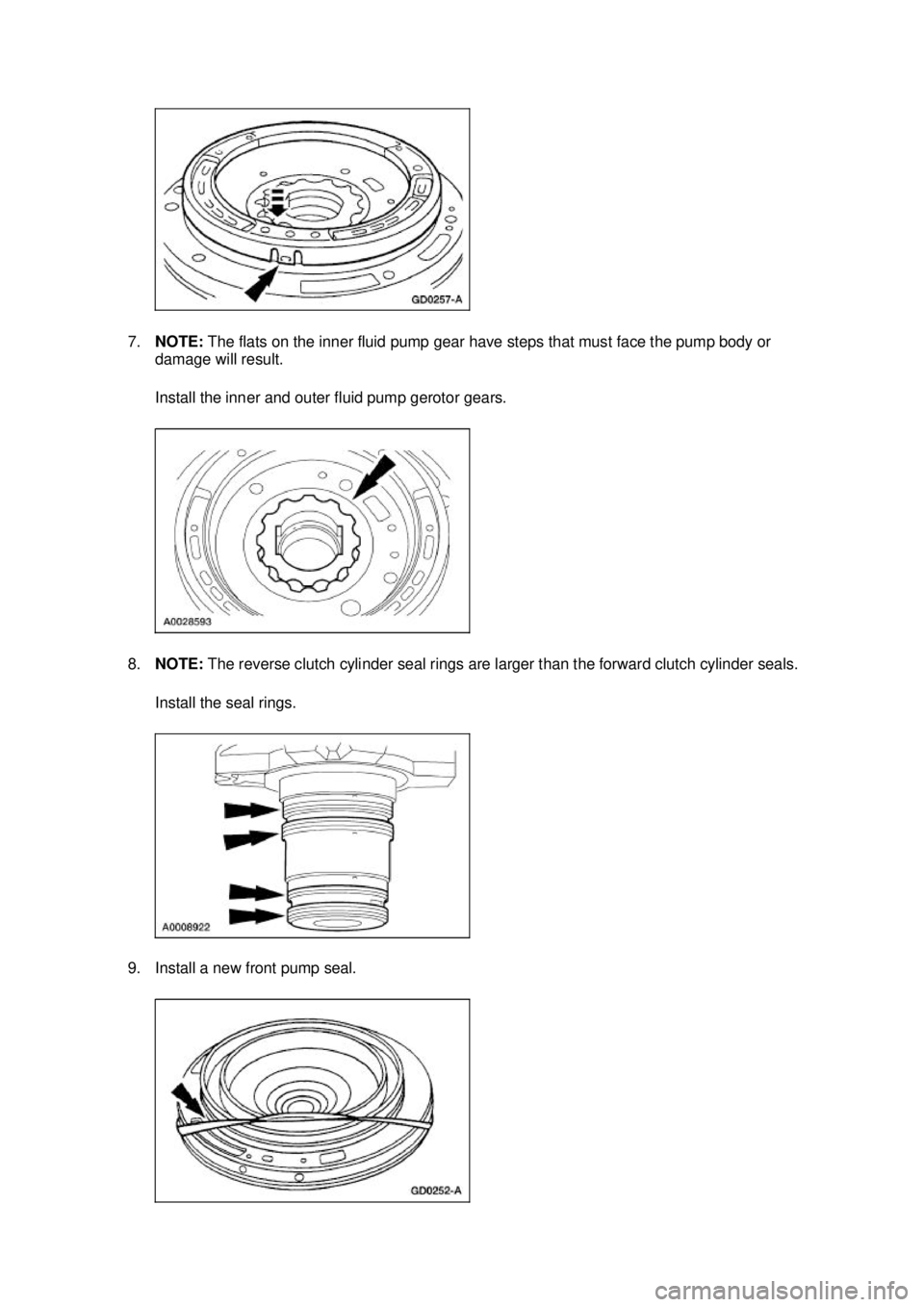

FORD MUSTANG 2003 Workshop Manual 7. NOTE: The flats on the inner fluid pump gear have steps that must face the pump body or damage will result. Install the inner and outer fluid pump gerotor gears. 8. NOTE: The reverse clutch cy

Page 2501 of 4378

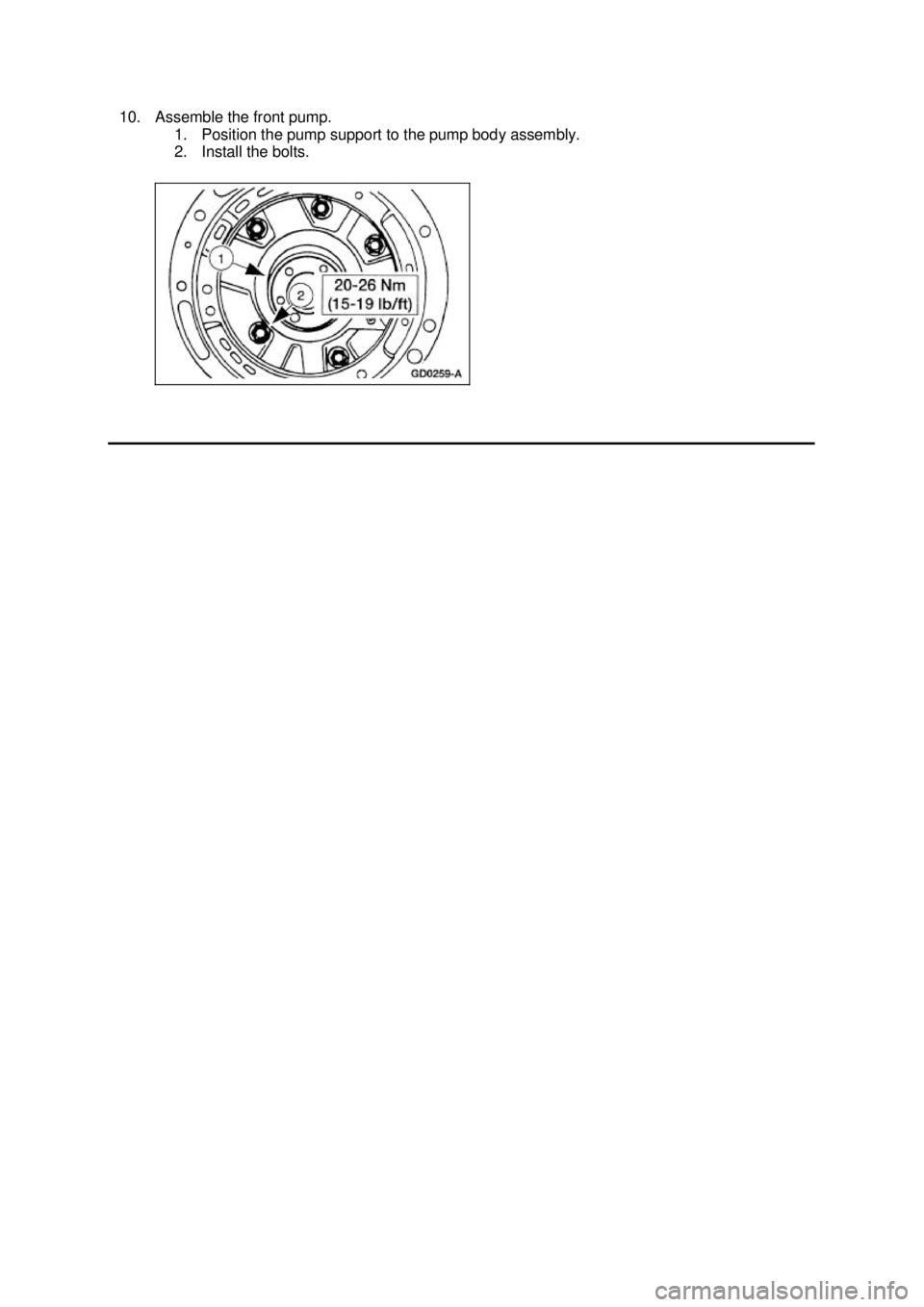

FORD MUSTANG 2003 Workshop Manual 10. Assemble the front pump. 1. Position the pump support to the pump body assembly. 2. Install the bolts. Klj . 7 ba 72003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/t

Page 2502 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Intermediate One- Way Clutch Intermediate Clutch Cylinder Disassembled View Disassembly 1. NOTE: One tab that locks the reverse clutch drum into the reve

Page 2503 of 4378

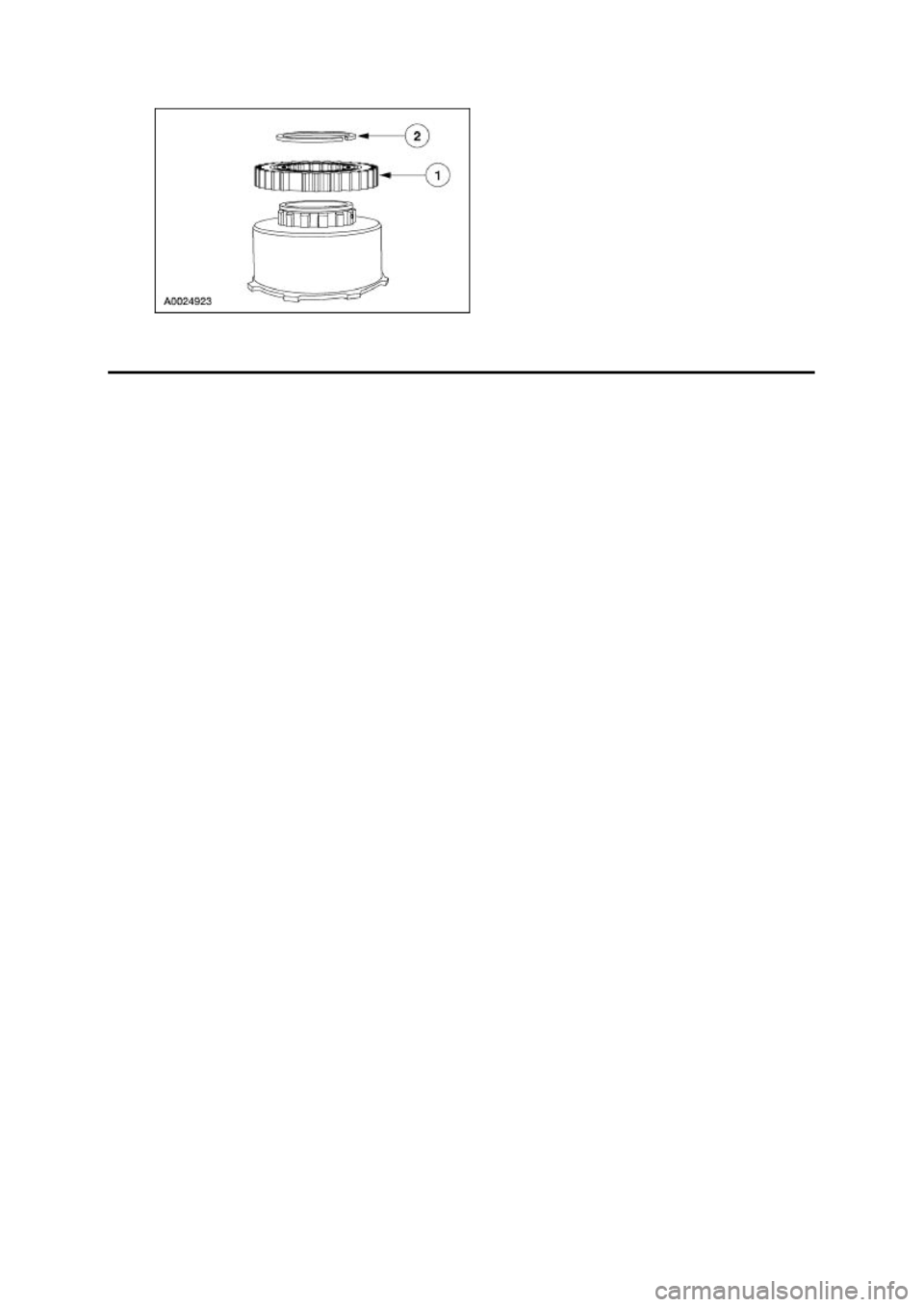

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2504 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Reverse Clutch Reverse Clutch Disassembled View SECTION 307- 01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s) Dial Indic
