FORD MUSTANG 2003 Workshop Manual 53. Apply silicone gasket and sealant to the woodruff key on the crankshaft pulley. 54. Using the special tool, install the crankshaft pulley. 55. Install the crankshaft pulley and tighten the bolt

Page 1810 of 4378

FORD MUSTANG 2003 Workshop Manual 56. NOTE: Lubricate the O- ring seal with clean engine oil. Install the coolant pump. 57. NOTE: The RH is shown; the LH is similar. Use new gaskets when installing the exhaust manifolds. Install

Page 1811 of 4378

FORD MUSTANG 2003 Workshop Manual 59. Install the knock sensor wiring harness. 1. LH knock sensor electrical connector 2. RH knock sensor electrical connector 3. Engine control sensor electrical connector 4. Fuel injector electric

Page 1812 of 4378

FORD MUSTANG 2003 Workshop Manual 62. Install the upper generator support bracket and coolant bypass tube. �zInstall the upper generator support bracket. �z Install the coolant bypass tube. �z Install the bolts. 63. Install the ei

Page 1813 of 4378

FORD MUSTANG 2003 Workshop Manual 65. Connect the engine coolant temperature (ECT) sensor. 66. Connect the eight fuel injectors. 67. Install the RH ignition coil cover. 68. NOTE: The fastener at location five is a stud. Install t

Page 1814 of 4378

FORD MUSTANG 2003 Workshop Manual 69. Connect the throttle position (TP) sensor electrical connector. 70. Connect the idle air control (IAC) valve electrical connector. 71. Connect the generator wiring. Klj . 24 ba 302003 M

Page 1815 of 4378

FORD MUSTANG 2003 Workshop Manual 72. Install the LH coil cover. 73. Connect the EGR vacuum regulator (EVR) electrical connector. 74. Connect the fuel pressure sensor electrical connector. 75. Connect the EGR tube to the exhaust ma

Page 1816 of 4378

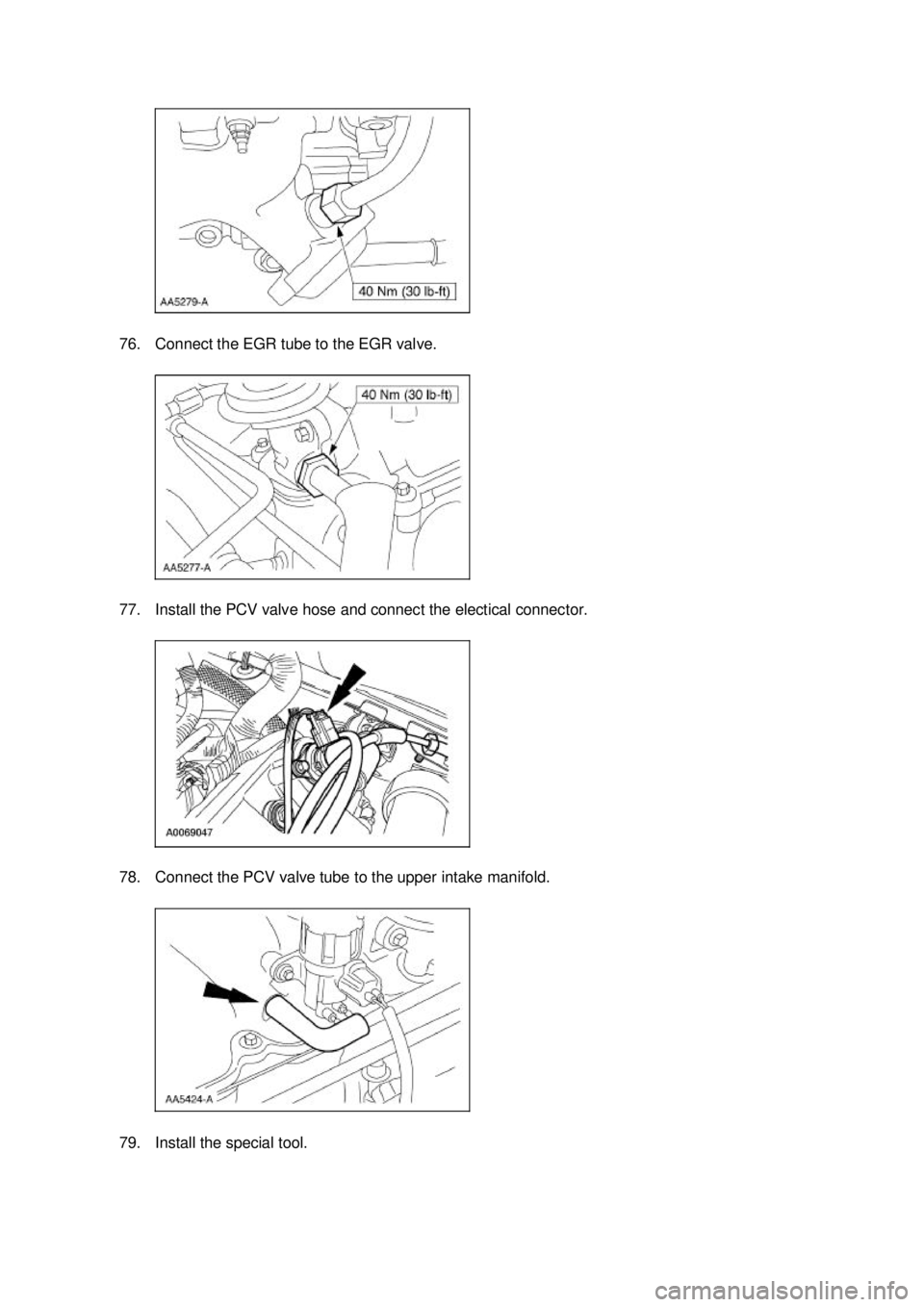

FORD MUSTANG 2003 Workshop Manual 76. Connect the EGR tube to the EGR valve. 77. Install the PCV valve hose and connect the electical connector. 78. Connect the PCV valve tube to the upper intake manifold. 79. Install the special t
