Page 3473 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST S: THE INDIVIDUAL REVERSING LAMP IS INOPERATIVE �z If equipped with M/T, measure the resistance between reversing lamp switch C169, Circuit 140 (BK/PK), harness side and ground. �z

Page 3474 of 4378

FORD MUSTANG 2003 Workshop Manual PINPOINT TEST T: THE REVERSING LAMPS ARE ON CONTINUOUSLY �z Is the resistance less than 5 ohms? No REPAIR the circuit. TEST the system for normal operation. Test Step Result / Action to Take

Page 3475 of 4378

FORD MUSTANG 2003 Workshop Manual GENERAL PROCEDURES Headlamp Adjustment Headlamp Aiming 1. The headlamp aiming procedure depends on the type of beam pattern the headlamp is equipped with. Vehicles may come equipped with visual op

Page 3476 of 4378

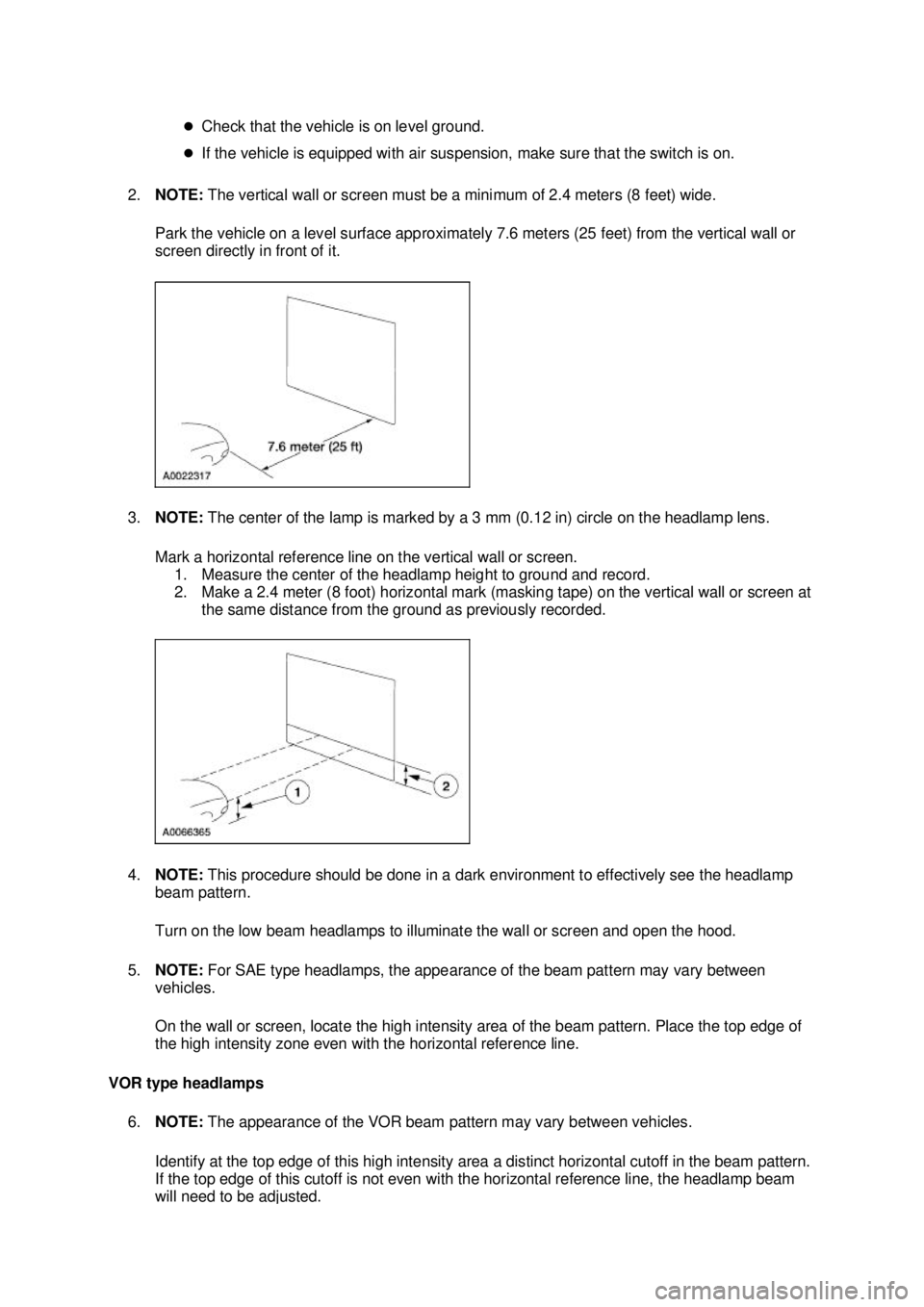

FORD MUSTANG 2003 Workshop Manual �z Check that the vehicle is on level ground. �z If the vehicle is equipped with air suspension, make sure that the switch is on. 2. NOTE: The vertical wall or screen must be a minimum of 2.4 meter

Page 3477 of 4378

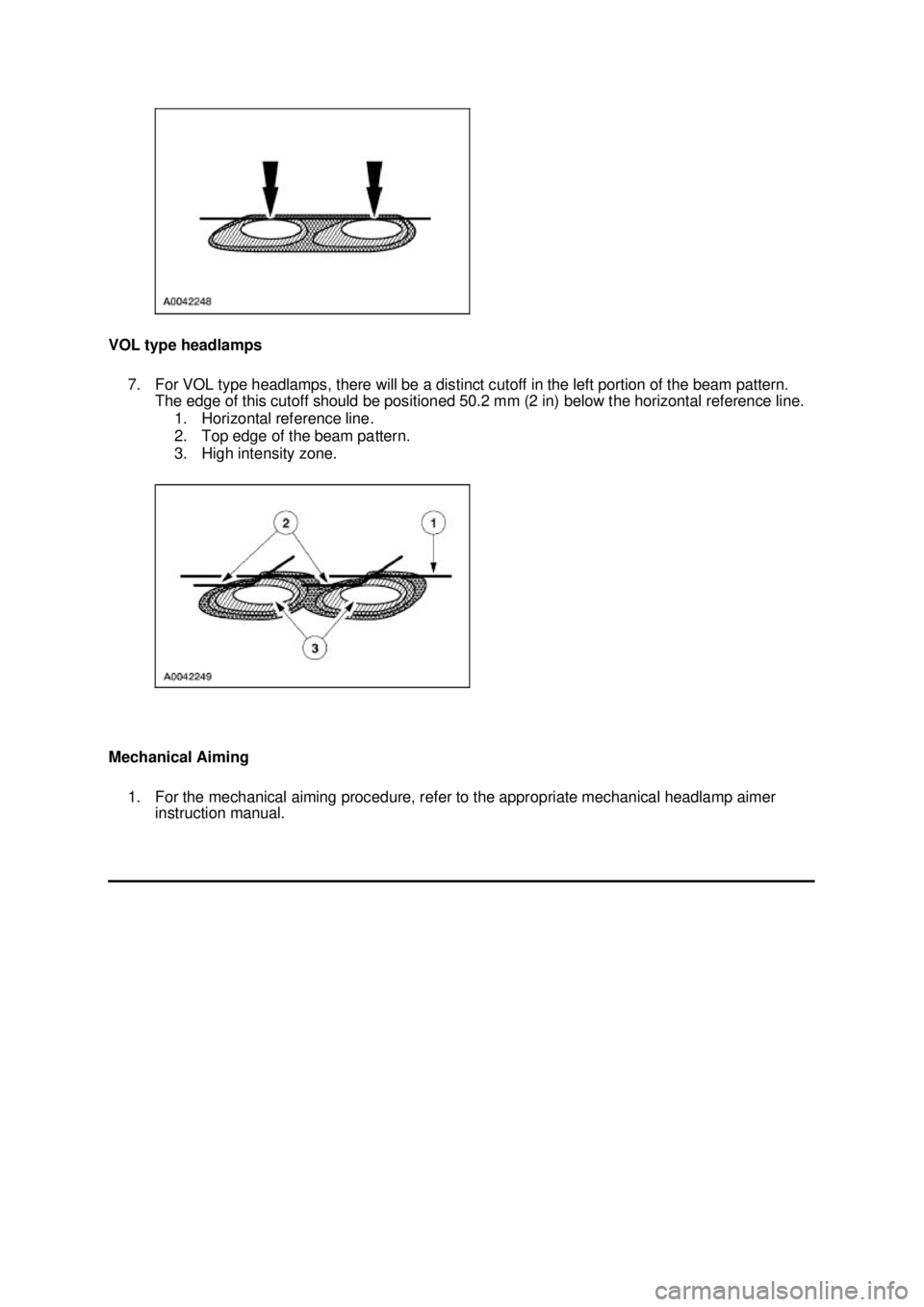

FORD MUSTANG 2003 Workshop Manual VOL type headlamps 7. For VOL type headlamps, there will be a distinct cutoff in the left portion of the beam pattern. The edge of this cutoff should be positioned 50.2 mm (2 in) below the horizonta

Page 3478 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3479 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Bulb — Headlamp Removal WARNING: The halogen bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle

Page 3480 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
