Page 1049 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the RH engine mount nut. 11. Lower the vehicle. 12. Raise the engine. 13. Raise the vehicle on a hoist. 14. Position the bracket aside. �zRemove the nut. Klj . 3 ba 82003 Must

Page 1050 of 4378

FORD MUSTANG 2003 Workshop Manual 15. Disconnect the engine ground strap. �zRemove the nut. 16. Remove the LH engine insulator (6038). �zRemove the bolts. 17. Remove the RH engine insulator. �zRemove the bolts. �z Remove the nut

Page 1051 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. Install the RH engine insulator. �zInstall the nuts. �z Install the bolts. 2. Install the LH engine insulator. 3. Connect the engine ground strap. 4. Install the bracket. Klj

Page 1052 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Lower the vehicle. 6. Lower the engine. 7. Raise the vehicle. 8. Install the RH engine mount nut. 9. Install the LH engine mount nut. Klj . 6 ba 82003 Mustang Workshop Manual 17. 11. 2

Page 1053 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Lower the vehicle. 11. Remove the special tools. 12. Install the coolant recovery reservoir. 13. Install the radiator sight shield. 14. Install the air cleaner outlet tube. For additional info

Page 1054 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 8 ba 82003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1055 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL Engine Removal WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present

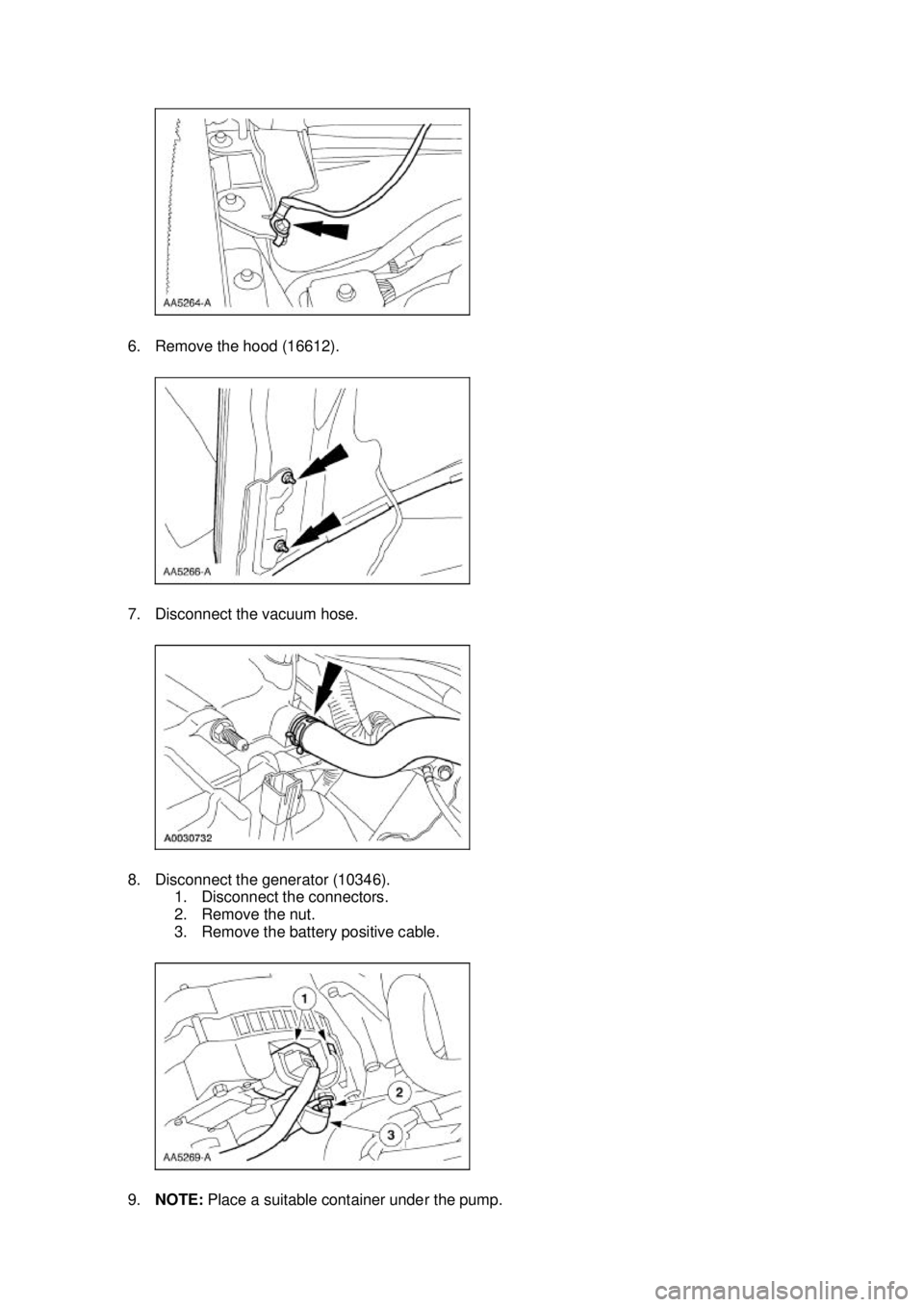

Page 1056 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the hood (16612). 7. Disconnect the vacuum hose. 8. Disconnect the generator (10346). 1. Disconnect the connectors. 2. Remove the nut. 3. Remove the battery positive cable. 9. NOTE: P
