Page 2137 of 4378

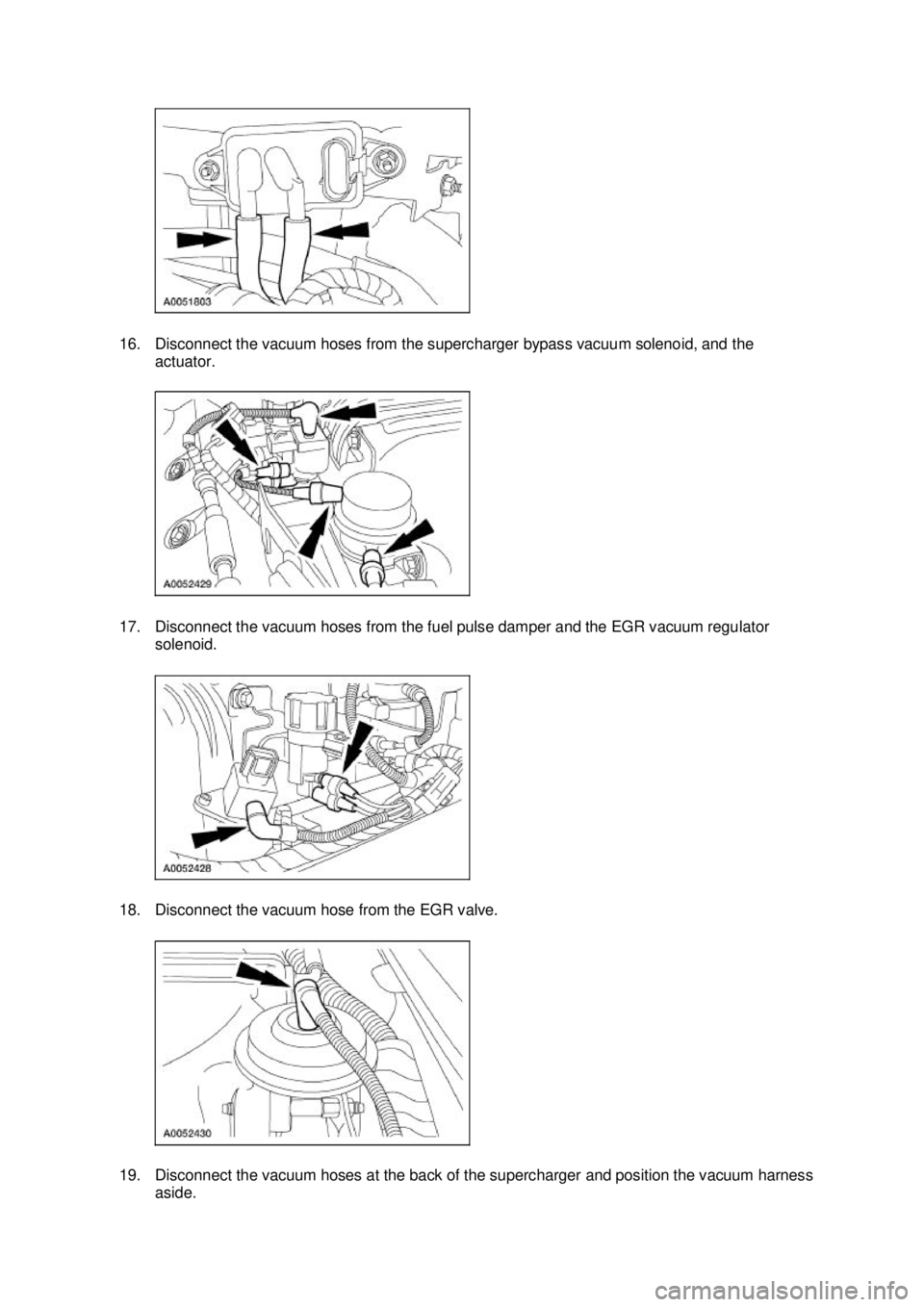

FORD MUSTANG 2003 Workshop Manual 16. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid, and the actuator. 17. Disconnect the vacuum hoses from the fuel pulse damper and the EGR vacuum regulator solenoid. 18

Page 2138 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Remove the vacuum accessory bracket mounting nut. 21. Remove the mounting bolts, and the vacuum accessory bracket. 22. Disconnect the exhaust manifold to EGR valve tube. 23. Disconnect the baro

Page 2139 of 4378

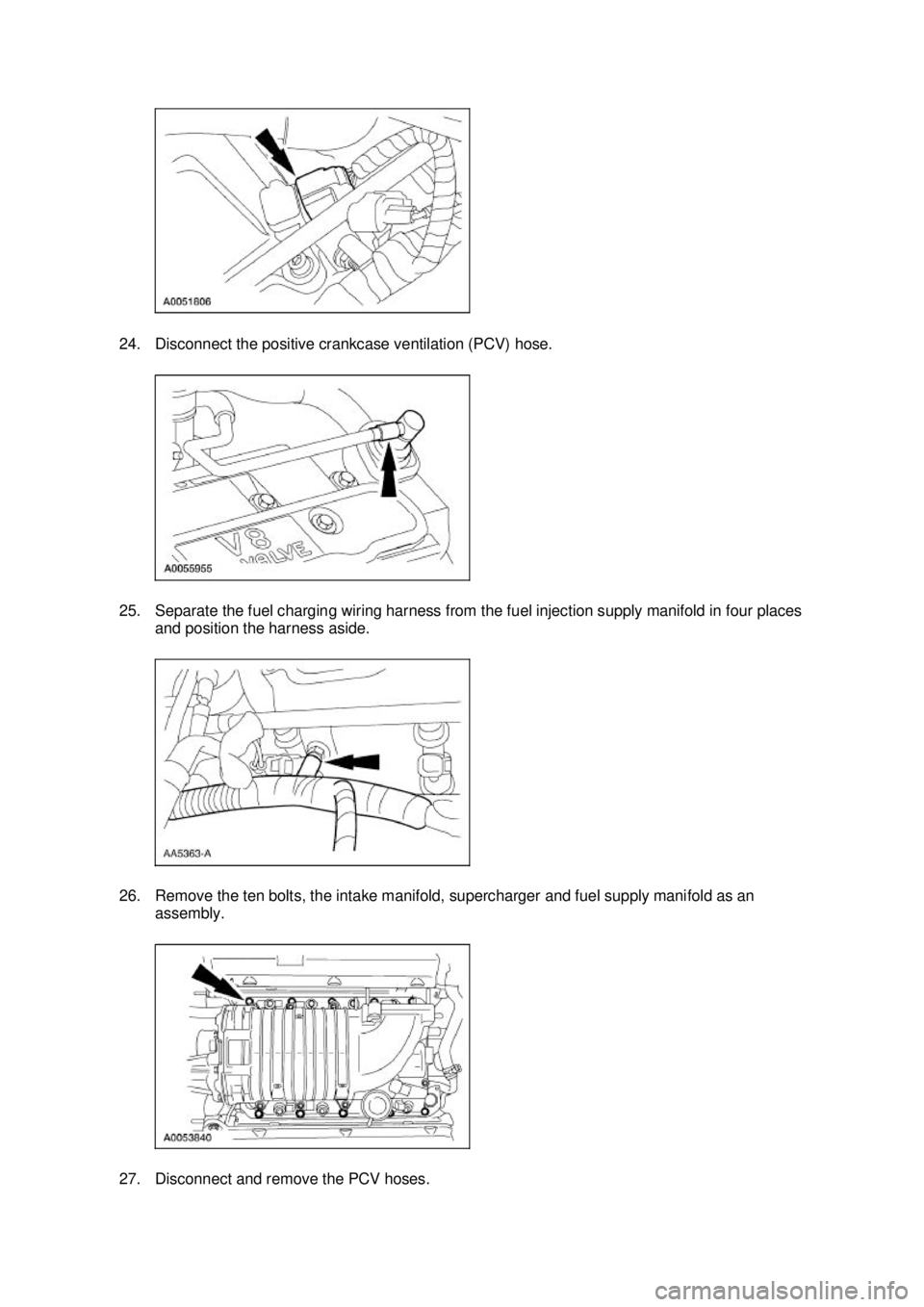

FORD MUSTANG 2003 Workshop Manual 24. Disconnect the positive crankcase ventilation (PCV) hose. 25. Separate the fuel charging wiring harness from the fuel injection supply manifold in four places and position the harness aside. 26

Page 2140 of 4378

FORD MUSTANG 2003 Workshop Manual 28. Remove the coolant supply and return manifold. 29. Remove the coolant supply and return tubes and seals. 30. Remove the fuel supply manifold mounting studs. 31. Remove the fuel supply manifold

Page 2141 of 4378

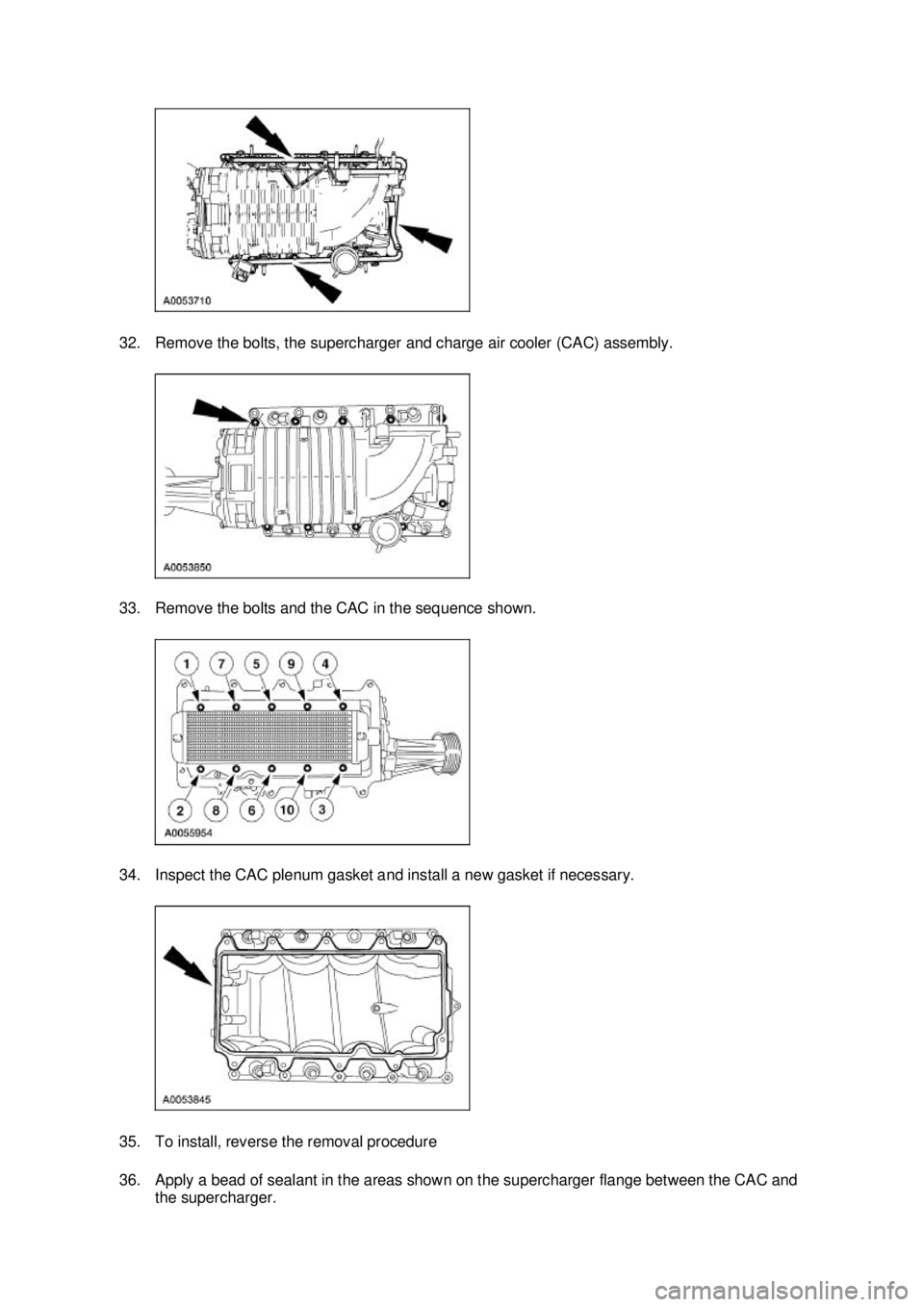

FORD MUSTANG 2003 Workshop Manual 32. Remove the bolts, the supercharger and charge air cooler (CAC) assembly. 33. Remove the bolts and the CAC in the sequence shown. 34. Inspect the CAC plenum gasket and install a new gasket if nec

Page 2142 of 4378

FORD MUSTANG 2003 Workshop Manual 37. NOTE: Once the torque procedure has been started, final tightening must be finished within five minutes maximum. Tighten the CAC bolts in the sequence shown in two stages. 1. Tighten to 2 Nm (

Page 2143 of 4378

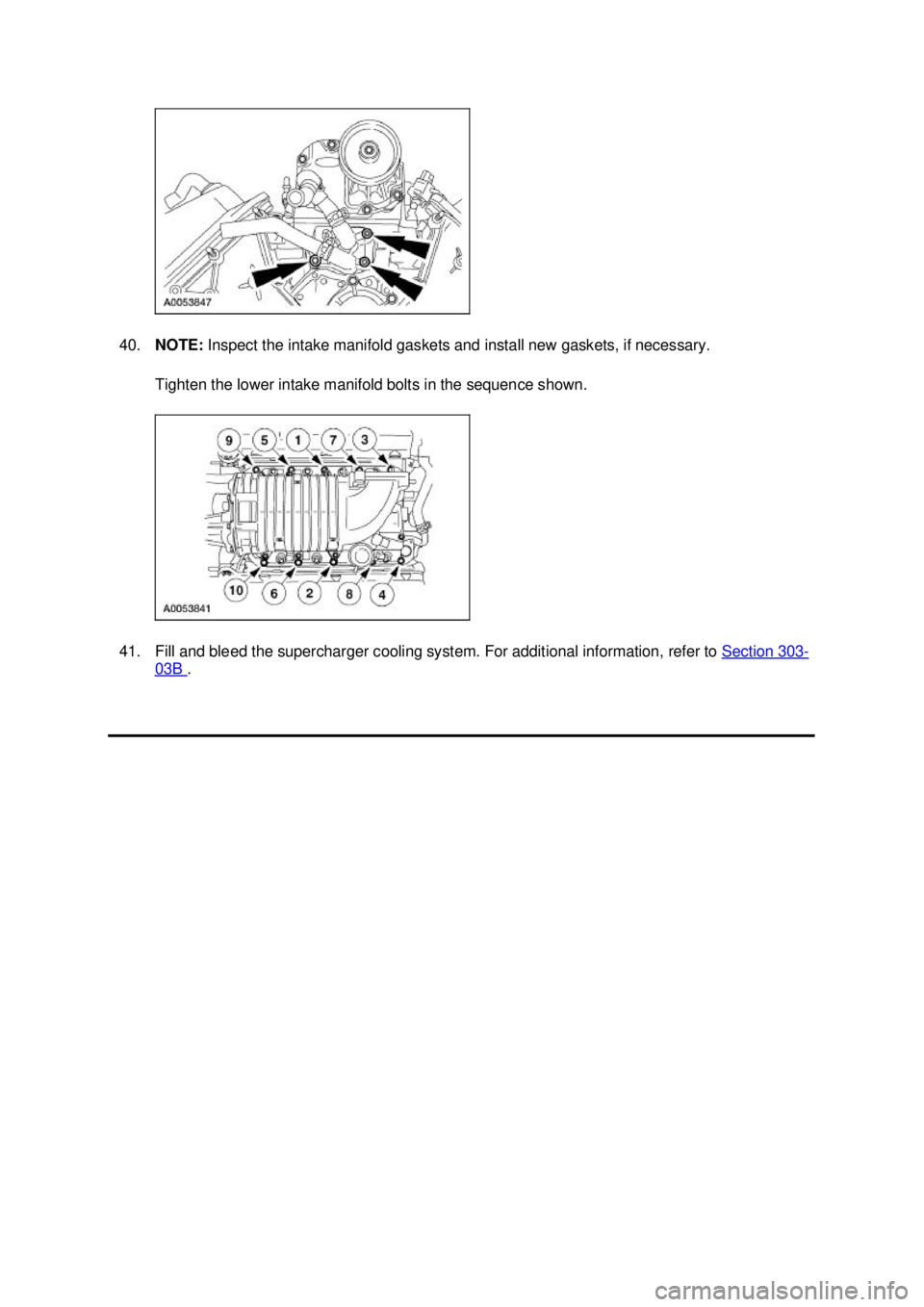

FORD MUSTANG 2003 Workshop Manual 40. NOTE: Inspect the intake manifold gaskets and install new gaskets, if necessary. Tighten the lower intake manifold bolts in the sequence shown. 41. Fill and bleed the supercharger cooling syste

Page 2144 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 303- 13: Evaporative Emissions 2003 Mustang Workshop Manual General Specifications Item Specification MERPOL® O-ring Seal Lubricant ESE- M99B144- B Torque Specification
