Page 1593 of 4378

FORD MUSTANG 2003 Workshop Manual 32. Install the power steering reservoir and the fasteners. 33. Connect the power steering hoses. 34. Install the engine coolant degas bottle and the fasteners. 35. Install the degas bottle return

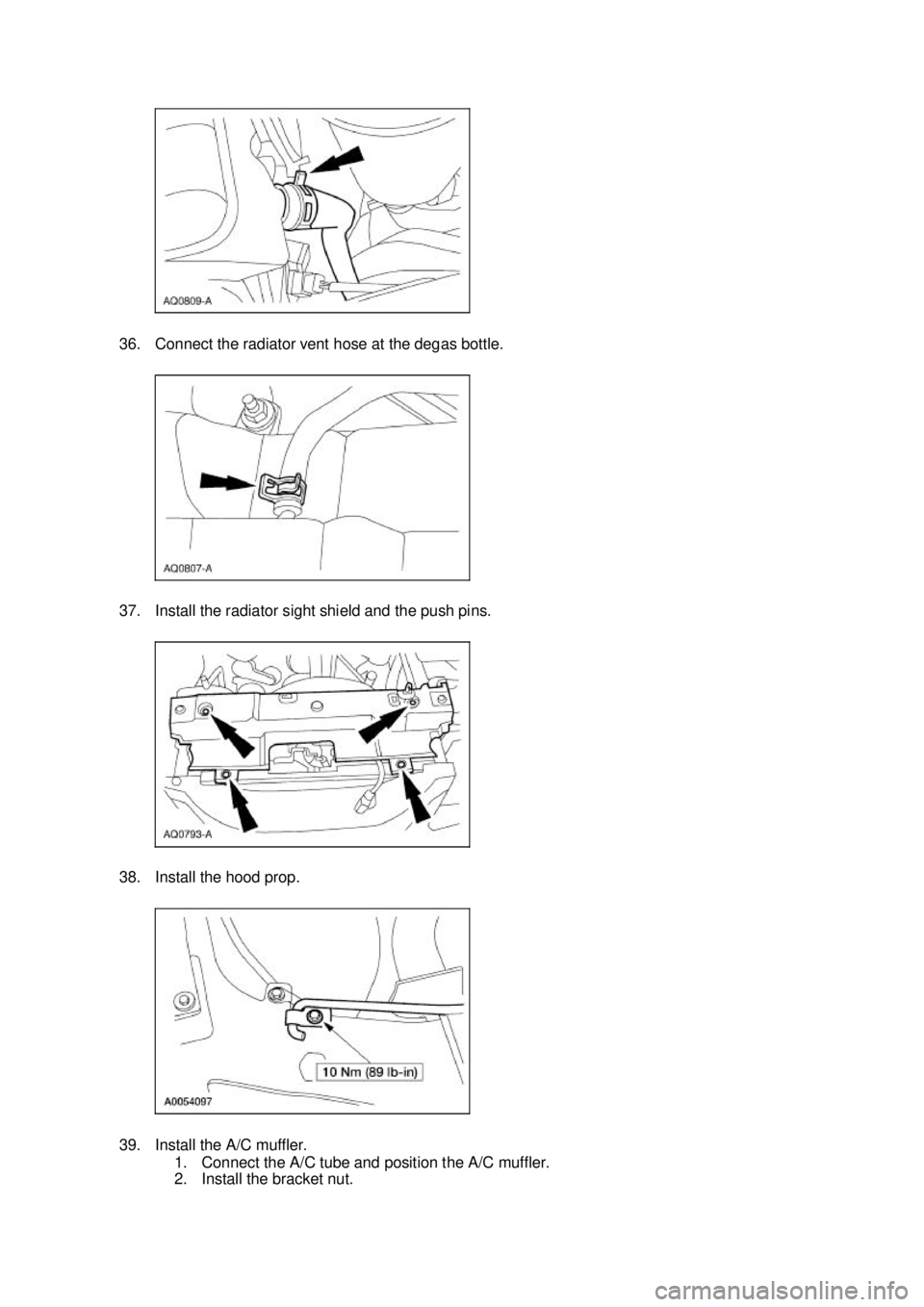

Page 1594 of 4378

FORD MUSTANG 2003 Workshop Manual 36. Connect the radiator vent hose at the degas bottle. 37. Install the radiator sight shield and the push pins. 38. Install the hood prop. 39. Install the A/C muffler. 1. Connect the A/C tube and

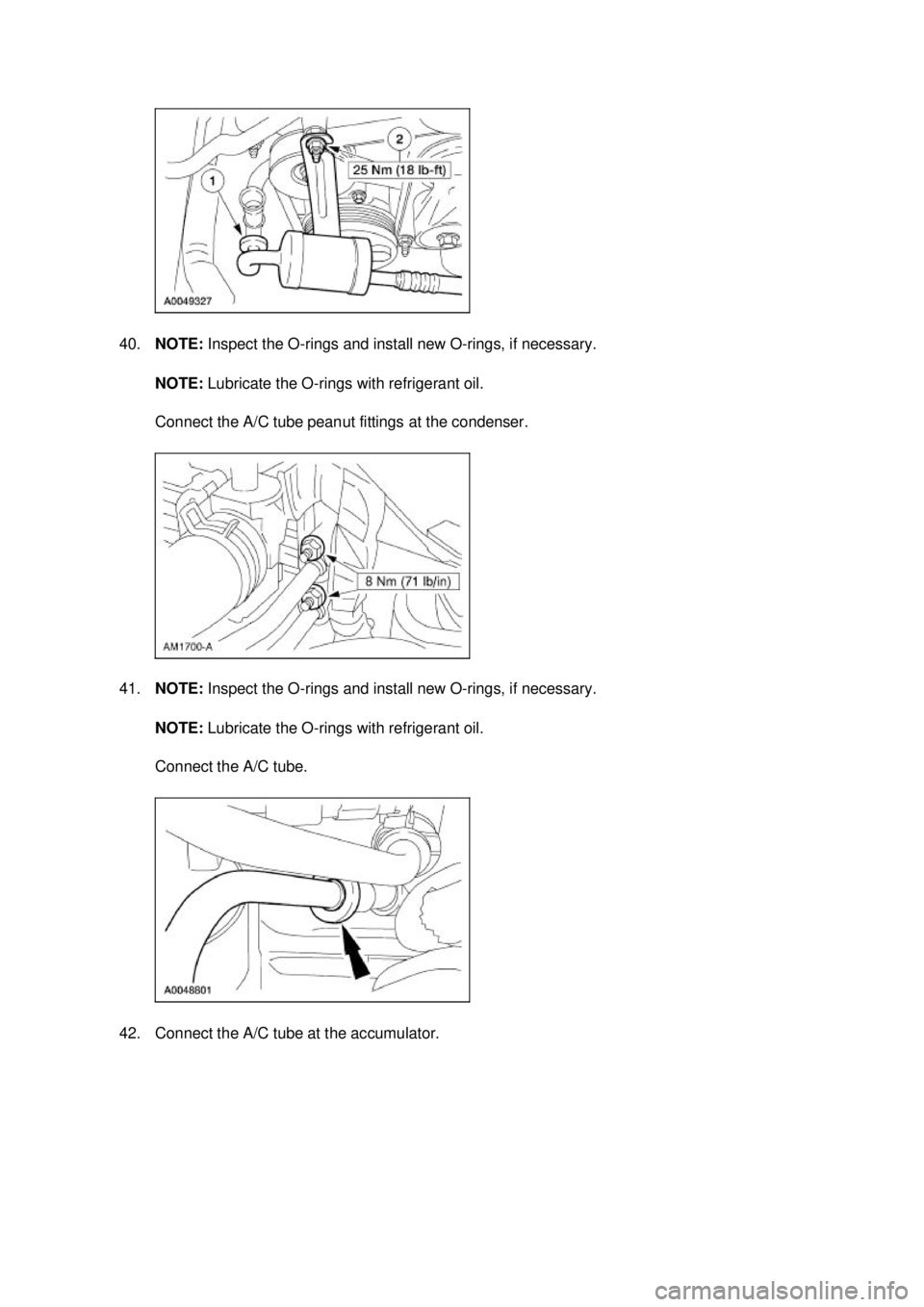

Page 1595 of 4378

FORD MUSTANG 2003 Workshop Manual 40. NOTE: Inspect the O- rings and install new O- rings, if necessary. NOTE: Lubricate the O- rings with refrigerant oil. Connect the A/C tube peanut fittings at the condenser. 41. NOTE: Inspect

Page 1596 of 4378

FORD MUSTANG 2003 Workshop Manual 43. Connect the radiator upper hose, the radiator lower hose and the supercharger degas hose. 44. Connect the heater hoses. 45. Install the wiring harness to the dash panel. 46. Connect the vacuum

Page 1597 of 4378

FORD MUSTANG 2003 Workshop Manual 47. Connect the 16- pin and the 42-pin electrical connectors. 48. NOTE: Install a new gasket, if necessary. Install the throttle body and spacer assembly and the mounting nuts. 49. Position the ac

Page 1598 of 4378

FORD MUSTANG 2003 Workshop Manual 51. Connect the accelerator controls. �zConnect the accelerator cable. �z If equipped, connect the speed control cable. 52. Connect the fuel tube spring lock coupling. For additional information, r

Page 1599 of 4378

FORD MUSTANG 2003 Workshop Manual 55. Connect the idle air control (IAC) and the throttle position (TP) electrical connectors. 56. Install the air cleaner outlet pipe and tighten the clamps. 57. Connect the vacuum hose. 58. Connect

Page 1600 of 4378

FORD MUSTANG 2003 Workshop Manual 60. NOTE: Use reference marks made during removal to aid in the installation. Install the hood and the four nuts. 61. Install the hood- to-body ground strap. 62. Connect the battery ground cable.
