Page 3705 of 4378

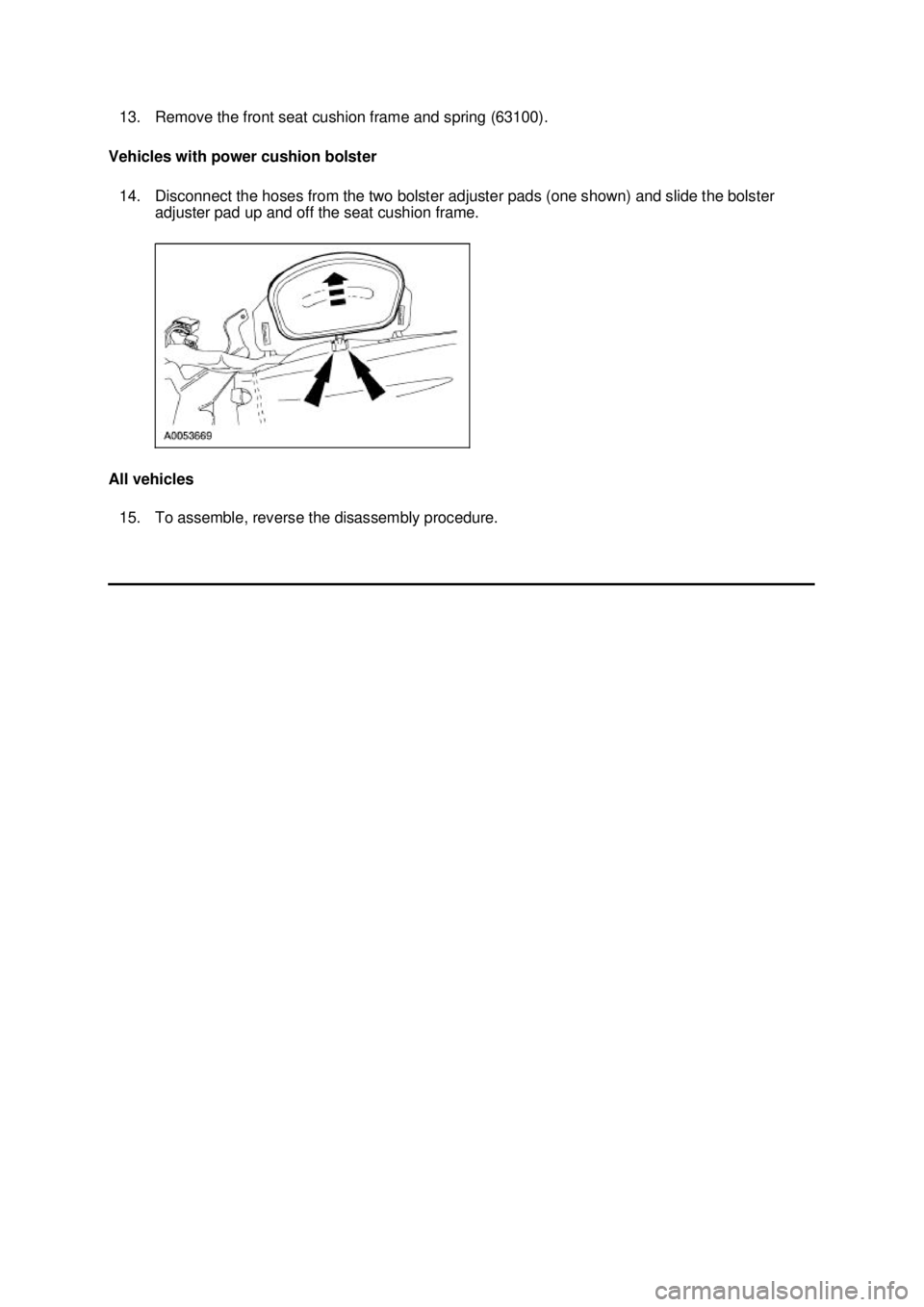

FORD MUSTANG 2003 Workshop Manual 13. Remove the front seat cushion frame and spring (63100). Vehicles with power cushion bolster 14. Disconnect the hoses from the two bolster adjuster pads (one shown) and slide the bolster adjuste

Page 3706 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY Front Seat Backrest Disassembly and Assembly All vehicles 1. Remove the front seat backrest. For additional information, refer to Front Seat Backrest in this section.

Page 3707 of 4378

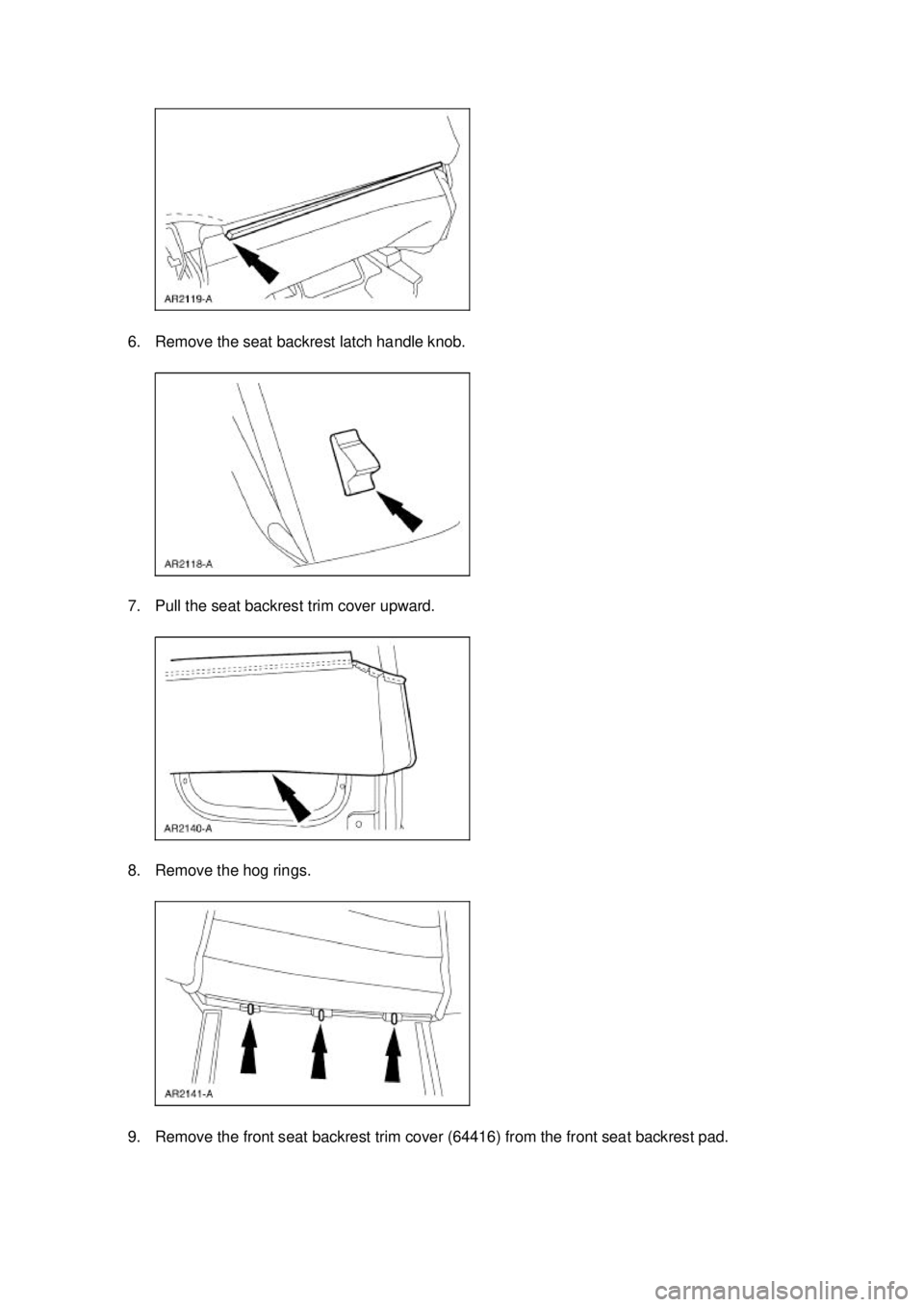

FORD MUSTANG 2003 Workshop Manual 6. Remove the seat backrest latch handle knob. 7. Pull the seat backrest trim cover upward. 8. Remove the hog rings. 9. Remove the front seat backrest trim cover (64416) from the front seat backres

Page 3708 of 4378

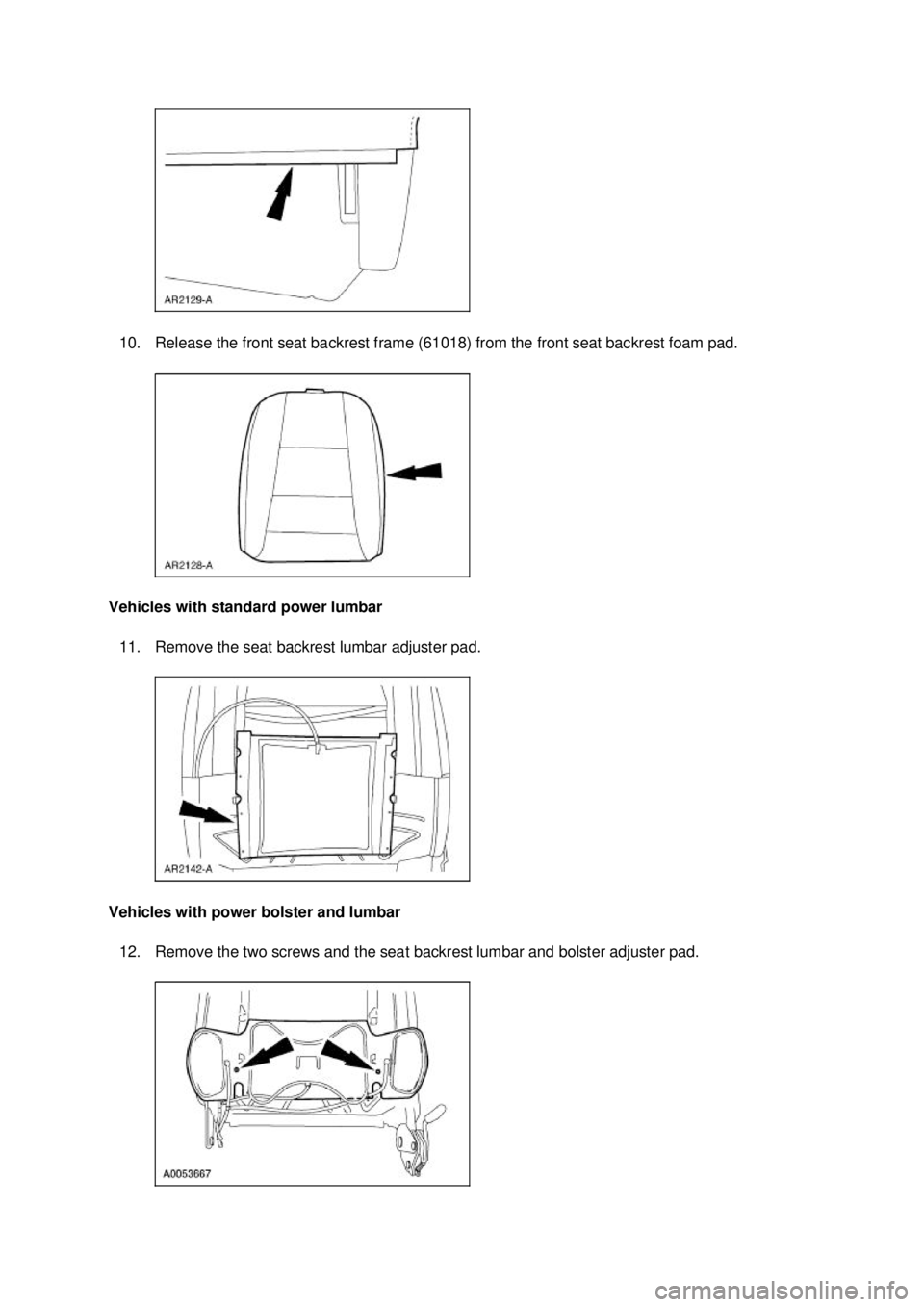

FORD MUSTANG 2003 Workshop Manual 10. Release the front seat backrest frame (61018) from the front seat backrest foam pad. Vehicles with standard power lumbar 11. Remove the seat backrest lumbar adjuster pad. Vehicles with power bo

Page 3709 of 4378

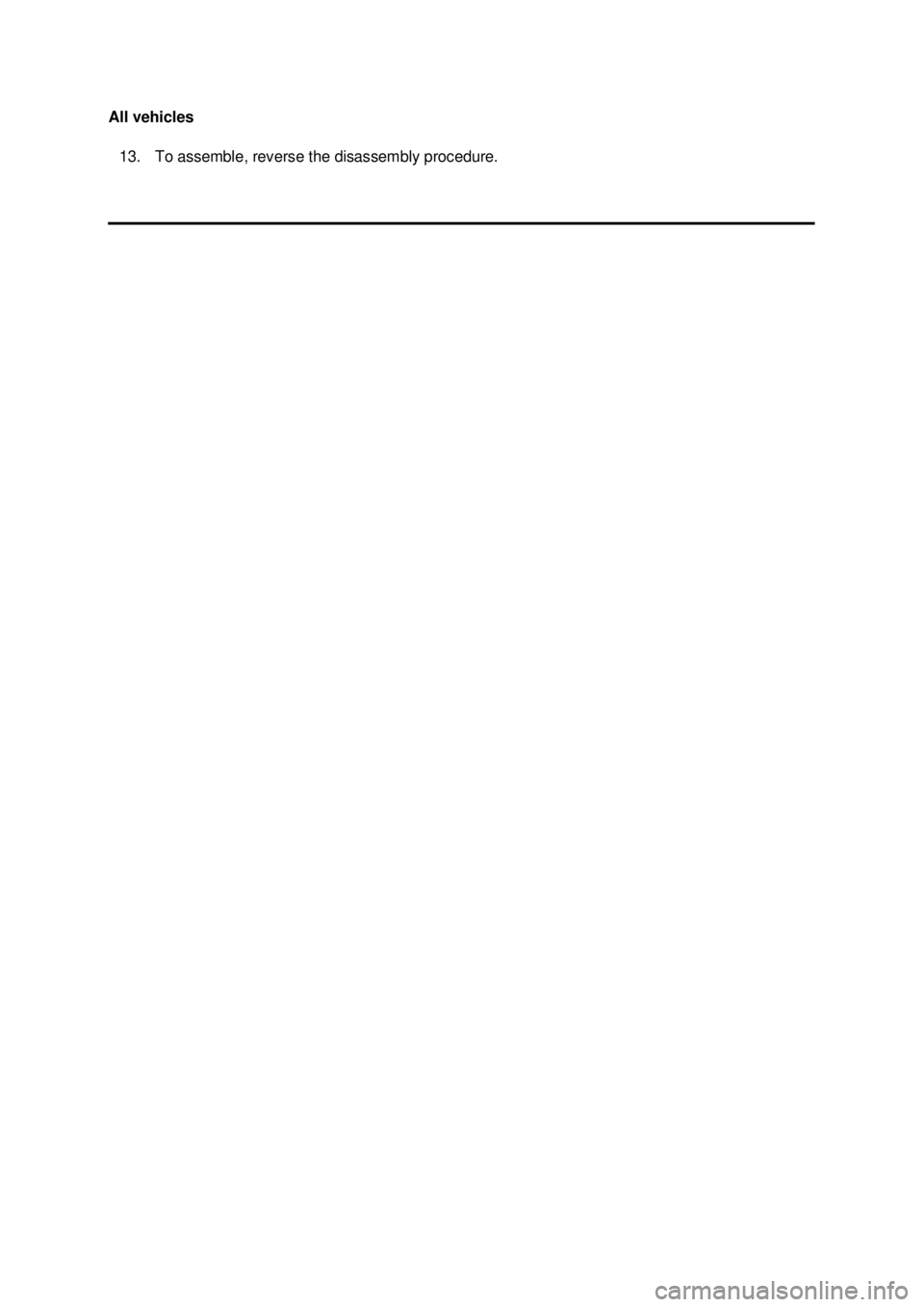

FORD MUSTANG 2003 Workshop Manual All vehicles 13. To assemble, reverse the disassembly procedure. Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3710 of 4378

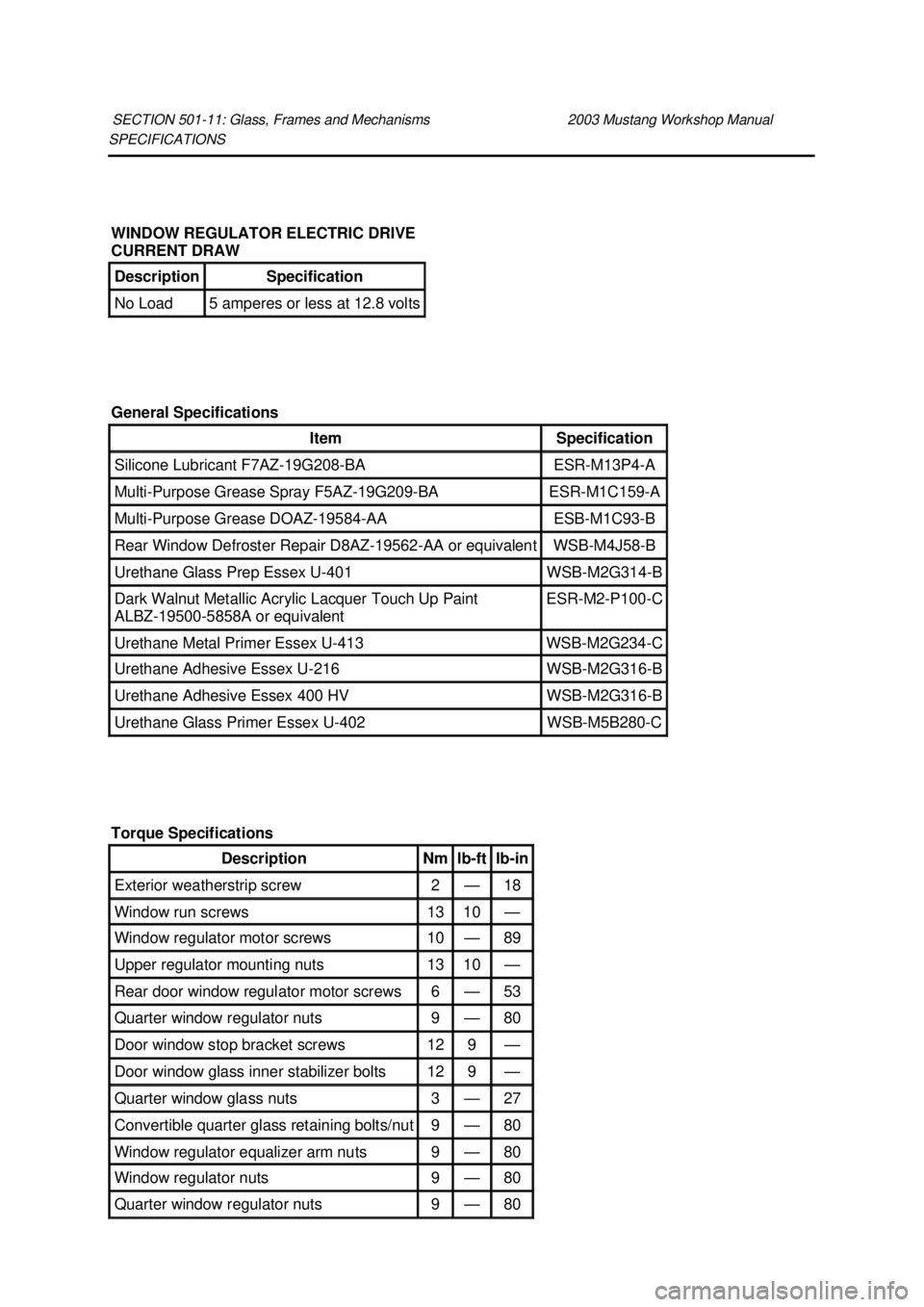

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual WINDOW REGULATOR ELECTRIC DRIVE CURRENT DRAW Description Specification No Load 5 amperes or less at 12.

Page 3711 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3712 of 4378

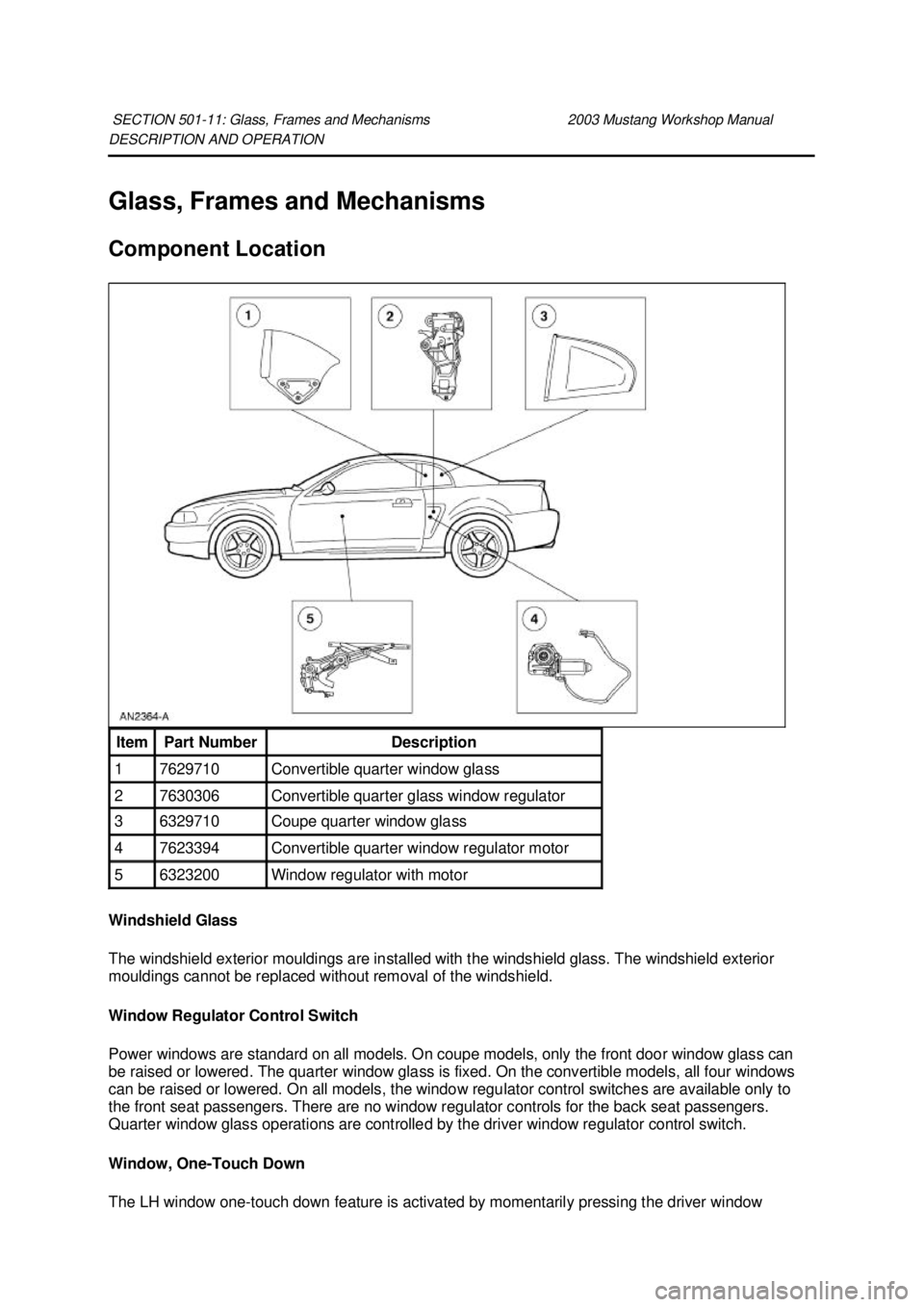

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Glass, Frames and Mechanisms Component Location Windshield Glass The windshield exterior mouldings are installed with the windshield glass. The windshield exterior mould
