FORD MUSTANG 2003 Workshop Manual Fig. 46: Premium Sound Radio Circuit, Coupe W/ Mach 1000 Sound System (2 of 2) 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 47 © 200

Page 4202 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 47: Premium Sound Radio Circuit, W/ Mach 460 Sound System SHIFT INTERLOCK 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 48 © 20

Page 4203 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 48: Shift Interlock Circuit STARTING/CHARGING 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 49 © 2006 Mitchell Repair Informati

Page 4204 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 49: Charging Circuit 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 50 © 2006 Mitchell Repair Information Company, LLC.

Page 4205 of 4378

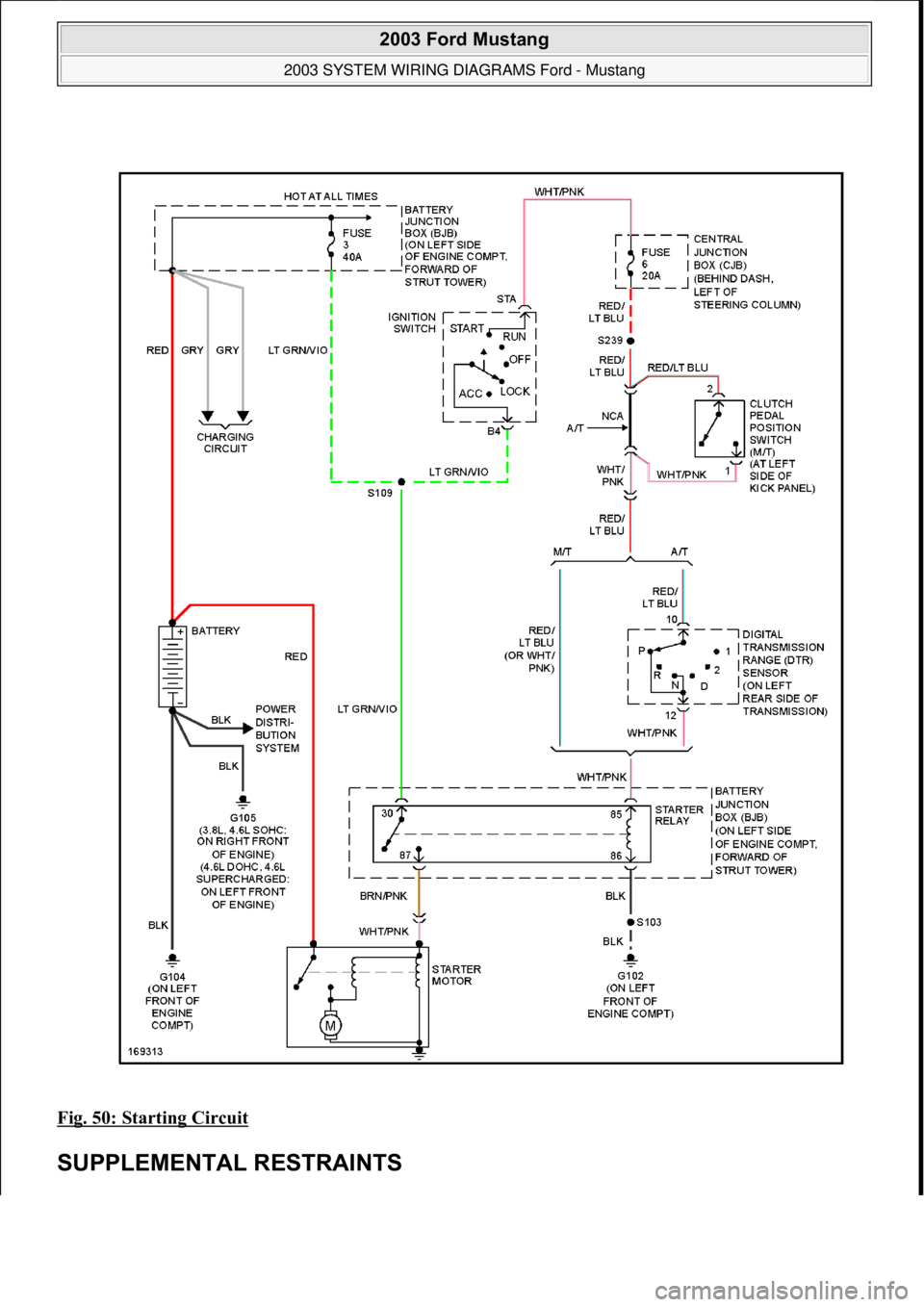

FORD MUSTANG 2003 Workshop Manual Fig. 50: Starting Circuit SUPPLEMENTAL RESTRAINTS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 51 © 2006 Mitchell Repair Information

Page 4206 of 4378

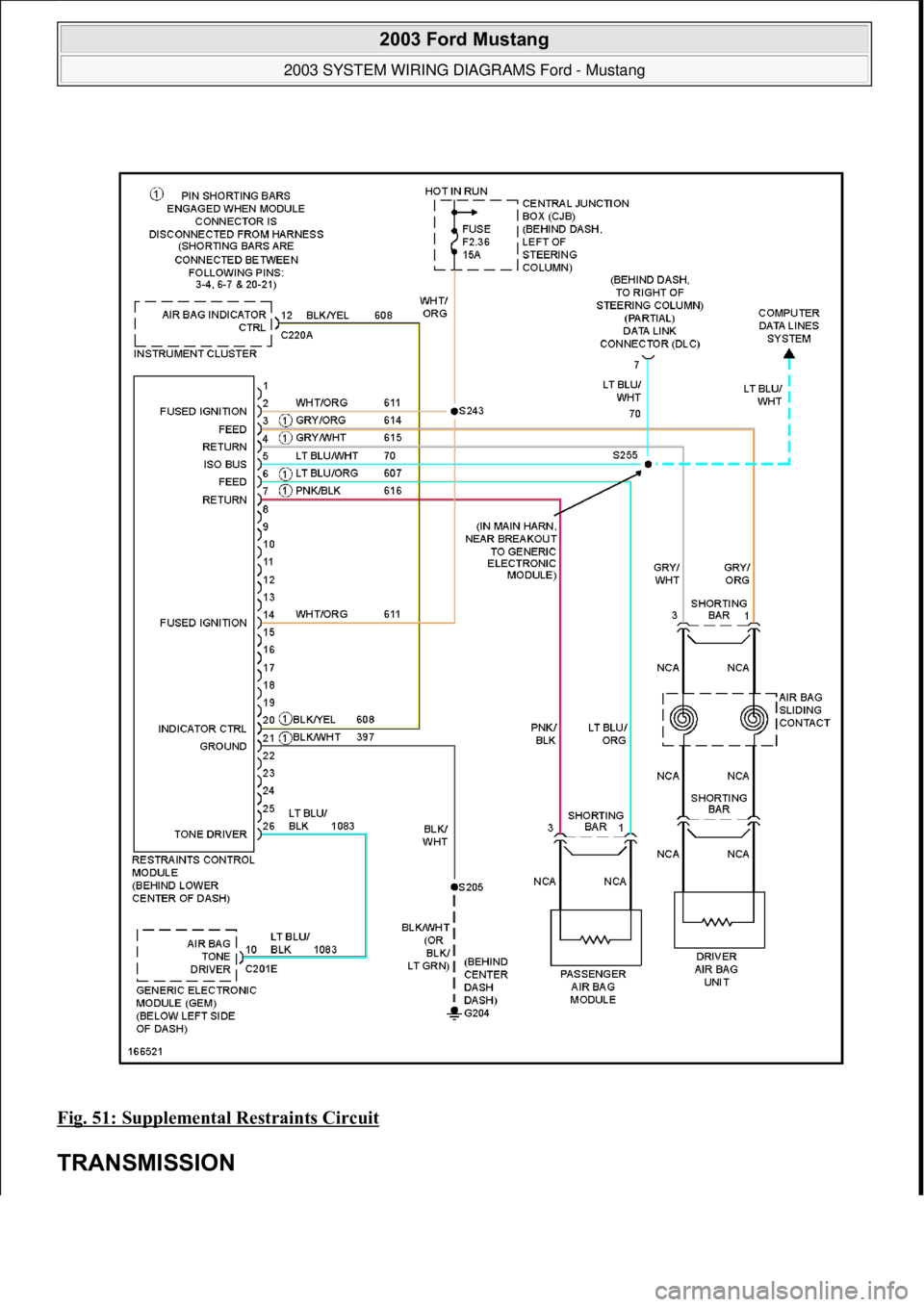

FORD MUSTANG 2003 Workshop Manual Fig. 51: Supplemental Restraints Circuit TRANSMISSION 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 52 © 2006 Mitchell Repair Inform

Page 4207 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 52: A/T Circuit TRUNK, TAILGATE, FUEL DOOR 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 53 © 2006 Mitchell Repair Information C

Page 4208 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 53: Trunk, Tailgate, Fuel Door Circuit WARNING SYSTEMS 2003 Ford Mustang 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:45:09Page 54 © 2006 Mitchell Repair
