Page 1441 of 4378

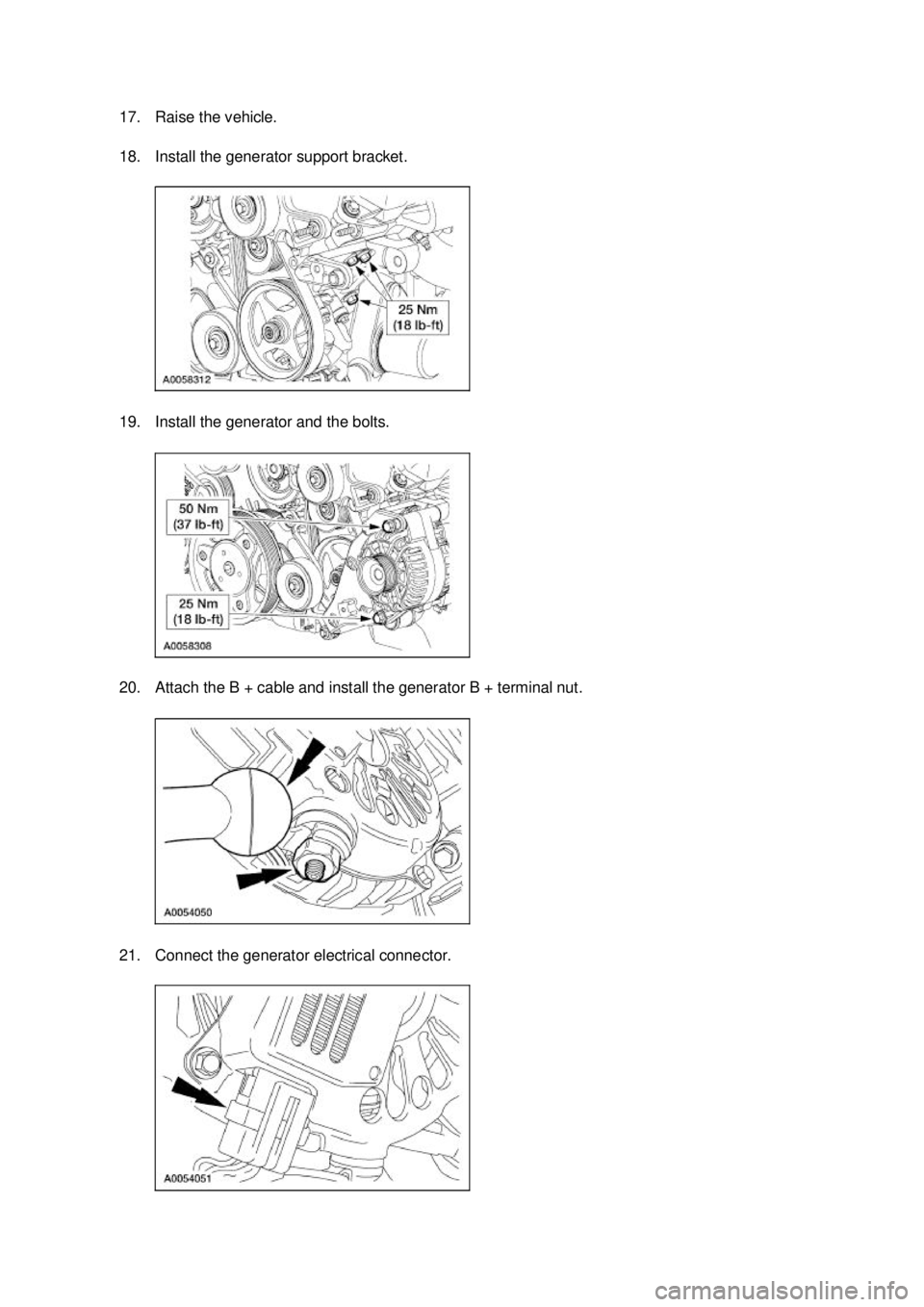

FORD MUSTANG 2003 Workshop Manual 17. Raise the vehicle. 18. Install the generator support bracket. 19. Install the generator and the bolts. 20. Attach the B + cable and install the generator B + terminal nut. 21. Connect the gene

Page 1442 of 4378

FORD MUSTANG 2003 Workshop Manual 22. Tighten the bolts in three stages, in the sequence shown. �zStage 1: Tighten to 2 Nm (18 lb- in). �z Stage 2: Tighten to 20 Nm (15 lb- ft). �z Stage 3: Tighten an additional 60 degrees. 23. Co

Page 1443 of 4378

FORD MUSTANG 2003 Workshop Manual 26. Position the power steering pump and install the bolts. 27. Install the oil filter adapter. For additional information, refer to Oil Filter Adapter in this section. 28. Install the crankshaft

Page 1444 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 15 ba 152003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1445 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Timing Drive Components Removal CAUTION: Since the engine is not free- wheeling, if the crankshaft (6303) or the camshafts (6250) are moved in any manner during removal and ins

Page 1446 of 4378

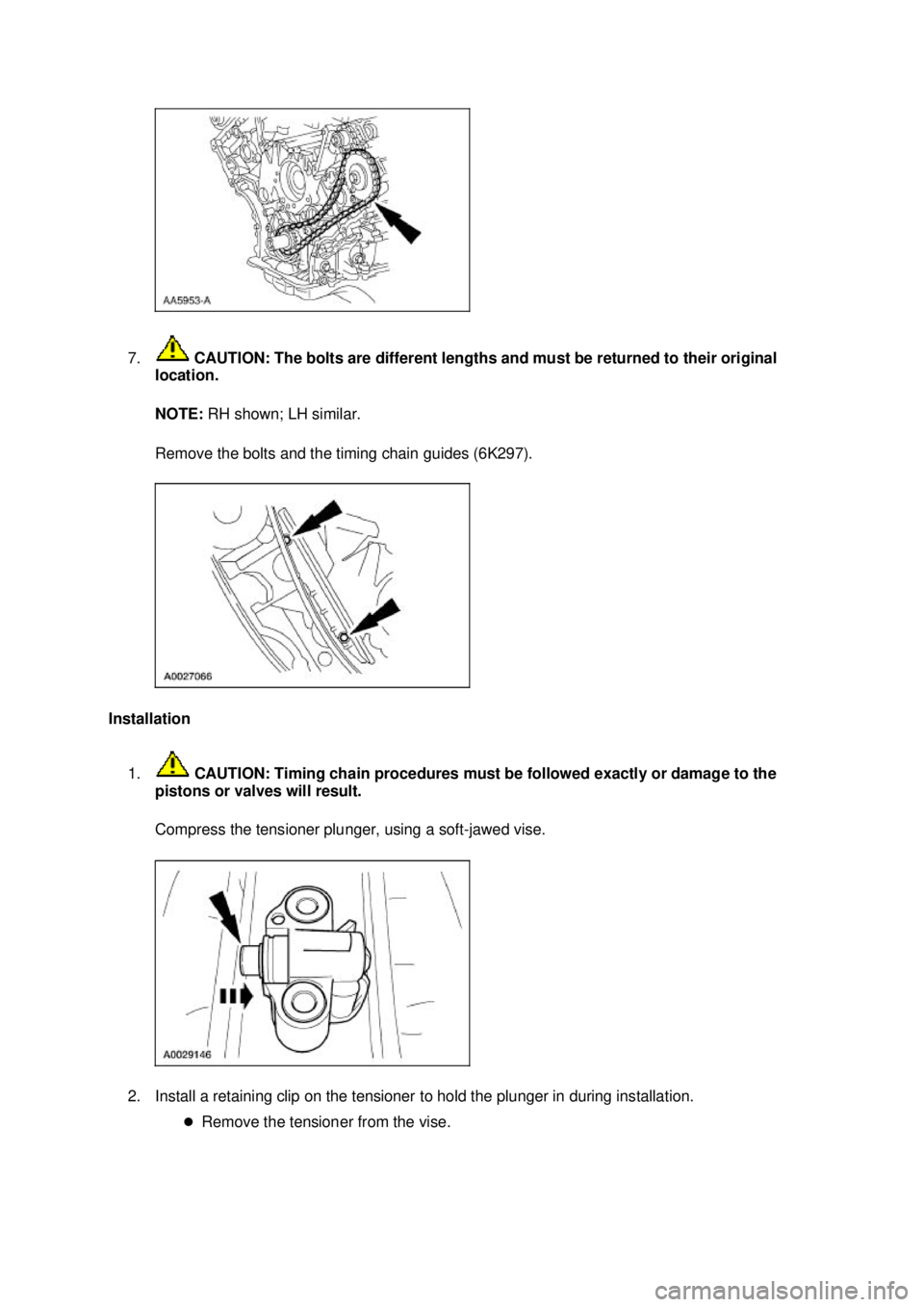

FORD MUSTANG 2003 Workshop Manual 4. CAUTION: The camshaft timing marks must be correctly lined up or damage to the valves and pistons can occur. NOTE: The copper links on the timing chain may not line up with the timing marks on

Page 1447 of 4378

FORD MUSTANG 2003 Workshop Manual 7. CAUTION: The bolts are different lengths and must be returned to their original location. NOTE: RH shown; LH similar. Remove the bolts and the timing chain guides (6K297). Installation 1. C

Page 1448 of 4378

FORD MUSTANG 2003 Workshop Manual 3. If the copper links are not visible, mark one link on one end and one link on the other end, and use as timing marks. 4. Install the timing chain guides. 5. Rotate the LH camshaft sprocket until
