Page 2529 of 4378

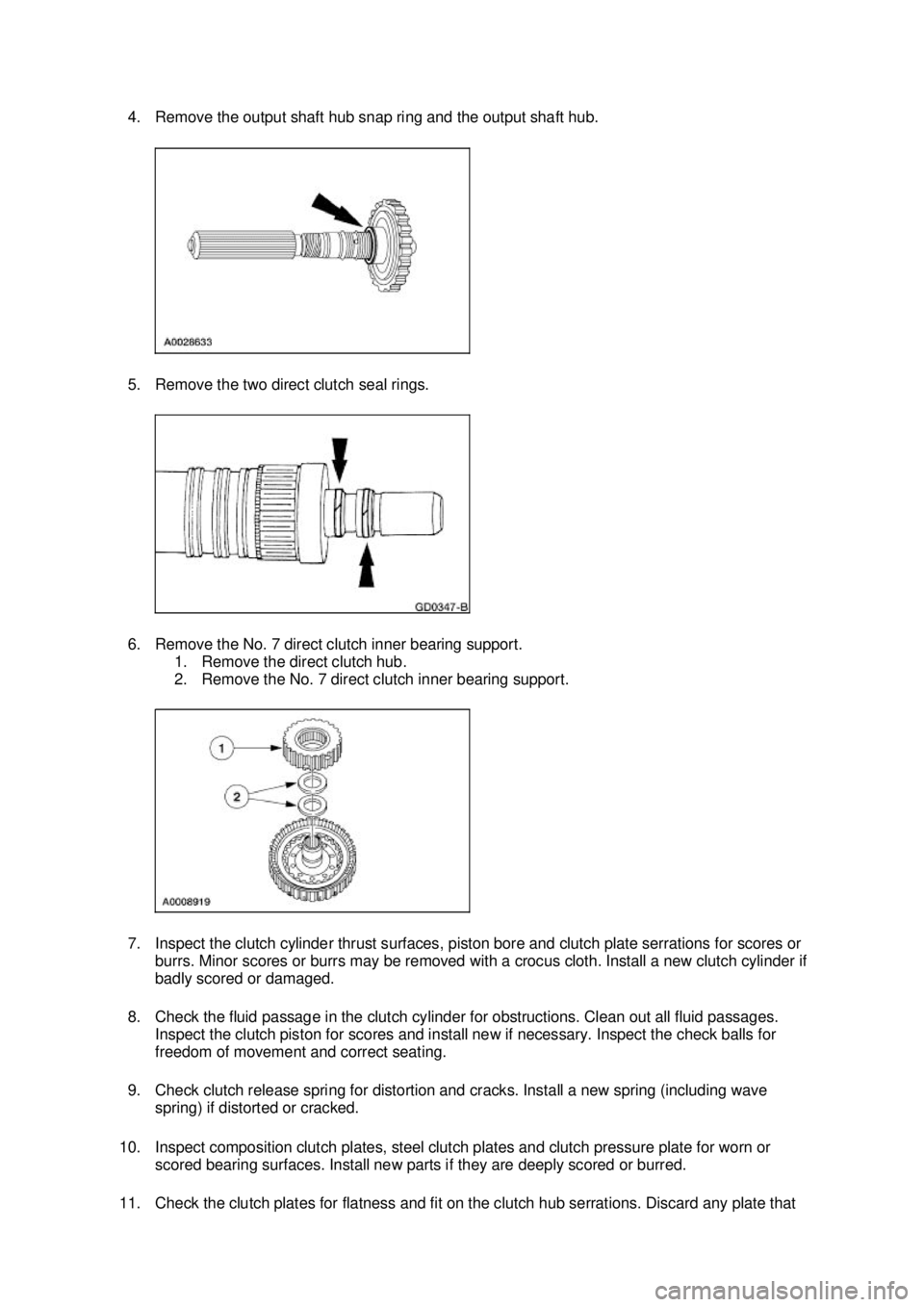

FORD MUSTANG 2003 Workshop Manual 4. Remove the output shaft hub snap ring and the output shaft hub. 5. Remove the two direct clutch seal rings. 6. Remove the No. 7 direct clutch inner bearing support. 1. Remove the direct clutch h

Page 2530 of 4378

FORD MUSTANG 2003 Workshop Manual does not slide freely on the serrations or that is not flat. 12. Check the clutch hub thrust surfaces for scores and clutch hub splines for wear. 13. Remove the direct clutch pack. 1. Remove the se

Page 2531 of 4378

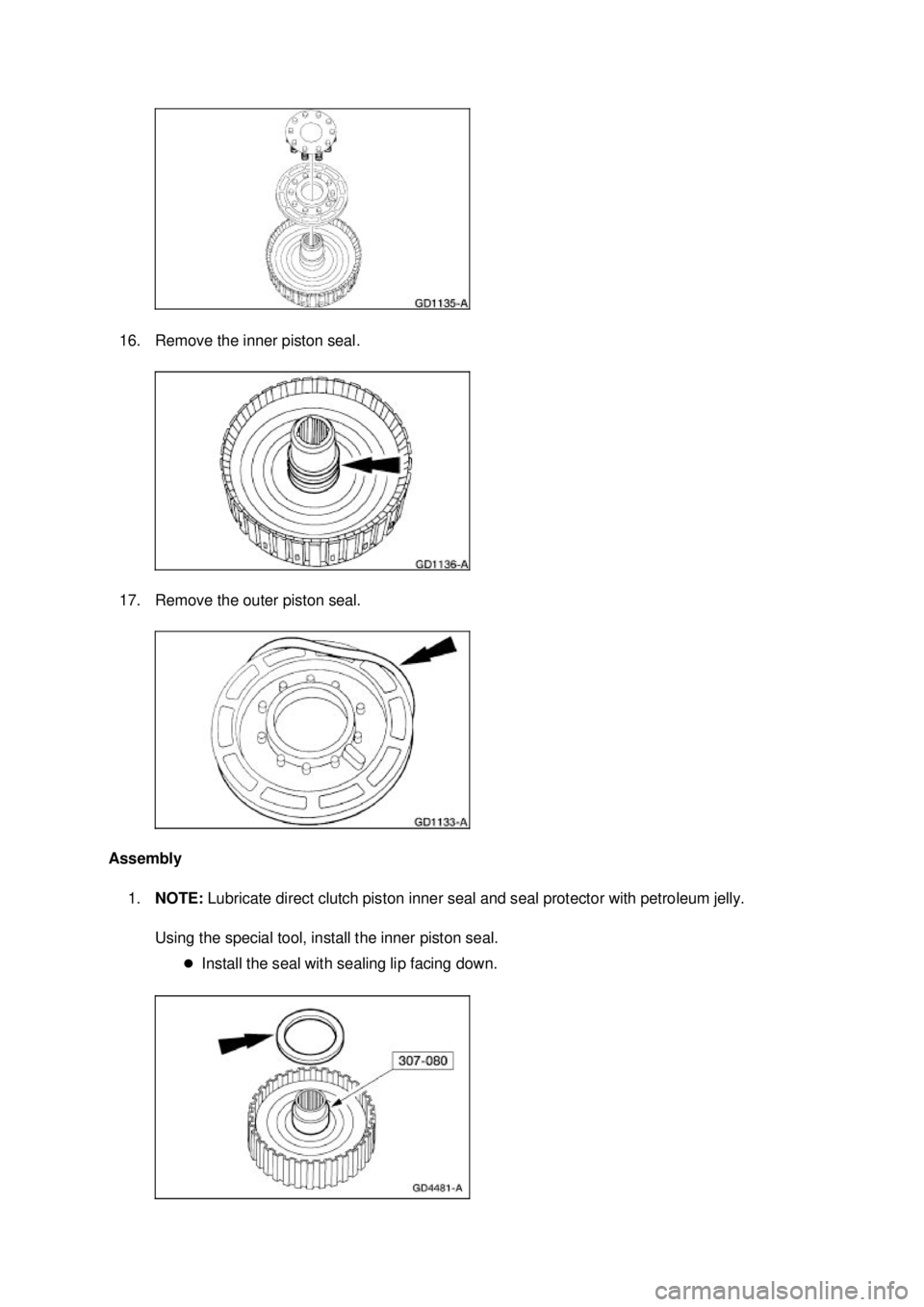

FORD MUSTANG 2003 Workshop Manual 16. Remove the inner piston seal. 17. Remove the outer piston seal. Assembly 1. NOTE: Lubricate direct clutch piston inner seal and seal protector with petroleum jelly. Using the special tool, in

Page 2532 of 4378

FORD MUSTANG 2003 Workshop Manual 2. Install the clutch piston outer seal so that when the piston is installed the sealing lip points toward the bottom of the cylinder. 3. NOTE: Coat the inner and outer direct clutch piston seals,

Page 2533 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Use a feeler gauge to check the clearance between the clutch pack selective retaining ring and the pressure plate. �zIf the clearance is not within specifications, install the correct size retain

Page 2534 of 4378

FORD MUSTANG 2003 Workshop Manual NOTE: Inspect the output shaft bearing surfaces for scores. Inspect the output shaft splines for wear. Inspect all bushings. 9. CAUTION: Make sure the seals are lapped correctly. Internal damage m

Page 2535 of 4378

FORD MUSTANG 2003 Workshop Manual 12. Install the No. 8 needle bearing on the direct clutch cylinder. 13. NOTE: Direct clutch cylinder may be installed after the output shaft ring gear is installed to the output shaft hub. Assembl

Page 2536 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 11 ba 112003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
