Page 3617 of 4378

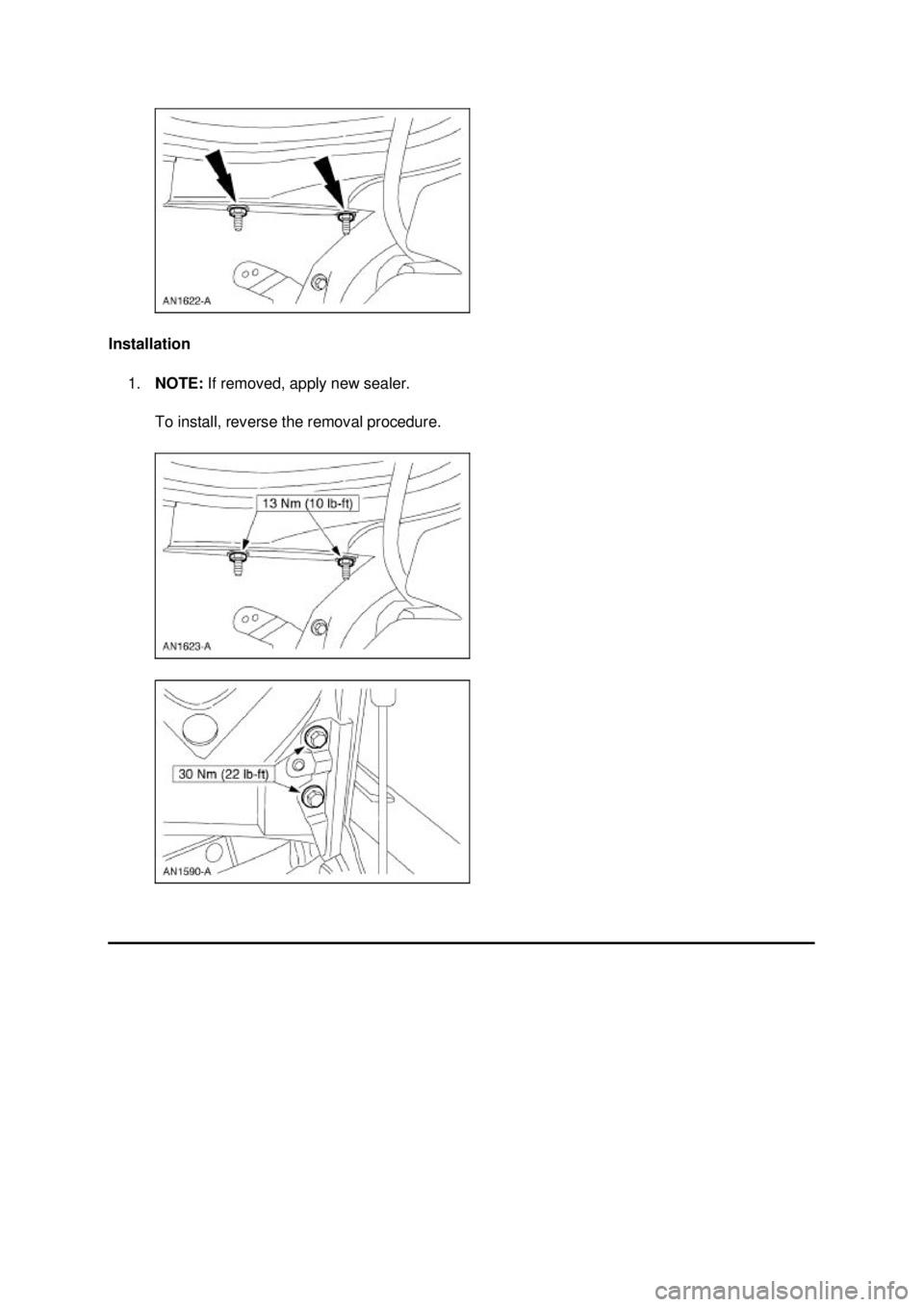

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: If removed, apply new sealer. To install, reverse the removal procedure. Klj . 2 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHE

Page 3618 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 3 ba 32003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3619 of 4378

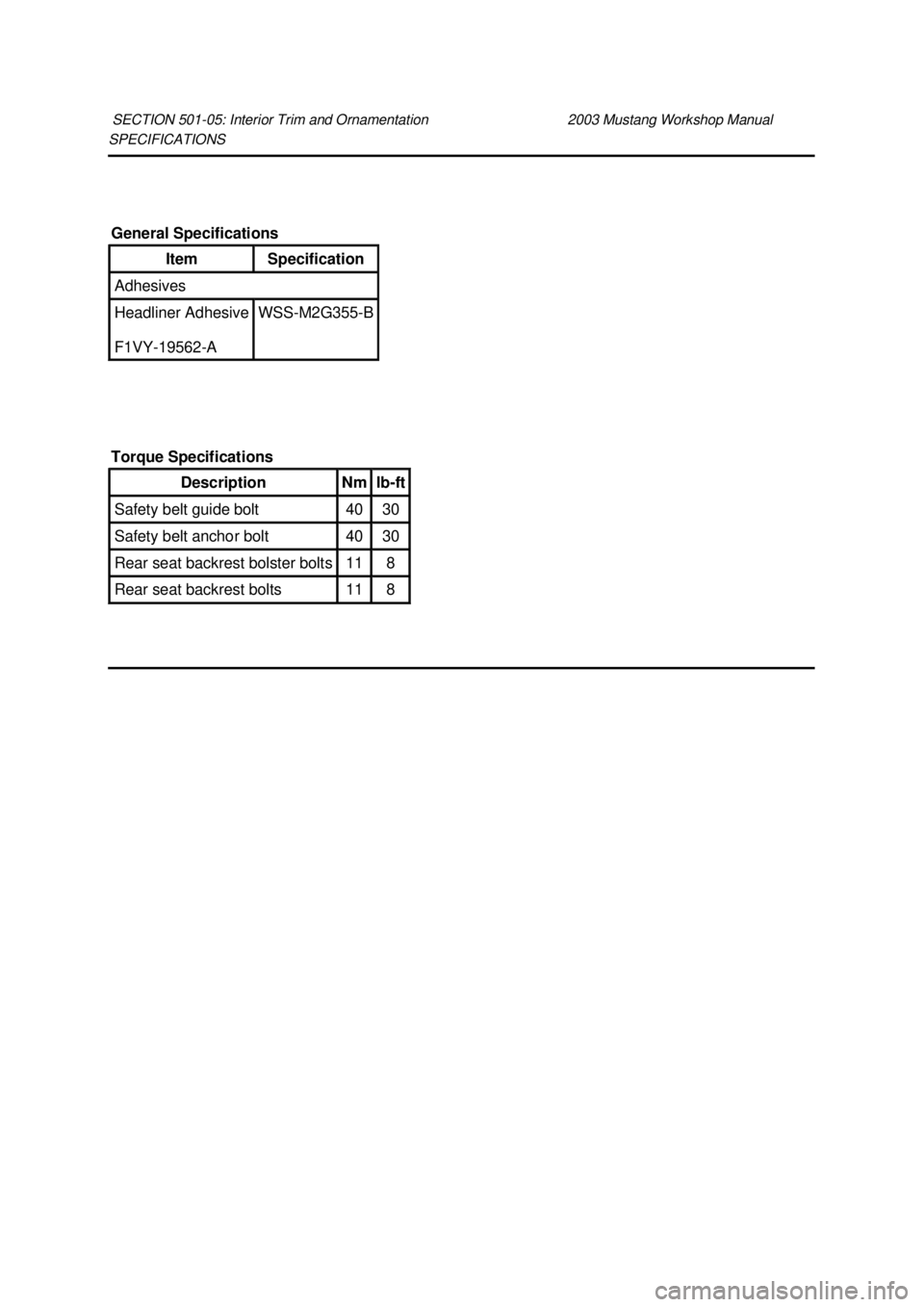

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 501- 05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual General Specifications Item Specification Adhesives Headliner Adhesive F1VY- 19562- A WSS- M2G355-

Page 3620 of 4378

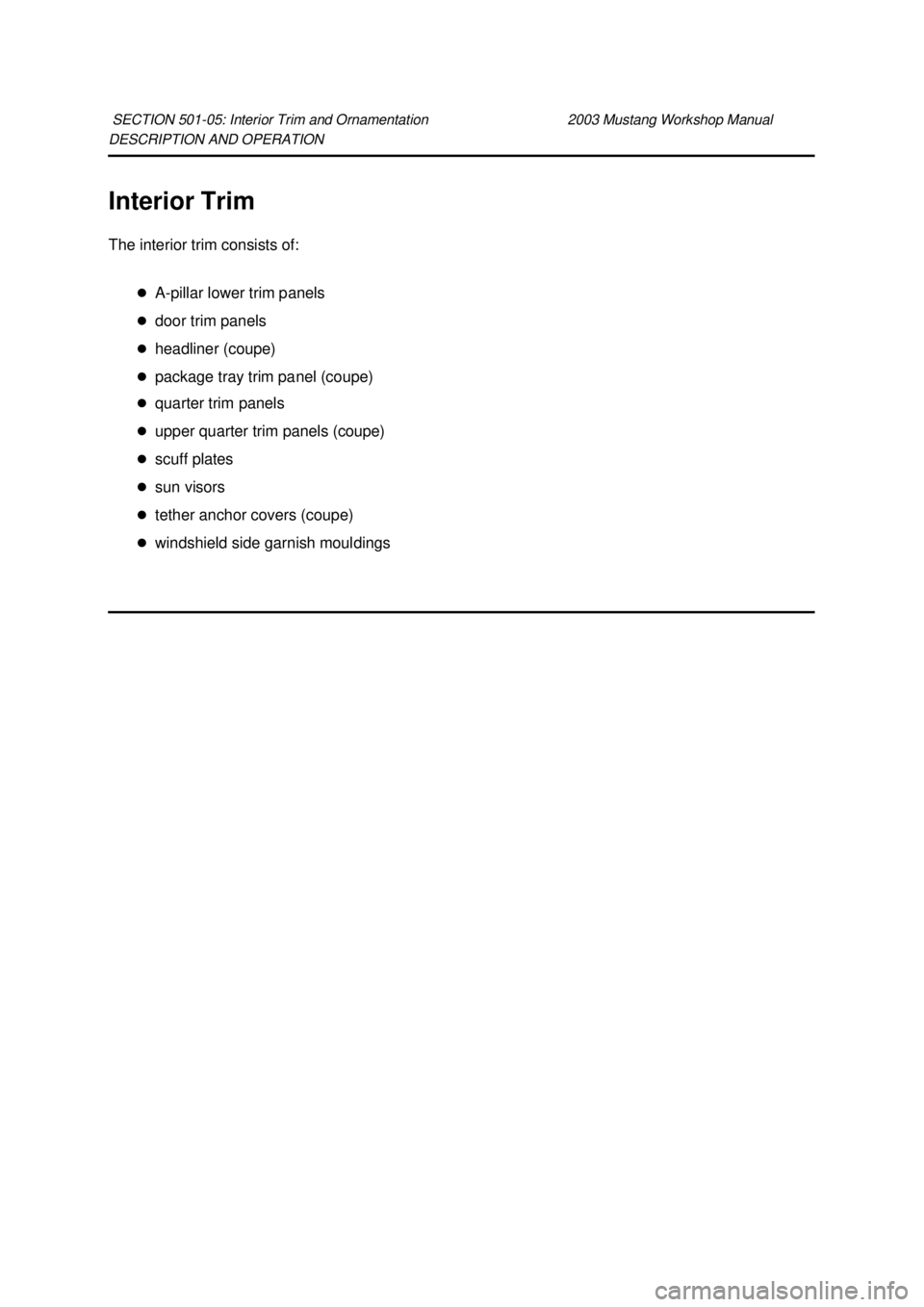

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Interior Trim The interior trim consists of: �zA-pillar lower trim panels �z door trim panels �z headliner (coupe) �z package tray trim panel (coupe) �z quarter trim p

Page 3621 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Trim Panel — Door Removal All vehicles 1. CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim

Page 3622 of 4378

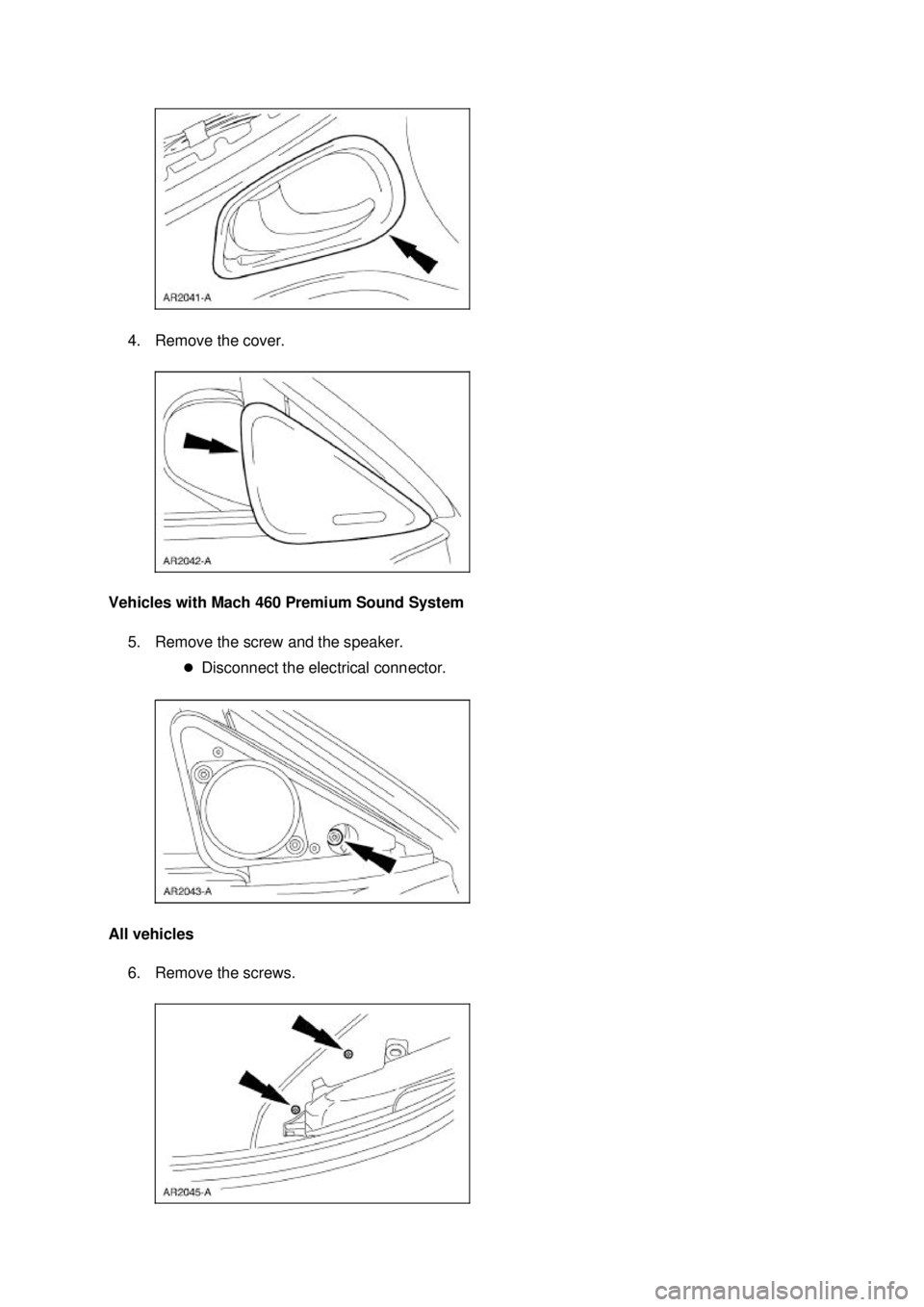

FORD MUSTANG 2003 Workshop Manual 4. Remove the cover. Vehicles with Mach 460 Premium Sound System 5. Remove the screw and the speaker. �zDisconnect the electrical connector. All vehicles 6. Remove the screws. Klj . 2 ba

Page 3623 of 4378

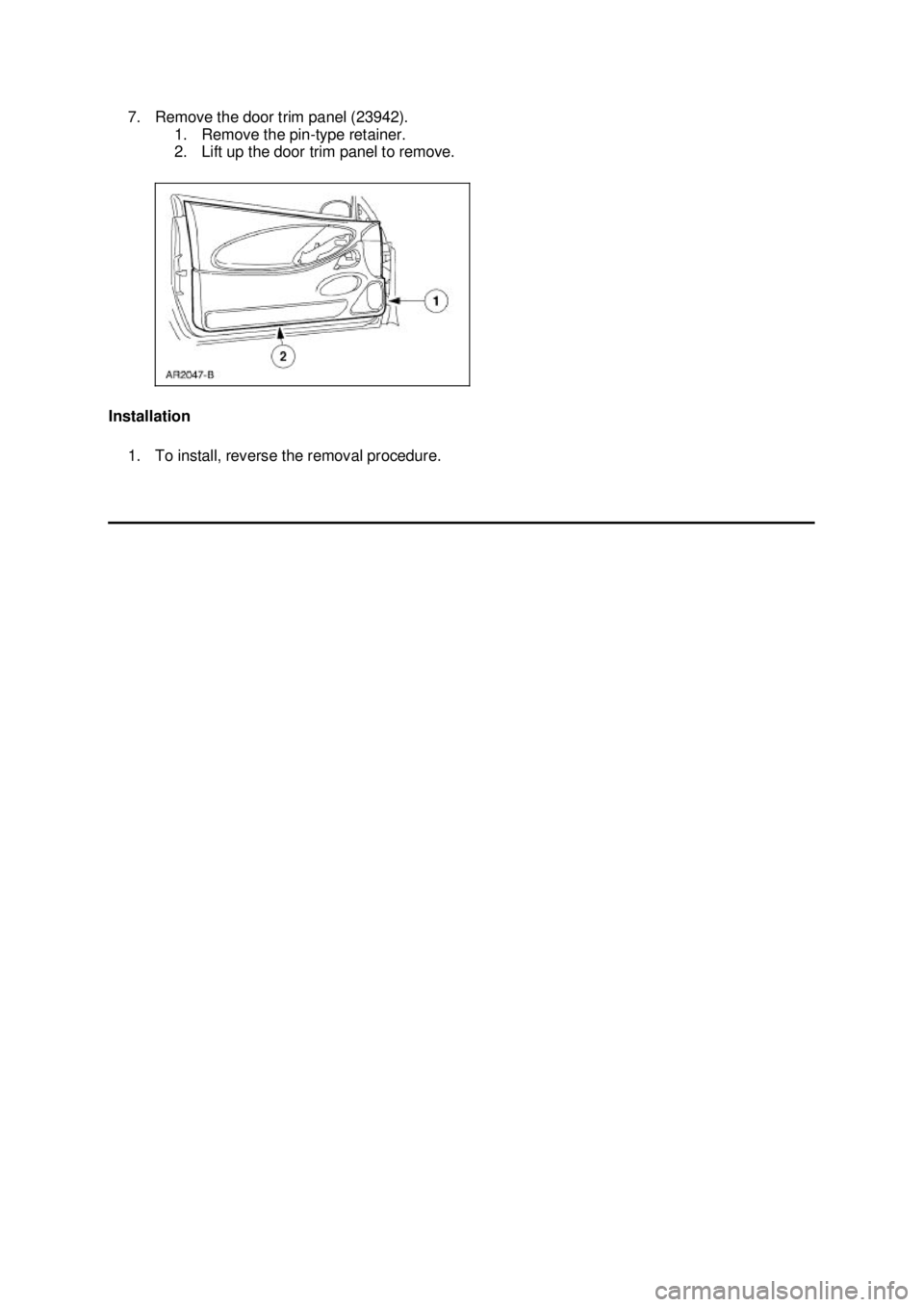

FORD MUSTANG 2003 Workshop Manual 7. Remove the door trim panel (23942). 1. Remove the pin- type retainer. 2. Lift up the door trim panel to remove. Installation 1. To install, reverse the removal procedure. Klj . 3 ba 32

Page 3624 of 4378

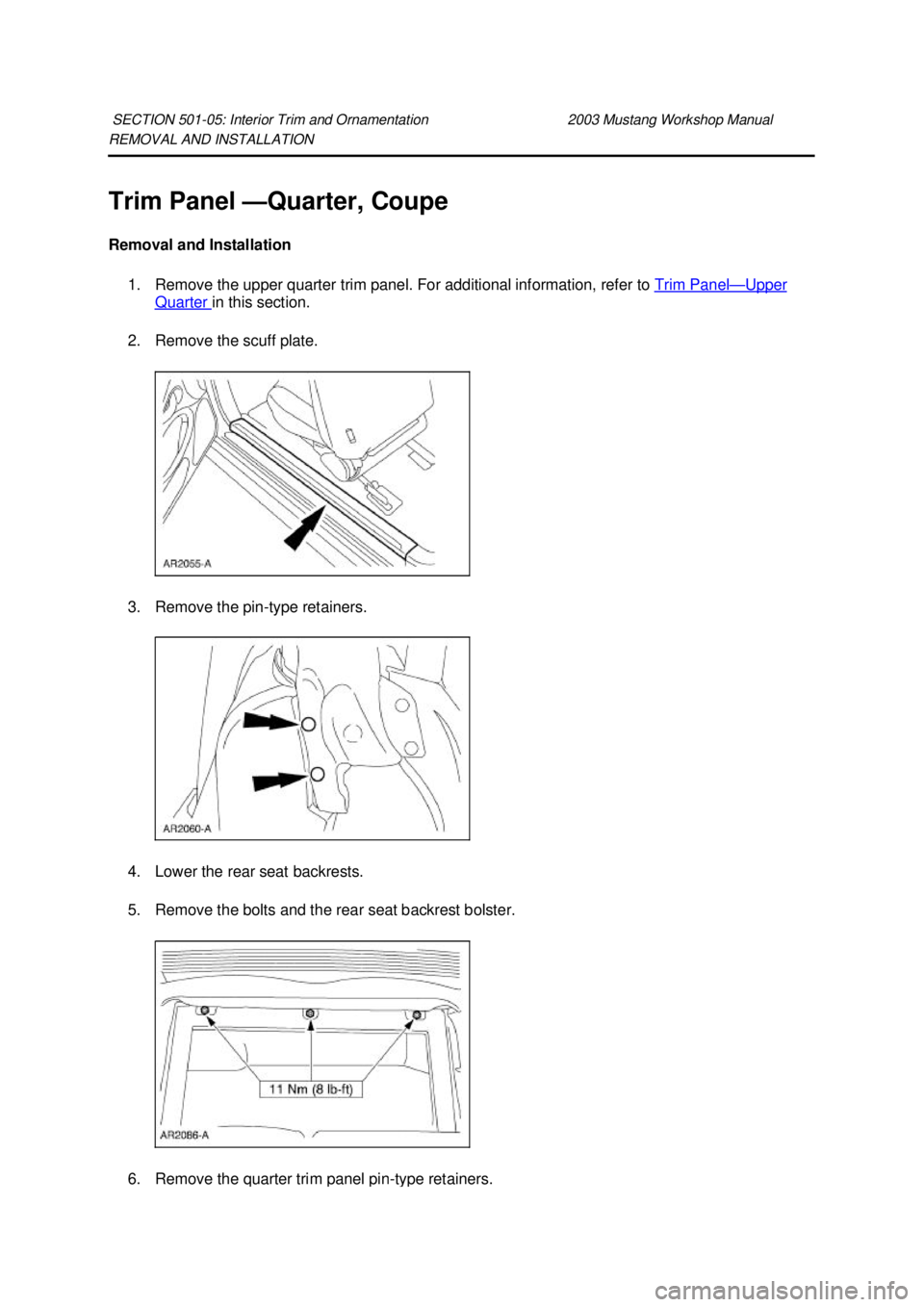

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Trim Panel — Quarter, Coupe Removal and Installation 1. Remove the upper quarter trim panel. For additional information, refer to Trim Panel — Upper Quarter in this
