REMOVAL AND INSTALLATION
Sensor Indicator —
Rear
Removal 1. Remove the rear axle shaft bearing, refer to Section 205 - 02A or
Section 205 - 02B .
2. Using the special tool, remove the anti- lock brake sensor indicator from the axle shaft.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Special Tool(s)
Pinion Bearing Cone Remover
205-
D002 (D79P- 4621A) Axle Bearing/Seal Plate
205-
090 (T75L-1165- B) Sensing Ring Replacer
206-
041 (T89P-20202- A) Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 699 of 4378
Installation
1. Using the special tools, align the rear anti- lock brake sensor indicator to the rear axle shaft.
2. Using the special tools, press the rear anti- lock brake sensor on the rear axle shaft to
specification. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 700 of 4378

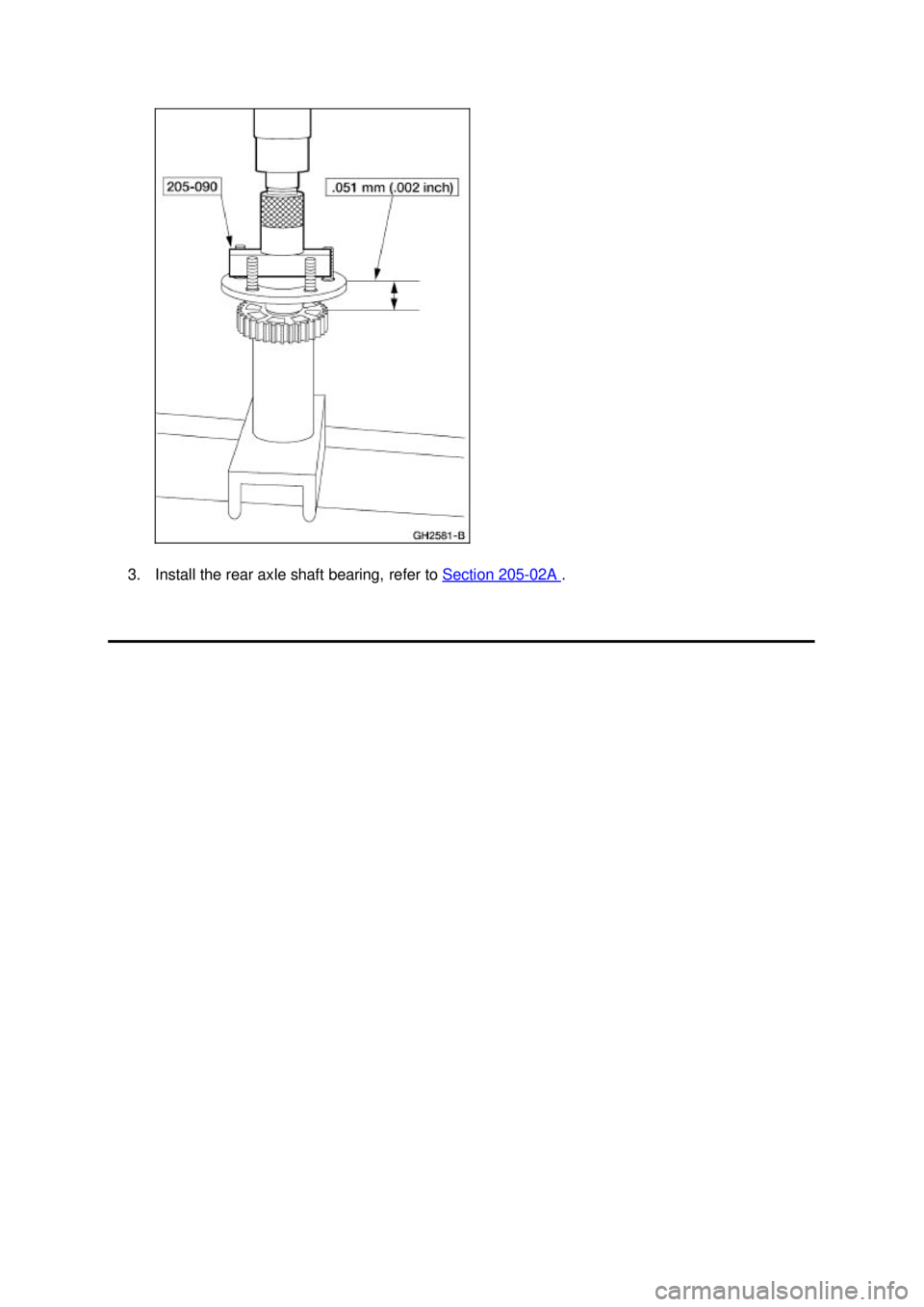

3. Install the rear axle shaft bearing, refer to
Section 205 - 02A . Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 701 of 4378
REMOVAL AND INSTALLATION
Hydraulic Control Unit
Removal
1. Disconnect the battery ground cable(14301).
2. Disconnect the anti- lock-brake control module electrical connector.
3. NOTE: The 4 wheel anti- lock brake system (4WABS) with traction control is shown , the
4WABS without traction control system is similar with one less hydraulic line.
NOTE: Plug brake lines to prevent any brake fluid loss.
Disconnect the brake lines from the hydraulic control unit (HCU).
4. Remove the HCU bracket nuts to HCU.
5. Remove the HCU.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 702 of 4378

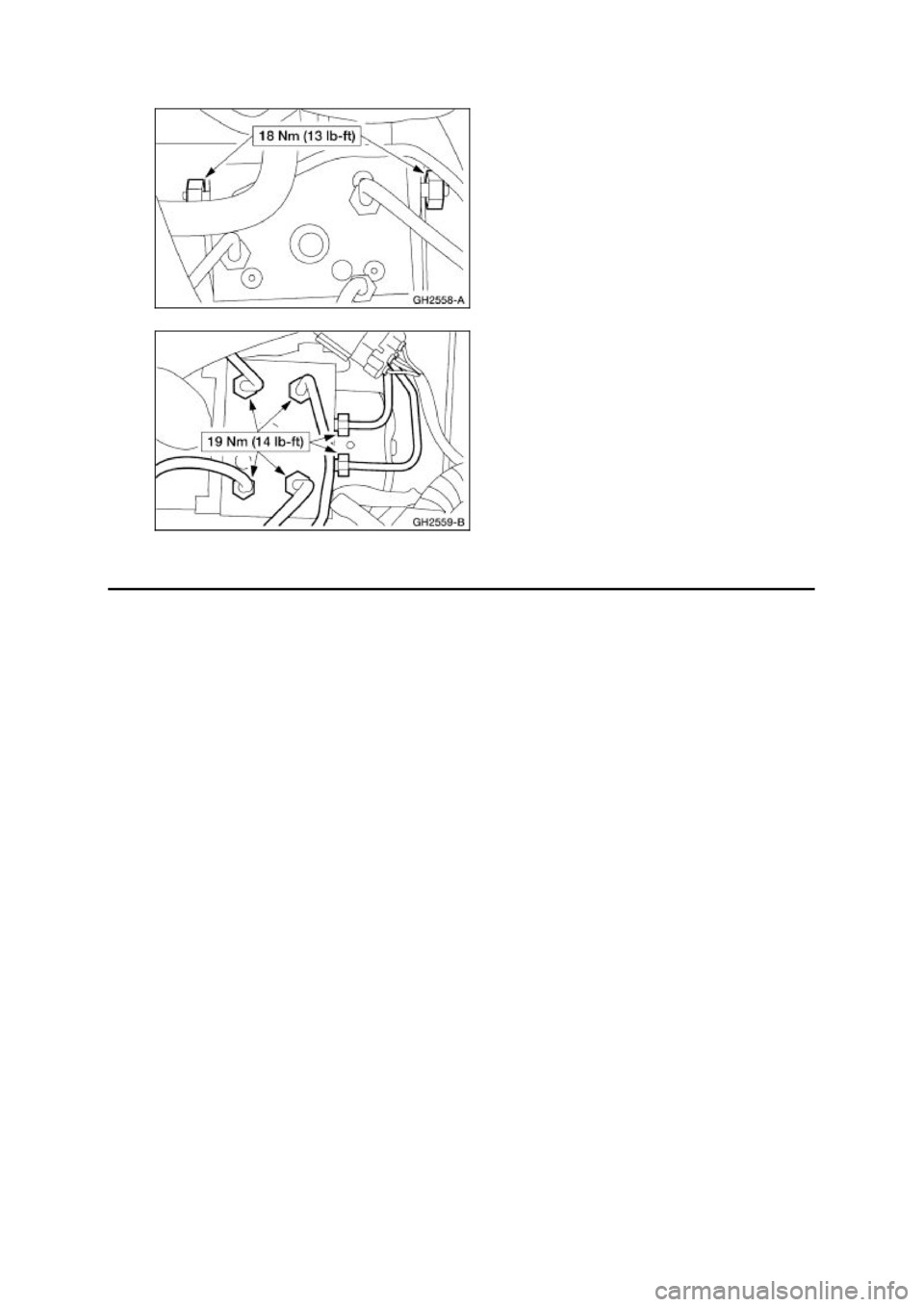

6. Remove the pump motor electrical connector.
7. Remove the anti-
lock-brake control module screws.
8. Remove the anti- lock-brake control module from the HCU.
Installation 1. NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to Section 206 - 00 .
To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 703 of 4378
Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 704 of 4378
REMOVAL AND INSTALLATION
Module
Removal
1. Remove the hydraulic control unit (HCU). Refer to Hydraulic Control Unit .
2. Remove the pump motor electrical connector.
3. Remove the anti- lock-brake control module screws.
4. Remove the anti- lock-brake control module from the HCU.
Installation
1. NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to Section 206 - 00 .
To install, reverse the removal procedure.
