Page 2489 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Remove the torque converter clutch (TCC) solenoid and the shift solenoid. 1. Remove the bolt. 2. Remove the shift solenoid. 3. Remove the TCC solenoid. 2. Remove the two reinforcement plates.

Page 2490 of 4378

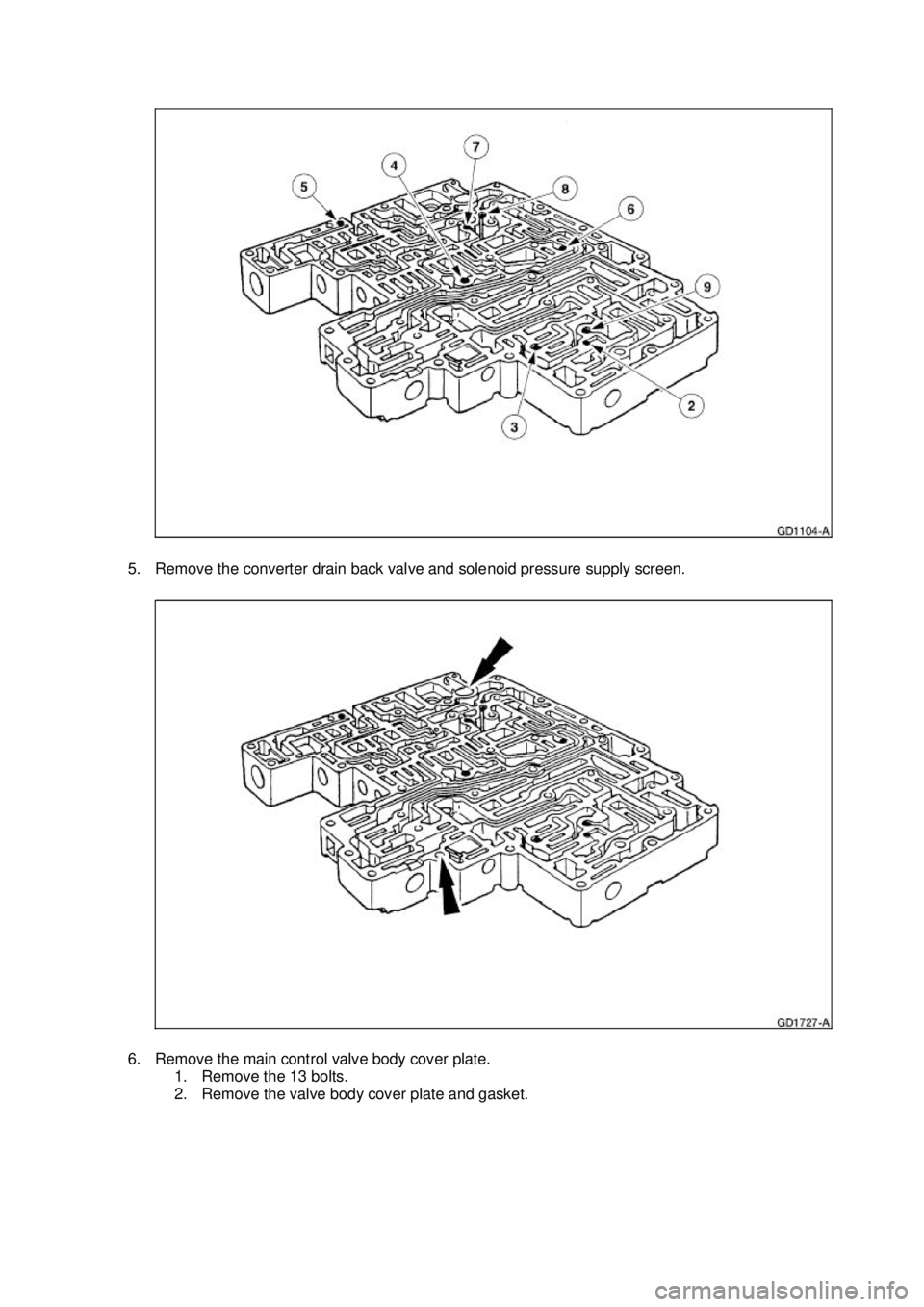

FORD MUSTANG 2003 Workshop Manual 5. Remove the converter drain back valve and solenoid pressure supply screen. 6. Remove the main control valve body cover plate. 1. Remove the 13 bolts. 2. Remove the valve body cover plate and gas

Page 2491 of 4378

FORD MUSTANG 2003 Workshop Manual Assembly 1. CAUTION: Before beginning assembly, carry out and inspect the following: When building up subassemblies and assembling the transmission, ALWAYS use new gaskets and seals. All fastener

Page 2492 of 4378

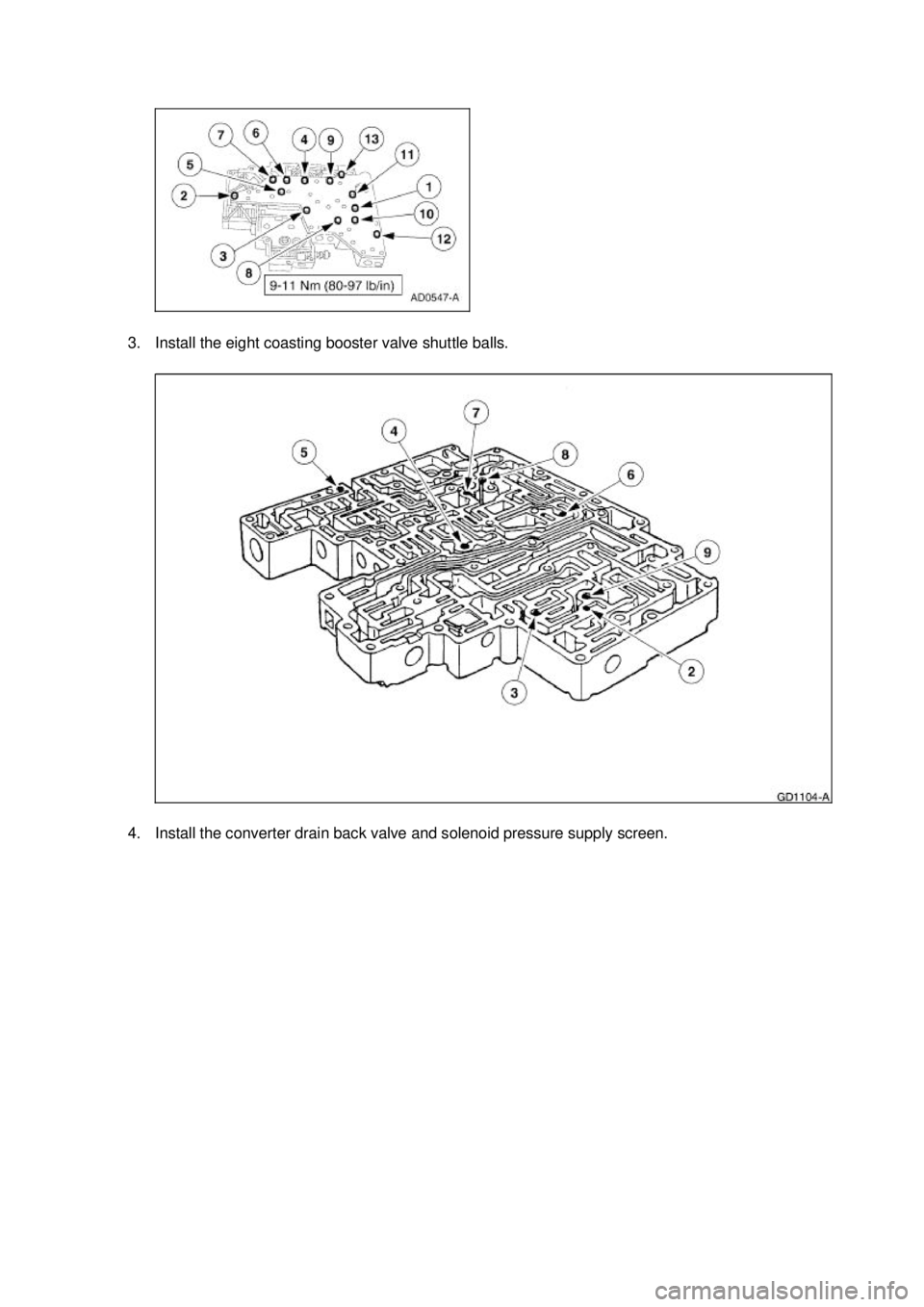

FORD MUSTANG 2003 Workshop Manual 3. Install the eight coasting booster valve shuttle balls. 4. Install the converter drain back valve and solenoid pressure supply screen. Klj . 6 ba 82003 Mustang Workshop Manual 18. 11. 201

Page 2493 of 4378

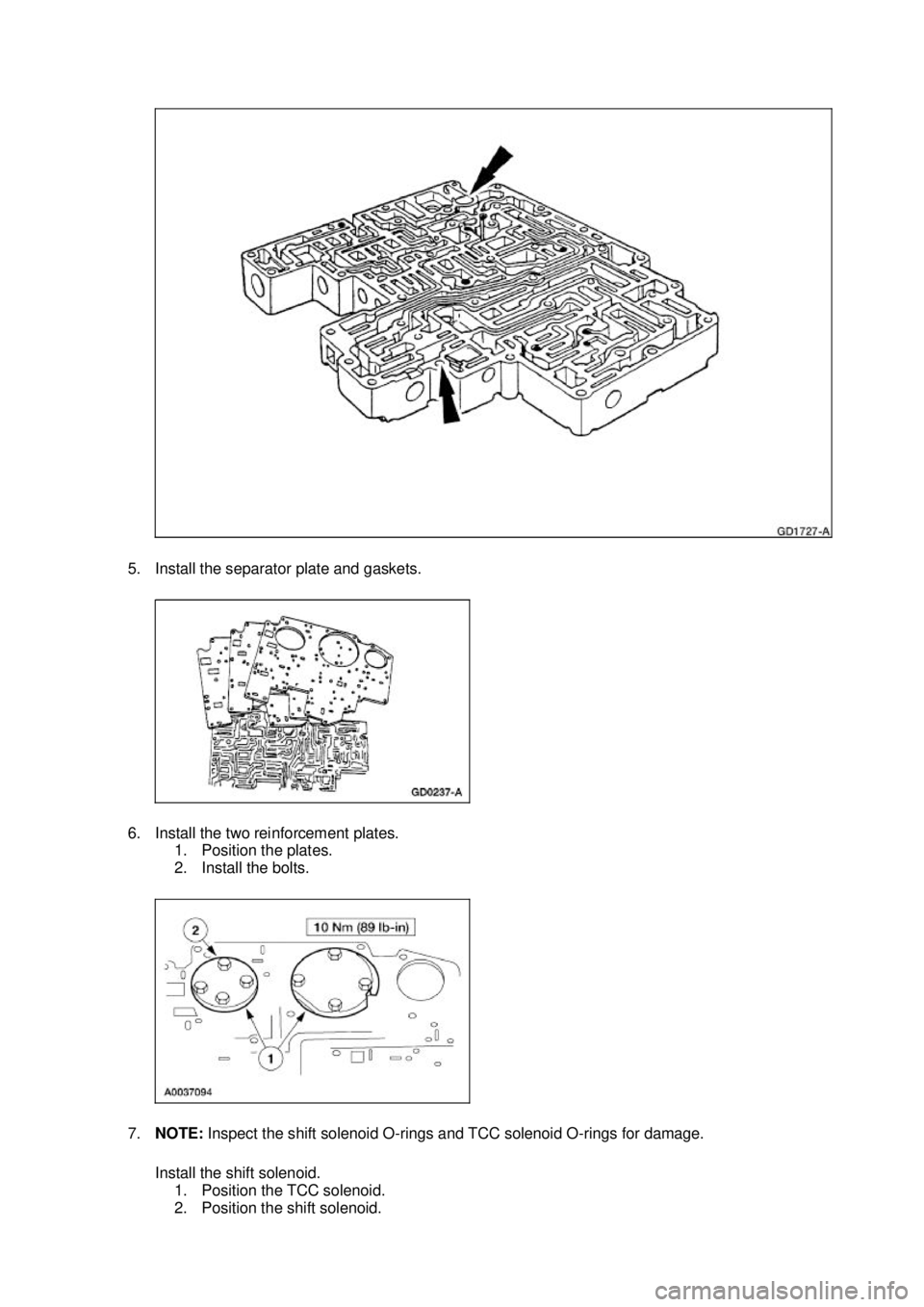

FORD MUSTANG 2003 Workshop Manual 5. Install the separator plate and gaskets. 6. Install the two reinforcement plates. 1. Position the plates. 2. Install the bolts. 7. NOTE: Inspect the shift solenoid O- rings and TCC solenoid O-

Page 2494 of 4378

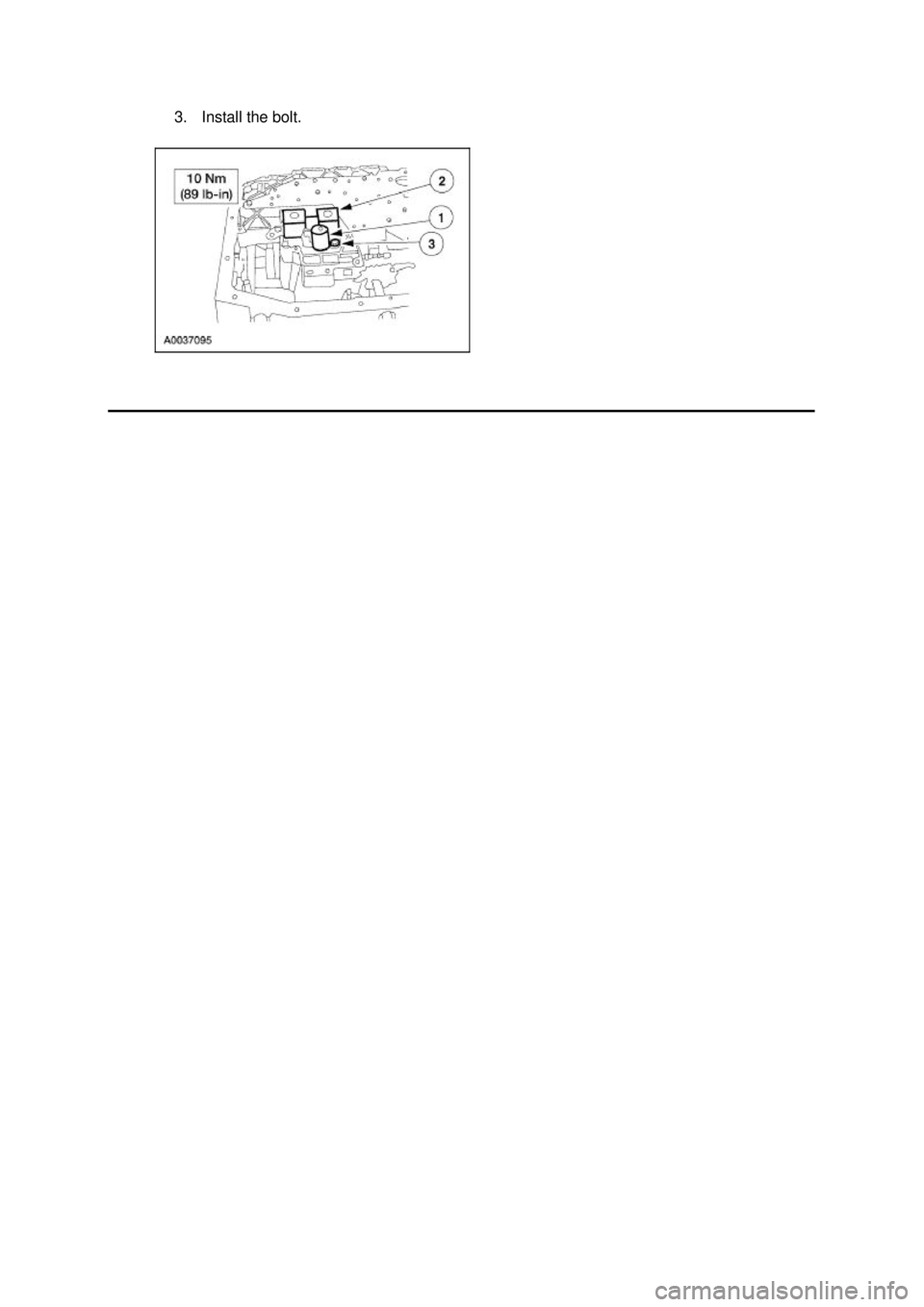

FORD MUSTANG 2003 Workshop Manual 3. Install the bolt. Klj . 8 ba 82003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2495 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Pump and Intermediate Clutch Piston Pump and Intermediate Clutch Piston — Disassembled View SECTION 307- 01: Automatic Transaxle/Transmission 2003 Musta

Page 2496 of 4378

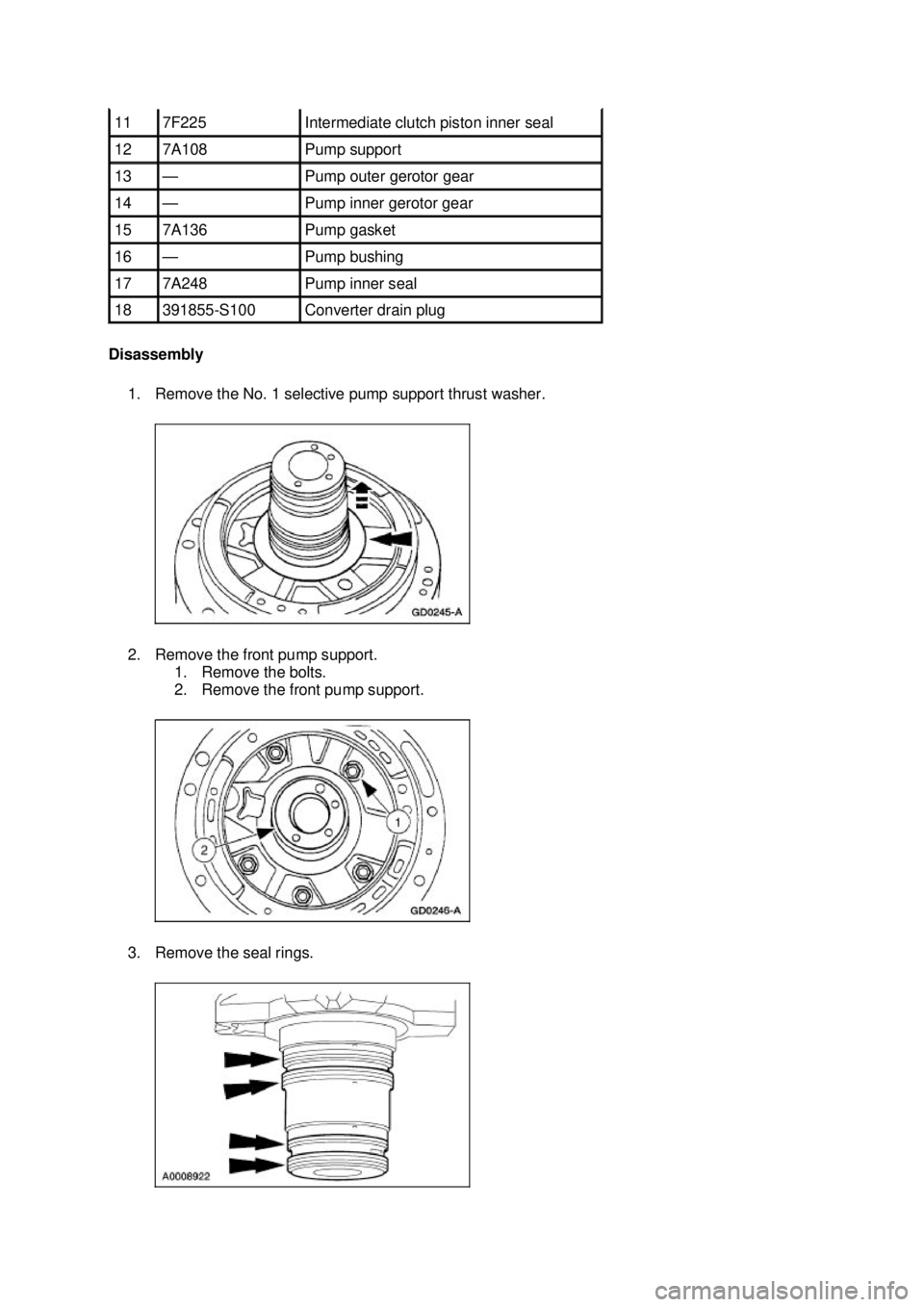

FORD MUSTANG 2003 Workshop Manual Disassembly 1. Remove the No. 1 selective pump support thrust washer. 2. Remove the front pump support. 1. Remove the bolts. 2. Remove the front pump support. 3. Remove the seal rings. 11 7F225
