Page 2889 of 4378

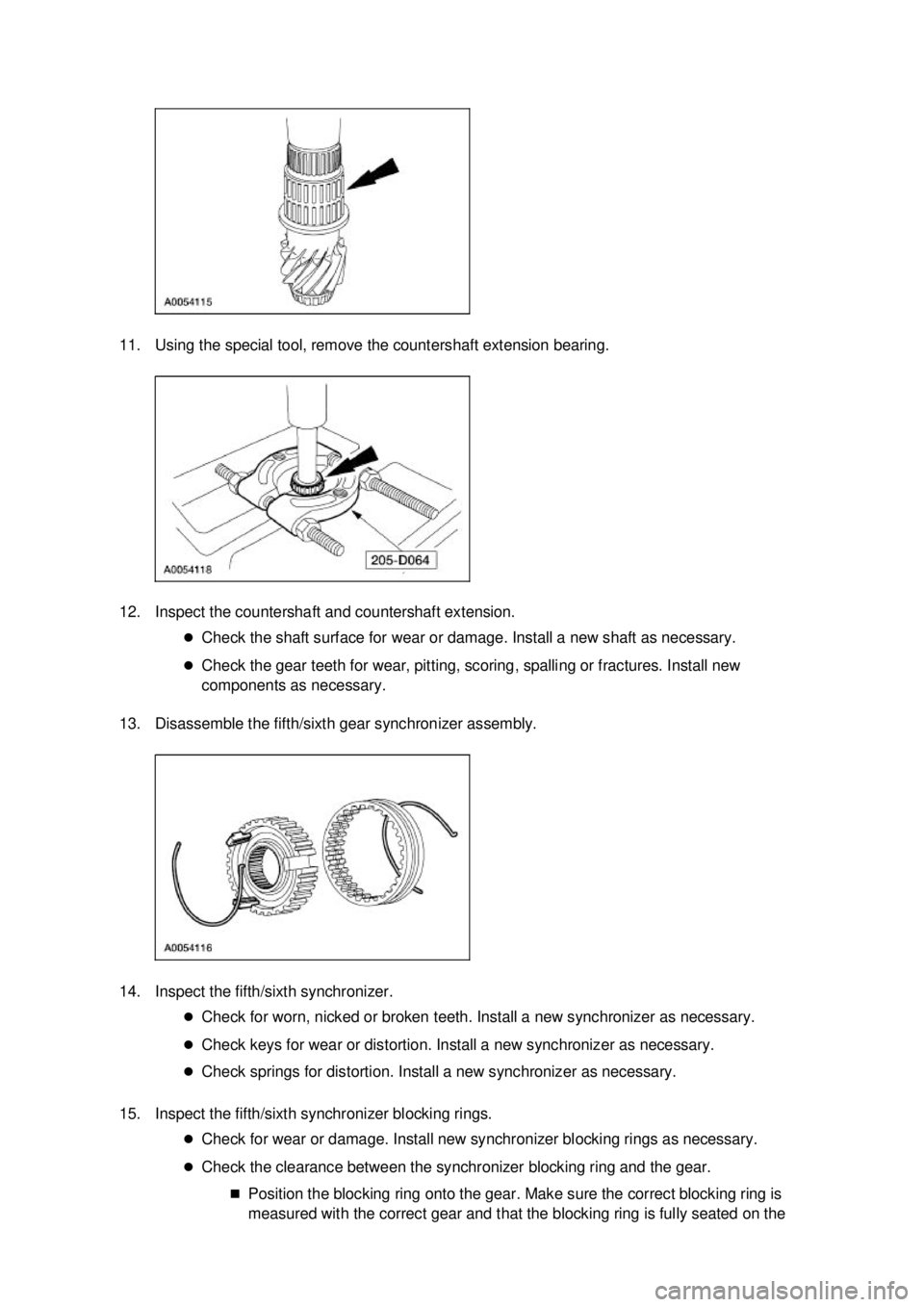

FORD MUSTANG 2003 Workshop Manual 11. Using the special tool, remove the countershaft extension bearing. 12. Inspect the countershaft and countershaft extension. �zCheck the shaft surface for wear or damage. Install a new shaft as n

Page 2890 of 4378

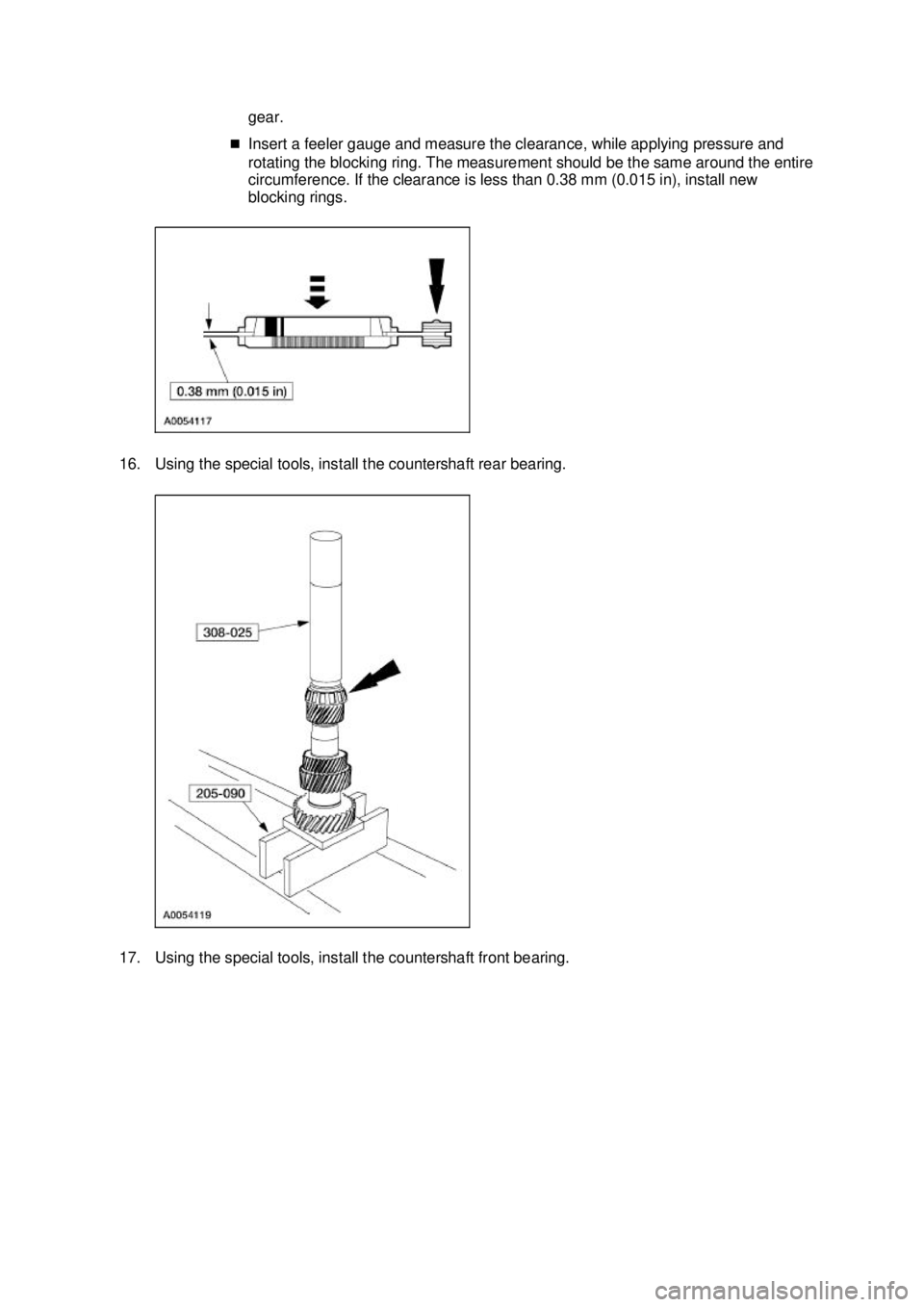

FORD MUSTANG 2003 Workshop Manual gear. �„ Insert a feeler gauge and measure the clearance, while applying pressure and rotating the blocking ring. The measurement should be the same around the entire circumference. If the cleara

Page 2891 of 4378

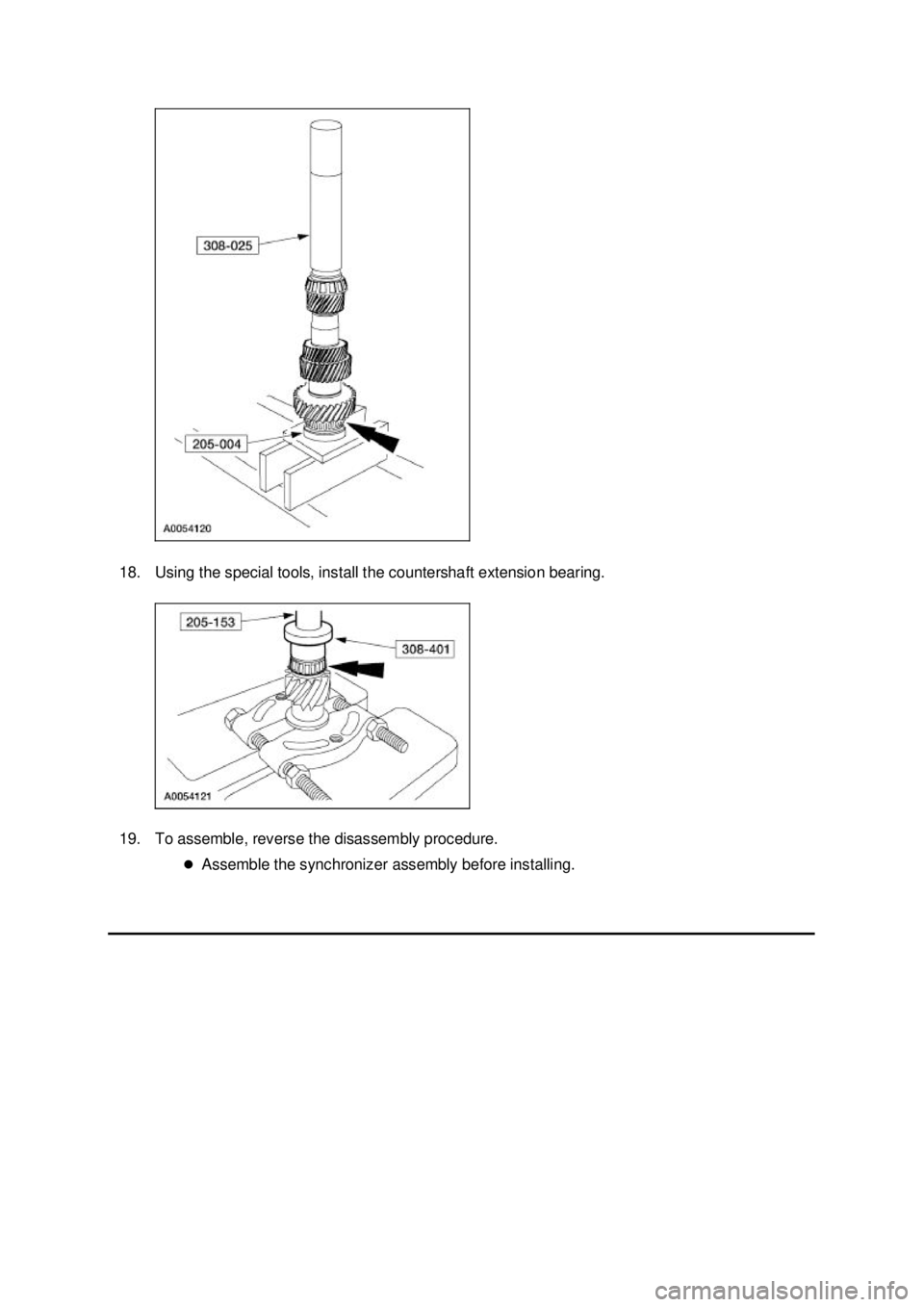

FORD MUSTANG 2003 Workshop Manual 18. Using the special tools, install the countershaft extension bearing. 19. To assemble, reverse the disassembly procedure. �zAssemble the synchronizer assembly before installing. Klj . 7 ba

Page 2892 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 8 ba 82003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2893 of 4378

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Synchronizers Disassembly and Assembly NOTE: This procedure applies to all synchronizer assemblies. 1. NOTE: Synchronizer components are not interchange

Page 2894 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Page 2895 of 4378

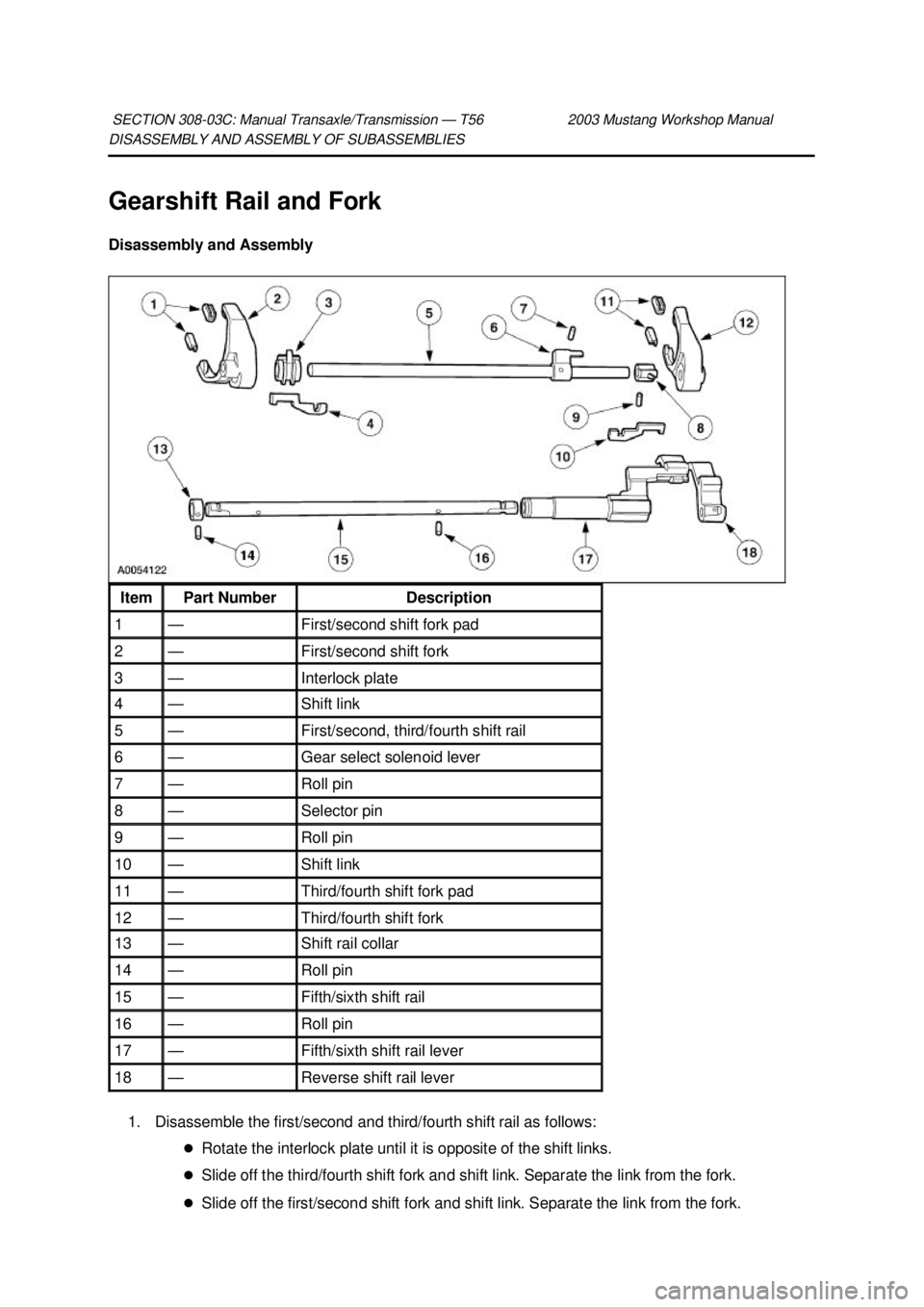

FORD MUSTANG 2003 Workshop Manual DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Gearshift Rail and Fork Disassembly and Assembly 1. Disassemble the first/second and third/fourth shift rail as follows: �zRotate the interlock plate unti

Page 2896 of 4378

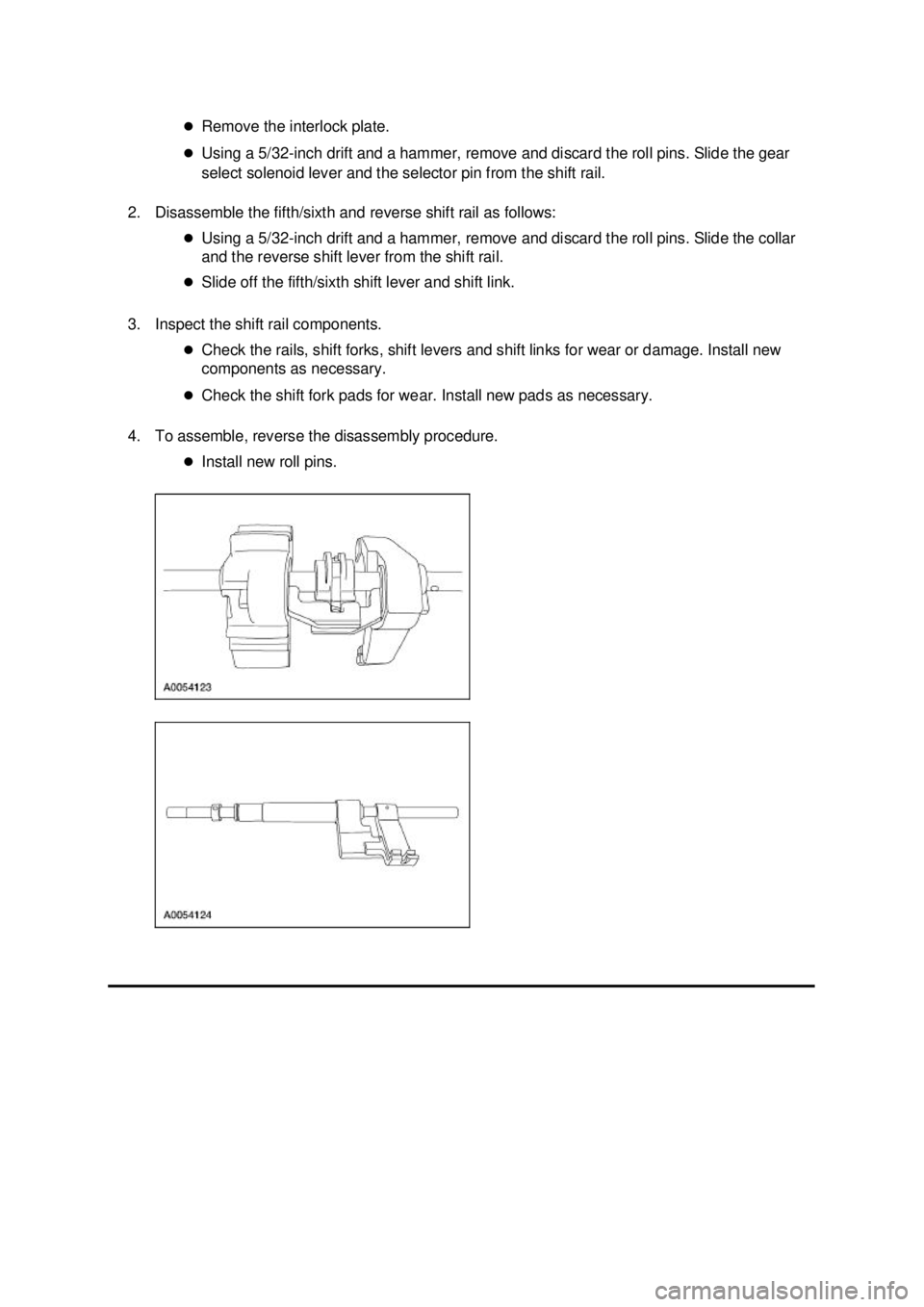

FORD MUSTANG 2003 Workshop Manual �z Remove the interlock plate. �z Using a 5/32- inch drift and a hammer, remove and discard the roll pins. Slide the gear select solenoid lever and the selector pin from the shift rail. 2. Disassem
