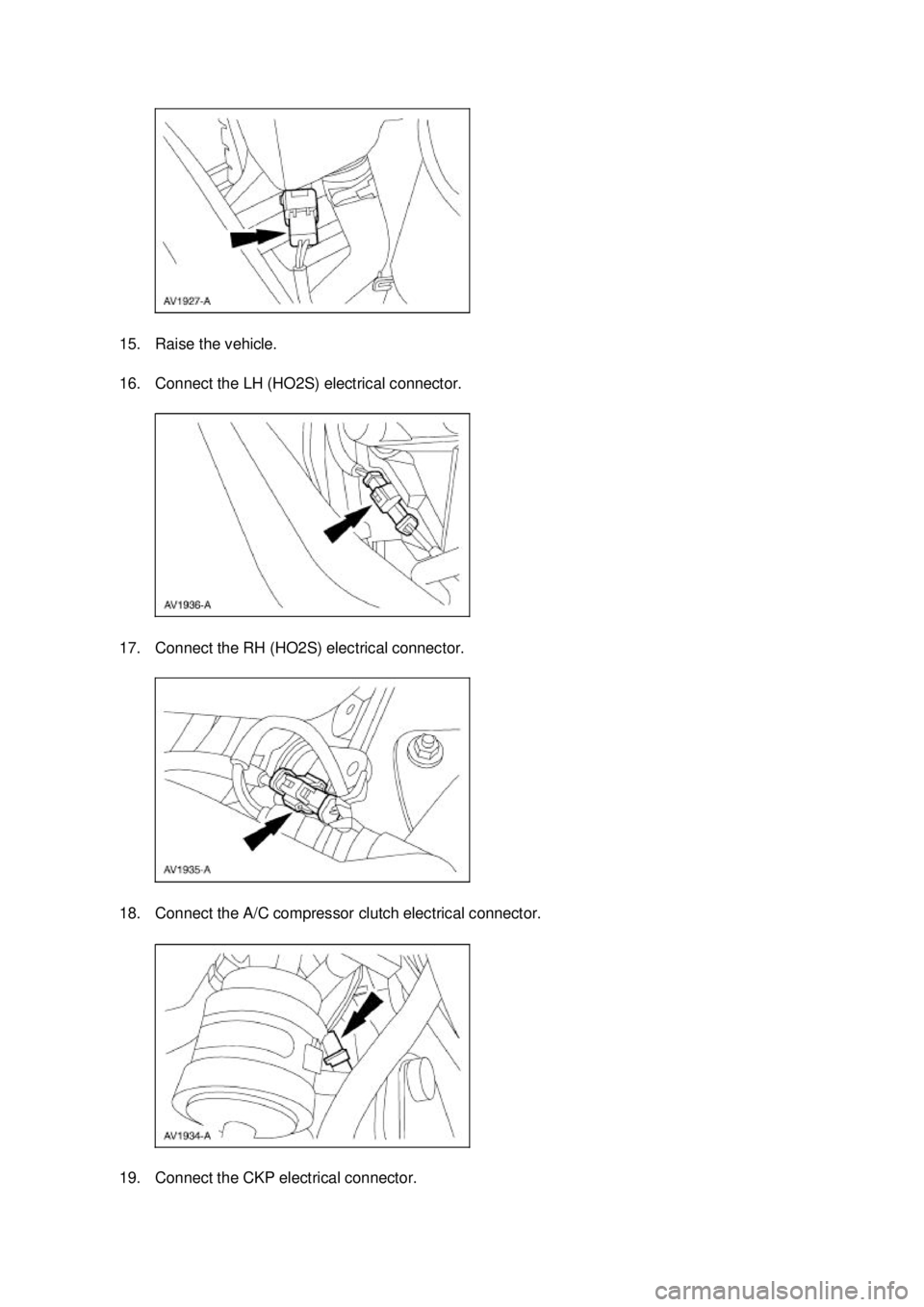

FORD MUSTANG 2003 Workshop Manual 15. Raise the vehicle. 16. Connect the LH (HO2S) electrical connector. 17. Connect the RH (HO2S) electrical connector. 18. Connect the A/C compressor clutch electrical connector. 19. Connect the C

Page 1954 of 4378

FORD MUSTANG 2003 Workshop Manual 20. Lower the vehicle. 21. Connect the 16 pin connector. 22. Connect the following connectors: �zECT sensor �z RH radio ignition interference capacitor 23. Connect the following connectors: �zPC

Page 1955 of 4378

FORD MUSTANG 2003 Workshop Manual 24. Connect the following connectors: �zIAC valve �z TP sensor 25. Install the wiring harness retainers to the dash panel. 26. Connect the 42 pin connector. 27. Connect the air cleaner outlet tub

Page 1956 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 14 ba 142003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1957 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Fuel Injection Supply Manifold Removal WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highl

Page 1958 of 4378

FORD MUSTANG 2003 Workshop Manual 8. Disconnect the four RH fuel injector electrical connectors. 9. Disconnect the IAC electrical connector and the main chassis vacuum hose. 10. Remove the hose. 11. Squeeze the two locking tabs, an

Page 1959 of 4378

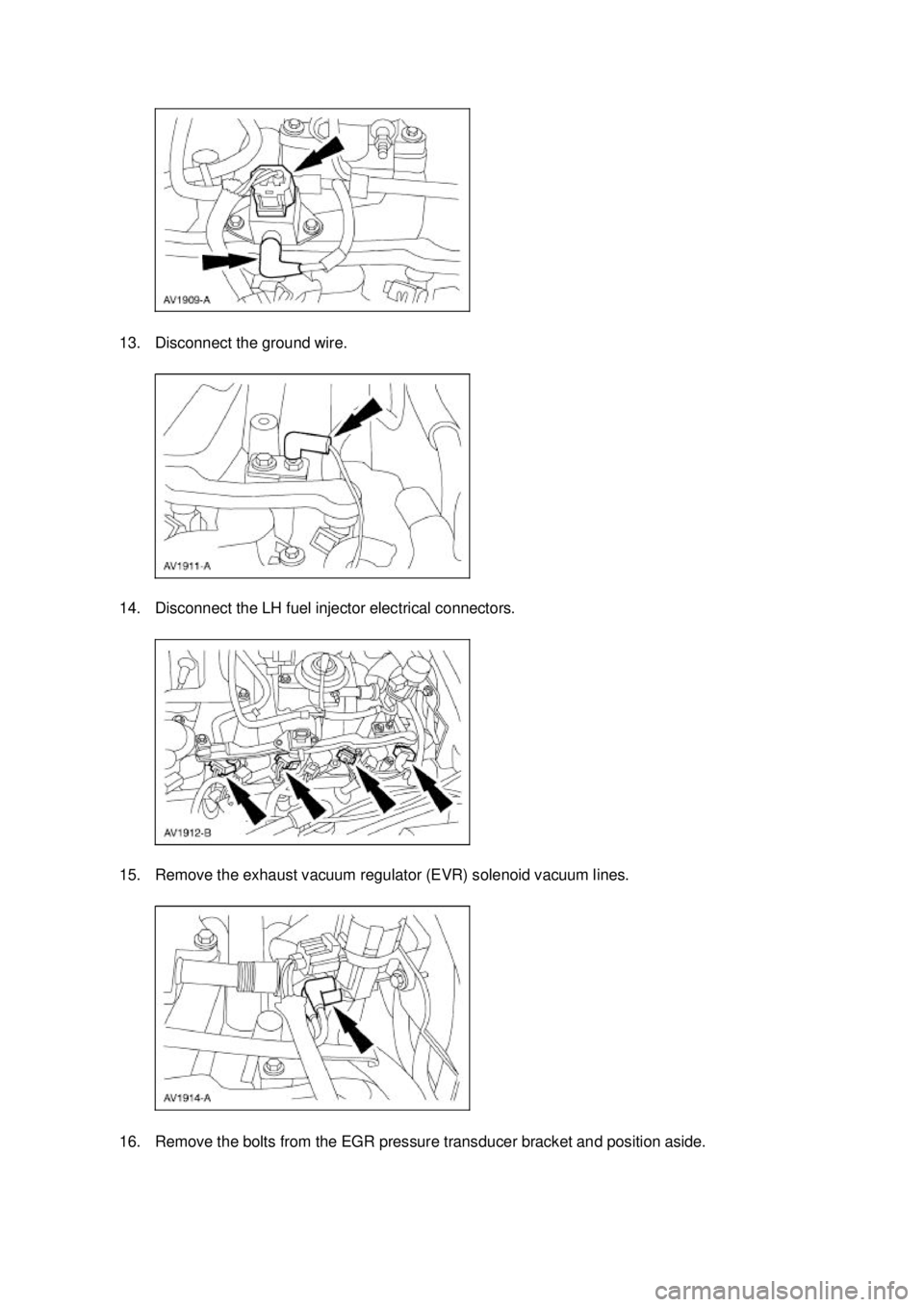

FORD MUSTANG 2003 Workshop Manual 13. Disconnect the ground wire. 14. Disconnect the LH fuel injector electrical connectors. 15. Remove the exhaust vacuum regulator (EVR) solenoid vacuum lines. 16. Remove the bolts from the EGR pre

Page 1960 of 4378

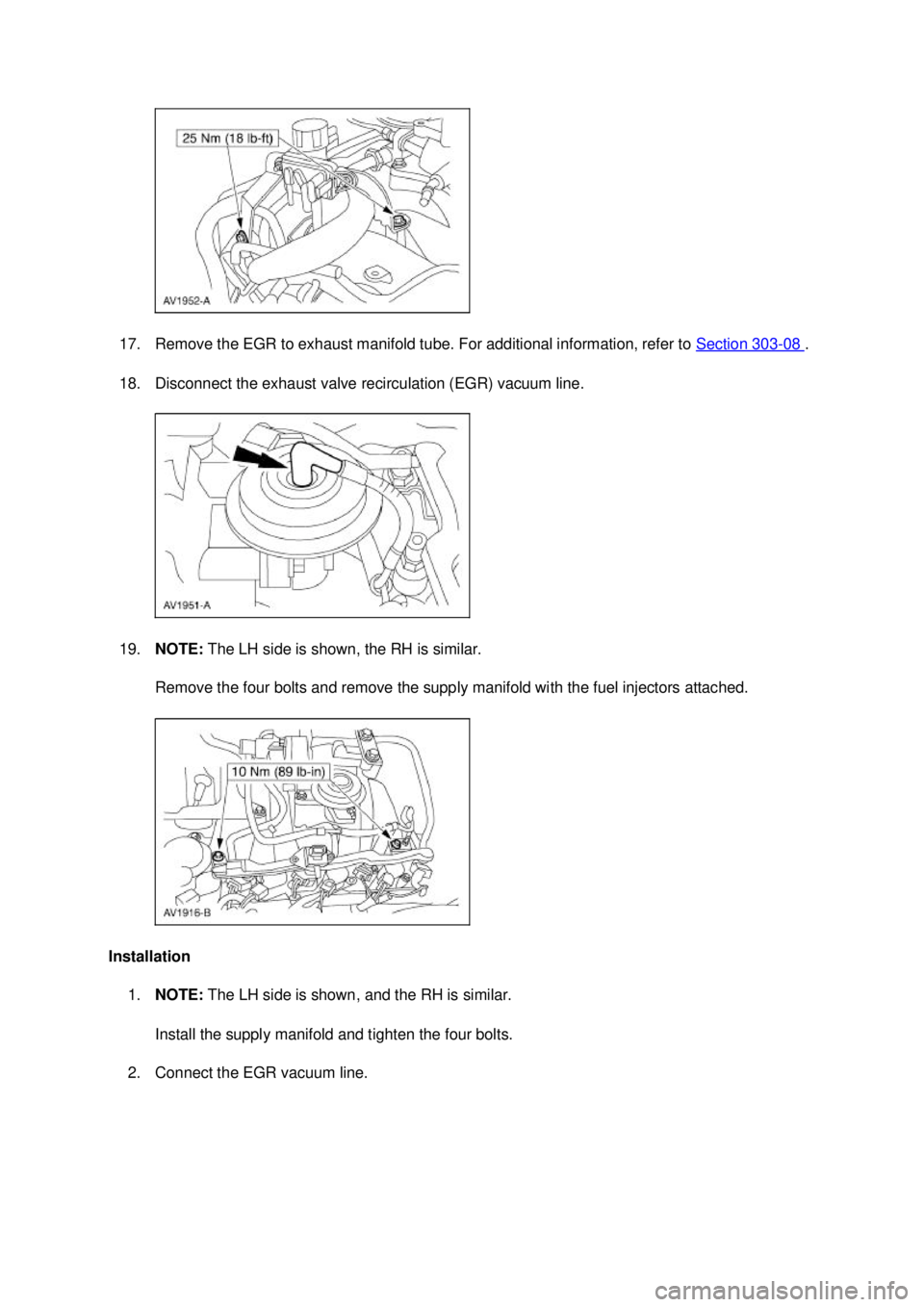

FORD MUSTANG 2003 Workshop Manual 17. Remove the EGR to exhaust manifold tube. For additional information, refer to Section 303 - 08 . 18. Disconnect the exhaust valve recirculation (EGR) vacuum line. 19. NOTE: The LH side is sho
