Page 1521 of 4378

FORD MUSTANG 2003 Workshop Manual 40. Remove the supercharger belt idler support bracket assembly. 41. Remove the accessory drive belt. 42. Remove the bolts and belt idler bracket. 43. Remove the bolts and the water pump pulley. 4

Page 1522 of 4378

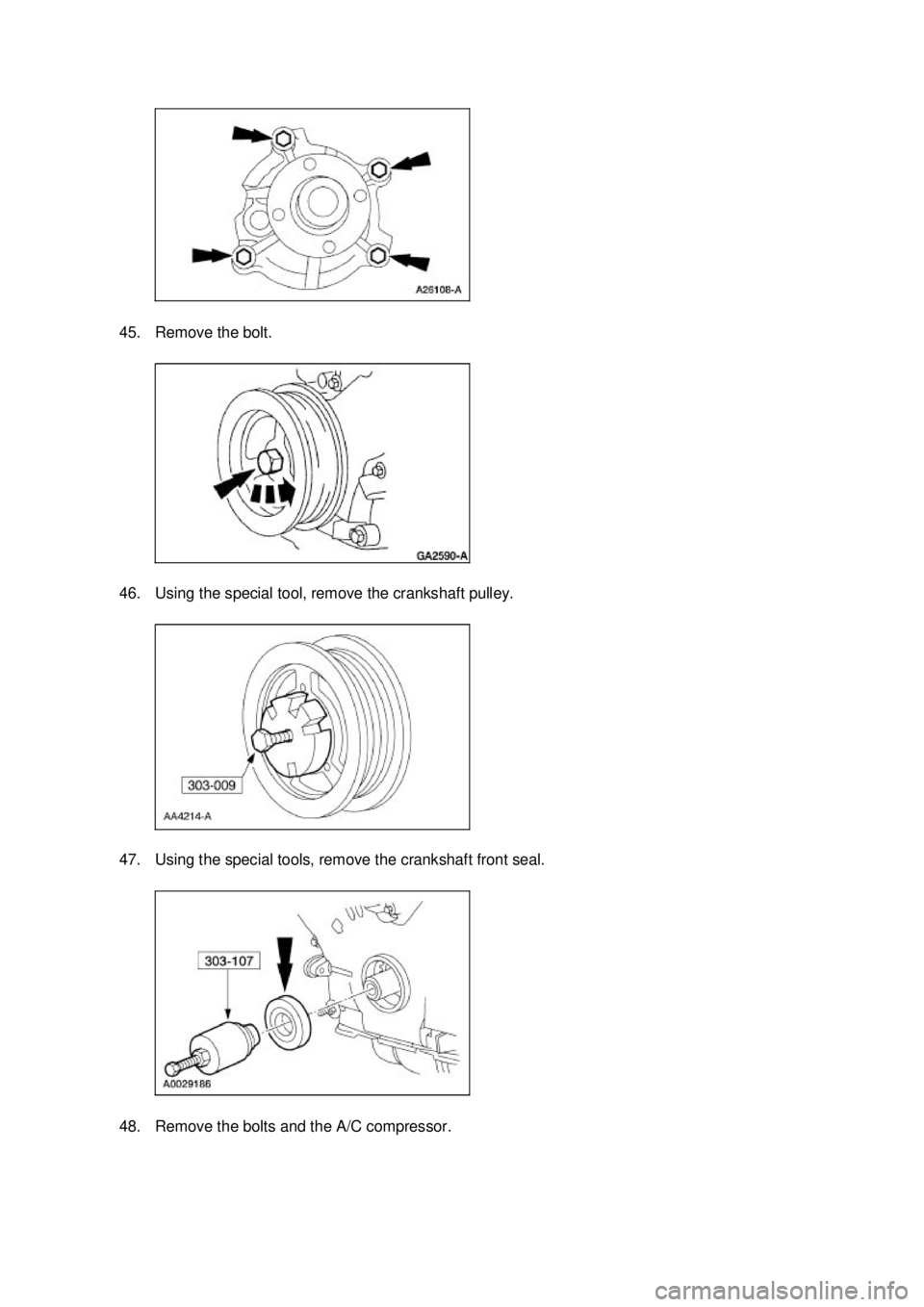

FORD MUSTANG 2003 Workshop Manual 45. Remove the bolt. 46. Using the special tool, remove the crankshaft pulley. 47. Using the special tools, remove the crankshaft front seal. 48. Remove the bolts and the A/C compressor. Klj .

Page 1523 of 4378

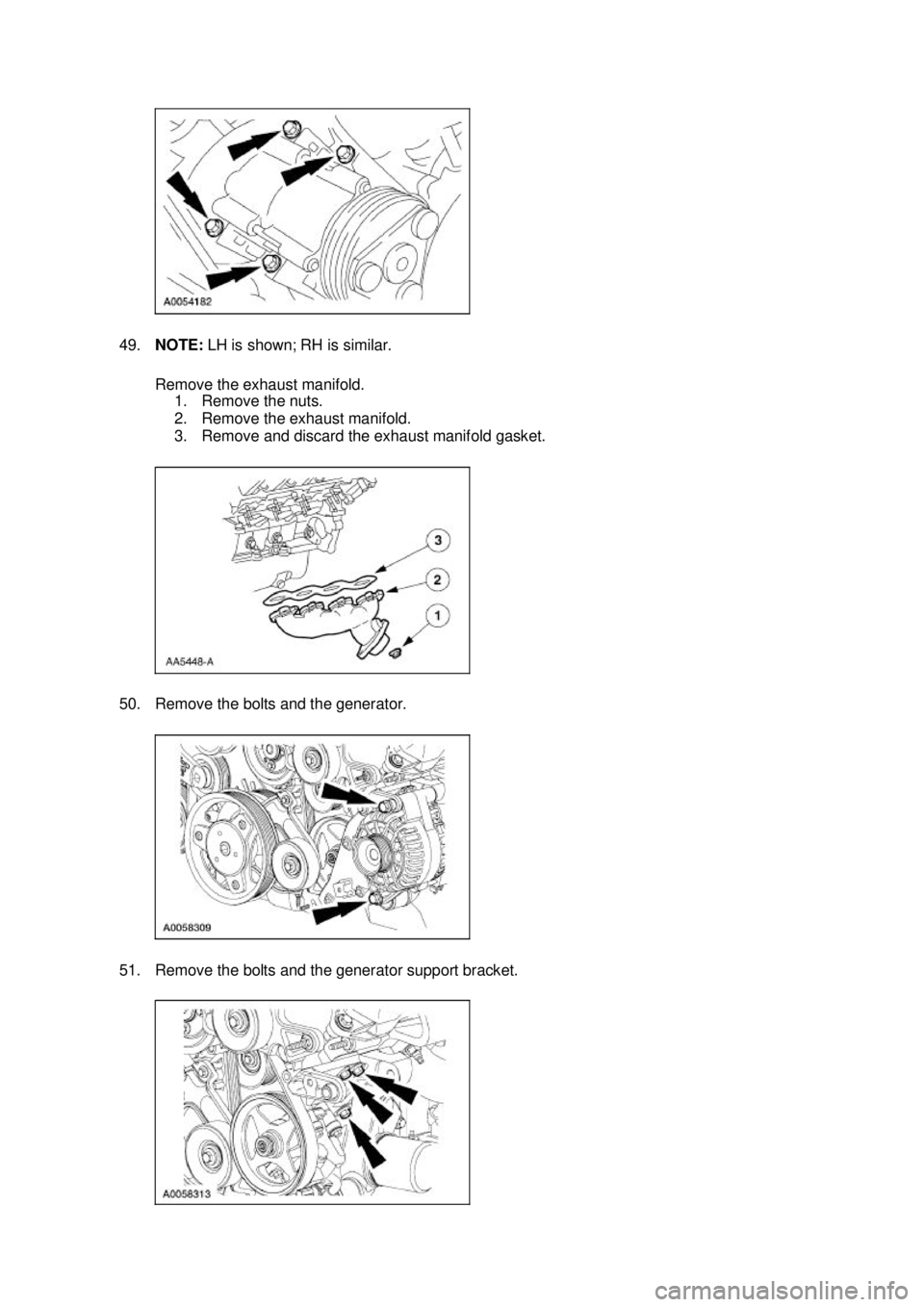

FORD MUSTANG 2003 Workshop Manual 49. NOTE: LH is shown; RH is similar. Remove the exhaust manifold. 1. Remove the nuts. 2. Remove the exhaust manifold. 3. Remove and discard the exhaust manifold gasket. 50. Remove the bolts and

Page 1524 of 4378

FORD MUSTANG 2003 Workshop Manual 52. Remove the oil cooler. 53. Remove the bolts, the oil filter adapter and the gasket. �zDiscard the gasket. 54. Clean and inspect the oil filter adapter and the oil cooler. �zPlug the oil cooler

Page 1525 of 4378

FORD MUSTANG 2003 Workshop Manual 57. Remove the four bolts. 58. Remove the bolts, the studs, and the engine front cover. 59. NOTE: The oil pan gasket is reusable if not damaged. Inspect the gasket and install new if necessary. R

Page 1526 of 4378

FORD MUSTANG 2003 Workshop Manual 60. Remove the crankshaft position sensor pulse wheel. 61. NOTE: Make sure the base circle of the camshaft is facing the roller follower being removed. Using the special tool, remove the 32 roller

Page 1527 of 4378

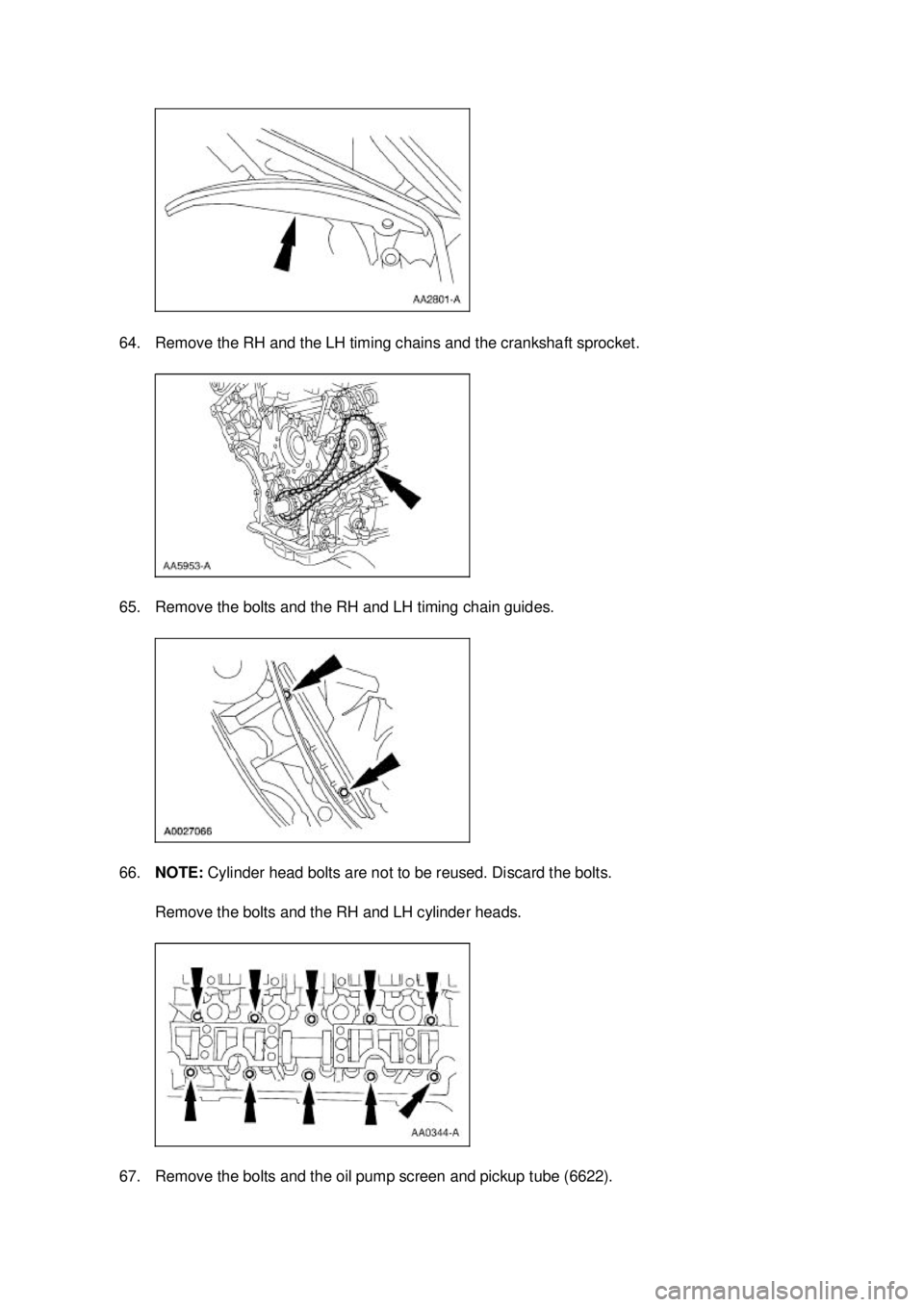

FORD MUSTANG 2003 Workshop Manual 64. Remove the RH and the LH timing chains and the crankshaft sprocket. 65. Remove the bolts and the RH and LH timing chain guides. 66. NOTE: Cylinder head bolts are not to be reused. Discard the b

Page 1528 of 4378

FORD MUSTANG 2003 Workshop Manual 68. Remove the oil pump screen and pickup tube spacer. 69. Remove the spacers and the windage tray. 70. NOTE: RH is shown, LH is similar. Remove the RH and LH engine mounts. 71. Remove the bolts
