Page 1881 of 4378

FORD MUSTANG 2003 Workshop Manual 7. Position aside the coolant heater outlet tube assembly. �zRemove the bolt. 8. Remove the coolant pump. �zRemove the stud. �z Remove the four bolts. �z Remove the four nuts. 9. Clean and inspe

Page 1882 of 4378

FORD MUSTANG 2003 Workshop Manual 10. To install, reverse the removal procedure. �zInstall a new gasket. �z Tighten the coolant pump stud, bolts and nuts in the sequence shown. 11. Fill and bleed the cooling system. For additional

Page 1883 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Water Pump — 4.6L(2V) and 4.6L(4V) Removal and Installation Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 . Cobra 2. R

Page 1884 of 4378

FORD MUSTANG 2003 Workshop Manual 5. Remove the belt idler bracket support assembly. All vehicles 6. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section. 7.

Page 1885 of 4378

FORD MUSTANG 2003 Workshop Manual 10. Remove the four bolts and the coolant pump. 11. If necessary, wipe the coolant pump mounting surface with a soft cloth. 12. CAUTION: Do not rotate the coolant pump housing once installed in the

Page 1886 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1887 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Radiator Removal and Installation NOTE: Radiator removal and installation is similar for both 3.8L and 4.6L vehicles. The art shown in the procedure is the 4.6L engine.

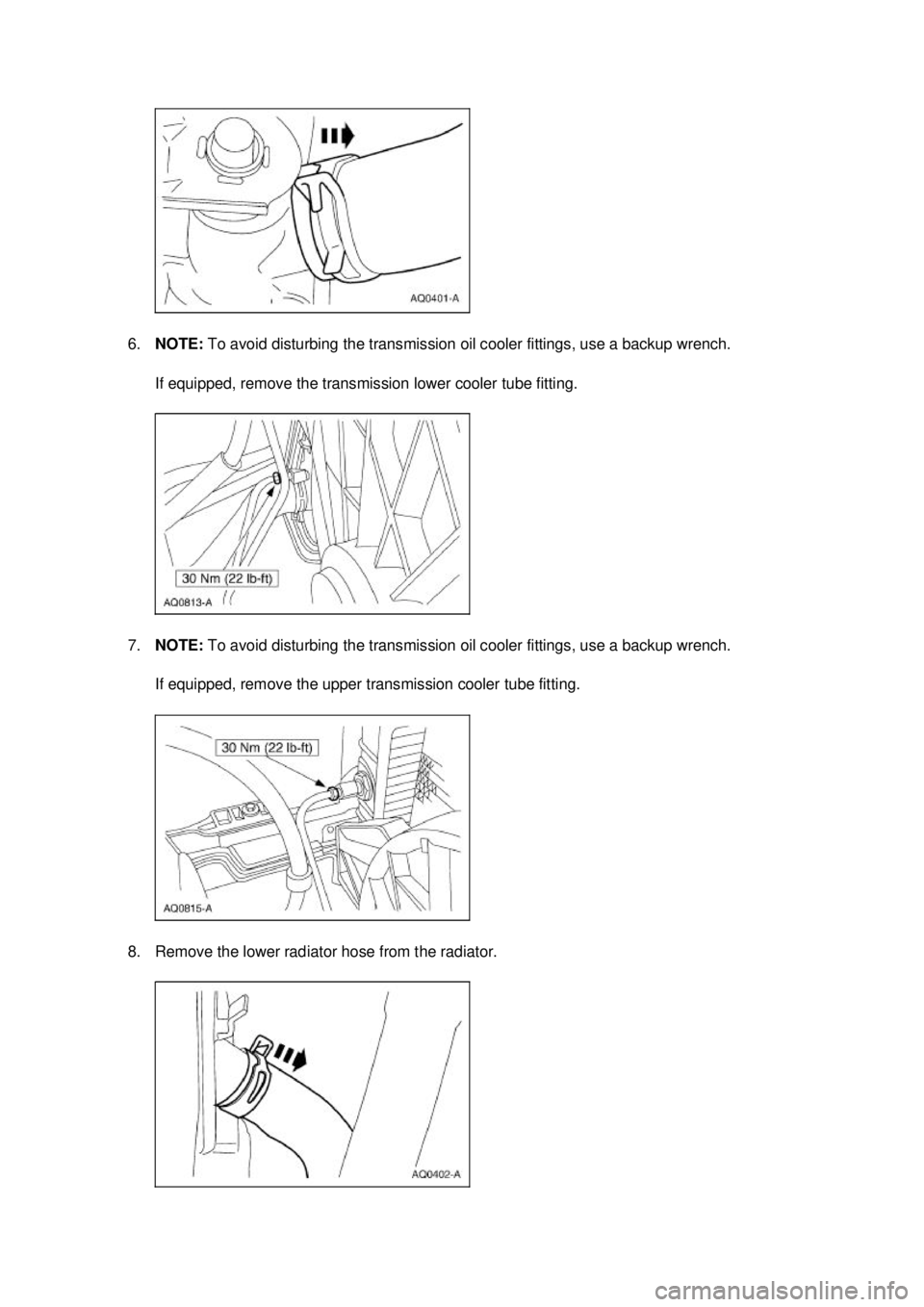

Page 1888 of 4378

FORD MUSTANG 2003 Workshop Manual 6. NOTE: To avoid disturbing the transmission oil cooler fittings, use a backup wrench. If equipped, remove the transmission lower cooler tube fitting. 7. NOTE: To avoid disturbing the transmissio
