Page 2289 of 4378

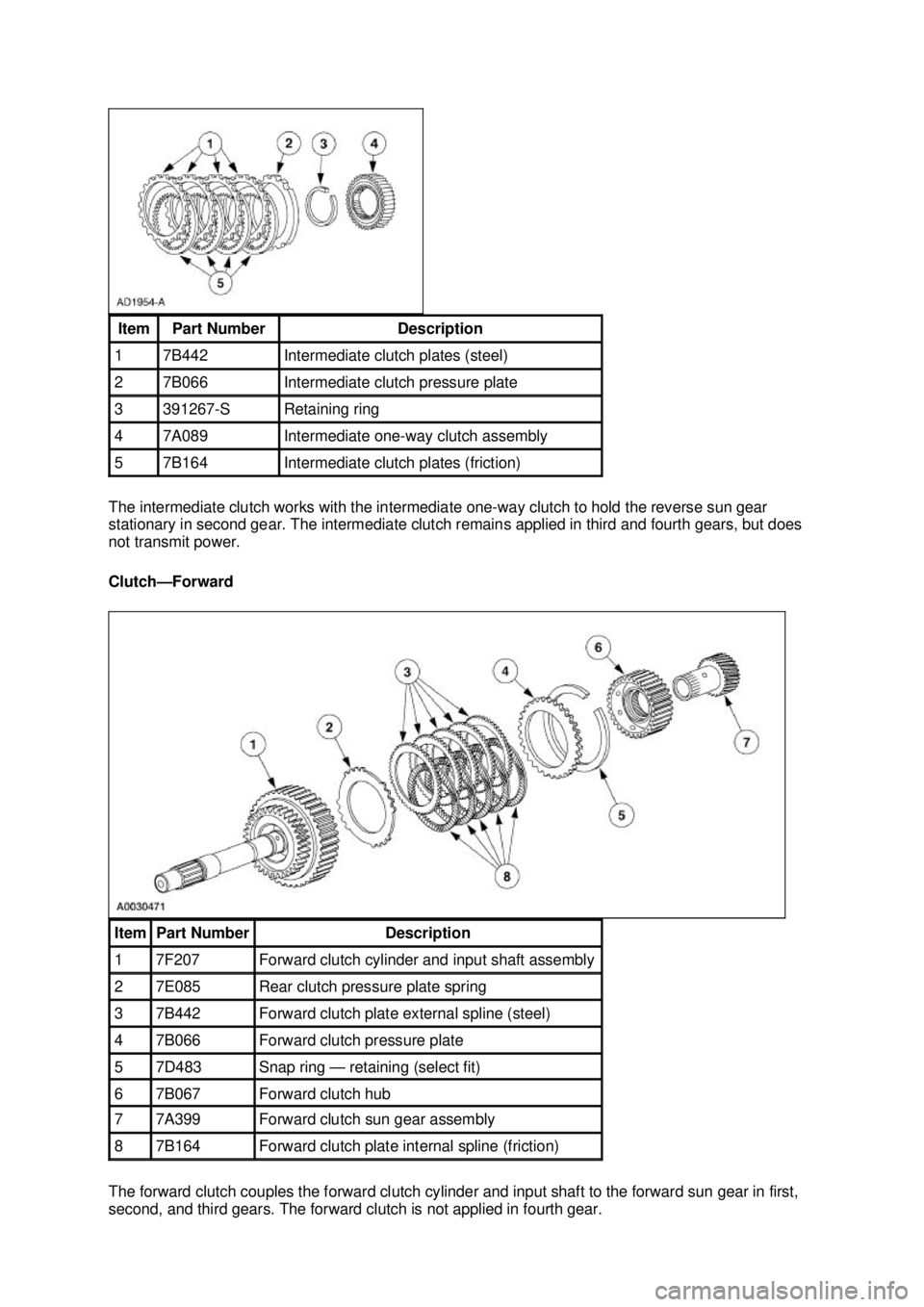

FORD MUSTANG 2003 Workshop Manual The intermediate clutch works with the intermediate one- way clutch to hold the reverse sun gear stationary in second gear. The intermediate clutch remains applied in third and fourth gears, but does

Page 2290 of 4378

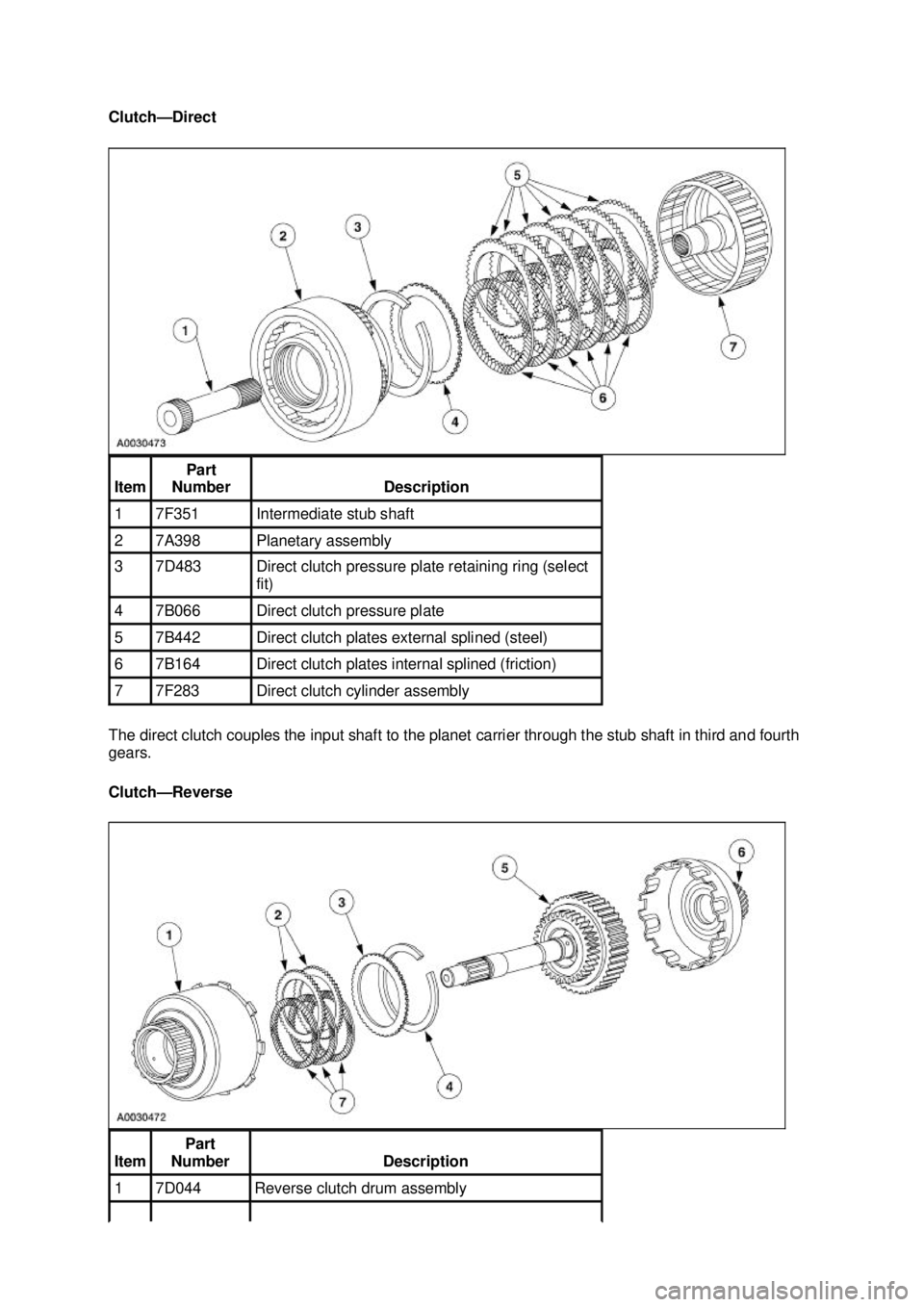

FORD MUSTANG 2003 Workshop Manual Clutch— Direct The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears. Clutch—Reverse Item Part Number Description 1 7F351 Inter

Page 2291 of 4378

FORD MUSTANG 2003 Workshop Manual The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only. One- Way Clutch— Planetary (Low) The planetary (low) one- way clutch is a roller clutch that hold

Page 2292 of 4378

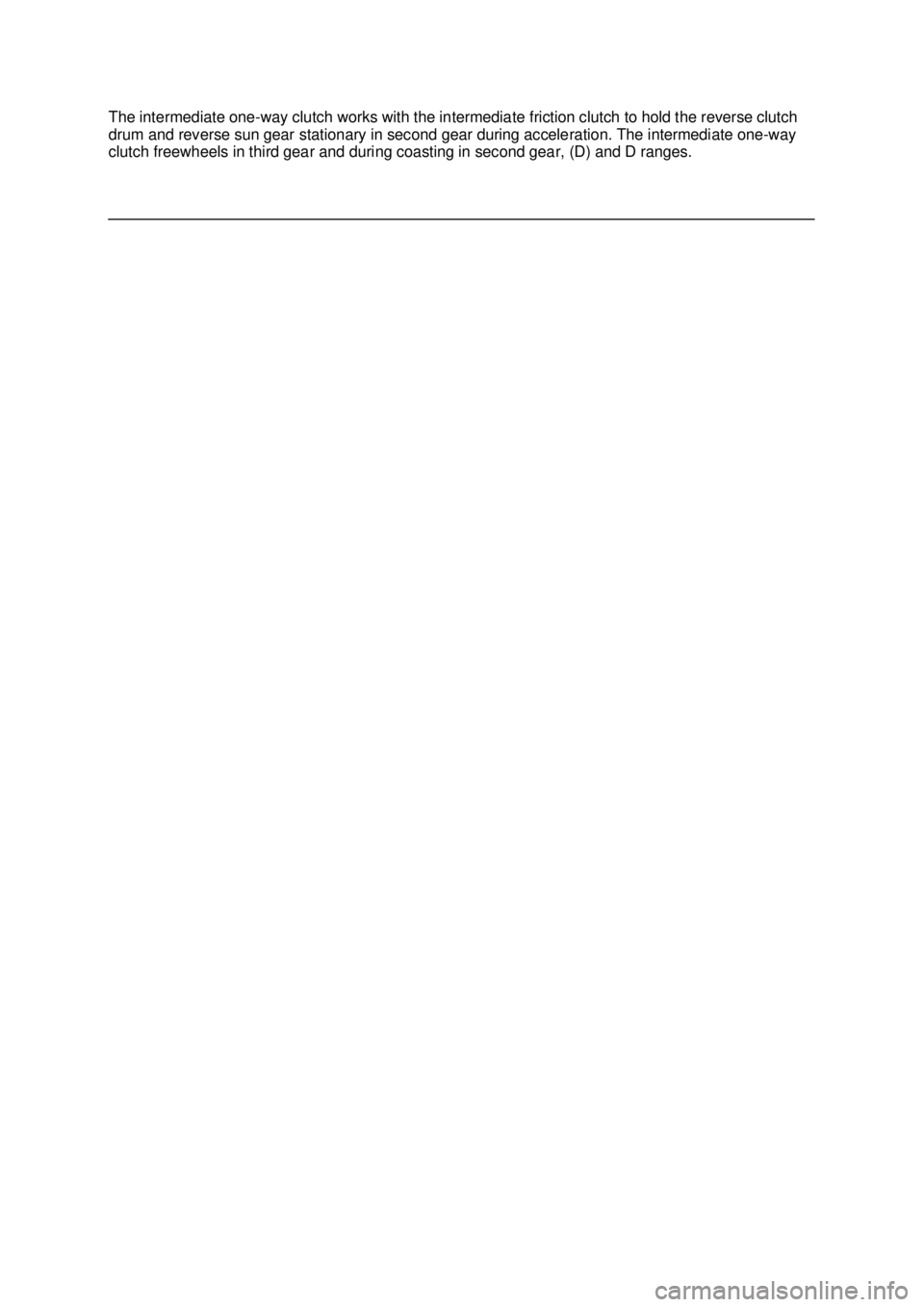

FORD MUSTANG 2003 Workshop Manual The intermediate one- way clutch works with the intermediate friction clutch to hold the reverse clutch drum and reverse sun gear stationary in second gear during acceleration. The intermediate one-

Page 2293 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Hydraulic System Fluid Pump SECTION 307- 01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Item Part Number Description 1 7A106 Front pump body assem

Page 2294 of 4378

FORD MUSTANG 2003 Workshop Manual The transmission uses a gerotor- type design front pump support and gear. The pump provides the volume of fluid needed to charge the torque converter, main control assembly, cooling system and lube

Page 2295 of 4378

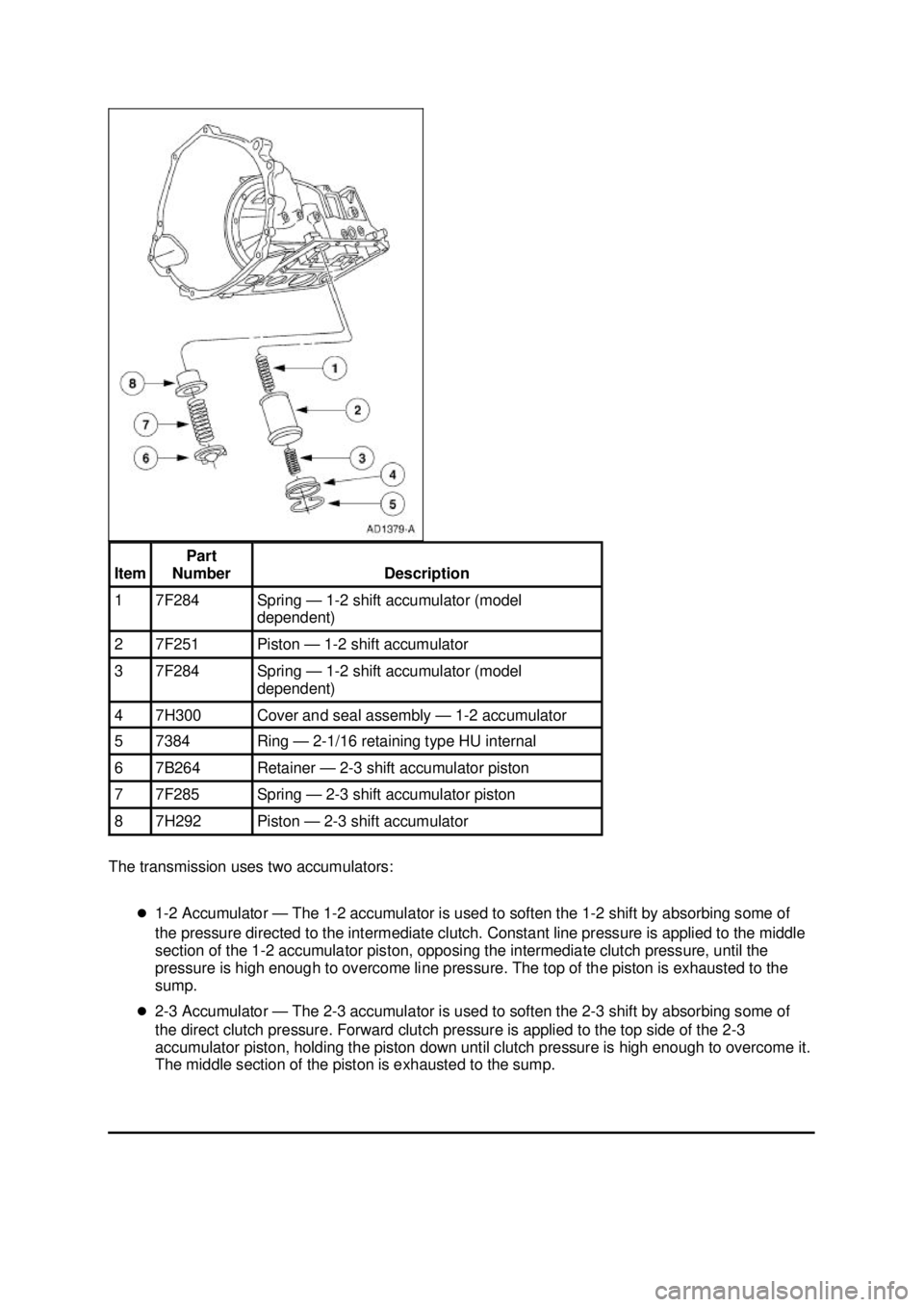

FORD MUSTANG 2003 Workshop Manual The transmission uses two accumulators: �z1-2 Accumulator — The 1-2 accumulator is used to soften the 1- 2 shift by absorbing some of the pressure directed to the intermediate clutch. Constant lin

Page 2296 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 4 ba 42003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
