REMOVAL AND INSTALLATION
Latch —
Door

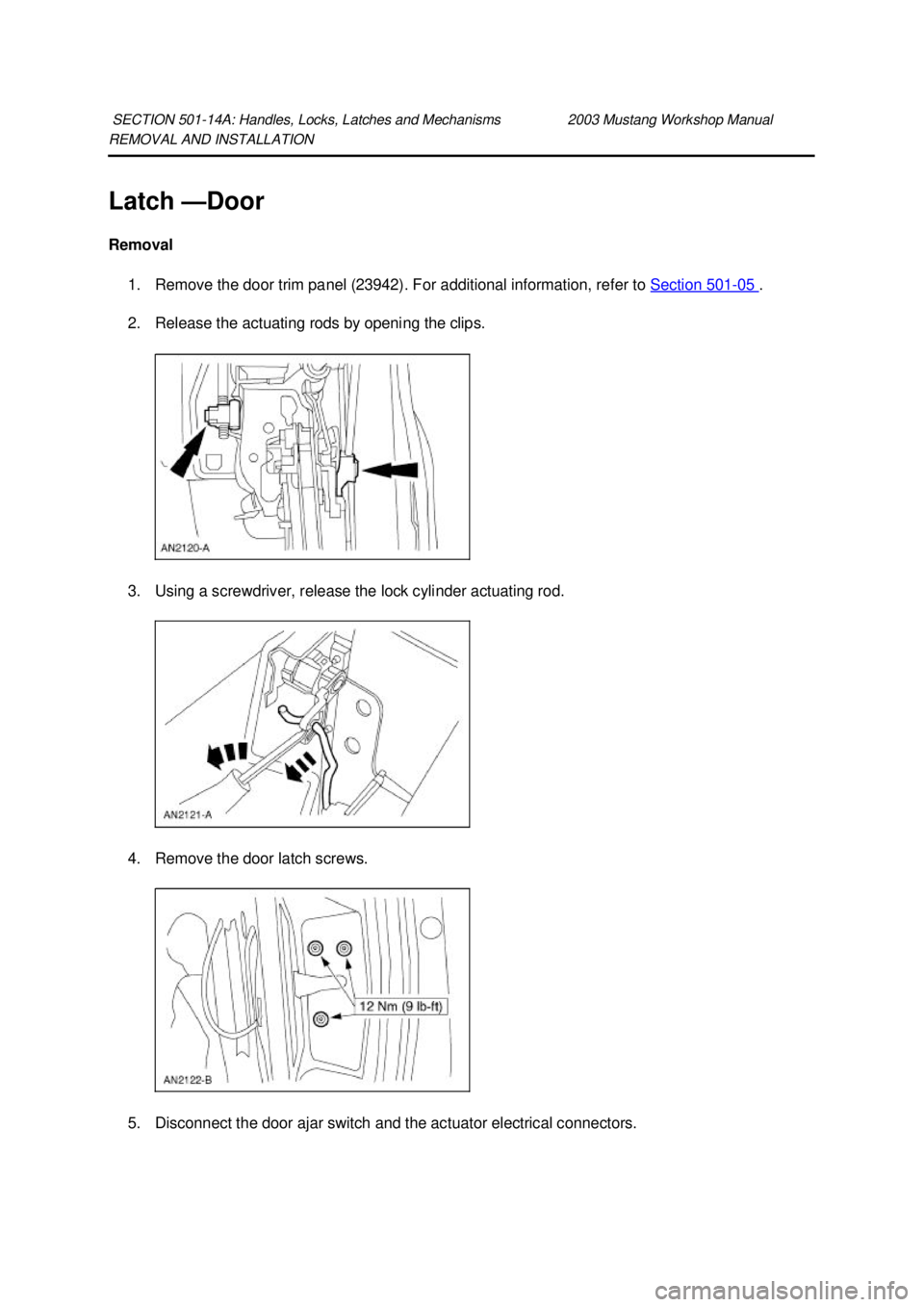

Removal 1. Remove the door trim panel (23942). For additional information, refer to Section 501 - 05 .
2. Release the actuating rods by opening the clips.
3. Using a screwdriver, release the lock cylinder actuating rod.
4. Remove the door latch screws.
5. Disconnect the door ajar switch and the actuator electrical connectors.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3818 of 4378

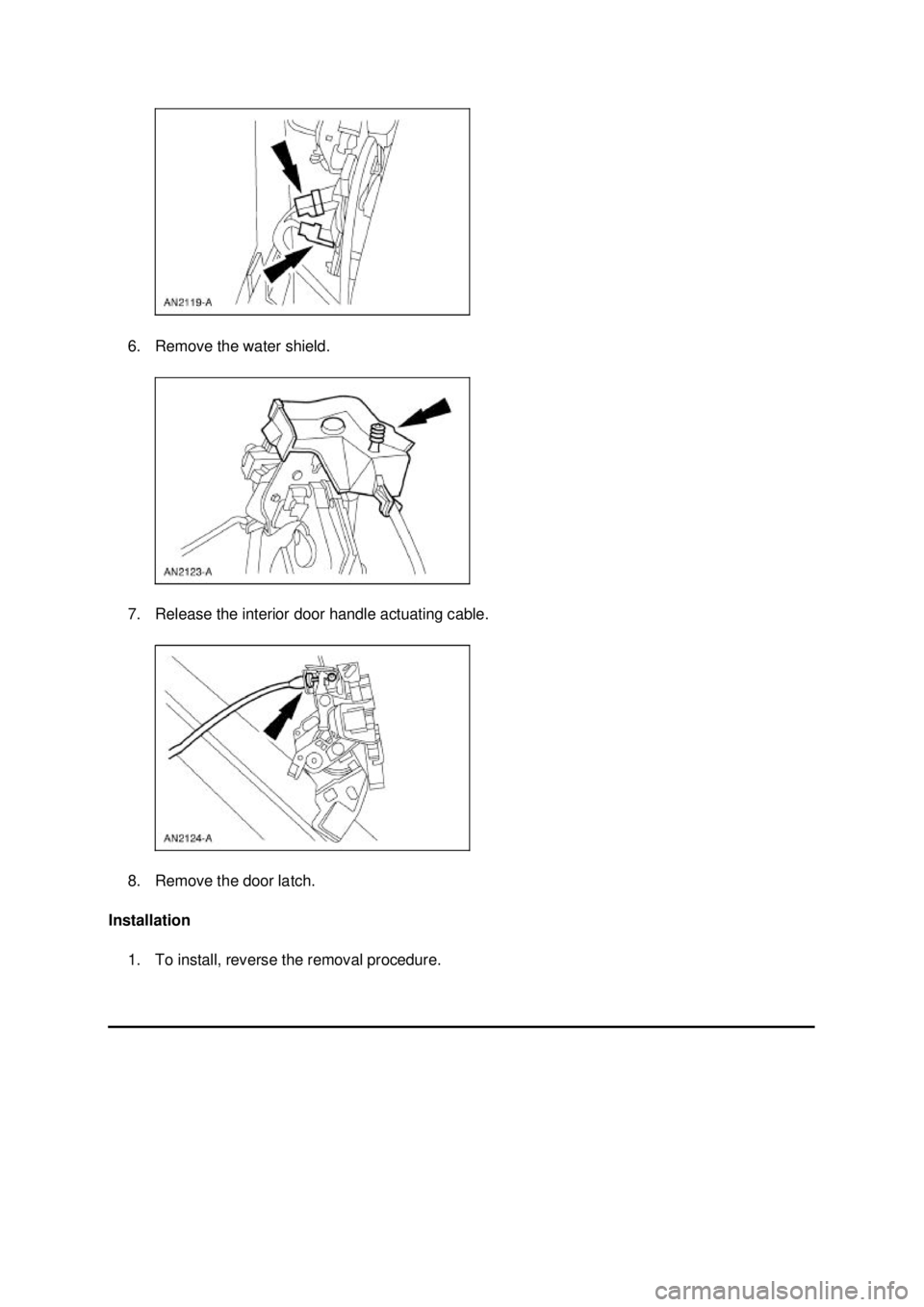

6. Remove the water shield.
7. Release the interior door handle actuating cable.
8. Remove the door latch.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3819 of 4378
Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3820 of 4378
REMOVAL AND INSTALLATION
Latch —
Luggage Compartment Lid

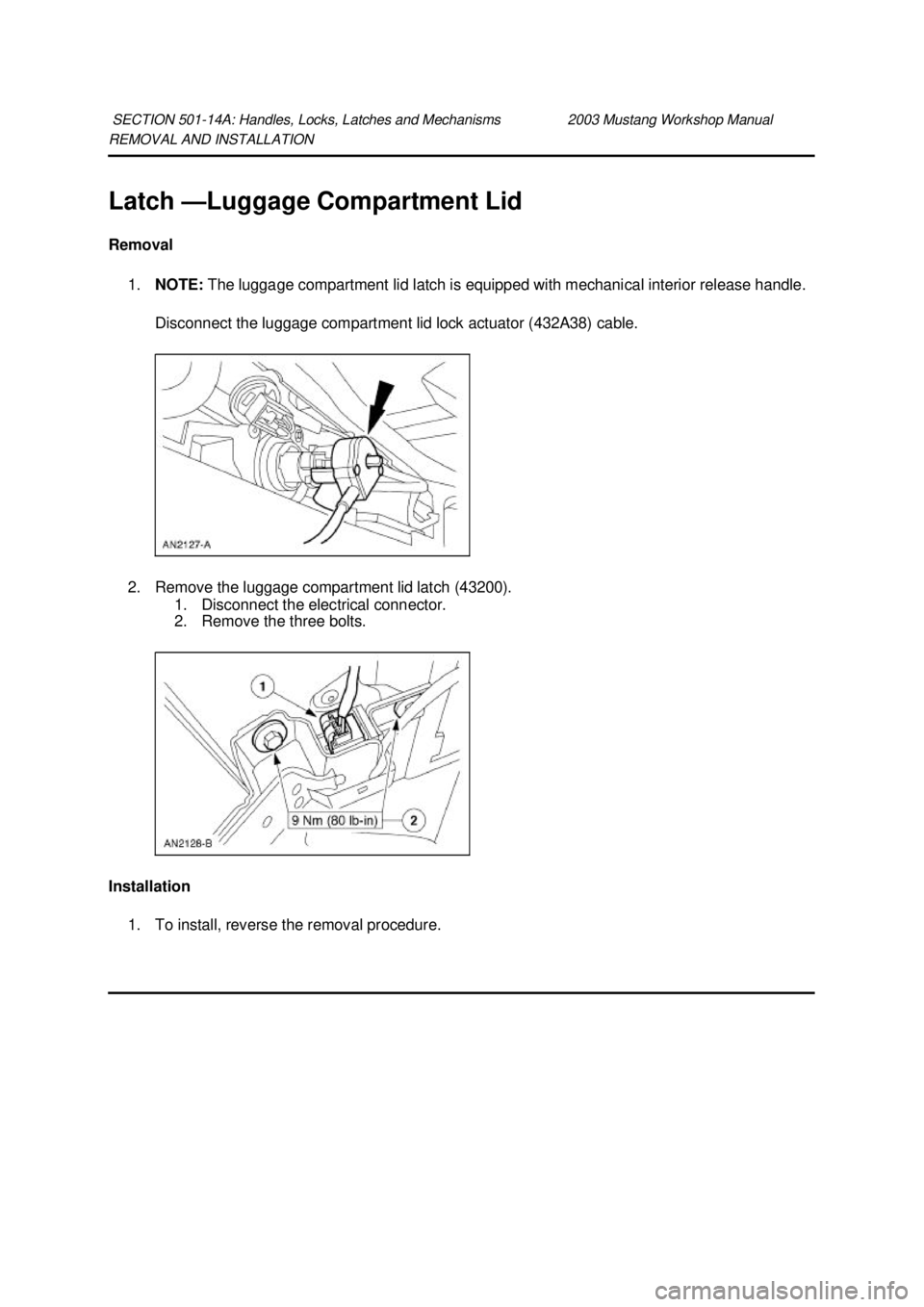

Removal 1. NOTE: The luggage compartment lid latch is equipped with mechanical interior release handle.
Disconnect the luggage compartment lid lock actuator (432A38) cable.
2. Remove the luggage compartment lid latch (43200). 1. Disconnect the electrical connector.
2. Remove the three bolts.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3821 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3822 of 4378
REMOVAL AND INSTALLATION
Handle —
Exterior Door

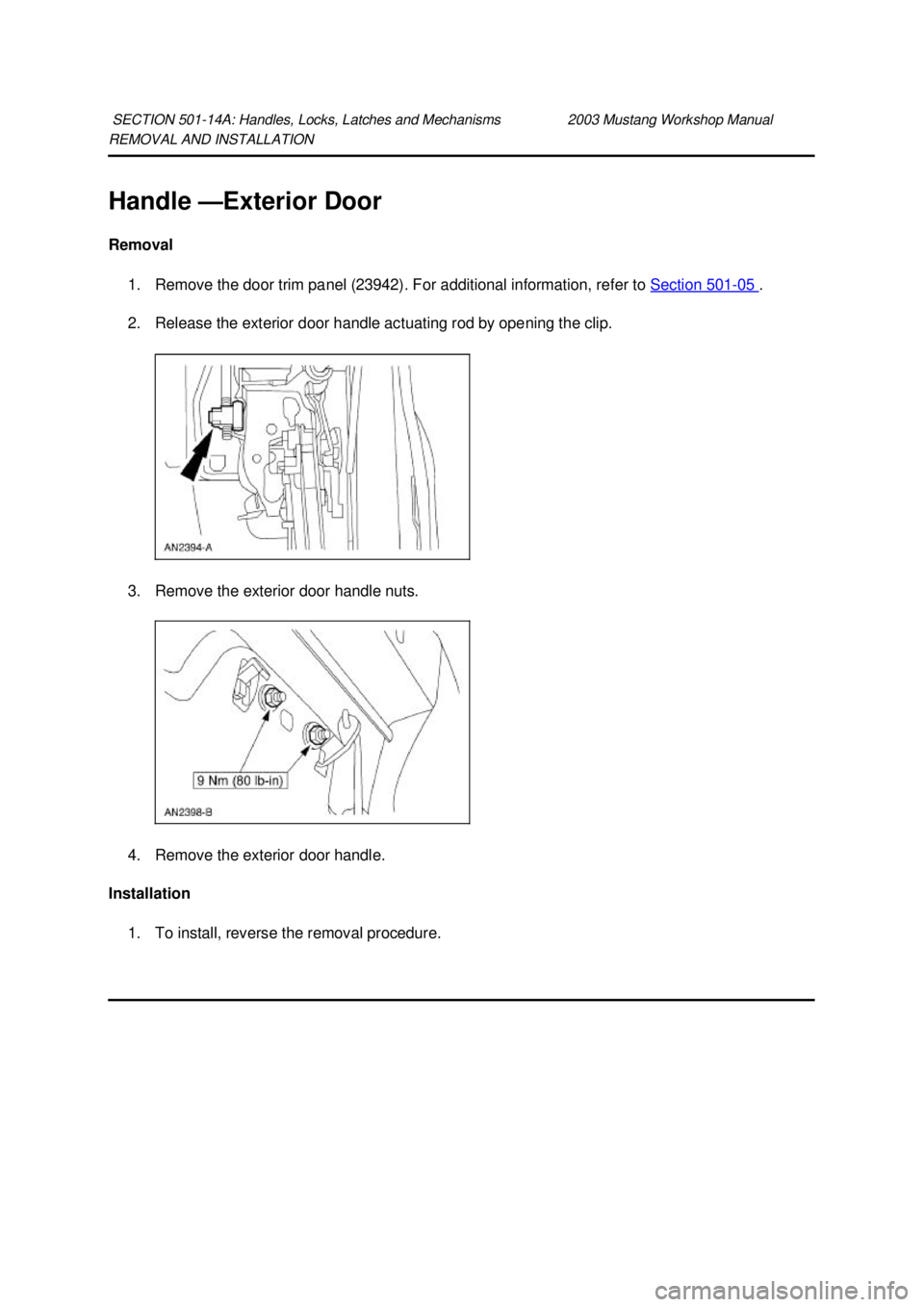

Removal 1. Remove the door trim panel (23942). For additional information, refer to Section 501 - 05 .
2. Release the exterior door handle actuating rod by opening the clip.
3. Remove the exterior door handle nuts.
4. Remove the exterior door handle.
Installation
1. To install, reverse the removal procedure.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3823 of 4378
Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 3824 of 4378
REMOVAL AND INSTALLATION
Handle —
Interior Door

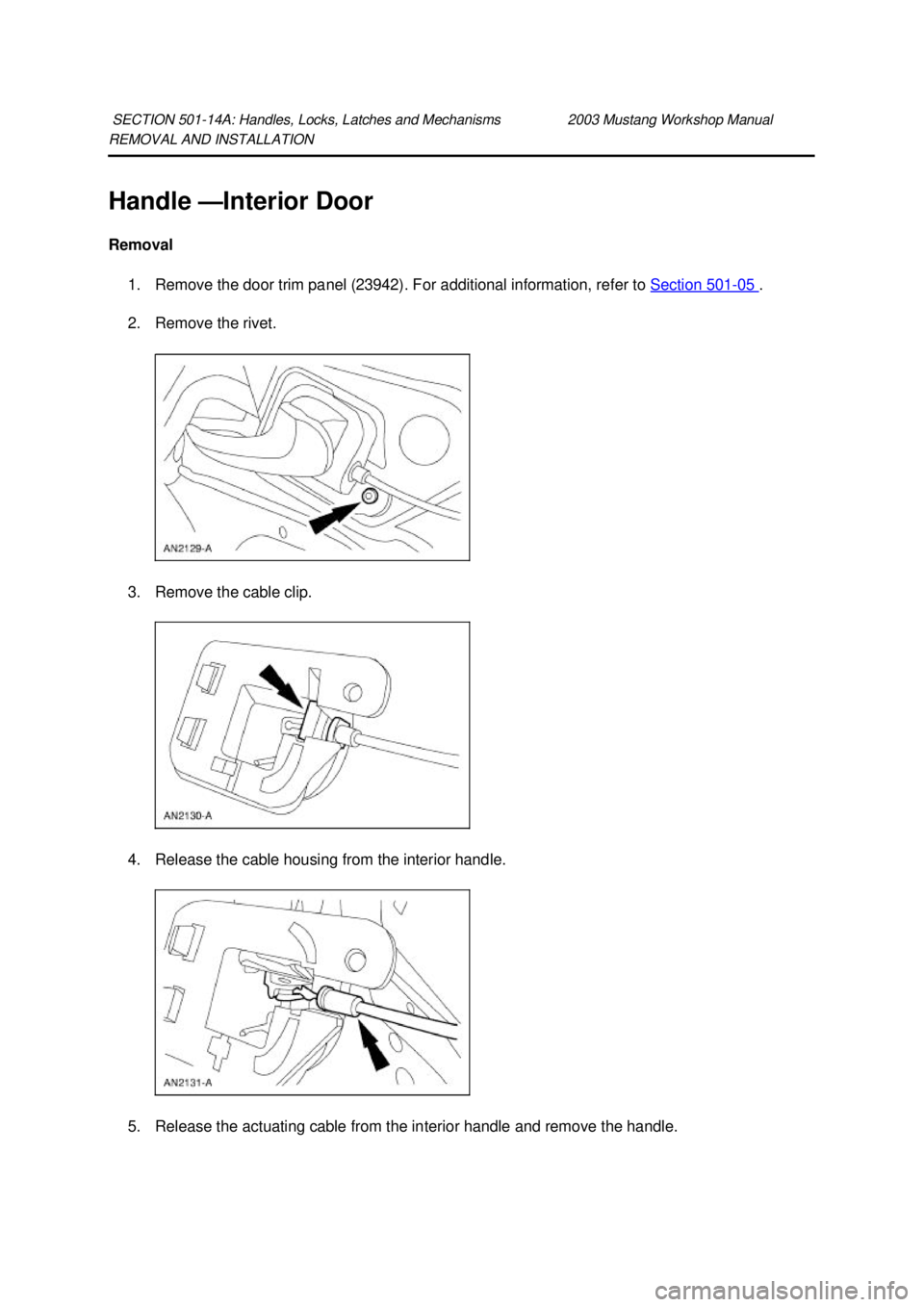

Removal 1. Remove the door trim panel (23942). For additional information, refer to Section 501 - 05 .
2. Remove the rivet.
3. Remove the cable clip.
4. Release the cable housing from the interior handle.
5. Release the actuating cable from the interior handle and remove the handle.
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
