Page 1513 of 4378

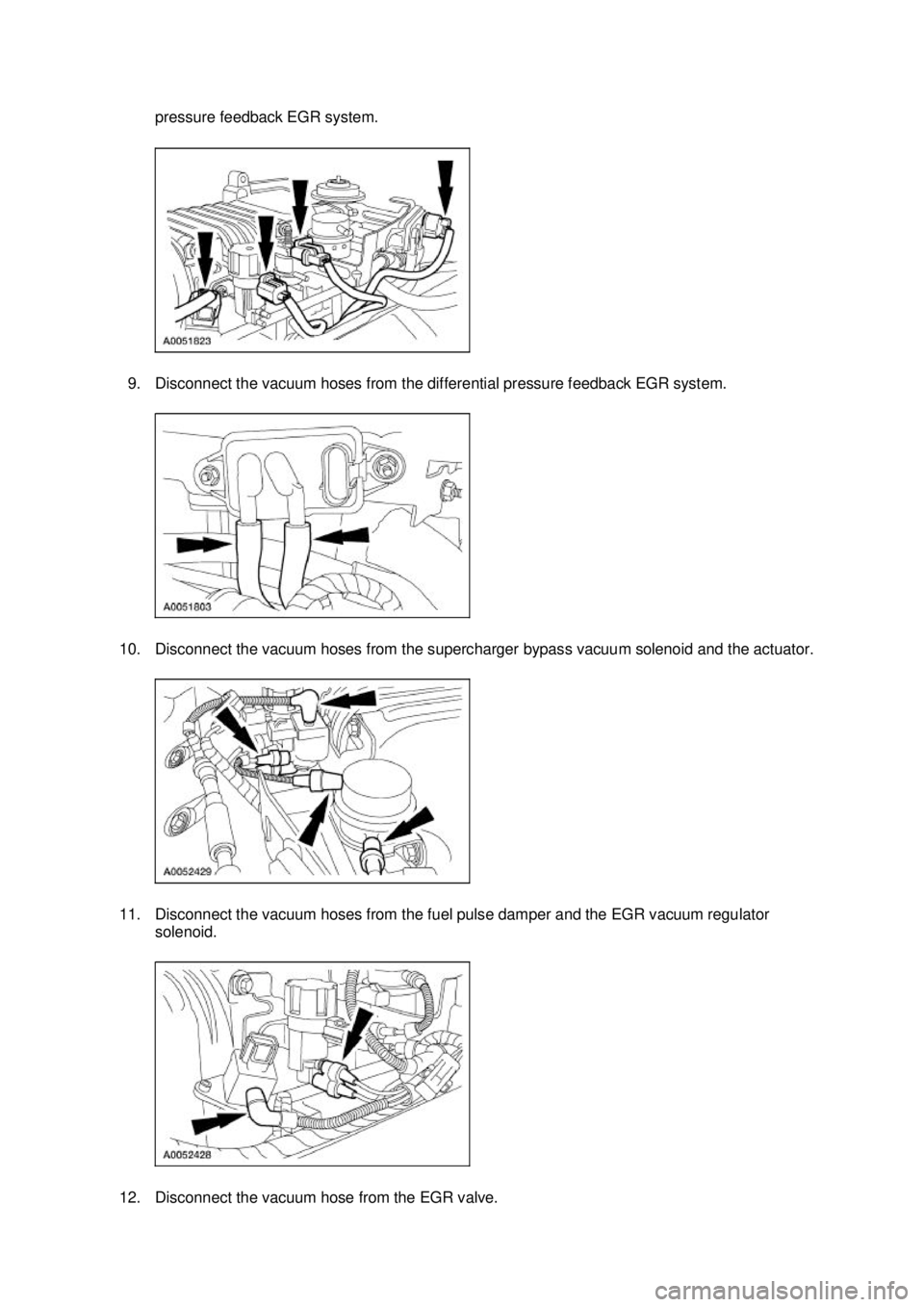

FORD MUSTANG 2003 Workshop Manual pressure feedback EGR system. 9. Disconnect the vacuum hoses from the differential pressure feedback EGR system. 10. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid and the

Page 1514 of 4378

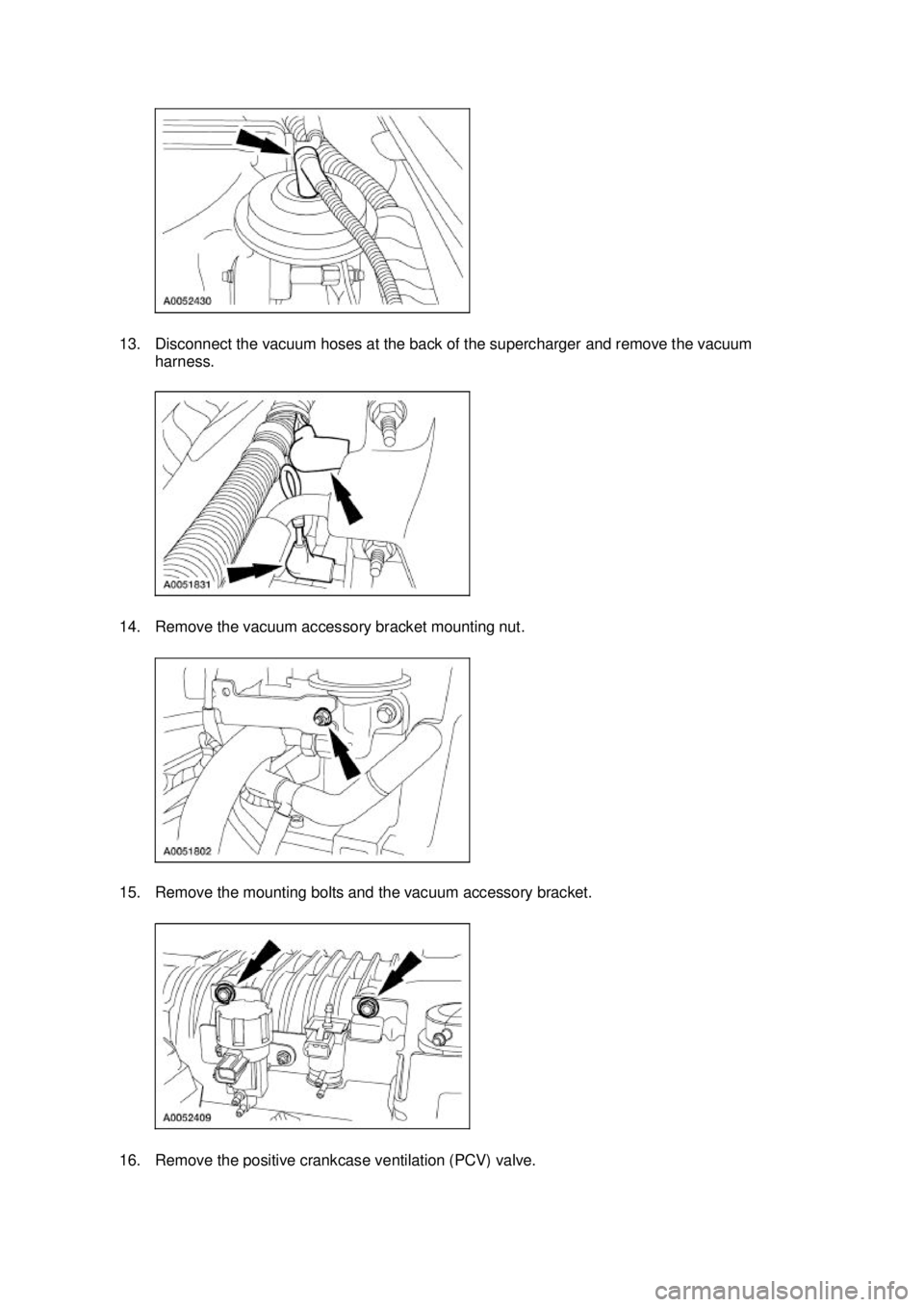

FORD MUSTANG 2003 Workshop Manual 13. Disconnect the vacuum hoses at the back of the supercharger and remove the vacuum harness. 14. Remove the vacuum accessory bracket mounting nut. 15. Remove the mounting bolts and the vacuum acc

Page 1515 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Disconnect and remove the PCV hose. 18. Disconnect the barometric pressure (BARO) sensor electrical connector. 19. Disconnect the EGR tube from the exhaust manifold. 20. NOTE: Discard the EGR

Page 1516 of 4378

FORD MUSTANG 2003 Workshop Manual 21. Disconnect the electrical connectors and remove the LH ignition coils. 22. Disconnect the camshaft position (CMP) sensor electrical connector. 23. Disconnect the engine coolant temperature (ECT)

Page 1517 of 4378

FORD MUSTANG 2003 Workshop Manual 25. Remove the fuel charging wiring harness bracket bolt. 26. Disconnect the crankshaft position (CKP) sensor electrical connector. 27. Disconnect the A/C compressor electrical connector. 28. Uncli

Page 1518 of 4378

FORD MUSTANG 2003 Workshop Manual 29. Remove the harness support bracket. 30. Disconnect the electrical connectors and remove the RH ignition coils. 31. Disconnect the eight fuel injectors. 32. Separate the harness from the fuel su

Page 1519 of 4378

FORD MUSTANG 2003 Workshop Manual 33. NOTE: The intake manifold gaskets are reusable if undamaged. Remove the ten bolts and the intake manifold, and the supercharger and fuel supply manifold as an assembly. 34. Remove the bolts an

Page 1520 of 4378

FORD MUSTANG 2003 Workshop Manual Remove the coolant bypass studs. 37. NOTE: LH is shown, RH is similar. Remove the bolts and the coolant bypass tube. 38. Remove the bolts and the heater water inlet tube. 39. CAUTION: Do not use
