Page 3377 of 4378

FORD MUSTANG 2003 Workshop Manual the oil pan clips. 10. NOTE: 4.6L 4V shown; 3.8L and 4.6L 2V similar. Disconnect the oil pressure sender unit electrical connector. 11. CAUTION: Failure to tighten the negative cable ground nut m

Page 3378 of 4378

FORD MUSTANG 2003 Workshop Manual 13. NOTE: 4.6L 2V shown; 3.8L and 4.6L 4V similar. Remove the front lower cable harness bracket nuts. 14. Pull the harness assembly downward until it clears the engine/radiator area. 15. NOTE: 4.

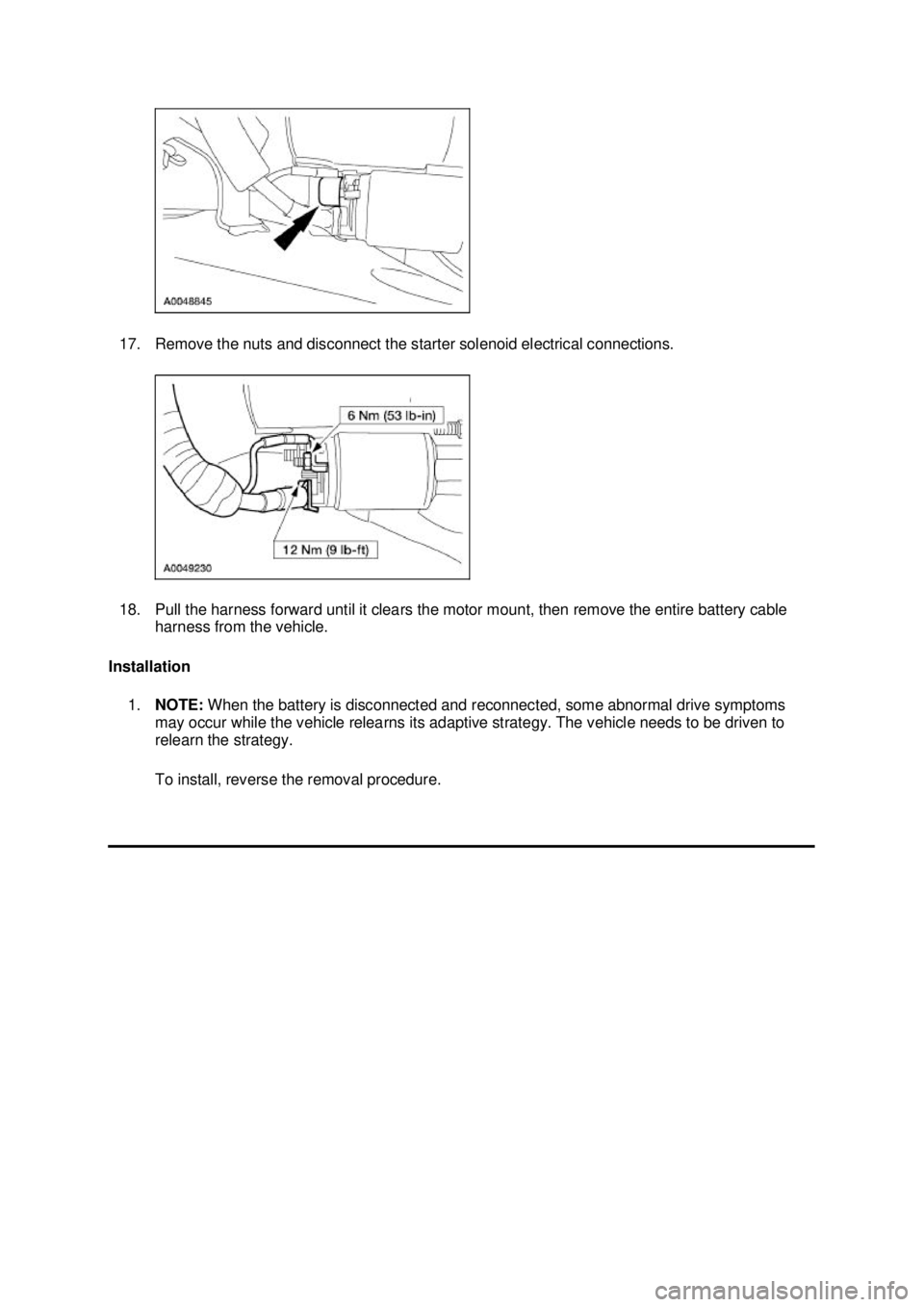

Page 3379 of 4378

FORD MUSTANG 2003 Workshop Manual 17. Remove the nuts and disconnect the starter solenoid electrical connections. 18. Pull the harness forward until it clears the motor mount, then remove the entire battery cable harness from the ve

Page 3380 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 6 ba 62003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

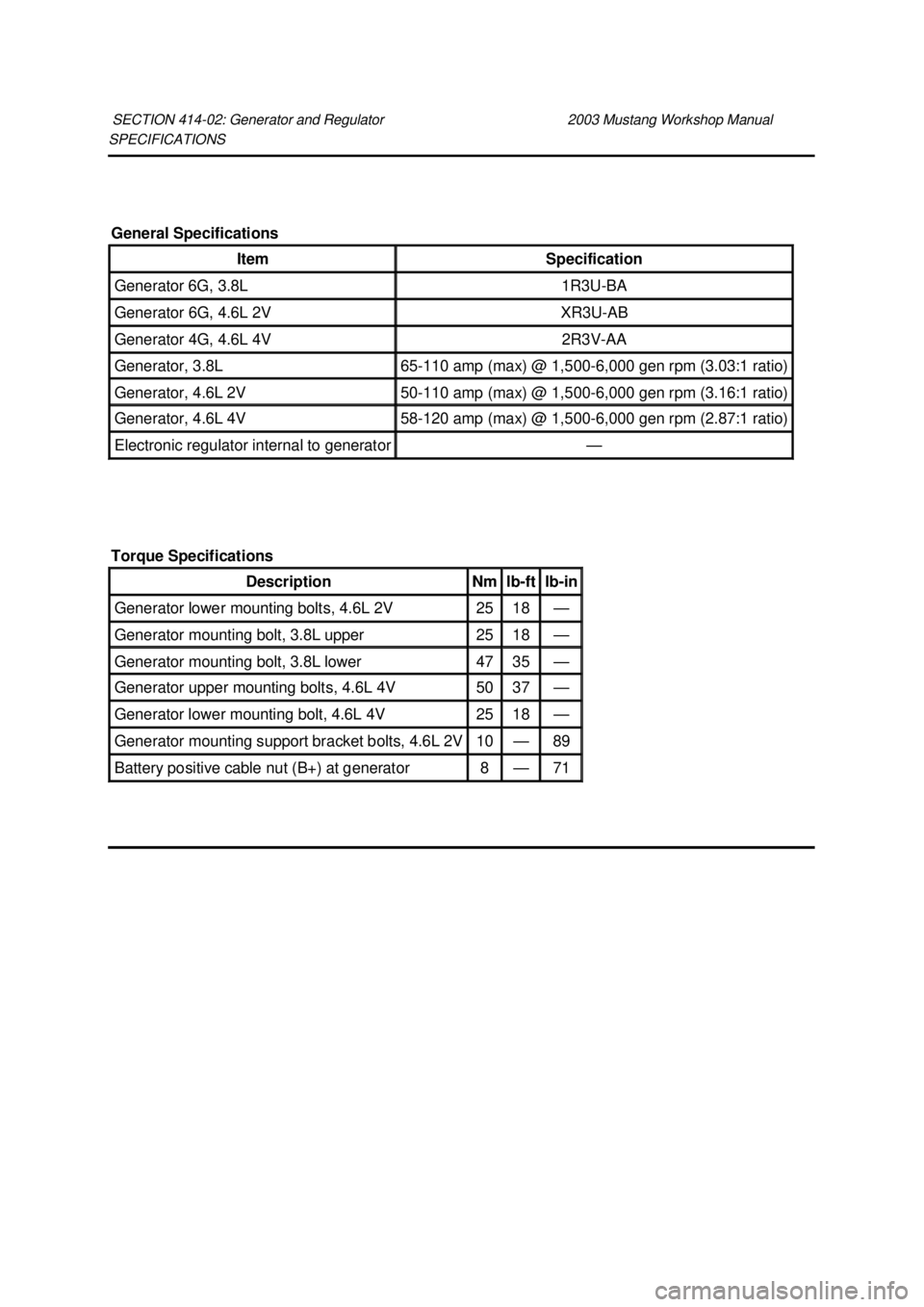

Page 3381 of 4378

FORD MUSTANG 2003 Workshop Manual SPECIFICATIONS SECTION 414- 02: Generator and Regulator 2003 Mustang Workshop Manual General Specifications Item Specification Generator 6G, 3.8L 1R3U- BA Generator 6G, 4.6L 2V XR3U- AB Gener

Page 3382 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3383 of 4378

FORD MUSTANG 2003 Workshop Manual DESCRIPTION AND OPERATION Generator The charging system consists of the: �zgenerator (GEN) �z internal voltage regulator The generator has an internal voltage regulator that is not installed sepa

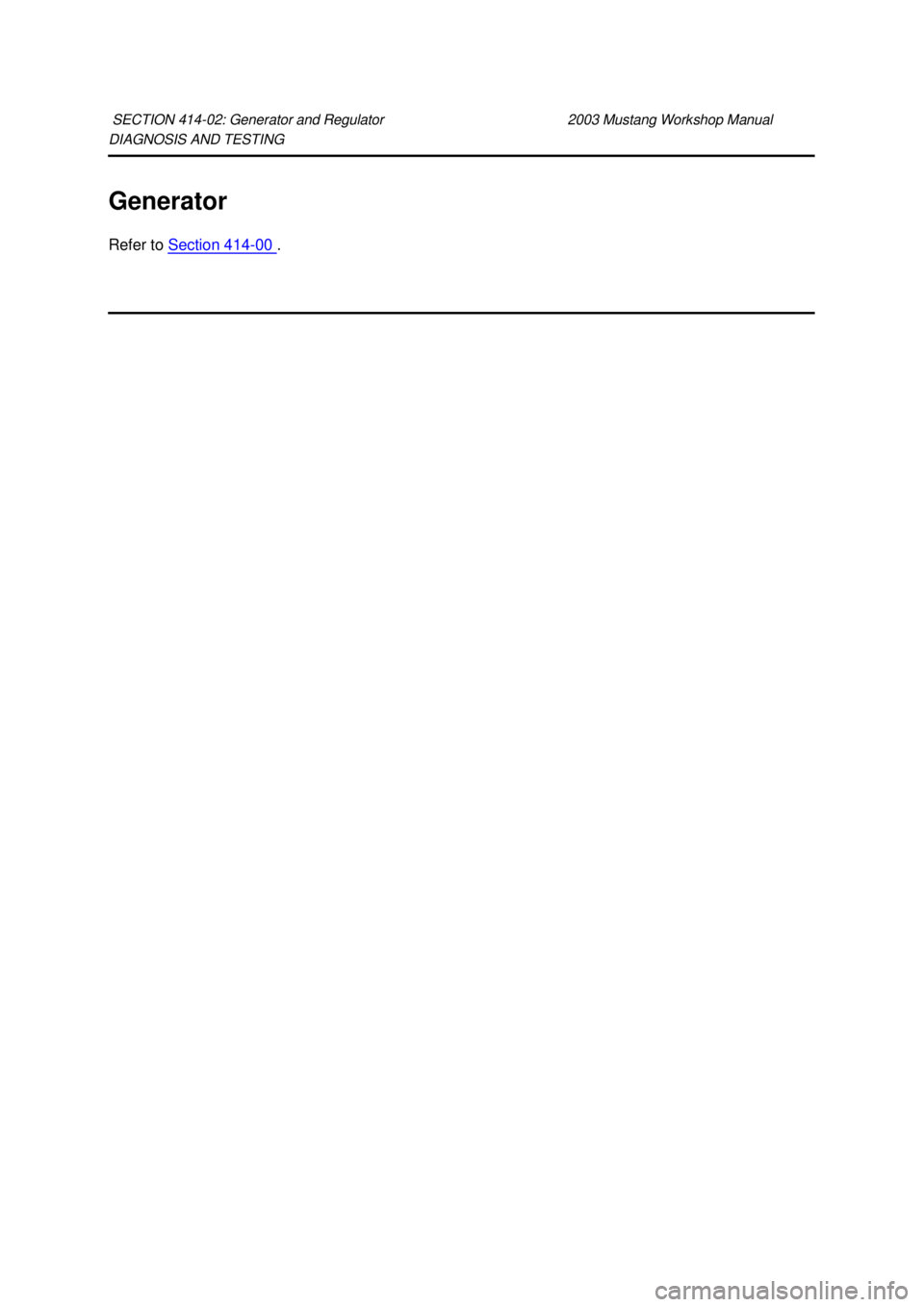

Page 3384 of 4378

FORD MUSTANG 2003 Workshop Manual DIAGNOSIS AND TESTING Generator Refer to Section 414 - 00 . SECTION 414- 02: Generator and Regulator 2003 Mustang Workshop Manual Klj . 1 ba 12003 Mustang Workshop Manual 18. 11. 2011fi
