Page 1697 of 4378

FORD MUSTANG 2003 Workshop Manual Installation 1. NOTE: LH shown; RH similar. Install the camshafts. �zLubricate the camshafts with clean engine oil. 2. Install the camshaft bearing cap assemblies and tighten the bolts in the seq

Page 1698 of 4378

FORD MUSTANG 2003 Workshop Manual 3. Install the bolts. 4. CAUTION: Timing marks must be at 12 oclock and indexed at 6 oclock. Install the camshaft sprockets and the chain as an assembly. 5. Remove the lockpin from the chain ten

Page 1699 of 4378

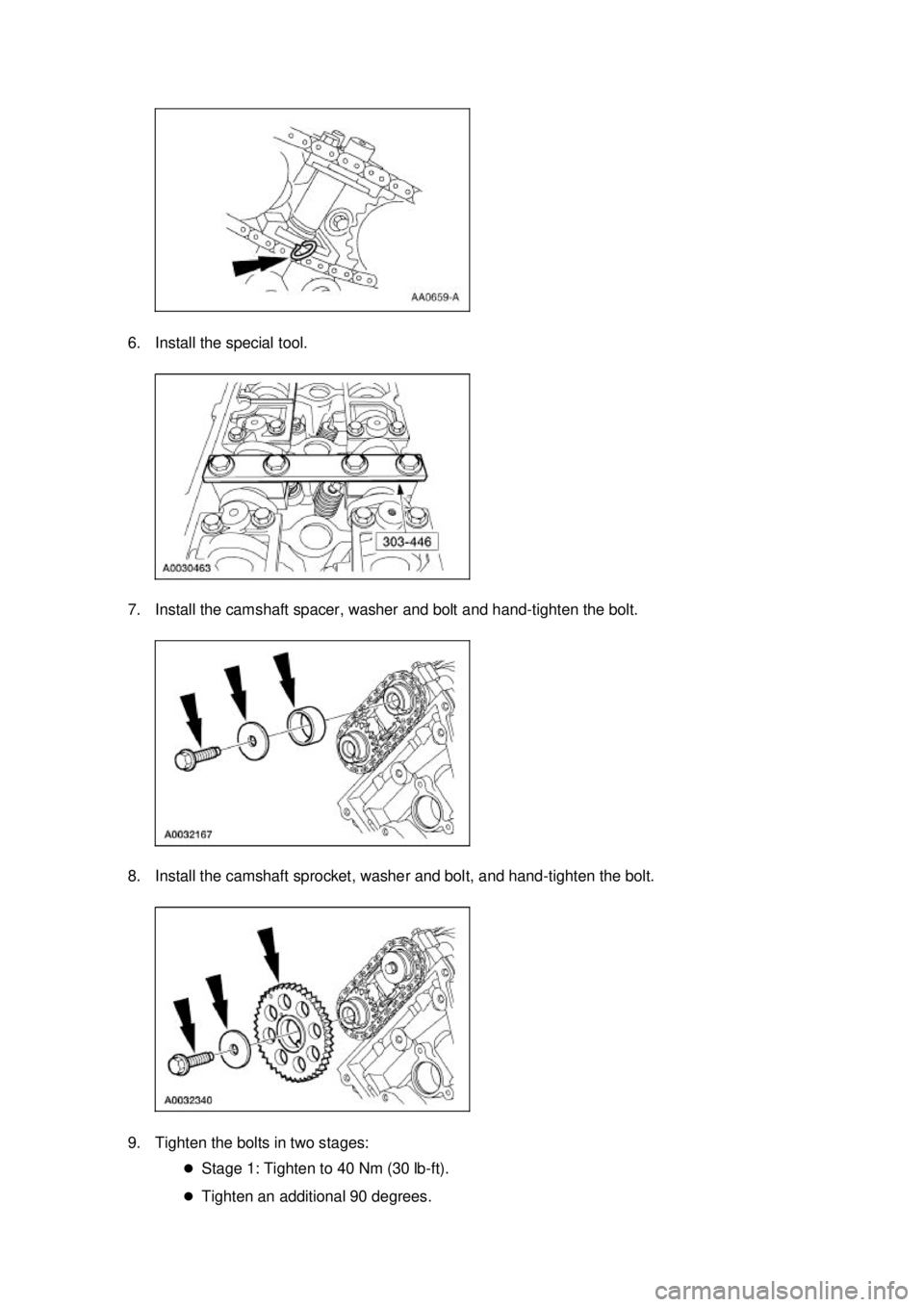

FORD MUSTANG 2003 Workshop Manual 6. Install the special tool. 7. Install the camshaft spacer, washer and bolt and hand- tighten the bolt. 8. Install the camshaft sprocket, washer and bolt, and hand- tighten the bolt. 9. Tighten th

Page 1700 of 4378

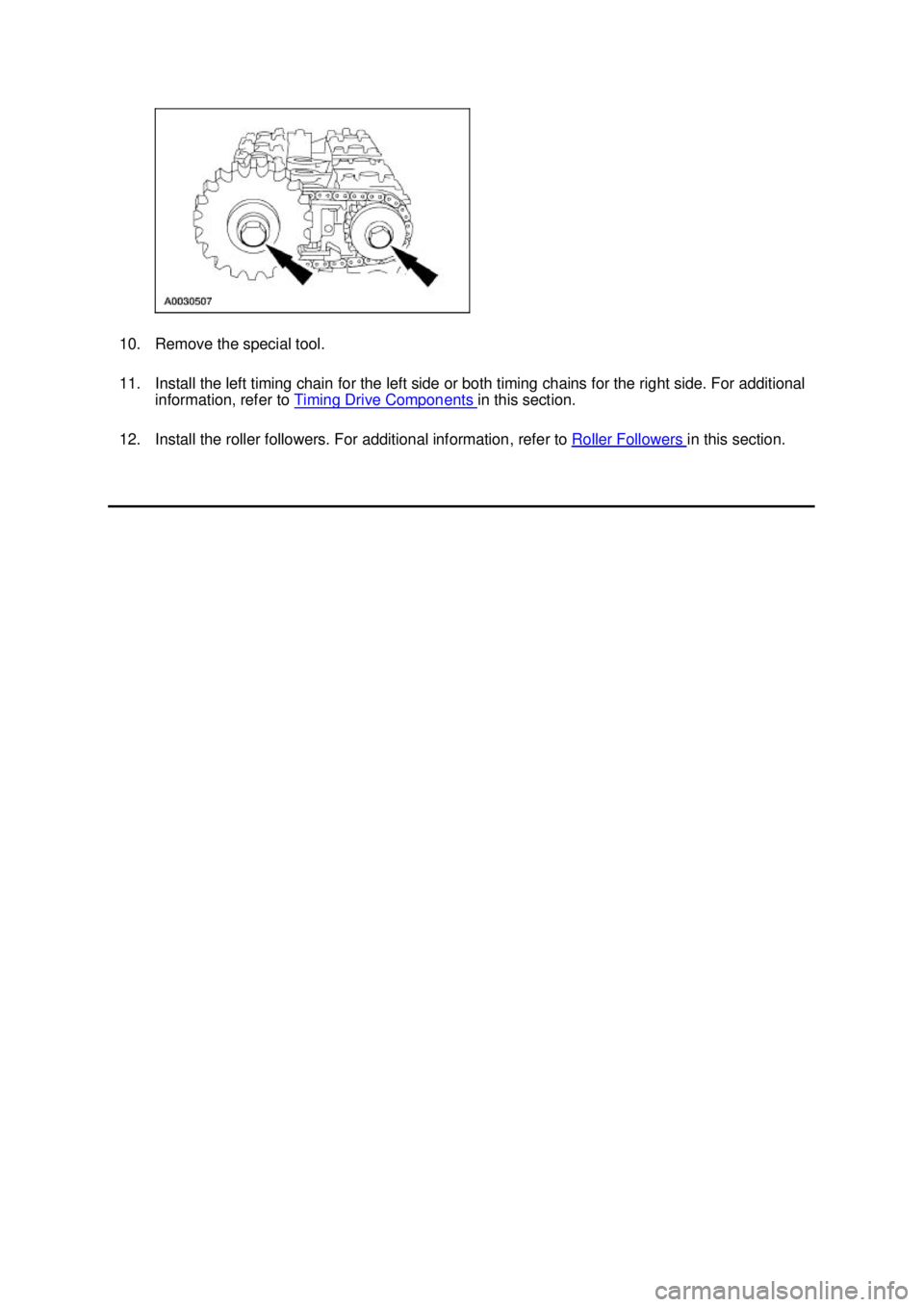

FORD MUSTANG 2003 Workshop Manual 10. Remove the special tool. 11. Install the left timing chain for the left side or both timing chains for the right side. For additional information, refer to Timing Drive Components in this sect

Page 1701 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Exhaust Manifold RH Removal and Installation 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 . 2. Raise the vehicle. For addition

Page 1702 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1703 of 4378

FORD MUSTANG 2003 Workshop Manual IN- VEHICLE REPAIR Exhaust Manifold LH Removal and Installation 1. Position the steering wheel straight ahead and lock the column. 2. Disconnect the battery ground cable. For additional informatio

Page 1704 of 4378

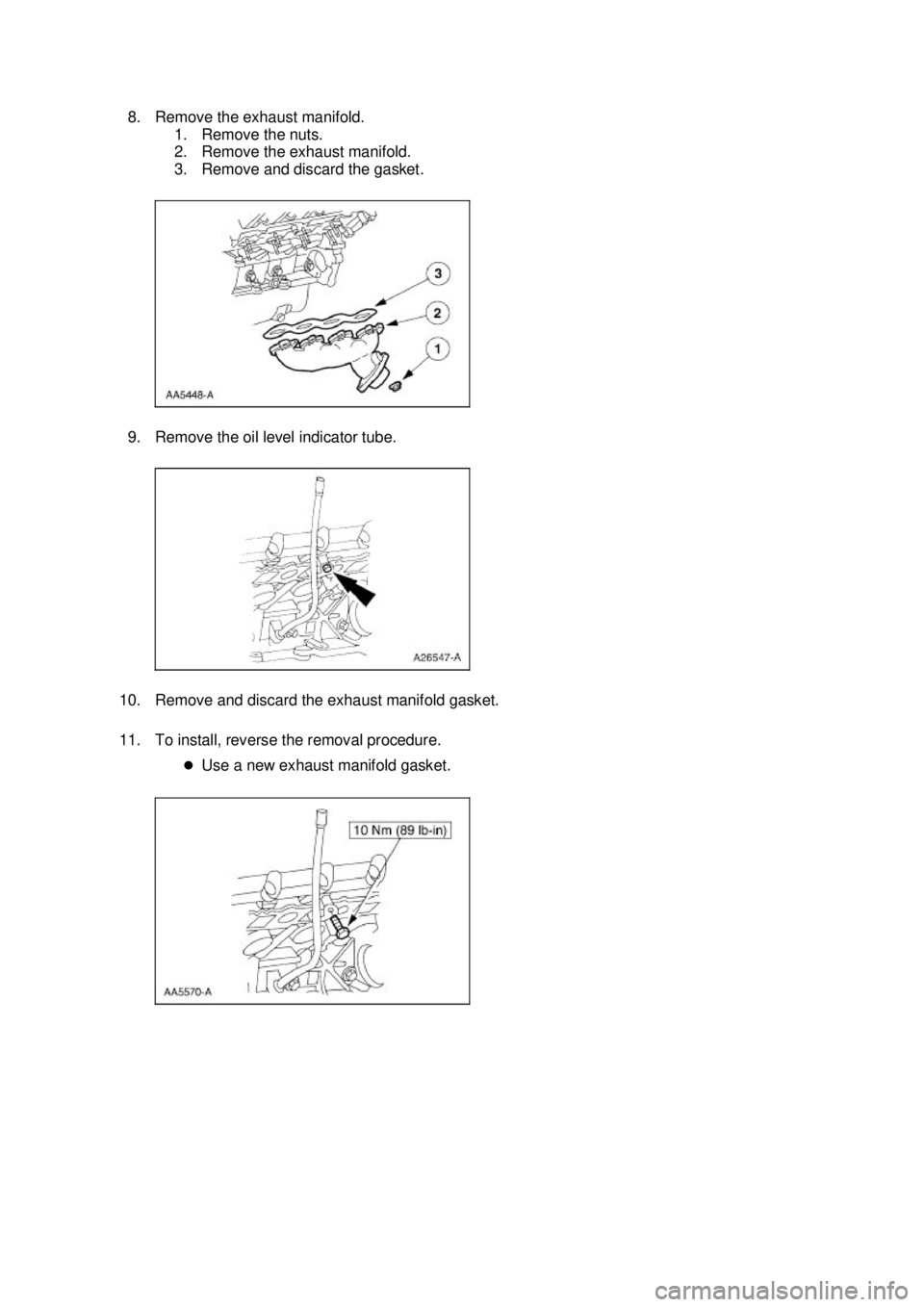

FORD MUSTANG 2003 Workshop Manual 8. Remove the exhaust manifold. 1. Remove the nuts. 2. Remove the exhaust manifold. 3. Remove and discard the gasket. 9. Remove the oil level indicator tube. 10. Remove and discard the exhaust ma
