Page 2017 of 4378

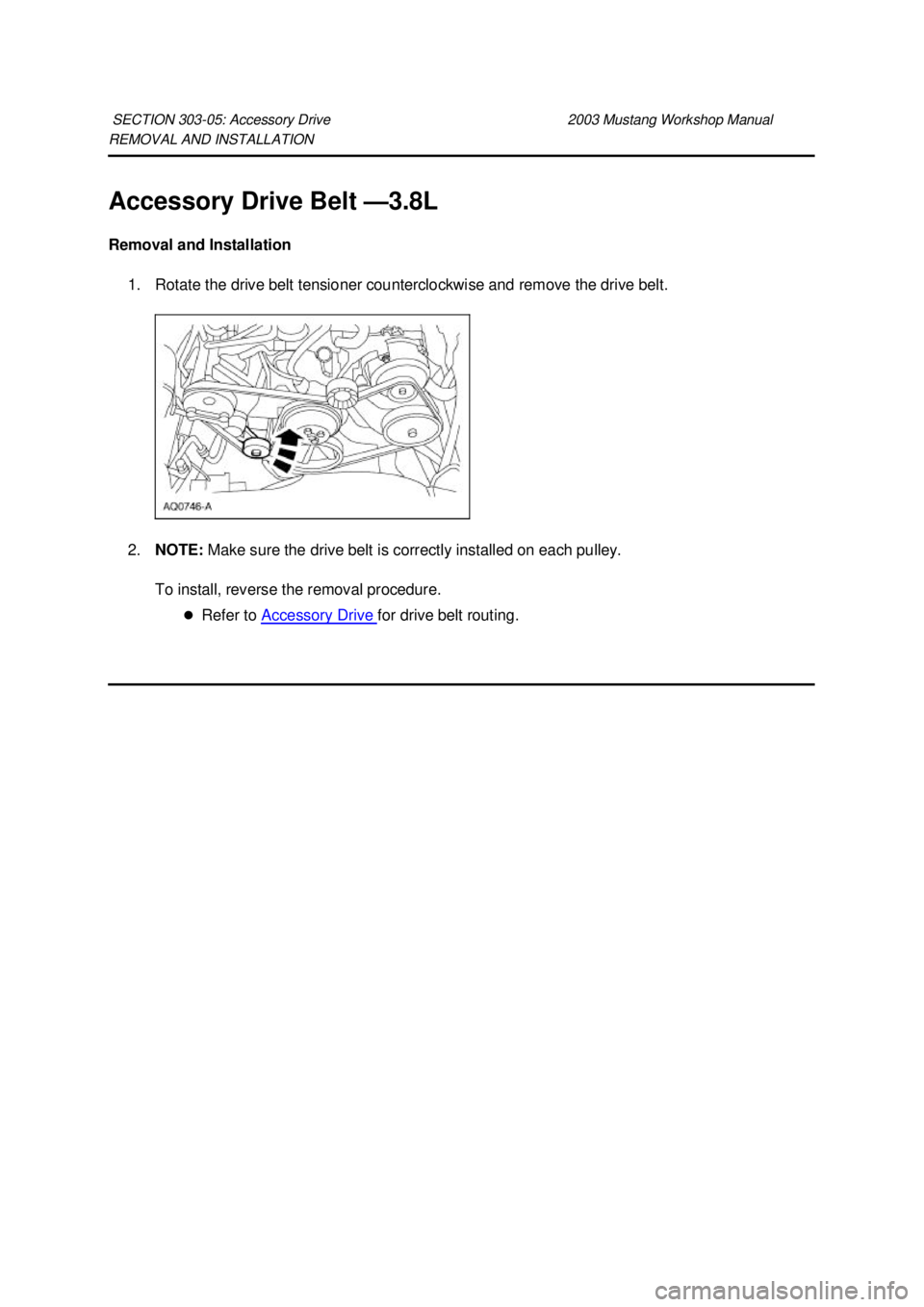

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Accessory Drive Belt — 3.8L Removal and Installation 1. Rotate the drive belt tensioner counterclockwise and remove the drive belt. 2. NOTE: Make sure the drive belt is

Page 2018 of 4378

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Accessory Drive Belt — 4.6L (2V) and (4V) Removal and Installation Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 . Cobr

Page 2019 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove auxiliary crankshaft pulley. For additional information, refer to Section 303 - 01C . All engines 7. Rotate the belt tensioner and remove the accessory drive belt. 8. NOTE: Make sure t

Page 2020 of 4378

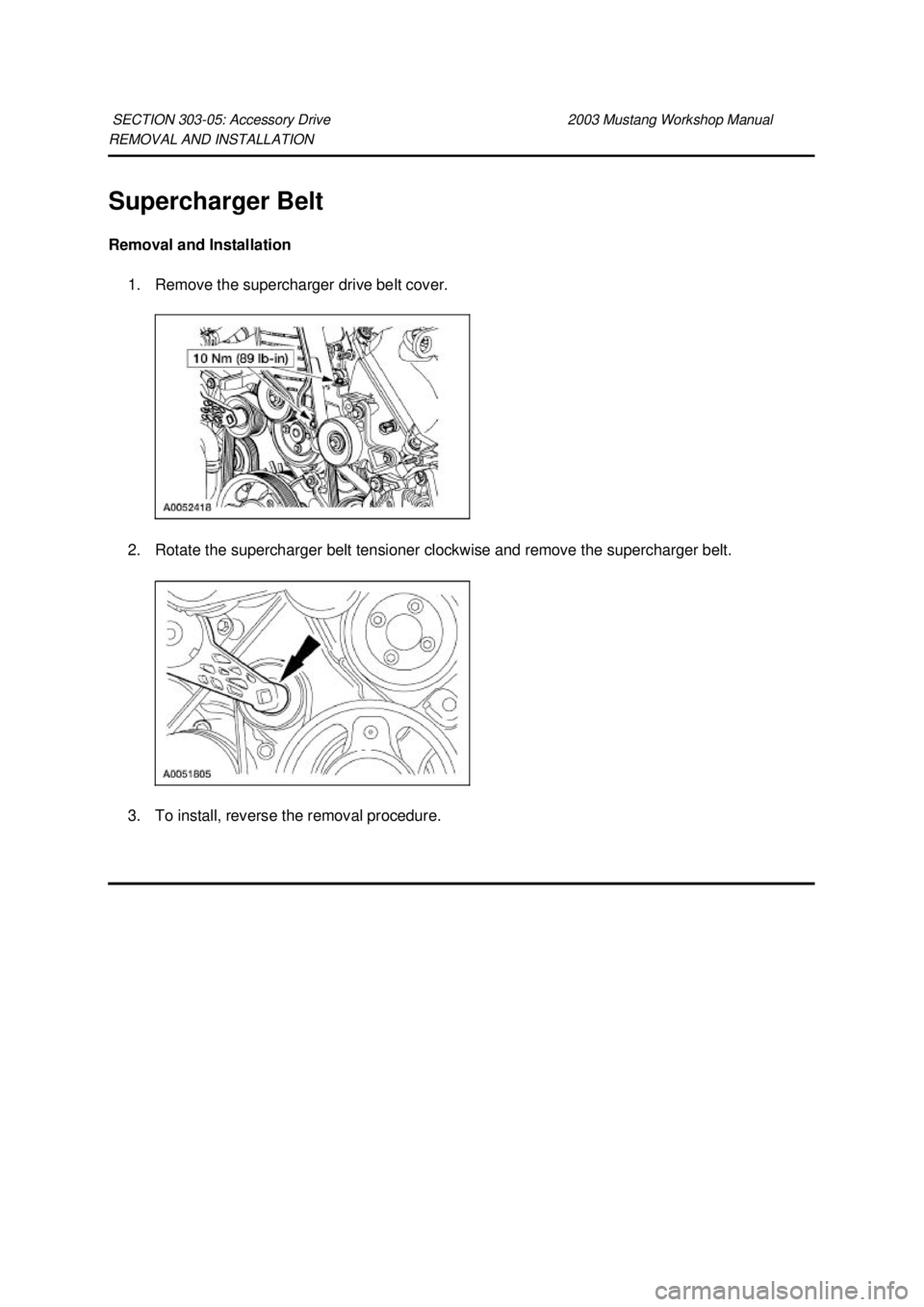

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Supercharger Belt Removal and Installation 1. Remove the supercharger drive belt cover. 2. Rotate the supercharger belt tensioner clockwise and remove the supercharger bel

Page 2021 of 4378

FORD MUSTANG 2003 Workshop Manual Klj . 2 ba 22003 Mustang Workshop Manual 18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2022 of 4378

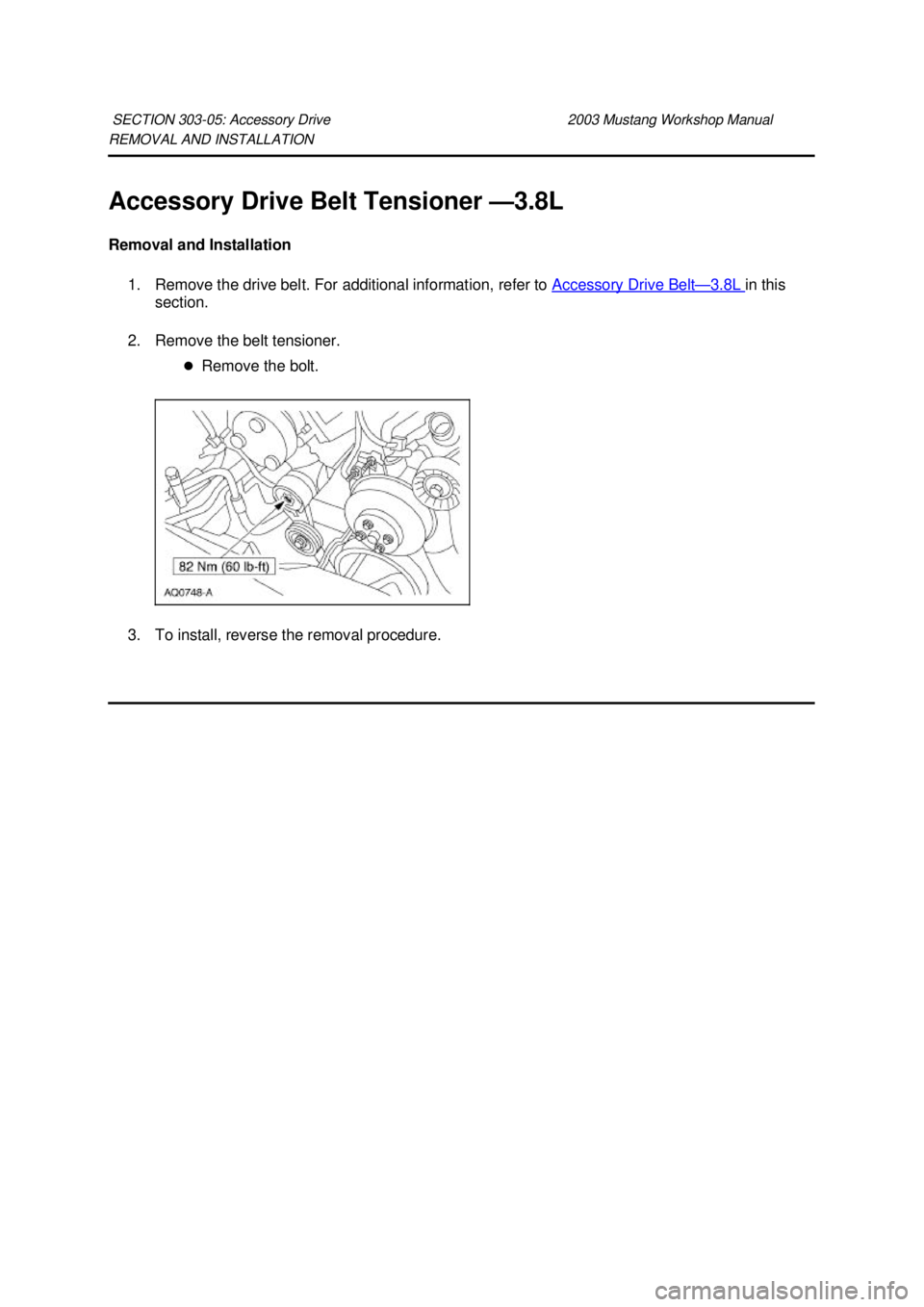

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Accessory Drive Belt Tensioner — 3.8L Removal and Installation 1. Remove the drive belt. For additional information, refer to Accessory Drive Belt — 3.8L in this sec

Page 2023 of 4378

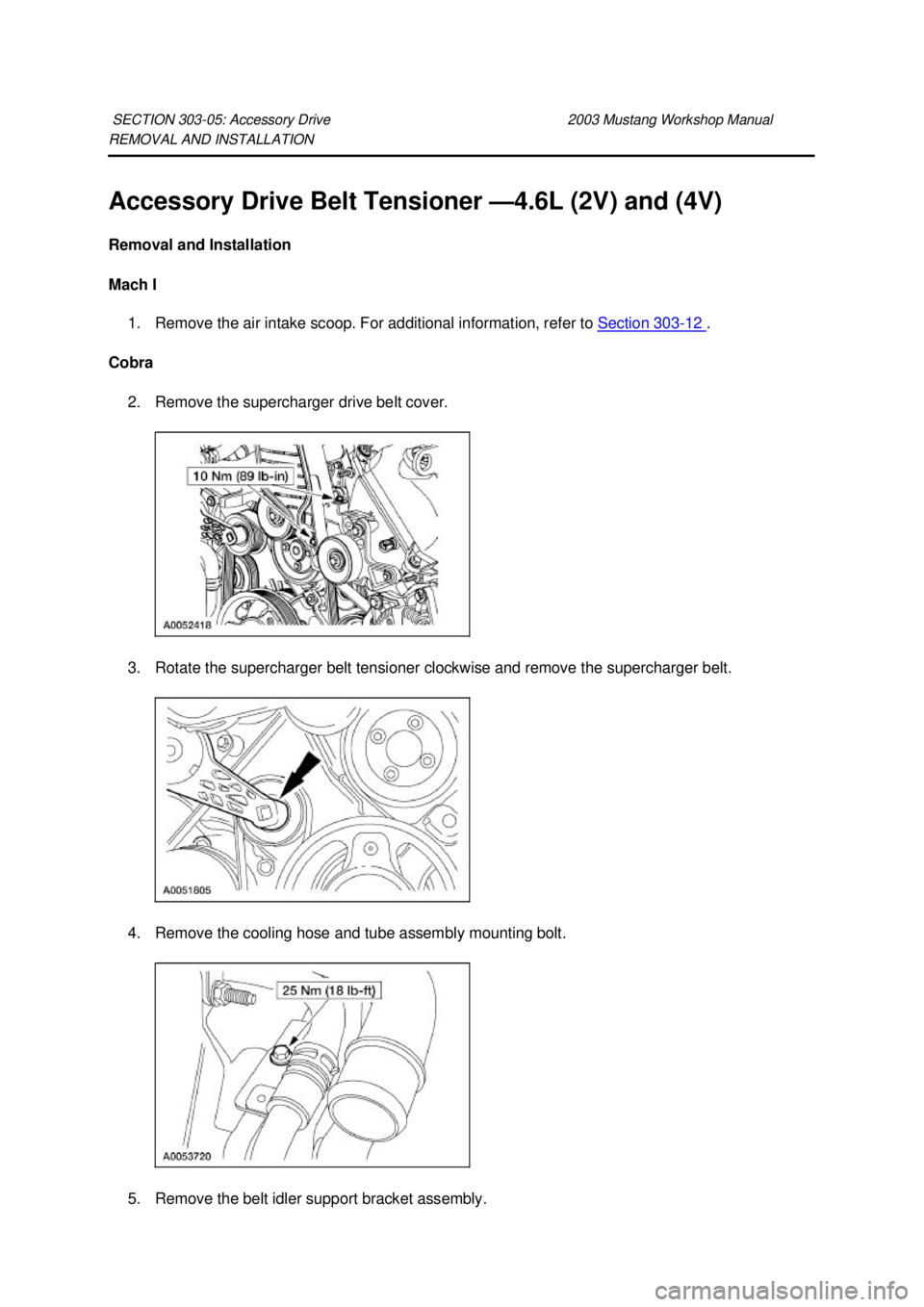

FORD MUSTANG 2003 Workshop Manual REMOVAL AND INSTALLATION Accessory Drive Belt Tensioner — 4.6L (2V) and (4V) Removal and Installation Mach I 1. Remove the air intake scoop. For additional information, refer to Section 303 - 1

Page 2024 of 4378

FORD MUSTANG 2003 Workshop Manual 6. Remove the accessory drive belt. For additional information, refer to Accessory Drive Belt — 4.6L (2V) and (4V) in this section. 7. Remove the accessory drive belt tensioner. All engines 8.
