Page 481 of 4378

FORD MUSTANG 2003 Workshop Manual 26. Remove the special tool from the differential clutch pack and differential side gear assembly. 27. Install the shim(s) on the differential clutch pack and differential side gear assembly. 28. In

Page 482 of 4378

FORD MUSTANG 2003 Workshop Manual 31. NOTE: If a new bolt is unavailable, coat the original bolt threads with Threadlock and Sealer EOAZ- 19554- AA or equivalent meeting Ford specification WSK-M2G351- A5 prior to final installation

Page 483 of 4378

FORD MUSTANG 2003 Workshop Manual 34. CAUTION: Do not damage the aluminum differential housing while carrying out these procedures. Place the differential case with the special tools in the differential housing. 35. Position the s

Page 484 of 4378

FORD MUSTANG 2003 Workshop Manual a Round off initial thickness to the nearest shim thickness as in example for final shim thickness. 37. Remove the Dial Indicator and the differential case from the differential housing. 38. Draw

Page 485 of 4378

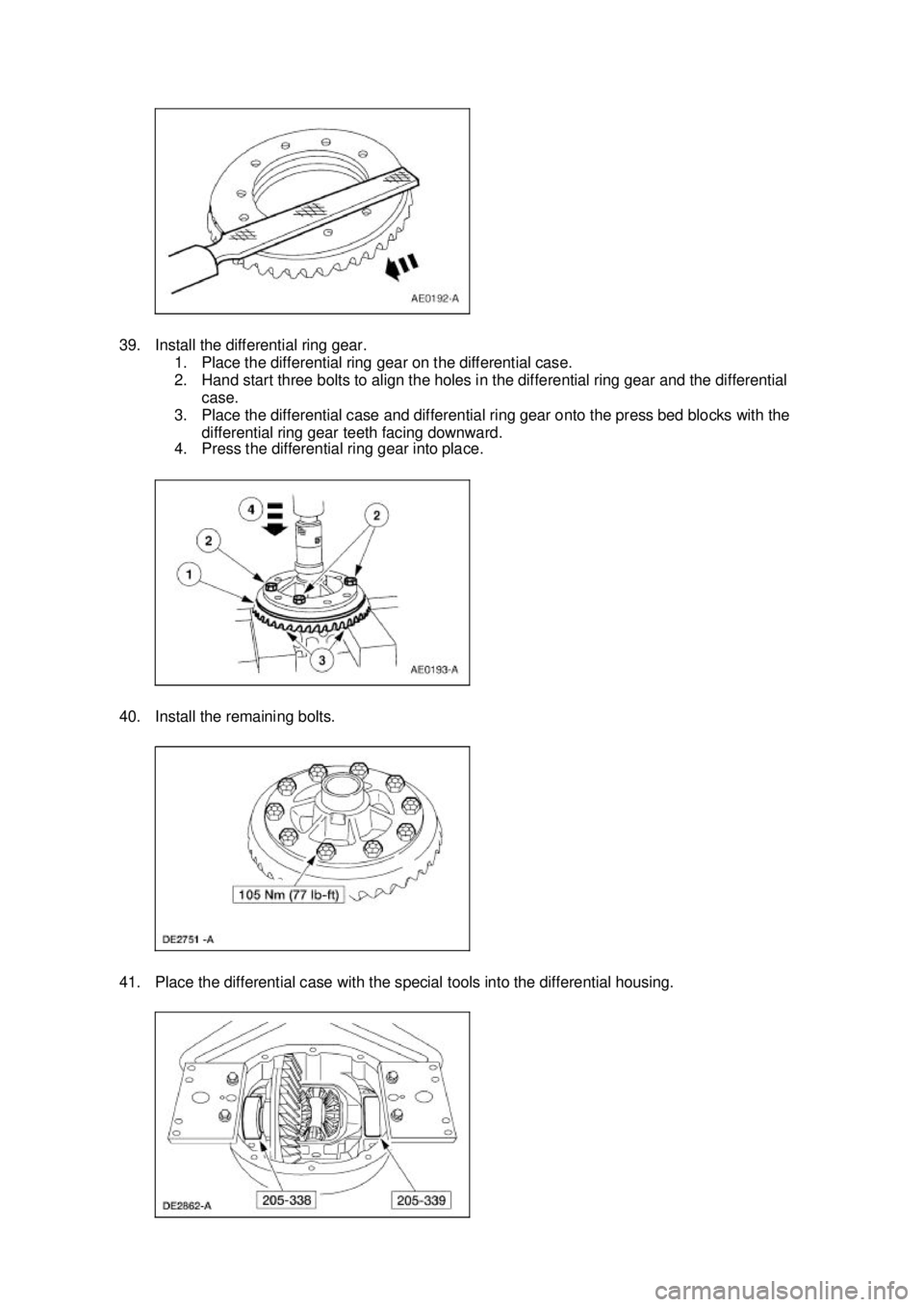

FORD MUSTANG 2003 Workshop Manual 39. Install the differential ring gear. 1. Place the differential ring gear on the differential case. 2. Hand start three bolts to align the holes in the differential ring gear and the differential

Page 486 of 4378

FORD MUSTANG 2003 Workshop Manual 42. NOTE: The bolts retaining the differential ring gear to the differential case may interfere while carrying out this procedure. If so, remove three to five bolts to provide clearance. Measure th

Page 487 of 4378

FORD MUSTANG 2003 Workshop Manual 1. Place the special tool base in a soft- jawed vise with the bearing mounting surface above the vise jaws. 2. Position the differential bearing on the special tool base. 3. Attach the bolt, spring

Page 488 of 4378

FORD MUSTANG 2003 Workshop Manual 50. CAUTION: Overspreading may damage the differential housing. NOTE: Tighten and loosen the Differential Carrier Spreader screw to normalize the Housing Spreader Adapters prior to taking the fina
